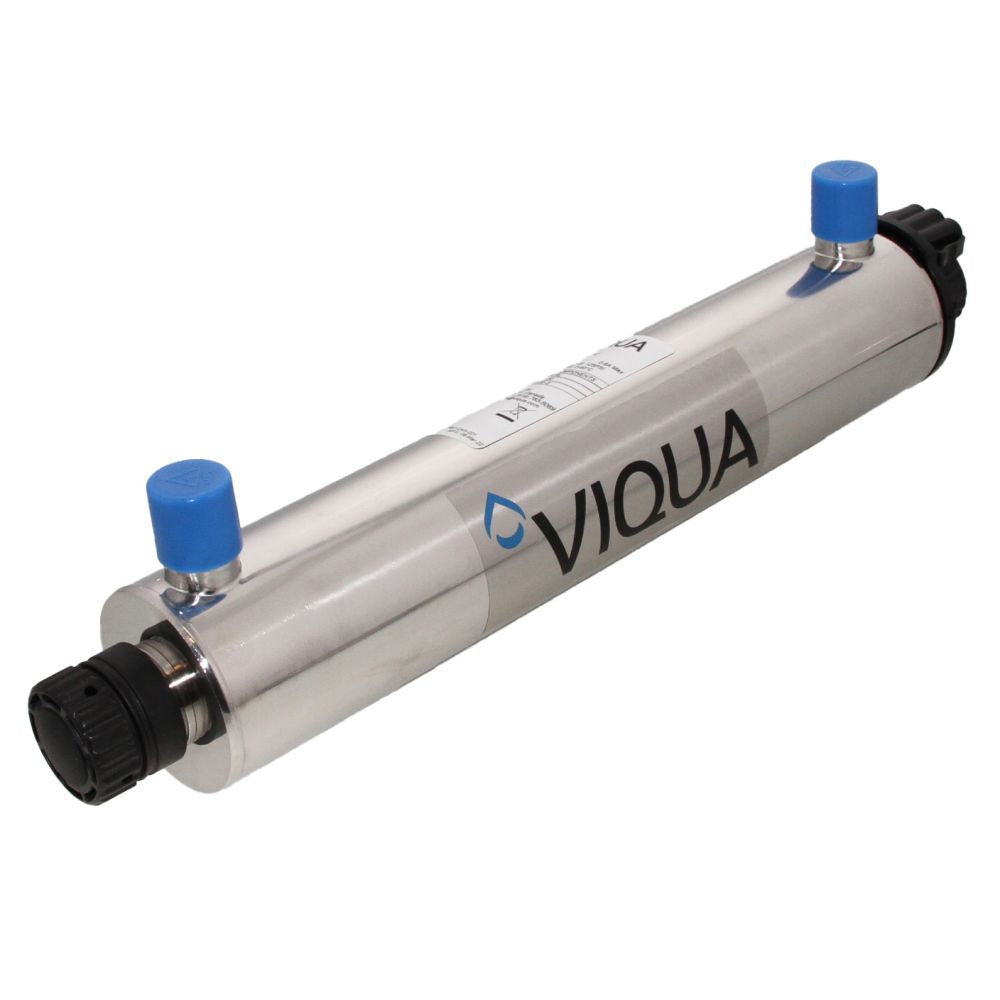

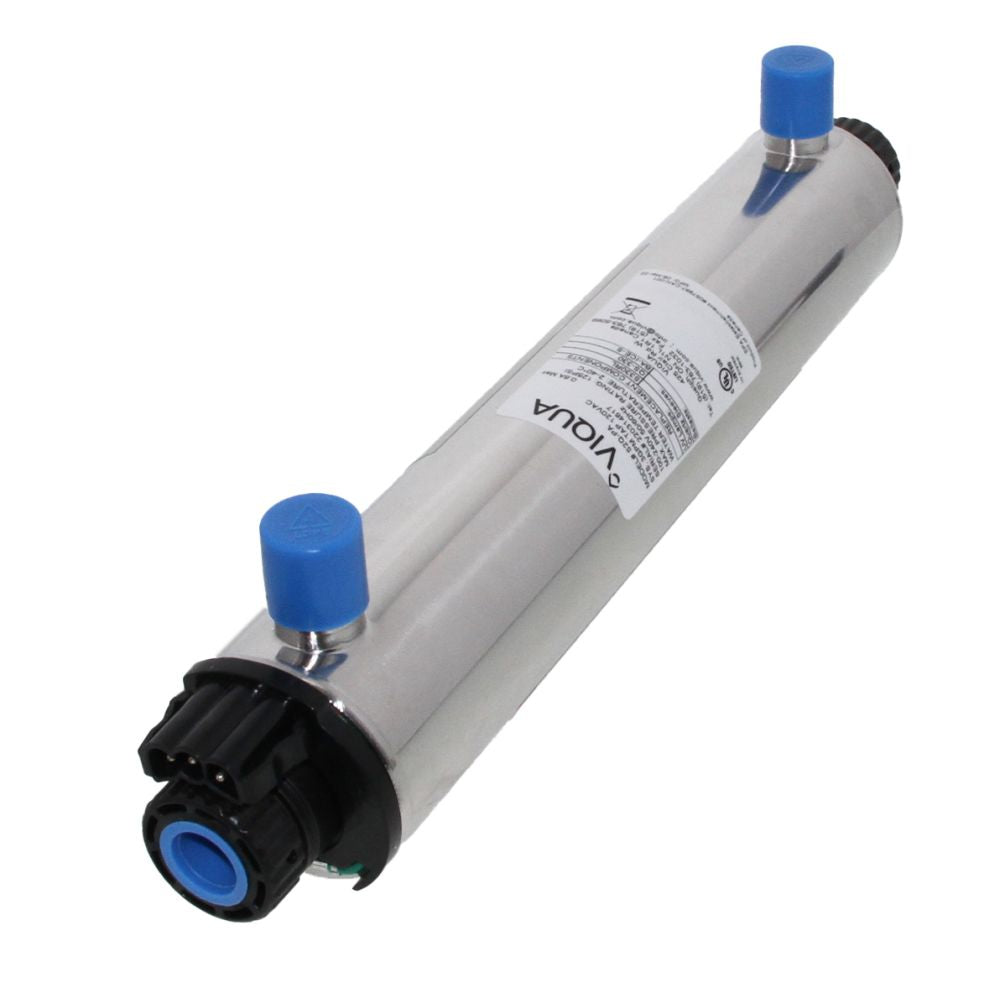

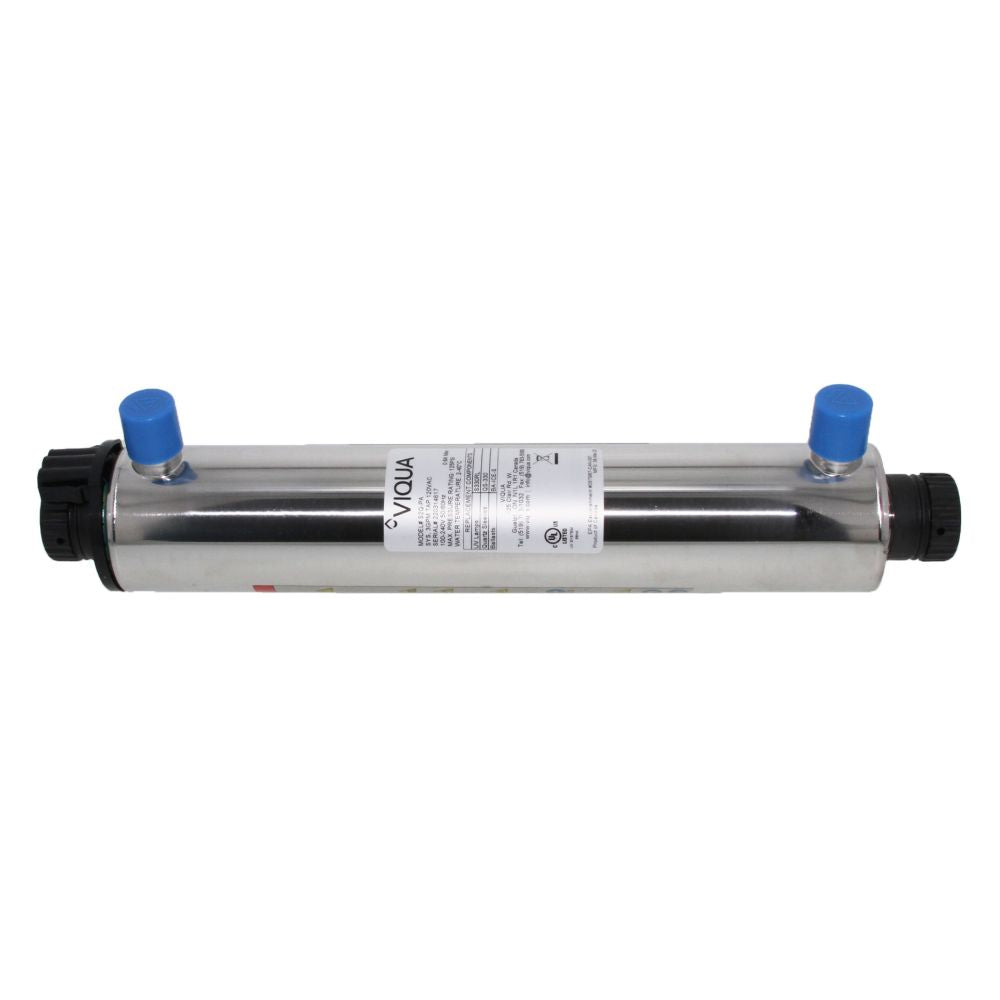

Viqua S2Q-PA Silver Series UV System is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water.
Specifications:
- Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator
- Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications
- Open-end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency
- 99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow
- Hard glass, low-pressure mercury vapour lamps with high isolation pin design
- Nature's way to protect your water without the addition of harmful chemicals
- Easy servicing - no need to disconnect water flow to change UV lamp
- Seven-year warranty on reactor chamber for unparalleled protection
- Includes mounting clamp
- CSA and CE compliant

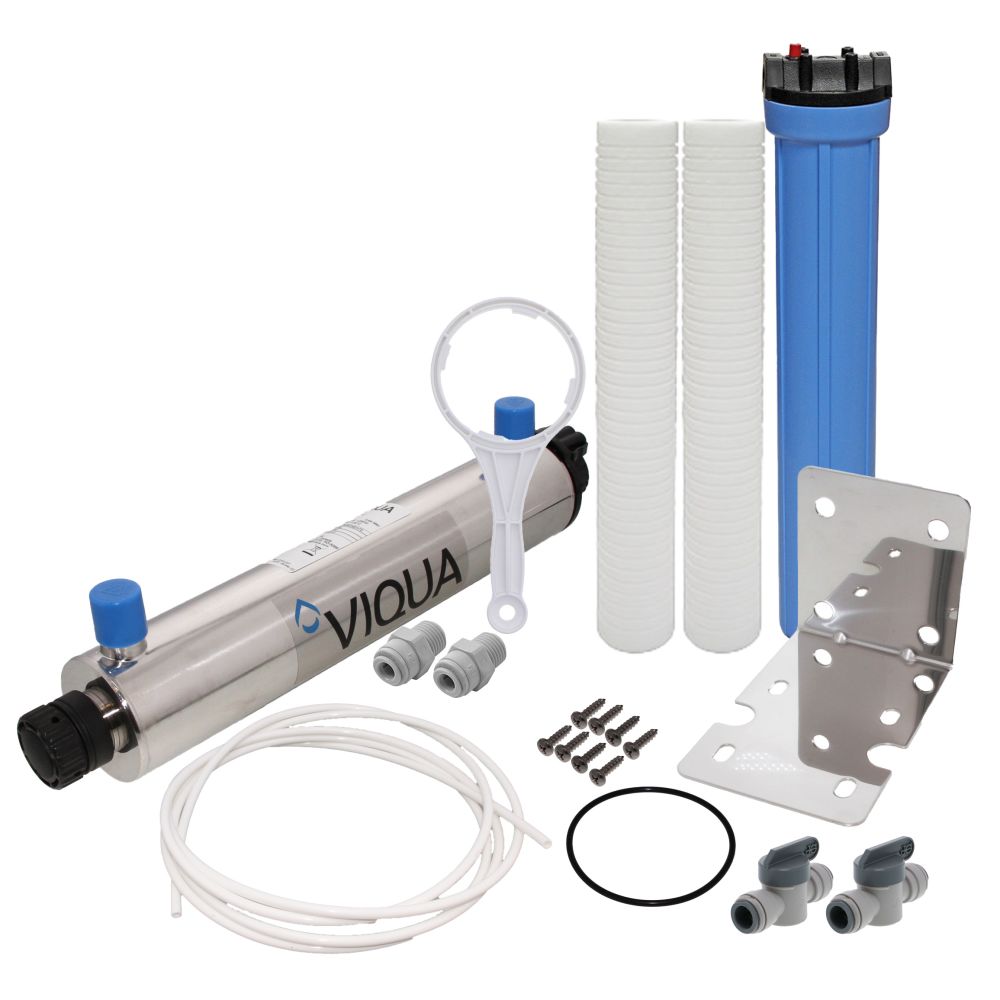

This system is compatible with the S330RL Sterilight Lamp and the QS-330D Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for S2Q includes:
- Sterilight Lamp (1): S330RL
- Sterilight Quartz Sleeve (1): QS-330
- Sterilight O-Rings (2): 410867
230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.
| Product Details |
|---|
Ambient Temperature Range | 36-104 °F |
Body Material | 304 Stainless Steel |
Features | Visual Power On |
Frequency Rate | 50/60 Hz |
Inlet Connection | 1/2" MPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 5 |
Number Of Lamps | 1 |
Outlet Connection | 1/2" MPT |
Power | 22 Watts |
Size | 1/2" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Contaminants Reduced | Bacteria Heavy Metals Cysts |
Diameter | 2-1/2" |
Flow Rate | 5 GPM (16mJ/cm2 Dose) 3 GPM (30mJ/cm2 Dose) 2 GPM (40mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 120 V |
| Warranty & Certifications |
|---|
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |
| Shipping Dimensions |
|---|
Shipping Length | 21 in. |
Shipping Width | 6.75 in. |
Shipping Height | 6.75 in. |
| Product Weight & Dimensions |
|---|
Power Supply Dimensions | 7.3"x3.2"x2-1/2" |
Product Height | 6.75 in. |
Product Length | 21 in. |
Product Width | 6.75 in. |
Product Weight (lbs) | 5.9 |
| Product Details |
|---|
Ambient Temperature Range | 36-104 °F |
Body Material | 304 Stainless Steel |
Features | Visual Power On |
Frequency Rate | 50/60 Hz |
Inlet Connection | 1/2" MPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 5 |
Number Of Lamps | 1 |
Outlet Connection | 1/2" MPT |
Power | 22 Watts |
Size | 1/2" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Contaminants Reduced | Bacteria Heavy Metals Cysts |
Diameter | 2-1/2" |
Flow Rate | 5 GPM (16mJ/cm2 Dose) 3 GPM (30mJ/cm2 Dose) 2 GPM (40mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 120 V |
| Warranty & Certifications |
|---|
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |
| Product Weight & Dimensions |
|---|
Power Supply Dimensions | 7.3"x3.2"x2-1/2" |
Product Weight (lbs) | 12 |
| Product Details |
|---|
Ambient Temperature Range | 36-104 °F |
Body Material | 304 Stainless Steel |
Features | Visual Power On |
Frequency Rate | 50/60 Hz |
Inlet Connection | 1/2" MPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 5 |
Number Of Lamps | 1 |
Outlet Connection | 1/2" MPT |
Power | 22 Watts |
Size | 1/2" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Contaminants Reduced | Bacteria Heavy Metals Cysts |
Diameter | 2-1/2" |
Flow Rate | 5 GPM (16mJ/cm2 Dose) 3 GPM (30mJ/cm2 Dose) 2 GPM (40mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 120 V |
| Warranty & Certifications |
|---|
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |
| Product Weight & Dimensions |
|---|
Power Supply Dimensions | 7.3"x3.2"x2-1/2" |
Product Weight (lbs) | 6 |
| Product Details |
|---|
Ambient Temperature Range | 36-104 °F |
Body Material | 304 Stainless Steel |
Features | Visual Power On |
Frequency Rate | 50/60 Hz |
Inlet Connection | 1/2" MPT |
Max Pressure (Psi) | 125 |
Min Pressure (Psi) | 5 |
Number Of Lamps | 1 |
Outlet Connection | 1/2" MPT |
Power | 22 Watts |
Size | 1/2" |
System Class | Residential Systems |
Connection Type | Male (MPT) |
Contaminants Reduced | Bacteria Heavy Metals Cysts |
Diameter | 2-1/2" |
Flow Rate | 5 GPM (16mJ/cm2 Dose) 3 GPM (30mJ/cm2 Dose) 2 GPM (40mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 120 V |
| Warranty & Certifications |
|---|
Warranty | 7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components |
| Shipping Dimensions |
|---|
Shipping Length | 31 in. |
Shipping Width | 21 in. |
Shipping Height | 9 in. |
| Product Weight & Dimensions |
|---|
Power Supply Dimensions | 7.3"x3.2"x2-1/2" |
Product Weight (lbs) | 30 |
