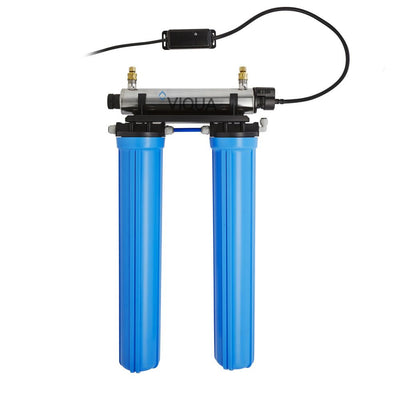

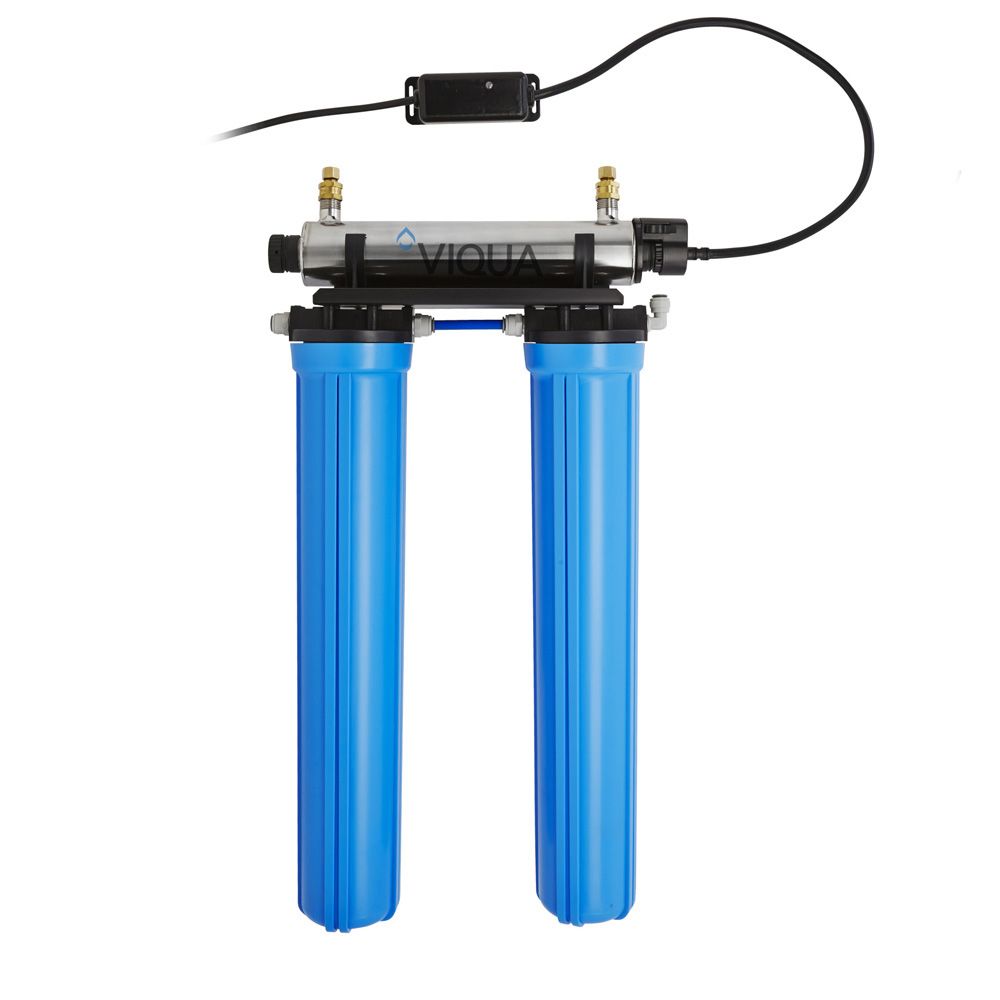

Viqua VT4-DWS Copper Series UV Drinking Water System Powered By Sterilight 3.5 gpm

Viqua / Trojan

Viqua VT4-DWS Copper Series UV Drinking Water System Powered By Sterilight 3.5 gpm

Part Number: VT4-DWS

out of stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

MSRP: $850.00

Your price:

$722.50

Choose

120 Volt

$722.50 each

230 Volt

$722.50 each

Quantity

The Viqua VT4-DWS Copper Series Ultraviolet Drinking Water Systemprovides a point-of-use water treatment system with both disinfection and filtration. The VT4-DWS is ideal for point of use applications such as under the sink, in a basement or other locations, depending on available space.

Features:

Inlet/Outlet Connections: 3/8" quick connect
Copper disinfection system and two five micron sediment filters on the same installation bracket
The Viqua VT4-DWS provides point-of-use disinfection with a flow rate of 3.5 gpm at a 30 mJ/cm² dose (2.5 gpm if a dose of 40 mJ/cm² is required.)
This modular system, incorporating the new Copper controller, is ideal for any application requiring a high flow rate in a compact space
Polished 304 stainless steel axial flow reactor chamber
Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor and the connector can be removed without any additional tools

This system is compatible with the S330RL Sterilight Lamp and the QS-330D Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VT4-DWS includes:

Sterilight Lamp (1): S330RL
Sterilight Quartz Sleeve (1): QS-330D
Sterilight O-Rings (2): 410867

230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.

Product Details
Ambient Temperature Range	32-122 °F
Body Material	304 Stainless Steel
Features	Visual Power On
Max Pressure (Psi)	125
Number Of Lamps	1
Power	20 W
Push-In Size	3/8" OD
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	2-1/2"
Flow Rate	6.5 GPM (16mJ/cm2 Dose) 3.5 GPM (30mJ/cm2 Dose) 2.5 GPM (40mJ/cm2 Dose)
Type	UV Drinking Water System
Voltage	120V 230V
Shipping Dimensions
Shipping Length	30 in.
Shipping Width	21 in.
Shipping Height	7 in.
Product Weight & Dimensions
Dimensions	19" x 27-1/2" x 6"
Product Length	17"
Product Weight (lbs)	19.7

Product Details
Ambient Temperature Range	32-122 °F
Body Material	304 Stainless Steel
Features	Visual Power On
Max Pressure (Psi)	125
Number Of Lamps	1
Power	20 W
Push-In Size	3/8" OD
Contaminants Reduced	Bacteria Heavy Metals Cysts
Diameter	2-1/2"
Flow Rate	6.5 GPM (16mJ/cm2 Dose) 3.5 GPM (30mJ/cm2 Dose) 2.5 GPM (40mJ/cm2 Dose)
Type	UV Drinking Water System
Voltage	120V 230V
Product Weight & Dimensions
Dimensions	19" x 27-1/2" x 6"
Product Length	17"
Product Weight (lbs)	14

Inlet/Outlet Connections: 3/8" quick connect
Copper disinfection system and two five micron sediment filters on the same installation bracket
The Viqua VT4-DWS provides point-of-use disinfection with a flow rate of 3.5 gpm at a 30 mJ/cm² dose (2.5 gpm if a dose of 40 mJ/cm² is required.)
This modular system, incorporating the new Copper controller, is ideal for any application requiring a high flow rate in a compact space
Polished 304 stainless steel axial flow reactor chamber
Lamp change is easily accomplished without interrupting the water flow, or having to drain the reactor and the connector can be removed without any additional tools

This system is compatible with the S330RL Sterilight Lamp and the QS-330D Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VT4-DWS includes:

Sterilight Lamp (1): S330RL
Sterilight Quartz Sleeve (1): QS-330D
Sterilight O-Rings (2): 410867

230V systems are shipped with 2-prong continental European (CEE-7/7) 2 pin with ground "Schuko" power cord.
