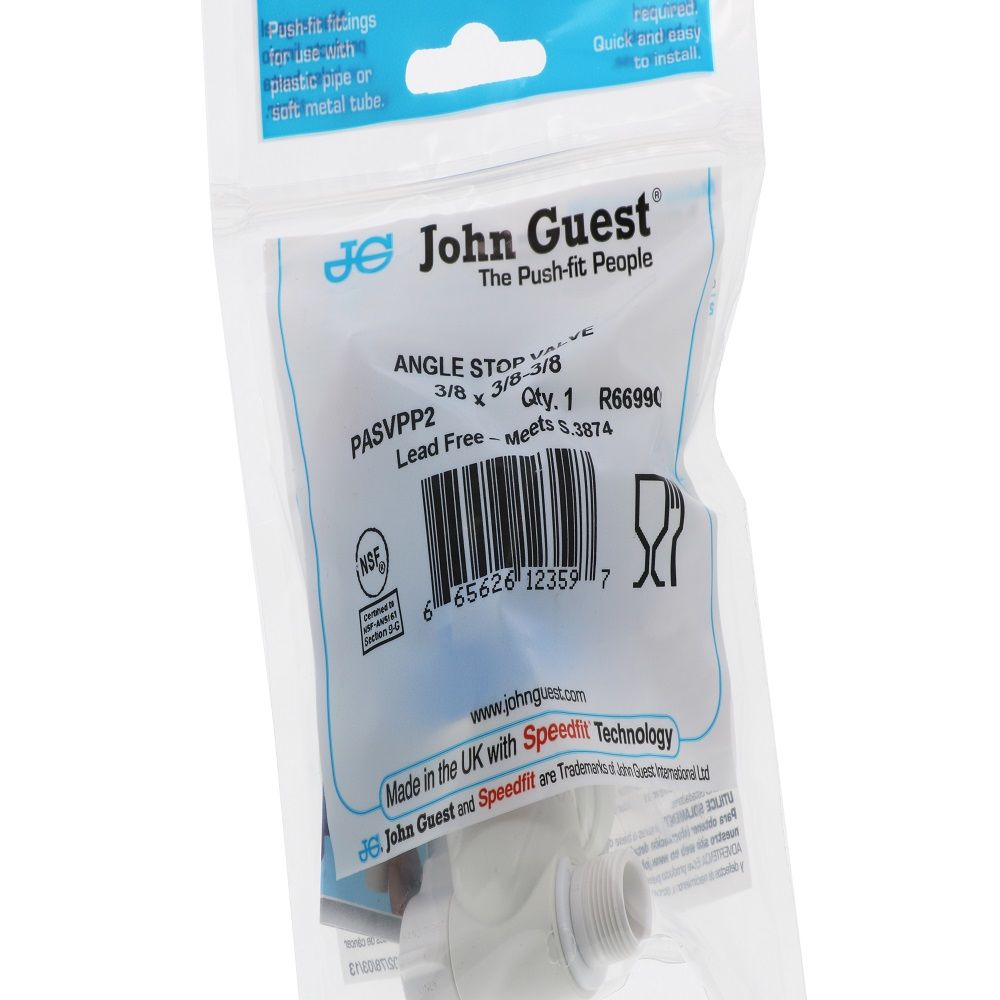

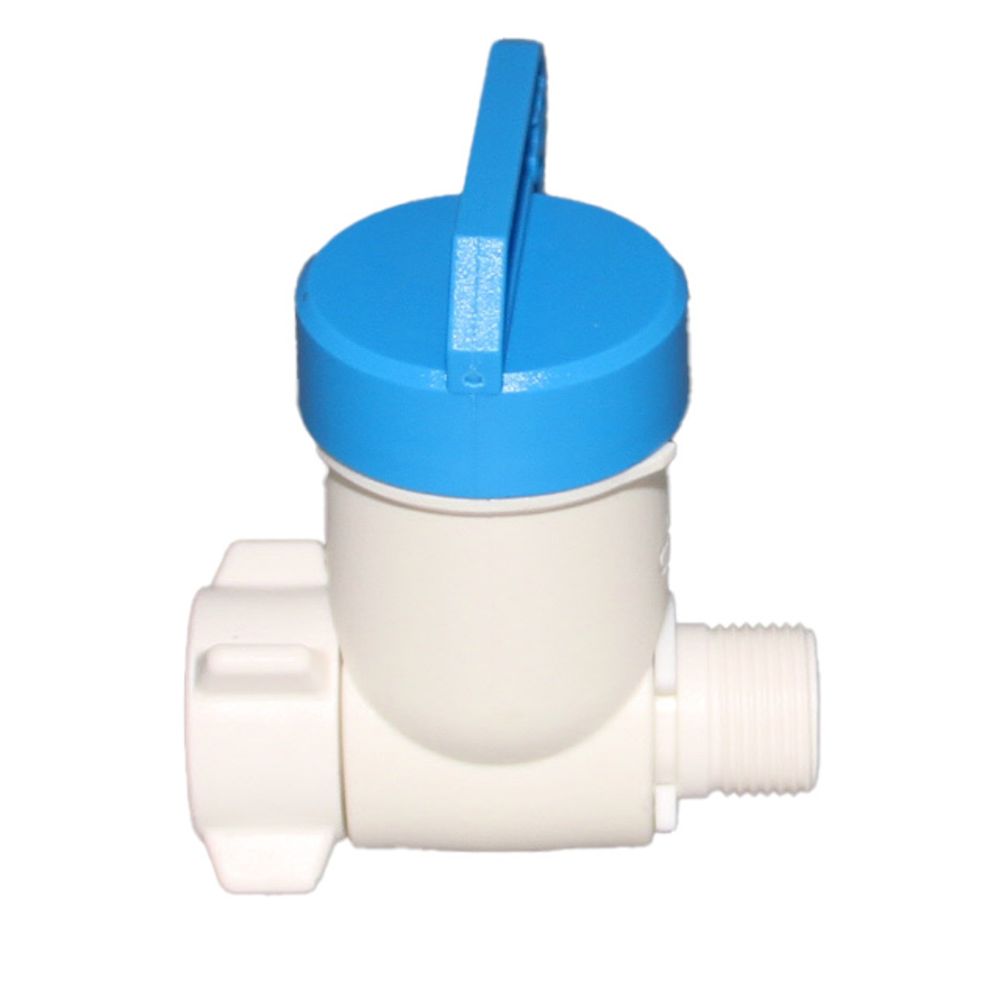

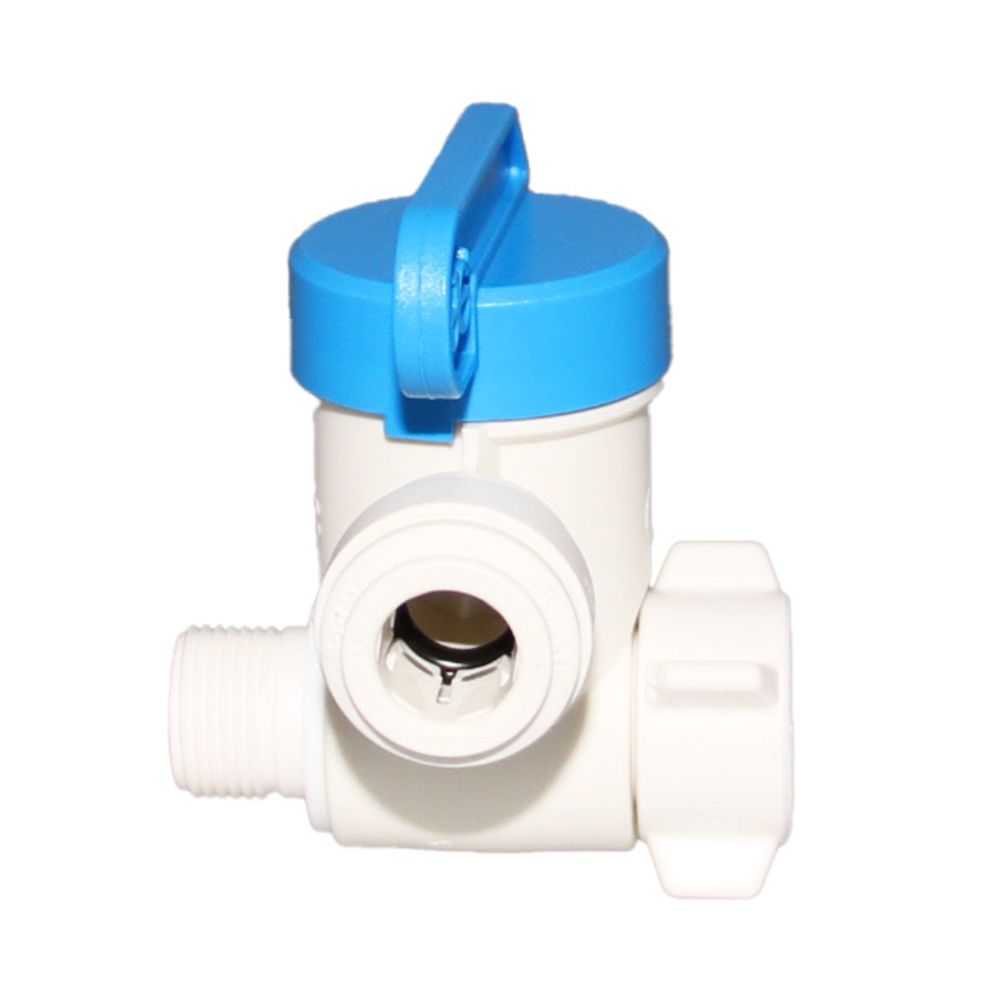

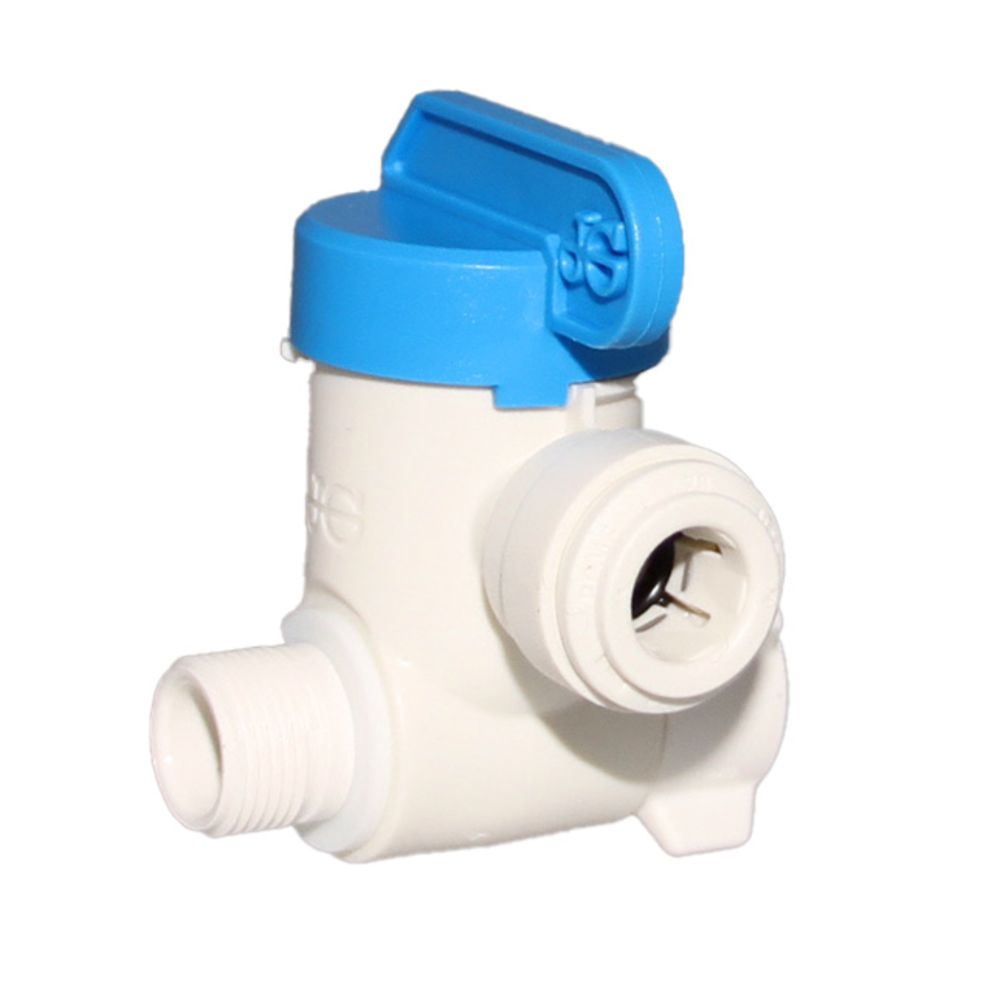

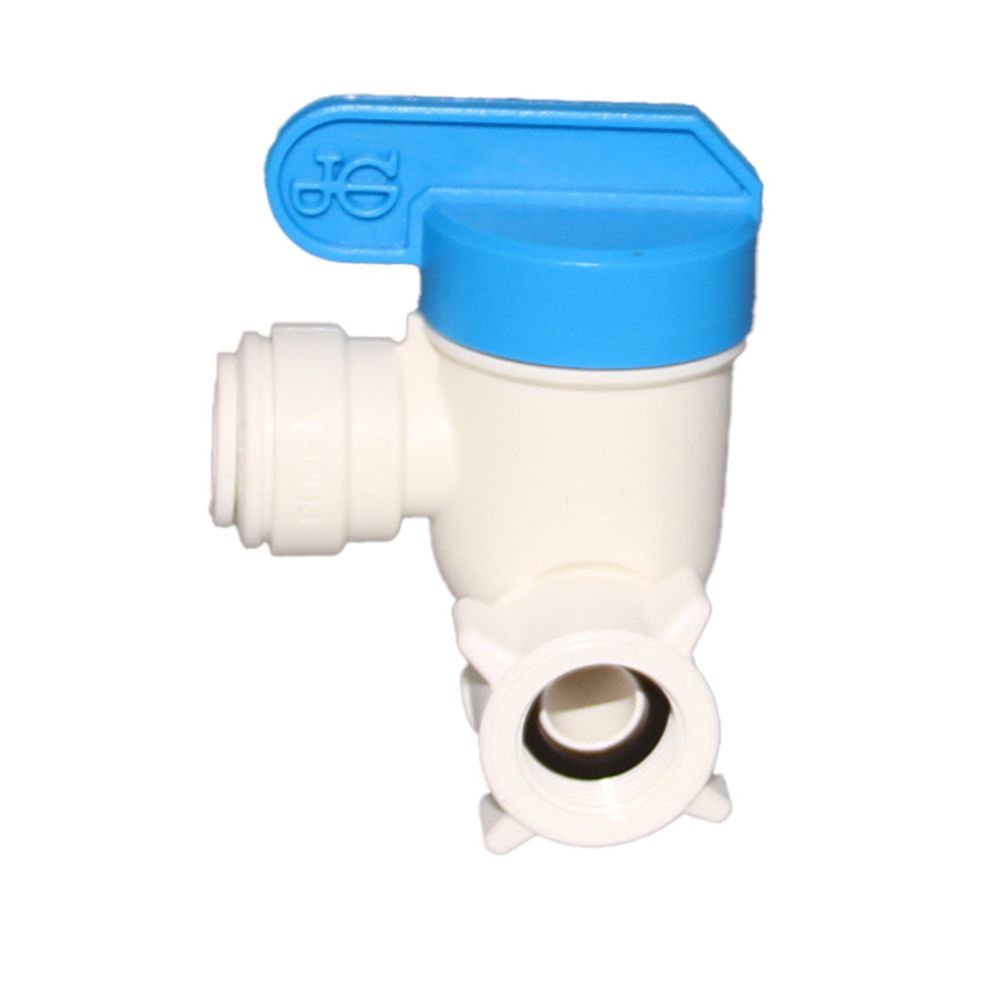

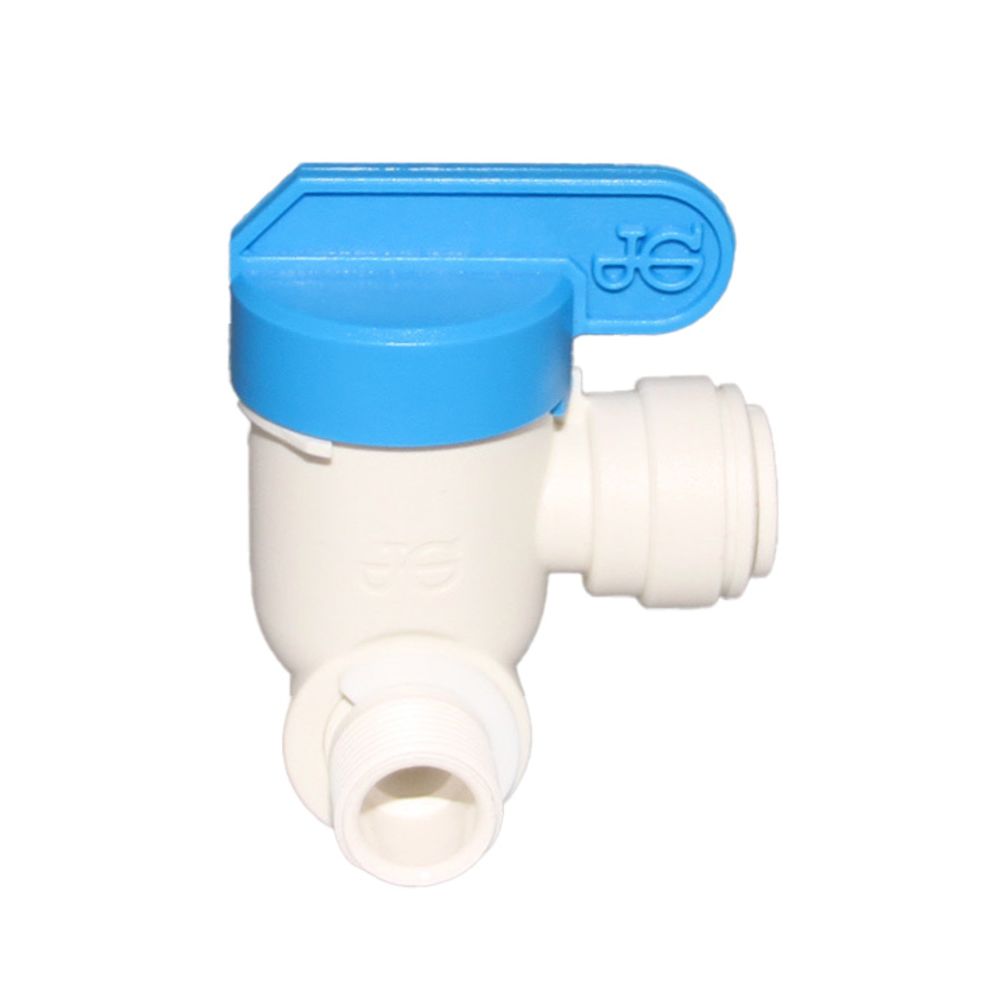

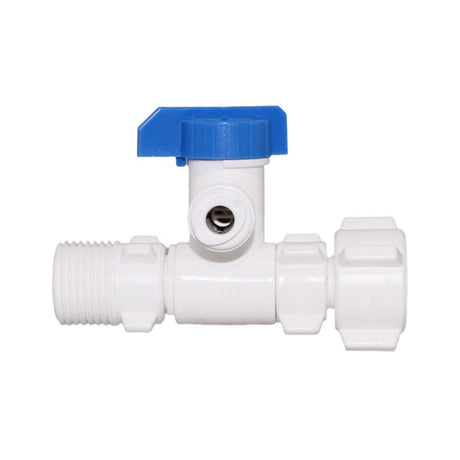

John Guest Plastic Angle Stop Adapter Valve Lead-Free - 3/8 x 3/8 x 3/8

The John Guest Angle Stop Adapter Valve connects between the stop valve and riser to provide a water supply feed line for applications in filtration systems, RO systems, coffee machines, and ice makers. The Push-fit technology makes installations quick and easy. They are manufactured in white polypropylene with food grade EPDM seals, with plated lead-free brass threads.

Features:

For use with plastic or copper OD sized tubing
For cold water supply use only
Quarter turn to open or close
White Polypropylene body, EPDM seals
Lead Free materials
Quick and easy connection/disconnection
NSF51 and NSF61 listed
Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems

Working pressure & temperature:

Max 145 psi at 68°F
Max 58 psi at 140°F
Min 34°F/1°C

Do Not Use these Valves:

In a partially open position to control flow
To provide a permanent termination
Without tubing assembled or plugged (or threaded connections sealed)
As a tap of “faucet”

California residents see Prop 65 Warning

Product Details
Application	Water Supply
Body Material	Polypropylene
Inlet Connection	3/8" Compression
Max Pressure (Psi)	150
Max Temp (°F)	158
Min Pressure (Psi)	0
Min Temp (°F)	33
O-Rings	EPDM
Outlet Connection	3/8" Compression
Push-In Size	3/8" OD
Series	PI
Size	3/8"
Color / Finish	White
Connection Type	Compression
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	2.472 in.
Shipping Width	1.87 in.
Shipping Height	1.929 in.
Product Weight & Dimensions
Product Height	1.929 in.
Product Length	2.472 in.
Product Width	1.87 in.
Product Weight (lbs)	0.0807
