Home / Plumbing / Water Supply Adapters / Angle Stop Adapter 3/8" Compression x 3/8" QC Valve - 1/2" NPS Adapter

Neo-Pure

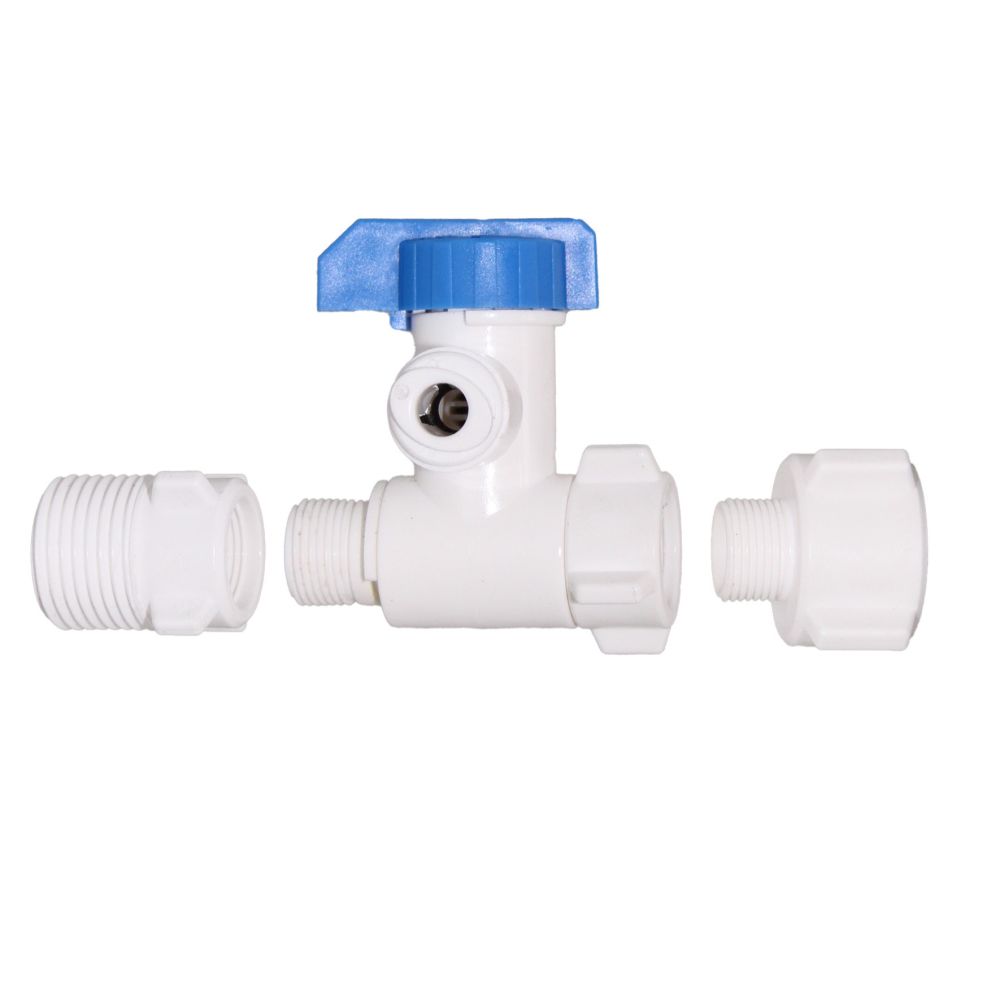

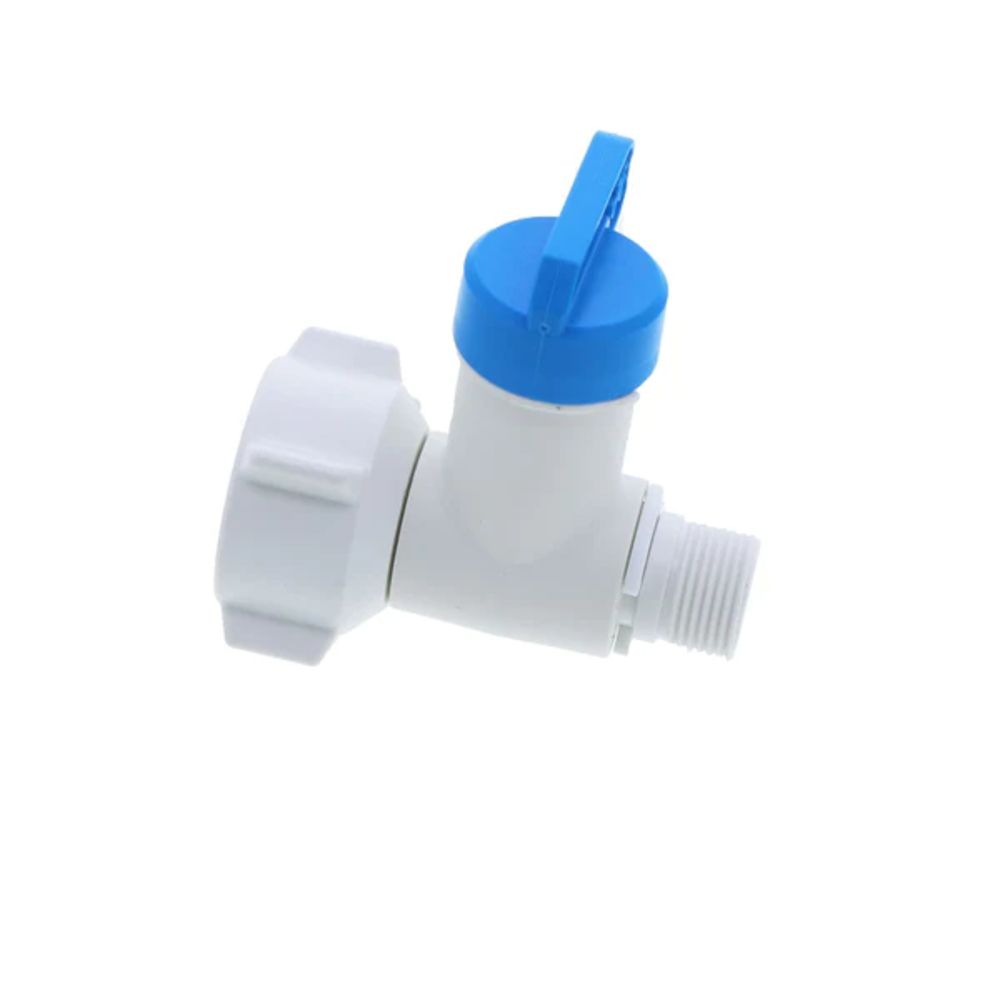

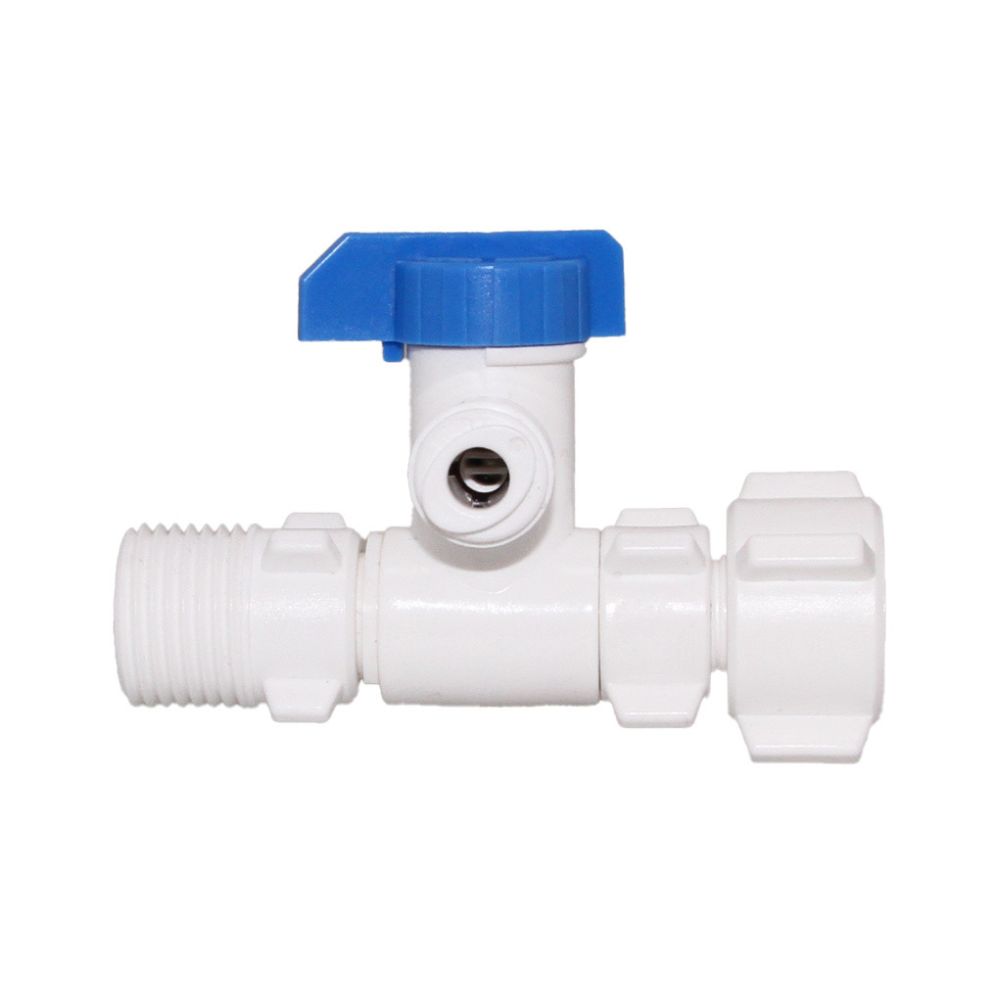

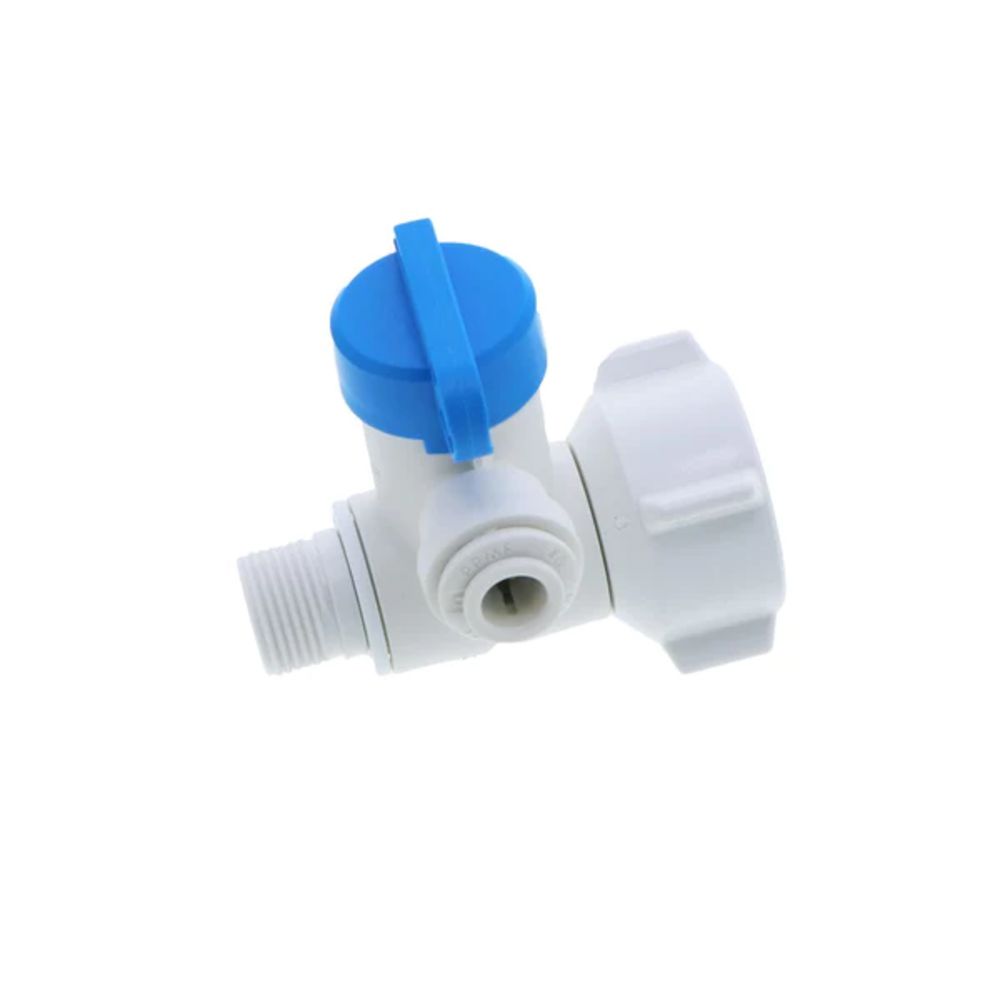

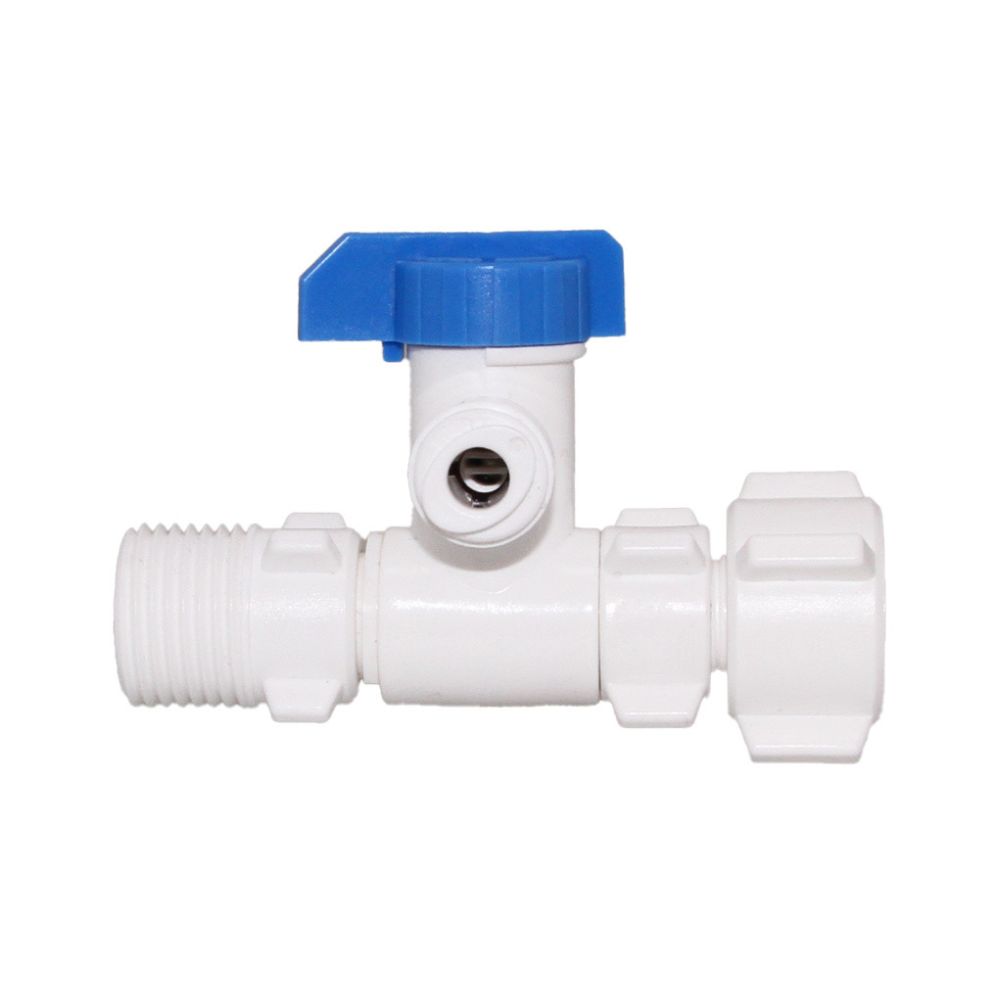

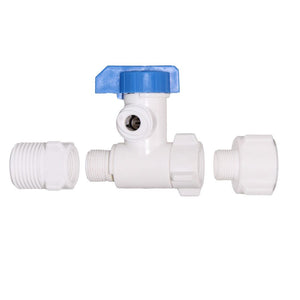

Angle Stop Adapter 3/8" Compression x 3/8" QC Valve - 1/2" NPS Adapter

Part Number: ASBVA-0608

Alt. Part Number: PASVPP2, PASVPP6, AVA-6713CP, LFPP6VAS6

in stock

MSRP: $19.05

Your price:

$8.38

Choose

Single

$8.38 each

Box of 25

$7.79 each

Quantity

similar items

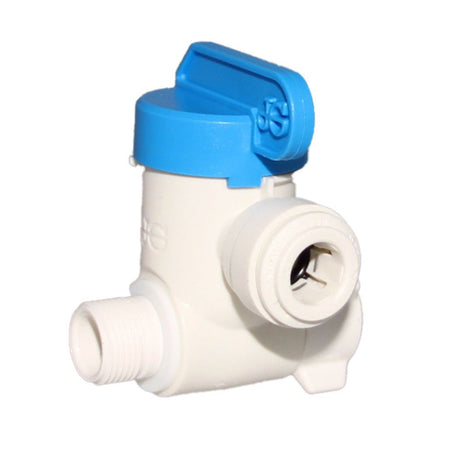

John Guest Plastic Angle Stop Adapter Valve Lead-Free - 3/8 x 3/8 x 3/8

$9.15

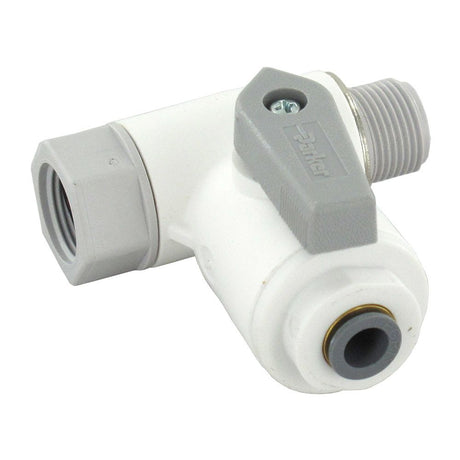

Parker LIQUIfit Angle Stop Adapter Valve - 3/8" x 3/8" x 1/4"

$7.65

This Angle Stop Adapter Valve connects between the stop valve and riser to provide a water supply feed line for applications in filtration systems, RO systems, coffee machines, and ice makers. They are made with polypropylene and food grade EPDM seals, with plated lead-free brass threads.

Features:

For use with plastic or copper OD sized tubing
For cold water supply use only
Quarter turn to open or close
Polypropylene body, EPDM seals
Lead Free materials
Quick and easy connection/disconnection
NSF51 and NSF61 listed
Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems

Specifications:

3/8" Male Compression Connection
3/8" Female Compression Connection
1/2" NPS Adapter

Working pressure & temperature:

Max 145 psi at 68°F
Max 58 psi at 140°F
Min 34°F/1°C

Do Not Use these Valves:

In a partially open position to control flow
To provide a permanent termination
Without tubing assembled or plugged (or threaded connections sealed)
As a tap of “faucet”

Product Details
Application	Water Supply
Body Material	Polypropylene
Inlet Connection	3/8" Compression
Max Pressure (Psi)	150
Max Temp (°F)	158
Min Pressure (Psi)	0
Min Temp (°F)	33
O-Rings	EPDM
Outlet Connection	3/8" Compression
Connection Type	Compression
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.0807

Product Details
Application	Water Supply
Body Material	Polypropylene
Inlet Connection	3/8" Compression
Max Pressure (Psi)	150
Max Temp (°F)	158
Min Pressure (Psi)	0
Min Temp (°F)	33
O-Rings	EPDM
Outlet Connection	3/8" Compression
Connection Type	Compression
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	2.0175

For use with plastic or copper OD sized tubing
For cold water supply use only
Quarter turn to open or close
Polypropylene body, EPDM seals
Lead Free materials
Quick and easy connection/disconnection
NSF51 and NSF61 listed
Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems

Specifications:

3/8" Male Compression Connection
3/8" Female Compression Connection
1/2" NPS Adapter

Working pressure & temperature:

Max 145 psi at 68°F
Max 58 psi at 140°F
Min 34°F/1°C

Do Not Use these Valves:

In a partially open position to control flow
To provide a permanent termination
Without tubing assembled or plugged (or threaded connections sealed)
As a tap of “faucet”
