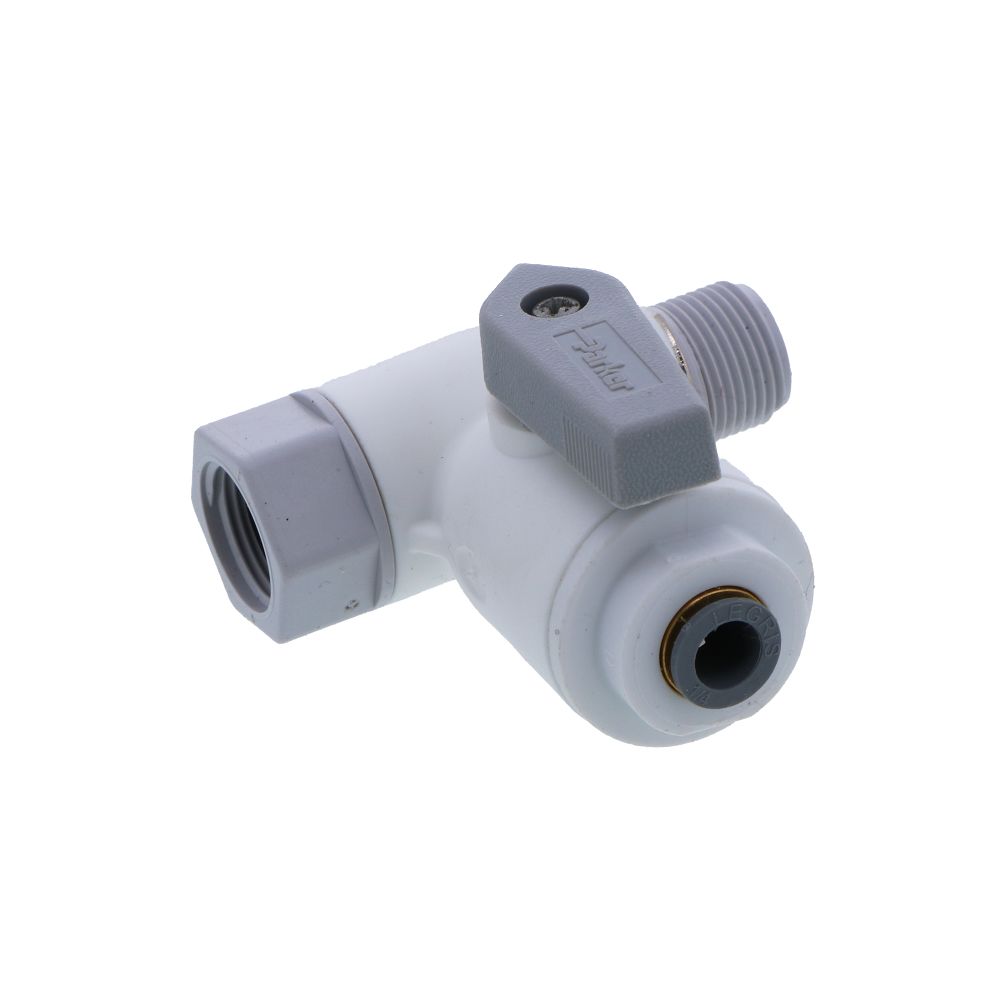

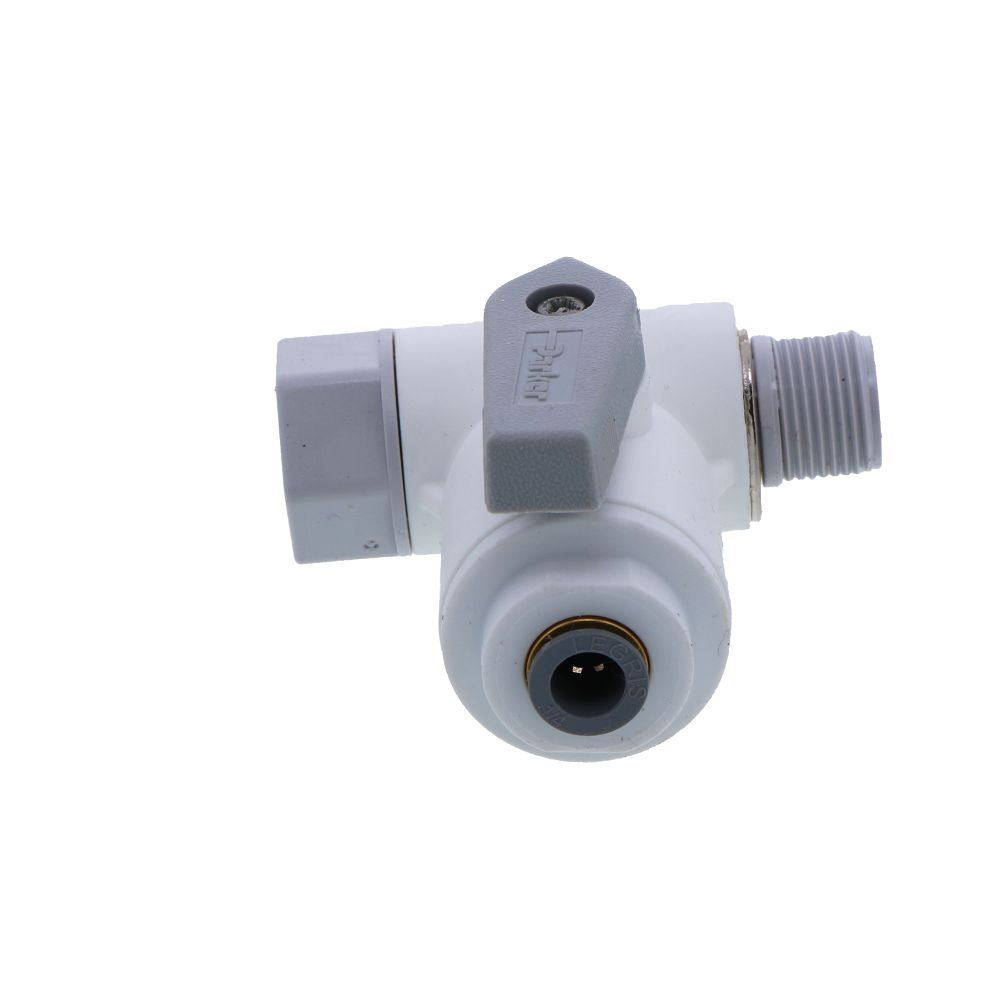

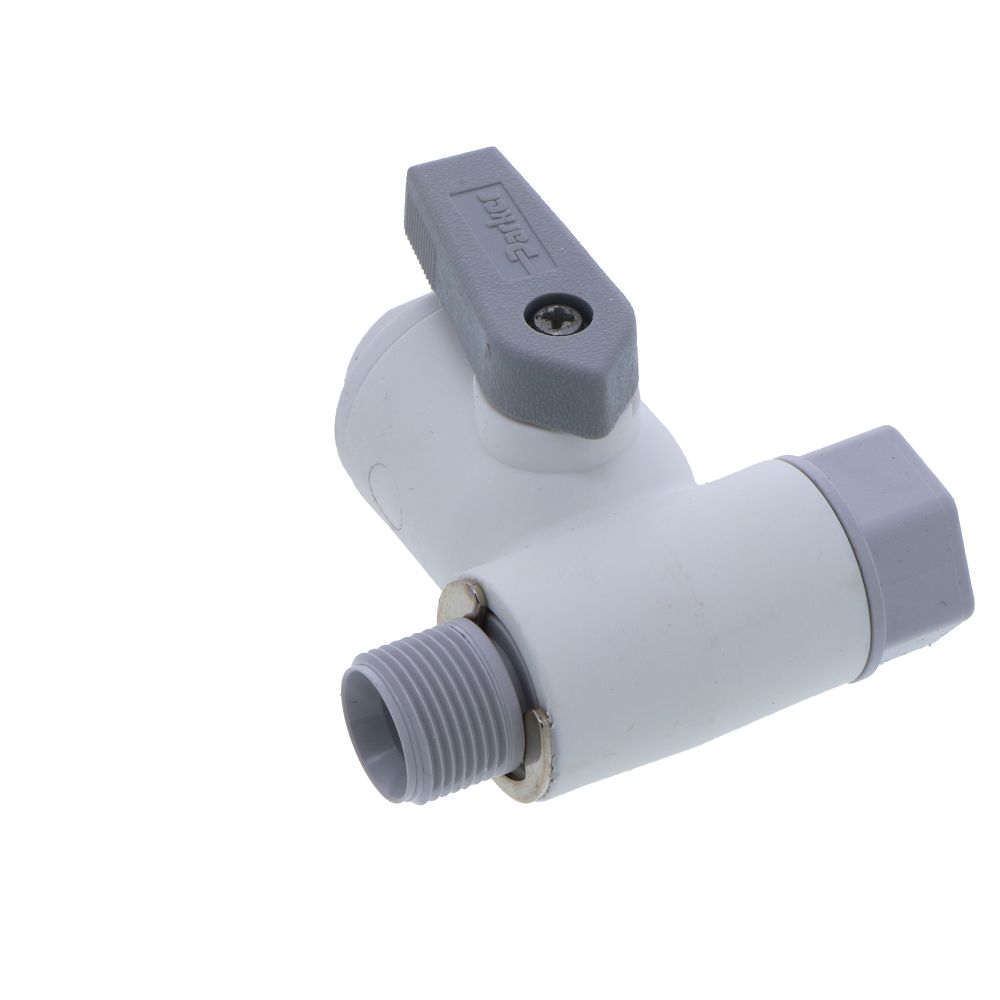

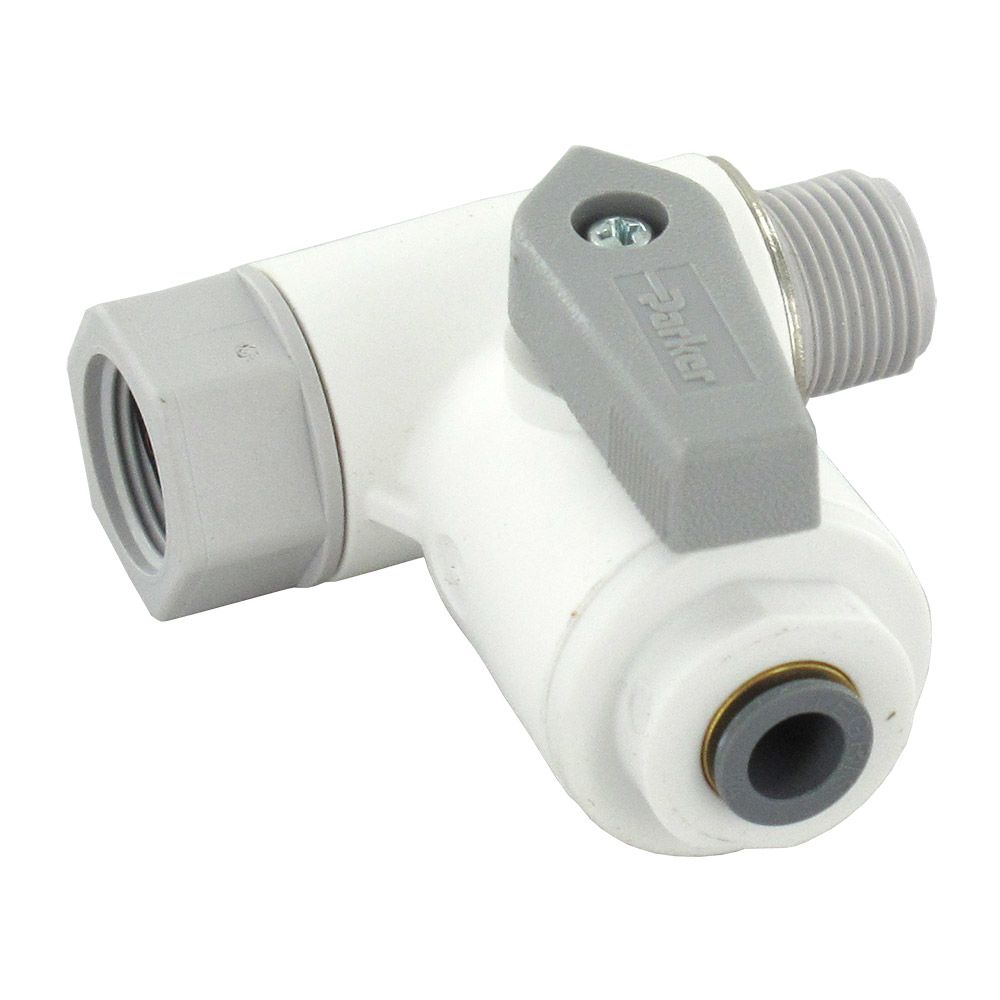

Parker LIQUIfit Angle Stop Adapter Valve - 3/8" x 3/8" x 1/4"

The Parker LIQUIfit angle stop adapter valve is designed to allow the quick addition of connections for a filtration, reverse osmosis, coffee or ice maker system between your existing water supply valve and supply line. By combining Parker's LIQUIfit connection technology with proven TrueSeal ball valve construction, the LFPP4VAS6 is designed for superior performance and reliability.

Features:

Full flow design reduces pressure drop across the valve
Valve body rotates for easy tube routing
Removable clip for changing the handle orientation
3/8" male compression x 3/8" female compression thread
1/4" OD quick connect

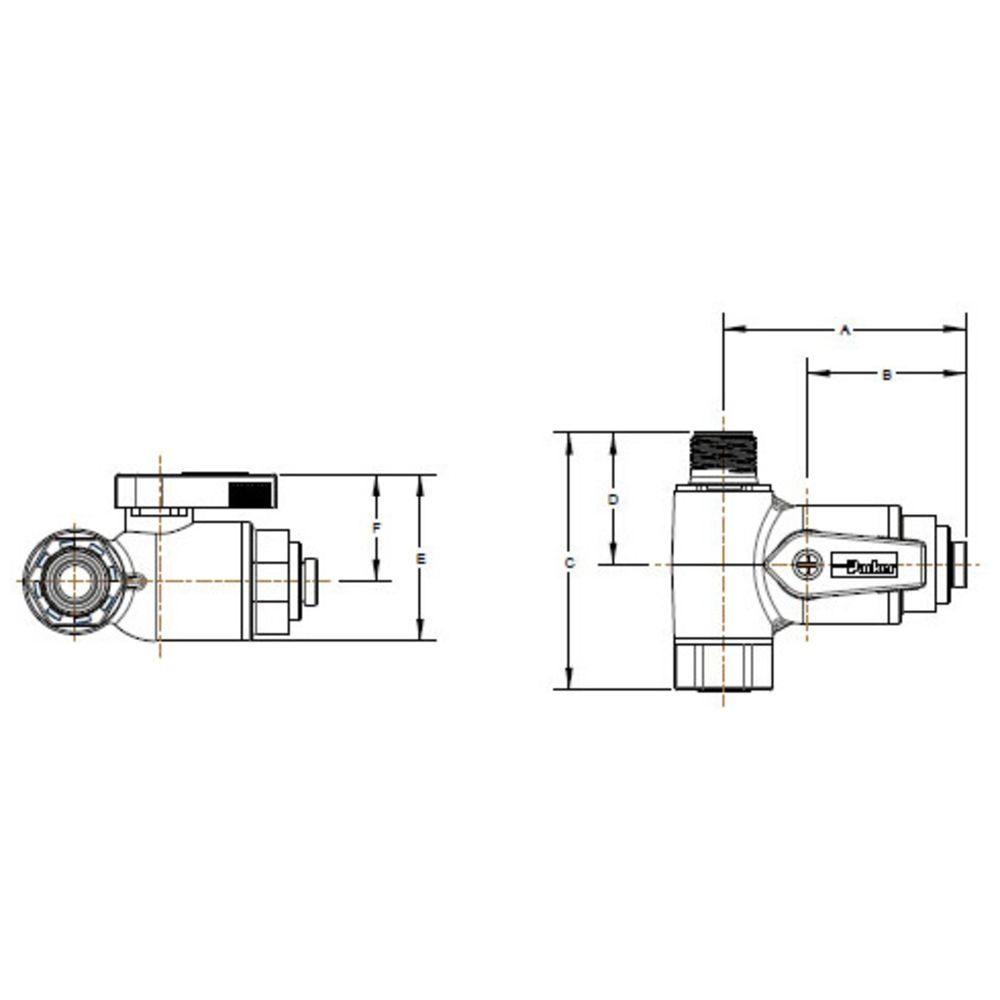

Part Number	A	B	C	D	E	F
LFPP4VAS6	1.79"	1.07"	2.17"	1.11"	1.41"	.91"

Product Details
Application	Food & Beverage
Body Material	Polypropylene
Inlet Connection	3/8" FPT 3/8" MPT
Max Pressure (Psi)	150
Max Temp (°F)	225
Min Pressure (Psi)	0
Min Temp (°F)	0
O-Rings	EPDM
Outlet Connection	3/8" FPT 3/8" MPT
Push-In Size	1/4" OD
Series	LIQUIFit
Size	3/8"
Color / Finish	White
Connection Type	Female (FPT) Male (MPT)
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	2.232 in.
Shipping Width	1.559 in.
Shipping Height	1.929 in.
Product Weight & Dimensions
Product Weight (lbs)	0.0514

Parker LIQUIfit Angle Stop Adapter Valve - 3/8

Product Details
Application	Water Supply Fluids
Body Material	Polypropylene
Inlet Connection	3/8" FPT 3/8" MPT
Max Pressure (Psi)	150
Max Temp (°F)	225
Min Pressure (Psi)	0
Min Temp (°F)	0
O-Rings	EPDM
Outlet Connection	3/8" FPT 3/8" MPT
Push-In Size	1/4" OD
Series	LIQUIFit
Size	3/8"
Color / Finish	White
Connection Type	Female (FPT) Male (MPT)
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.5 in.
Shipping Width	2.5 in.
Shipping Height	2 in.
Product Weight & Dimensions
Product Weight (lbs)	7.2
