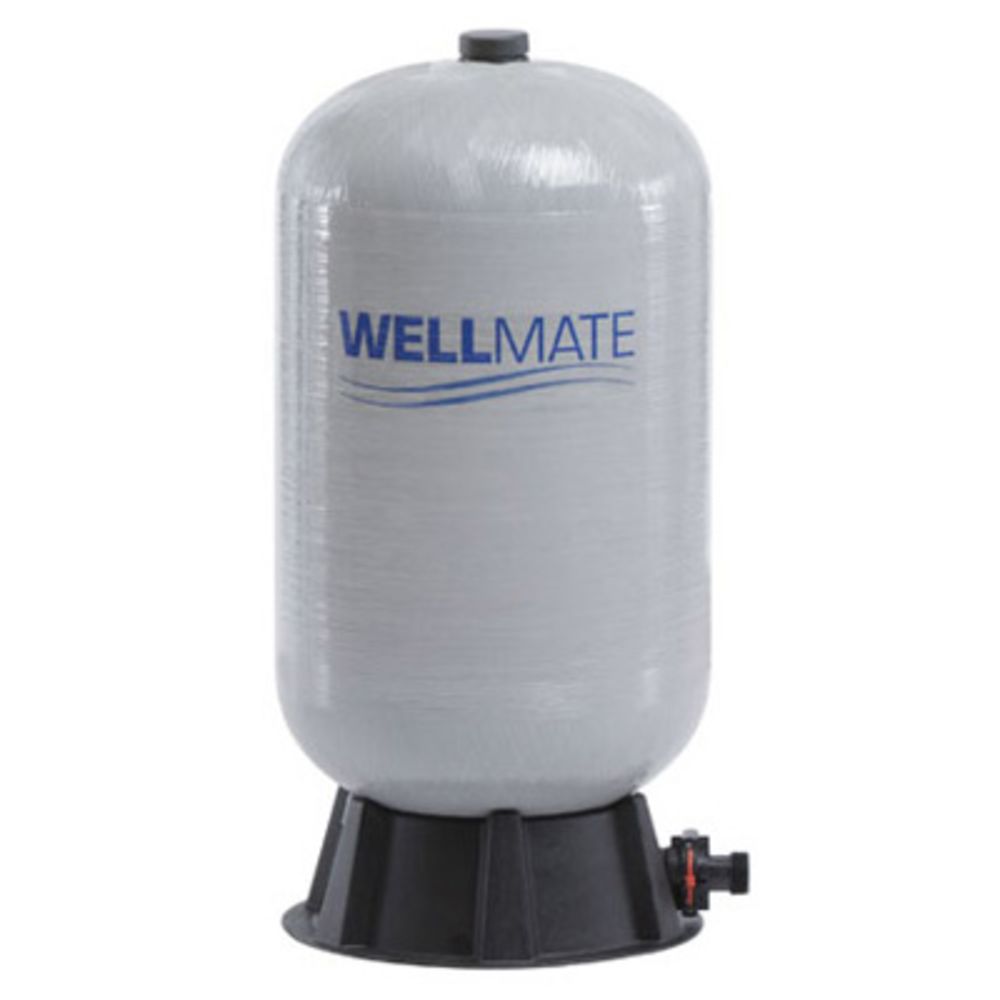

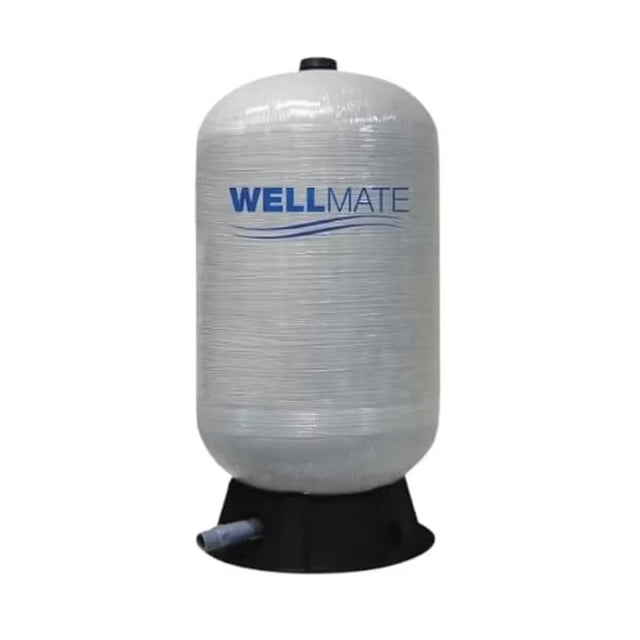

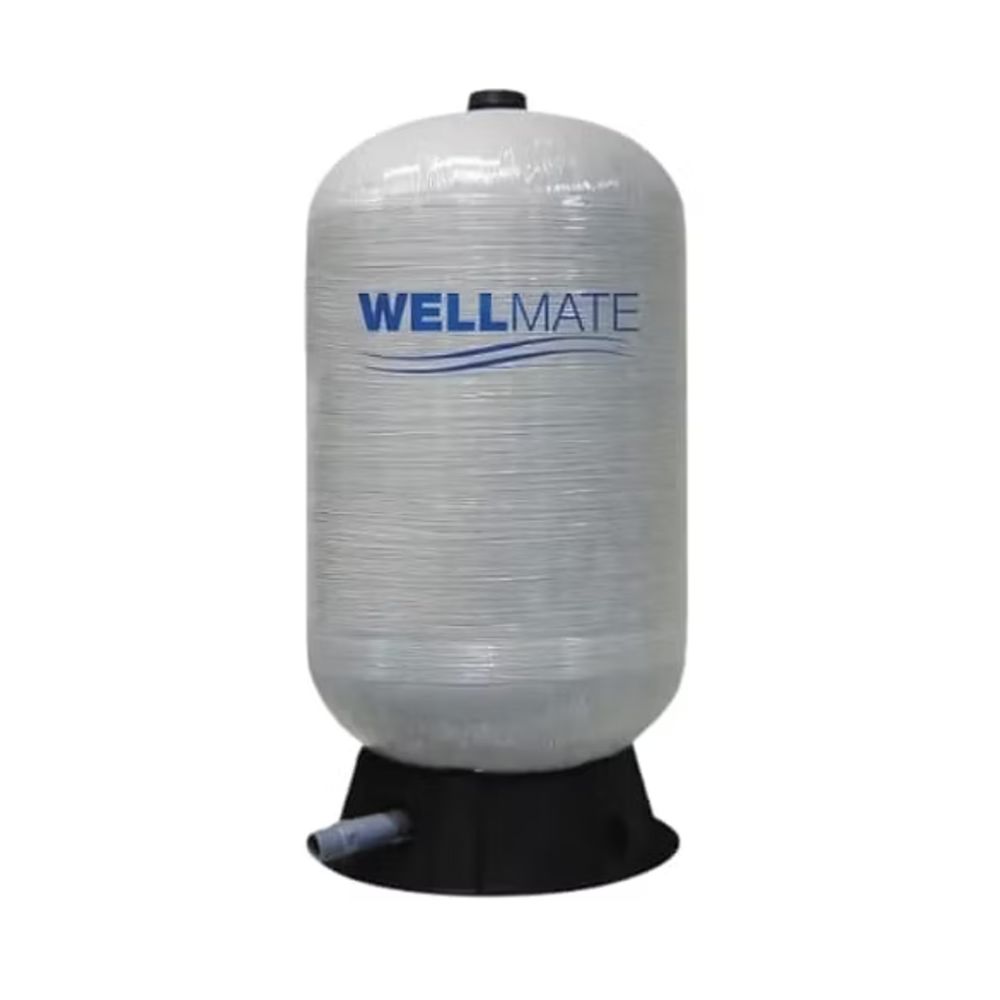

WellMate WM-6 Well Pressure Tank 20 gal

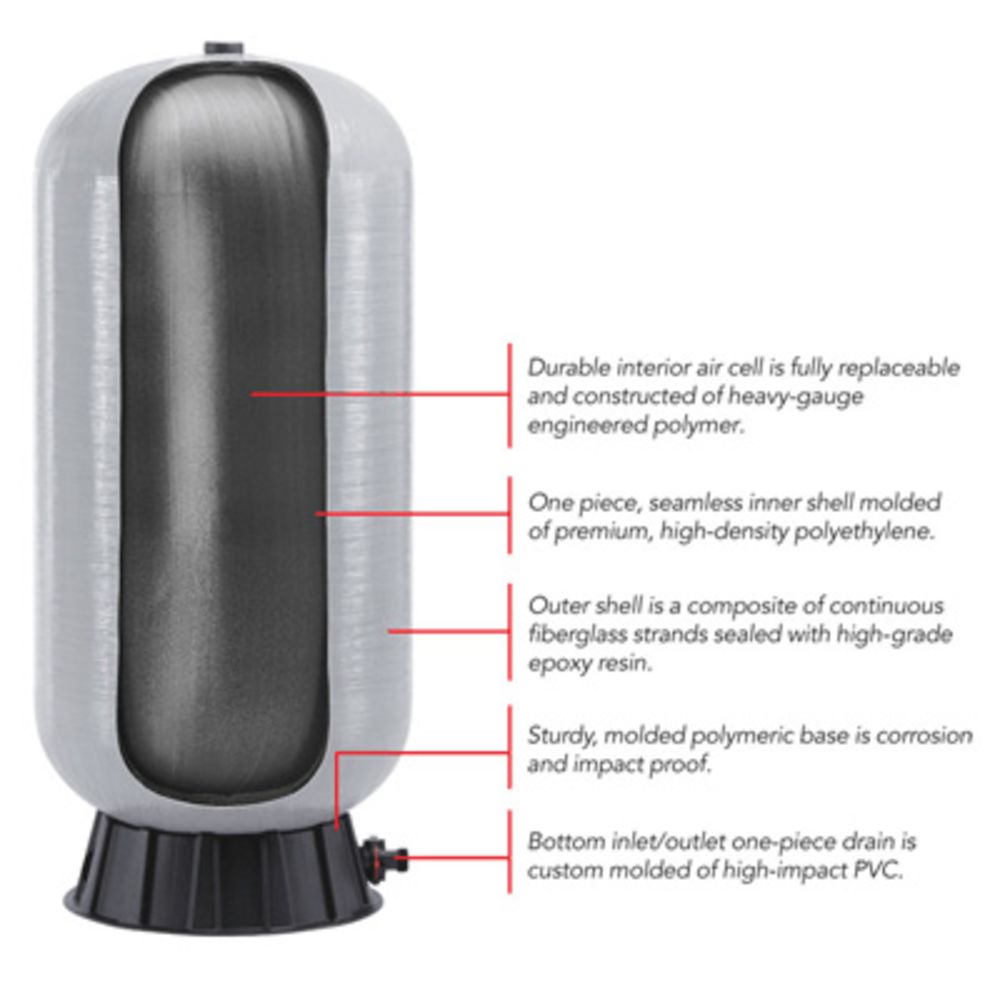

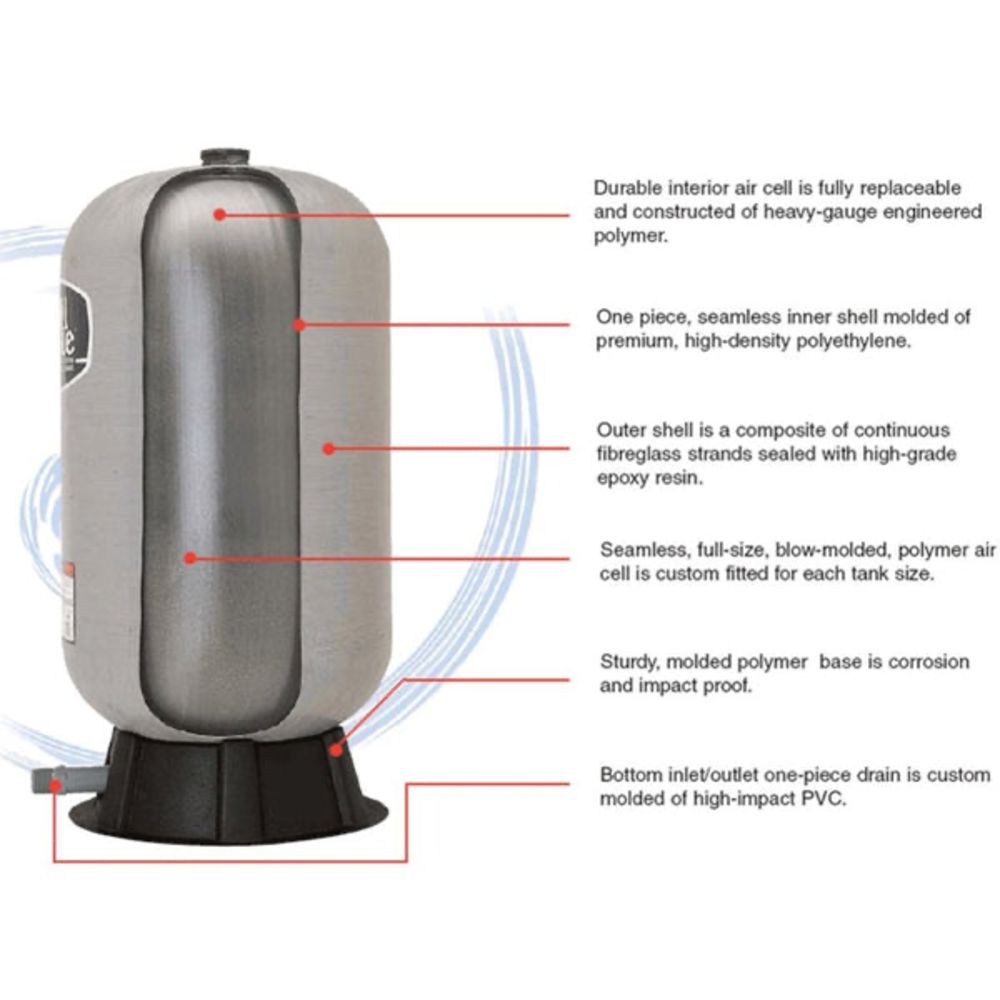

The WellMate WM-6 is a corrosion-proof well pressure tank that is made with a composite of continuous fiberglass strands sealed with high-grade epoxy resin. They won't rust, dent, or come apart at the seams, and a rugged impact proof base is included. The WellMate WM-6 comes with a 5 year warranty with a one year replacement labor allowance.

Features:

Corrosion-proof composite construction
Won’t rust in corrosive environments, particularly important in coastal regions
Little or no maintenance
Longer life, greater flexibility
Light weight
Replaceable air cell

Product Catalog

RO Tanks Catalog

Product Details
Body Material	Composite
Connection Location	Bottom
Drawdown Volume	5.9 Gallons @ 30/50 Setting

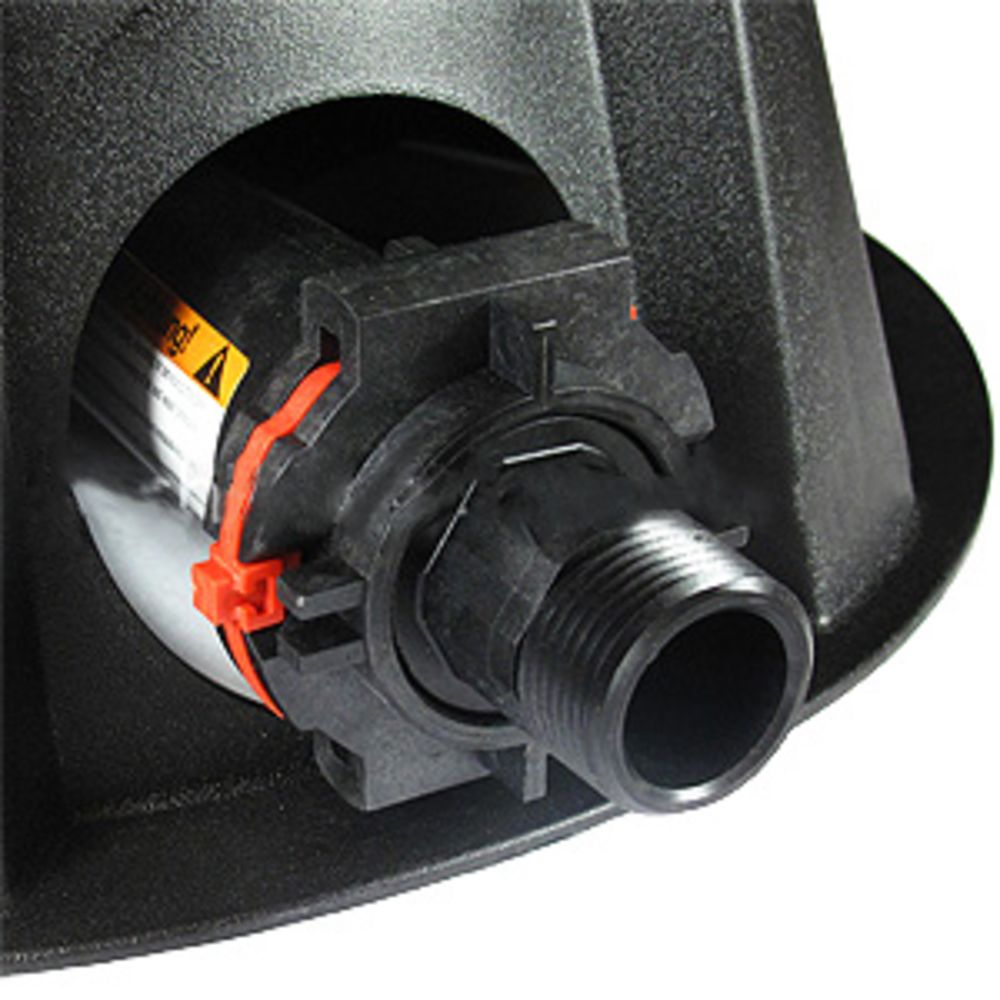

Inlet Connection	1" MPT
Material Of Construction	Fiberglass
Max Pressure (Psi)	100
Max Temp (°F)	100
Outlet Connection	1" MPT
Size	1"
Volume	20
Connection Type	Male (MPT)
Diameter	16"
Origin	Assembled in the USA
Warranty & Certifications
Warranty	5 years
Shipping Dimensions
Shipping Length	34 in.
Shipping Width	16.5 in.
Shipping Height	16.5 in.
Product Weight & Dimensions
Height W/ Stand	32"
Product Height	15.375 in.
Product Length	33.5 in.
Product Width	15.375 in.
Product Weight (lbs)	24

WellMate WM-6 Well Pressure Tank 20 gal Manual
