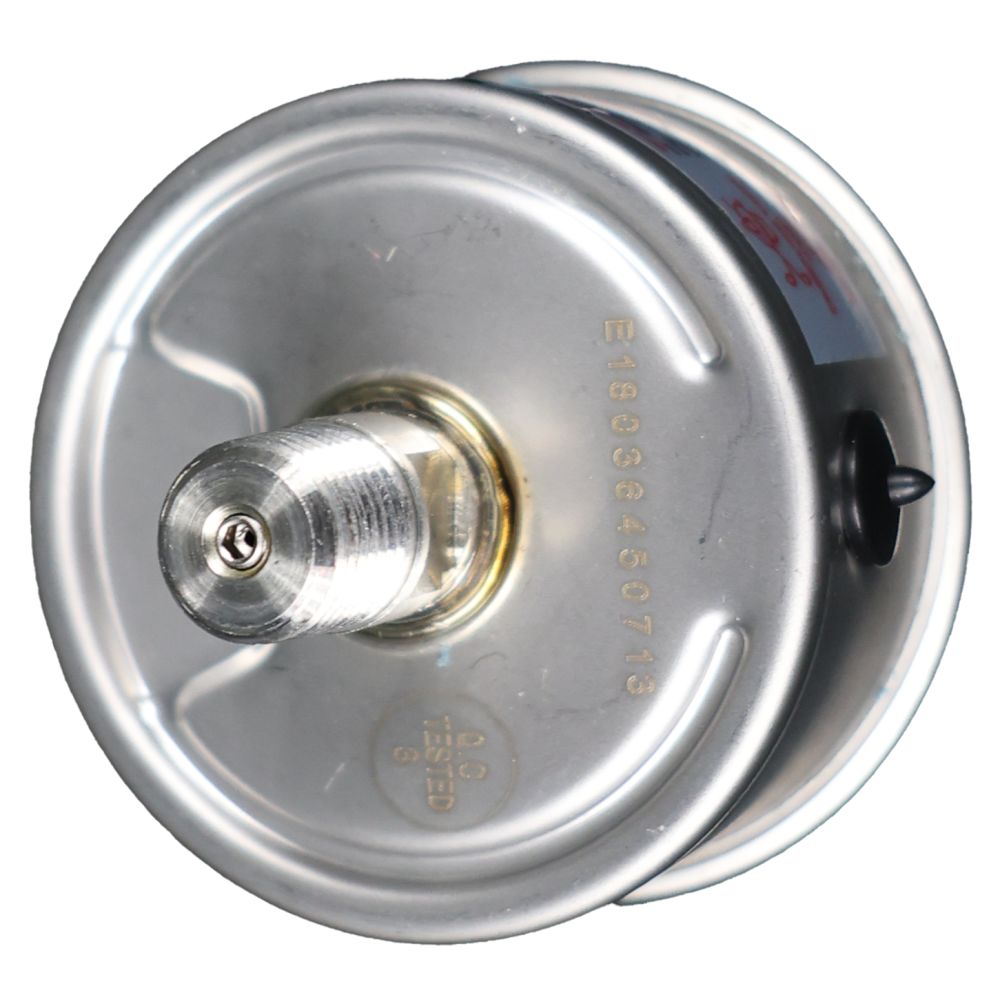

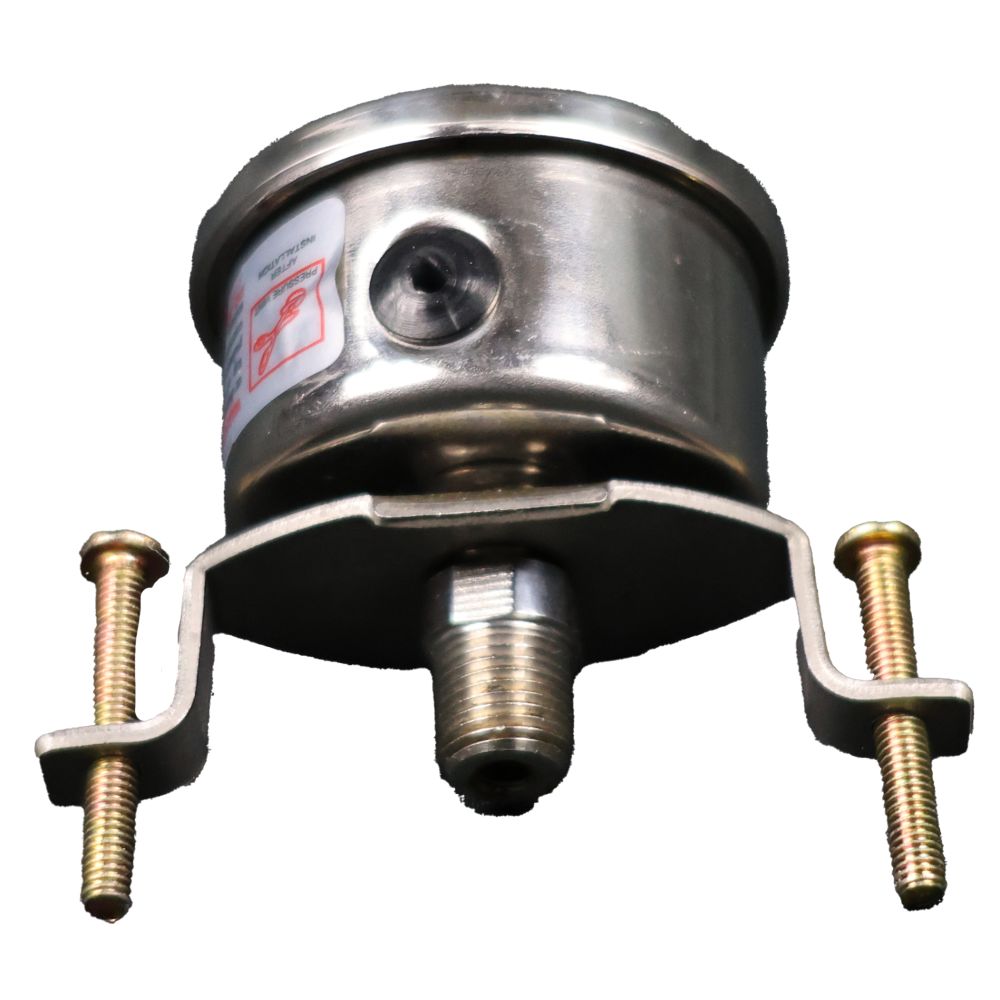

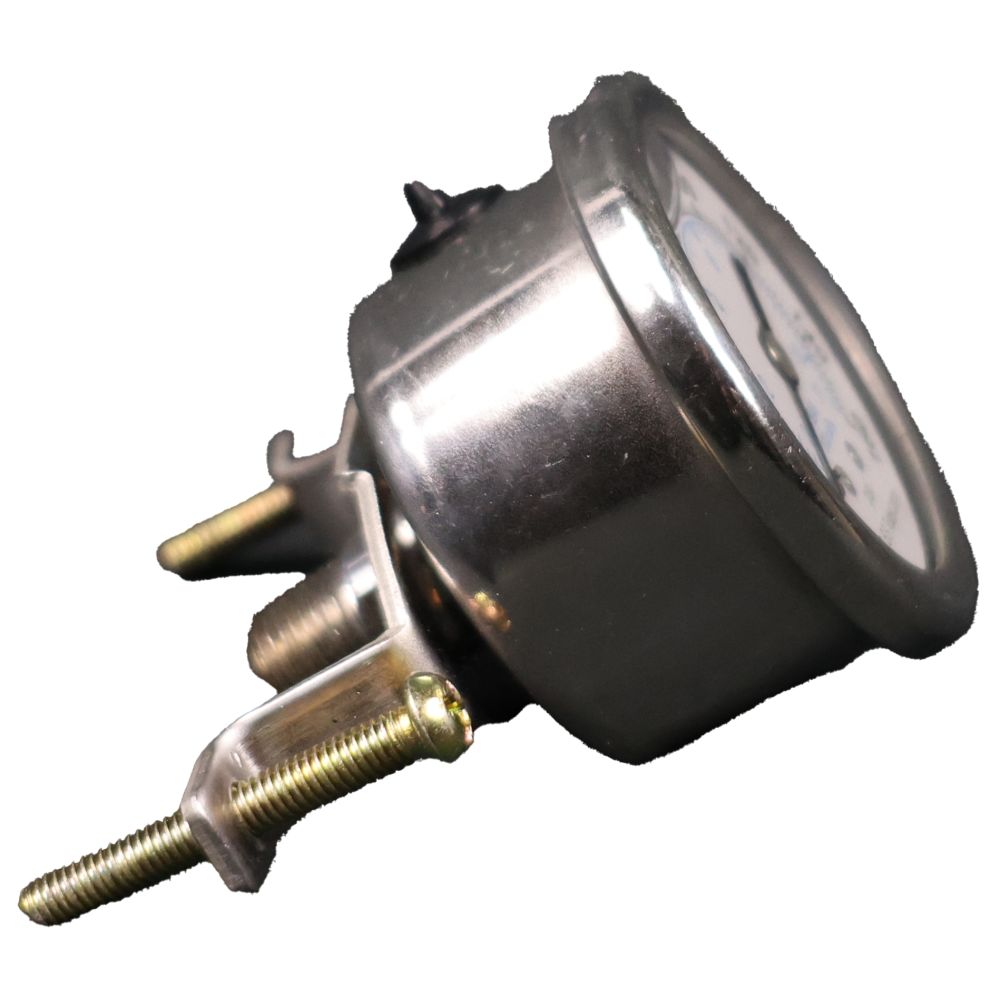

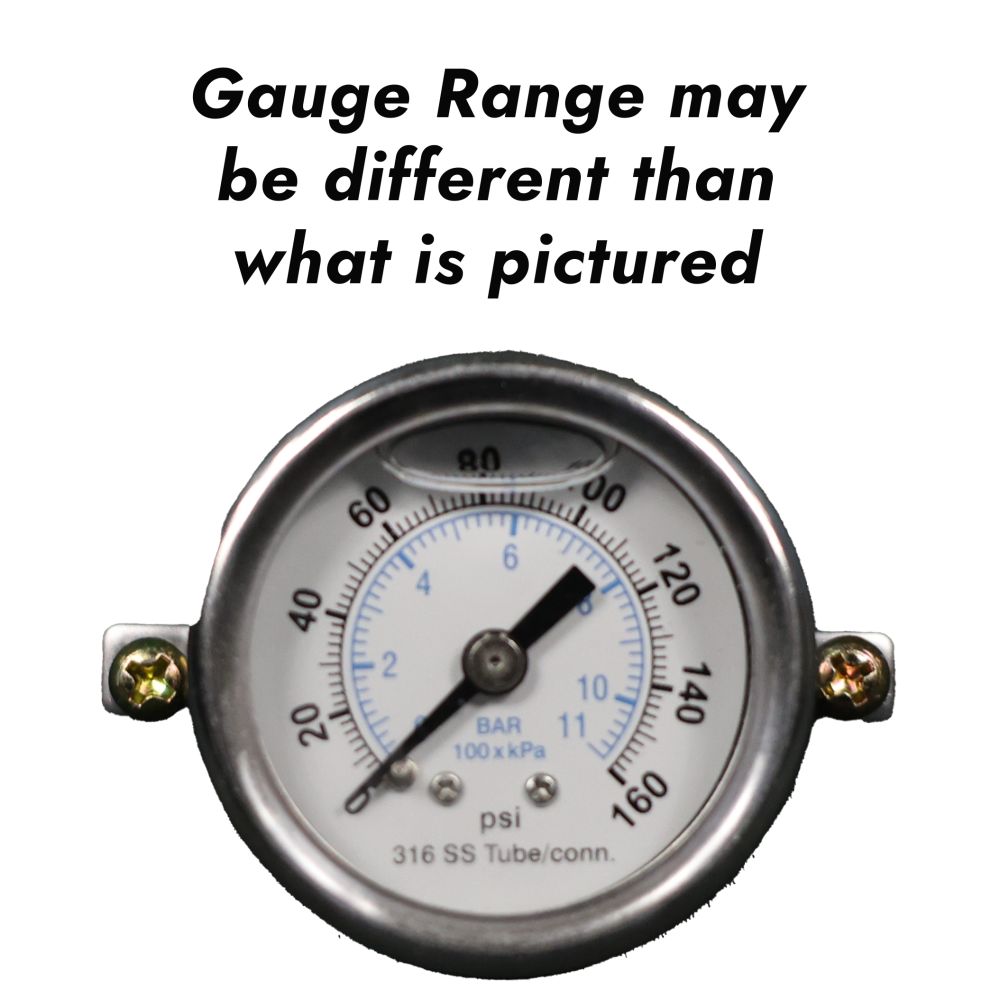

Water Pressure Gauge 160 PSI, 1/8" MPT, 1.5" Plastic Dial, Center Back Uclamp, SS Case

This pressure gauge has a stainless steel case and connection. It has easy-to-read two-tone dials printed in bold UV resistant ink for ease of legibility even after extensive exposure to direct sunlight. The gauge is designed for demanding applications internationally such as Reverse Osmosis, Oil Refining, Chemical, Food Processing plants, Water Treatment, just to name a few.

Specifications:

Lens: Glass
Internals: 316 stainless steel
Face Diameter: 1.5"
Connection: 1/8" MPT
Mount Type: Center back
Case: 316 Stainless steel
Stem: 316 Stainless steel
Pressure Rating: 0 - 160 PSI
Temperature Rating: 0 - 131º F
Connection: center back mount

Product Details
Dial Size	1-1/2" (40 mm)
Face	White Aluminum with Black/Blue Print
Fluid	Glycerine and water
Housing Material	316 Stainless Steel
Internal Component Material	316 Stainless Steel
Material Of Construction	316 Stainless Steel
Max Pressure (Psi)	160
Min Pressure (Psi)	0
Pointer	Aluminum - Black
Units Of Measure (Psi, Bars, Hgvac)	PSI/Bars
Accuracy Grade	B Grade: 3-2-3%
Case Filling	Glycerine
Case Type	Stainless Steel
Connection Type	1/4" MPT
Gauge Bezel	Plastic Fixed
Gauge Lens	Plastic

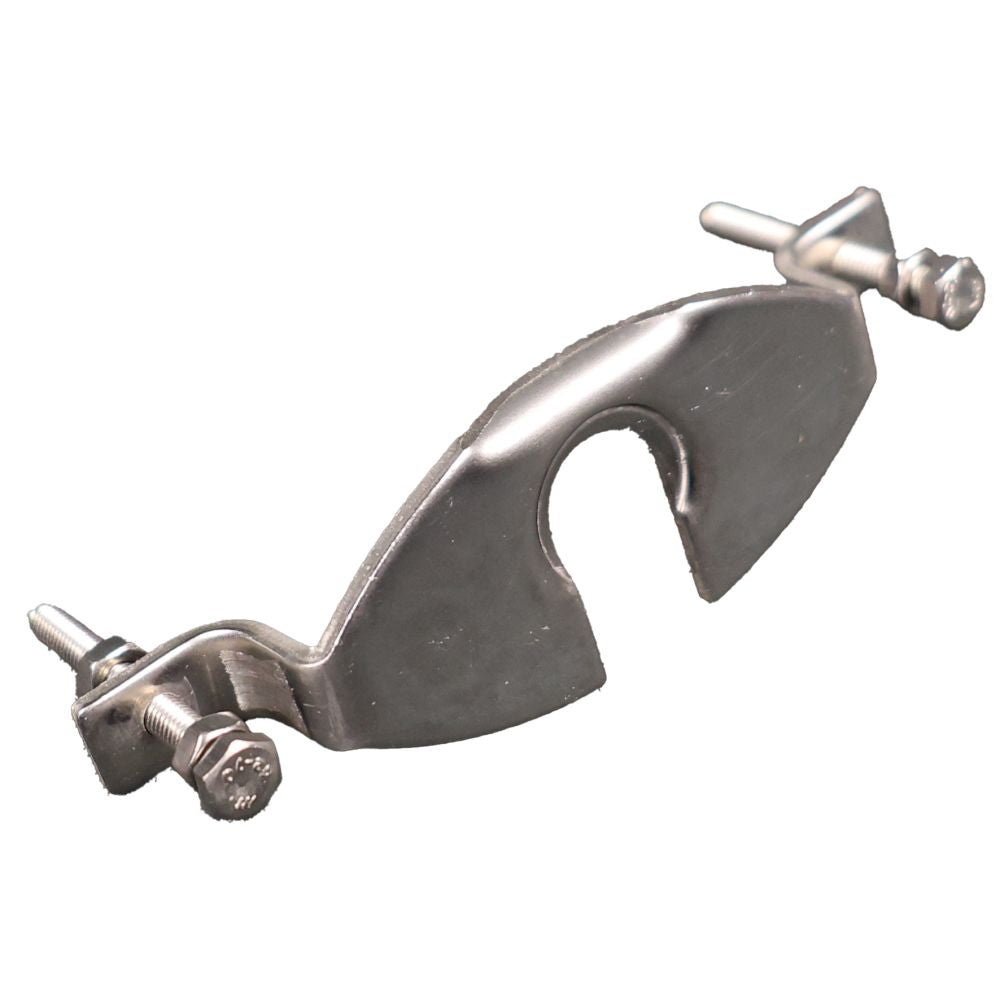

Mounting Style	CU: Center Back with U Clamp
Pressure Rating	160 PSI
Wetted Parts	316 SS
Shipping Dimensions
Shipping Length	2 in.
Shipping Width	1.5 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Weight (lbs)	0.26
