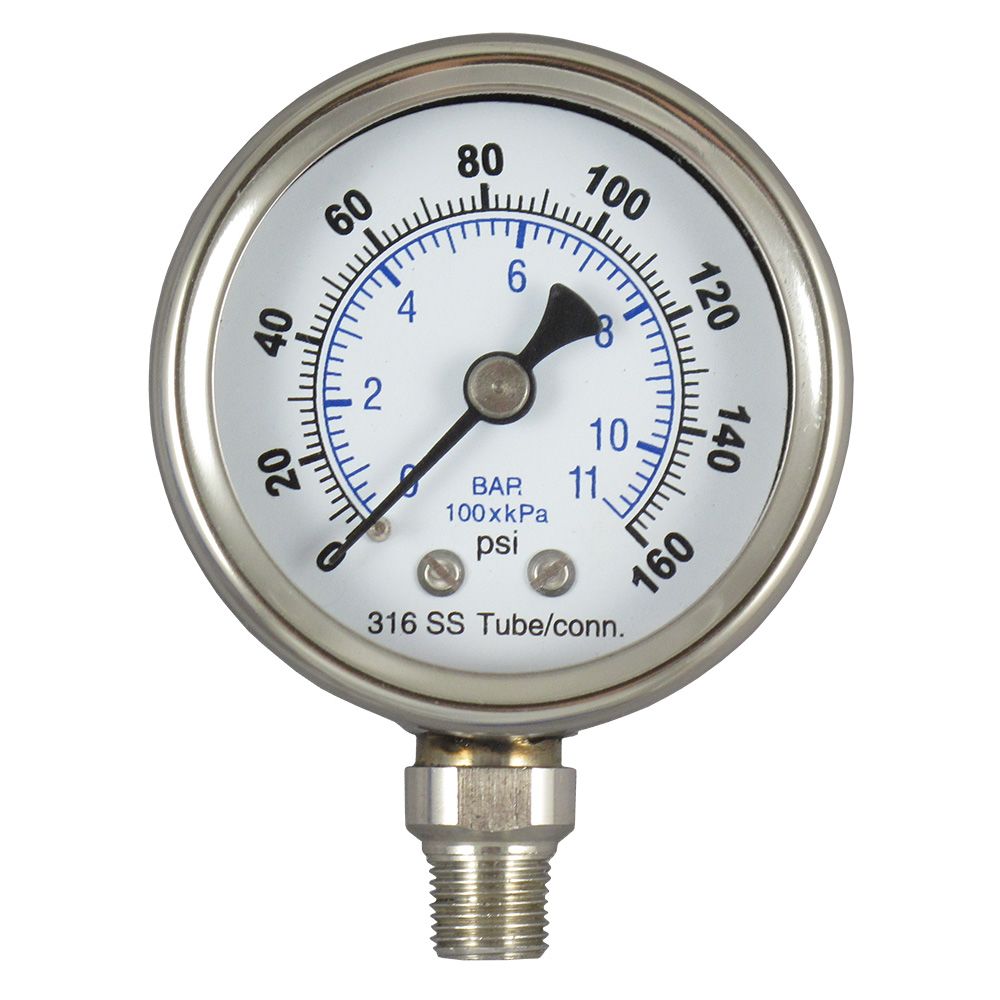

Water Pressure Gauge 160 PSI, 1/4" MPT, 2.5" Glass Dial, Lower Mount, SS Case

The 90B25-L4-53SS-160G is a lower mount pressure gauge that features a stainless steel case with stainless steel internals. This non-filled pressure gauge has a glass lens and is rated for up to 160 PSI. This easy-to-read utility gauge is designed for commercial and industrial applications.

Specifications:

Non Filled
Lens: Glass
Face Diameter: 2.5"
Connection: 1/4" MPT
Stem: 316 Stainless steel
Mount Type: Lower mount
Internals: 316 Stainless steel
Pressure Rating: 0 - 160 PSI
Temperature Rating: 0 - 140º F

Product Details
Accuracy	A (2-1-2%)
Dial Size	2-1/2" (63 mm)
Face	White Aluminum with Black/Blue Print
Fluid	None - Dry but fillable
Housing Material	316 Stainless Steel
Internal Component Material	316 Stainless Steel
Material Of Construction	316 Stainless Steel
Max Pressure (Psi)	160
Max Temp (°F)	180
Min Pressure (Psi)	0
Min Temp (°F)	-30
Pointer	Aluminum - Black
Units Of Measure (Psi, Bars, Hgvac)	PSI/Bars
Accuracy Grade	B Grade: 3-2-3%
Case Filling	Dry
Case Type	SS Welded to Stem
Connection Type	1/4" MPT
Gauge Bezel	Plastic Fixed
Gauge Lens	Glass
Mounting Style	Lower Mount
Pressure Rating	160 PSI
Type	Lower Mount
Wetted Parts	316 SS
Shipping Dimensions
Shipping Length	2 in.
Shipping Width	1.5 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Weight (lbs)	0.24
