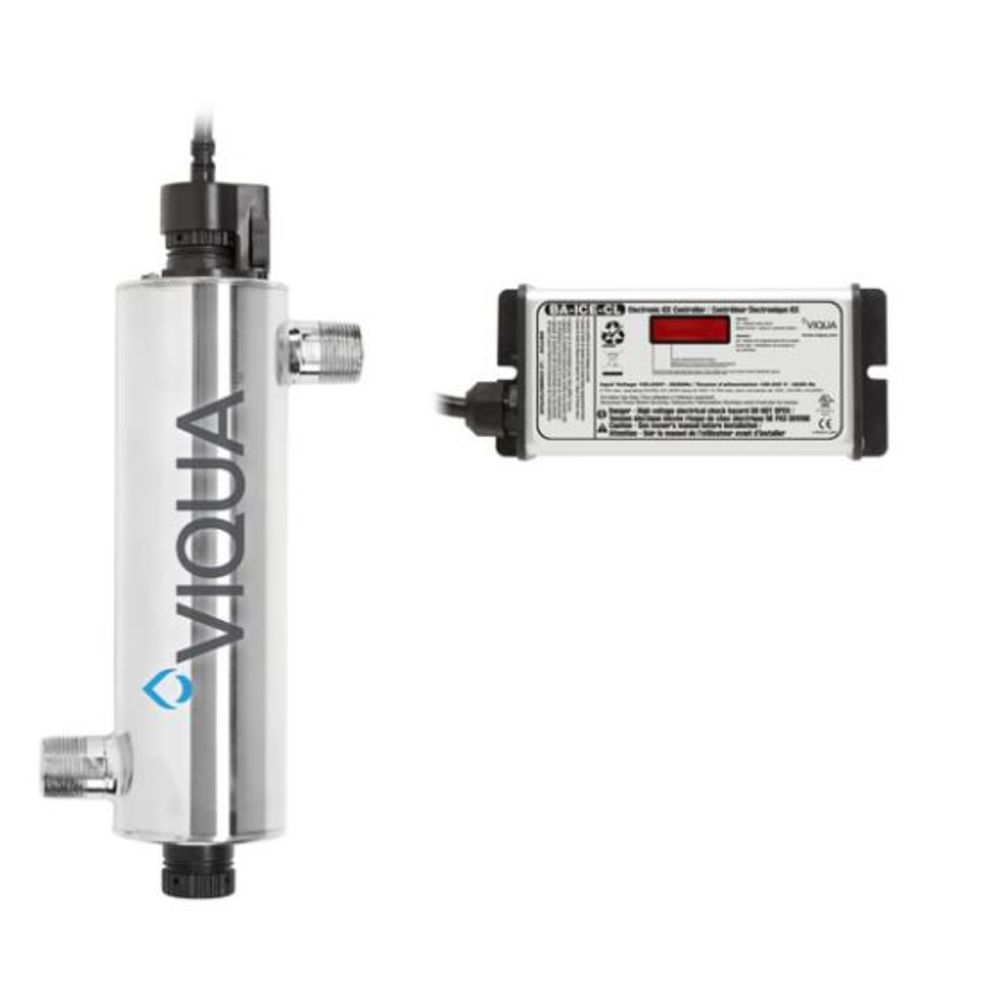

Viqua VH200-V UV System NSF 55 Class B 7.8GPM - 120 Volt
The UV system disinfects heterotrophs to reduce the heterotrophic plate counts (HPC). The UV system is validated to deliver 16 mJ/cm2 which is also sufficient for 99.99% inactivation of E.coli and 99.9% inactivation of Fecal Coliform. The VH200-V NSF/ANSI 55 Class B UV system is a reliable and economical way to treat drinking water in any residential application, with flow rates up to 7.8 gpm (29.5 lpm).
Features:
- Sterilum-HO UV lamps - High Output lamp technology allows you to treat high flow rates in a more compact space
- 4-log (99.99%) reduction of most bacteria, viruses, and protozoan cysts at rated flow will keep your water safe to drink without adding chemicals
- Constant output current and a universal power input
- Controller alerts the user with alarm if UV lamp fails
- Sealed case on the controller helps to prevent damage from accidental water intrusion
- Stainless steel reactor provides long life and eliminates the possibility of degradation from exposure to high-intensity UV light
- Compact design reduces installation time and takes less space
- The lamp can be changed without interruption of water flow
- NSF 55 Class B
This system is compatible with the S200RL-HO Sterilight Lamp and the QS-001 Quartz Sleeve. For any necessary system replacements, the UV Lamp/Quartz Sleeve Combo Kit for VH200 includes:
- Sterilight Lamp (1): S200RL-HO
- Sterilight Quartz Sleeve (1): QS-001
- Sterilight O-Rings (2): 410867
