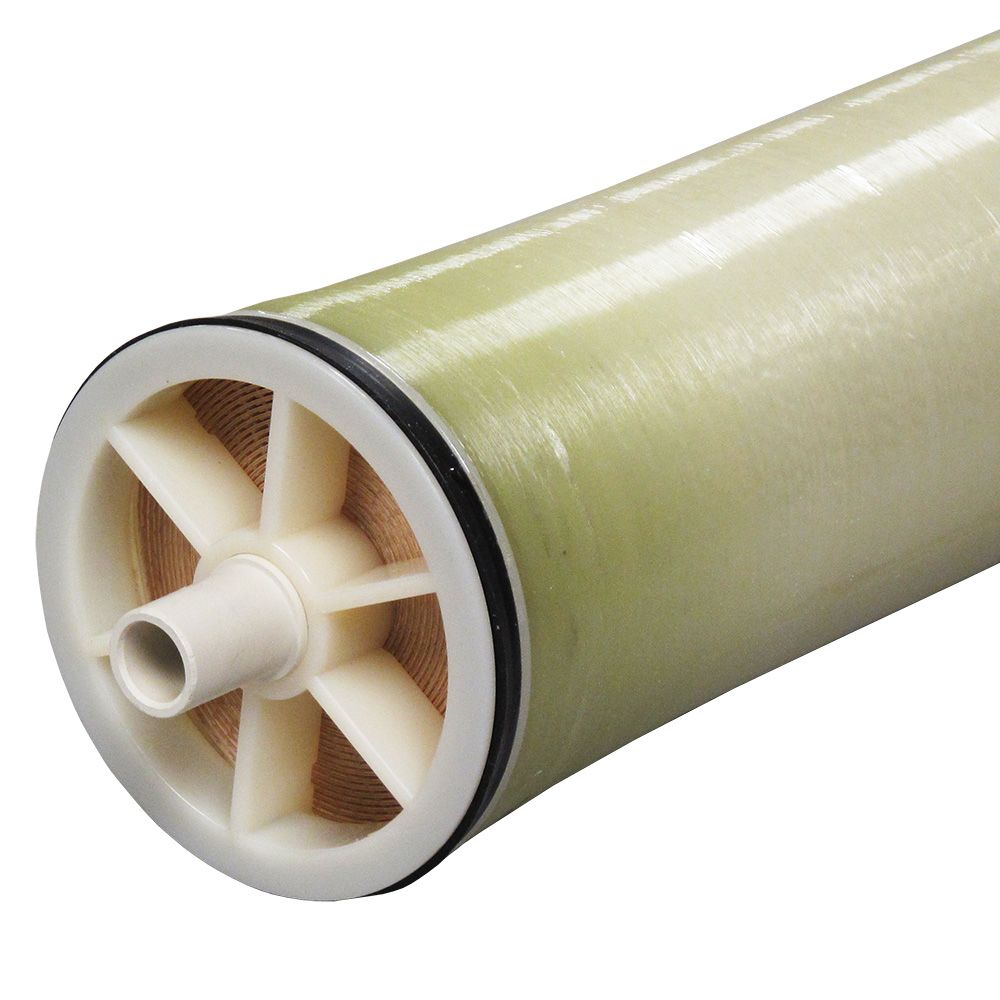

Toray TM710D 2600 gpd Brackish Water Membrane 4 x 40

The Toray TM710D 2600 gpd Brackish Water Membrane is designed to be used on water sources with medium salinity (2,000-10,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:

Permeate Flow Rate: 2600 gallons per day
Membrane Type: Polyamide Composite
Applied Pressure: 225 psi
Dimensions: 4" x 40"
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Tap Water, Brackish Water, Well Water, Surface Water

Compatible with:

3M Water Filtration	66-18424
Filmtec Membranes	BW30-4040, TW30-4040
Toray Membranes	TM710
TriSep Membranes	4040-ACM1-TSF, 4040-ACM1-TSA, 4040-ACM2-TSF, 4040-ACM2-TSA

Product Details
Active Area	87 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Spacer Thickness	31 mil
Feed Water Concentration	2,000 mg/l Nacl
Feed Water Temperature	77°F
Inlet Pressure	225 PSI
Material Of Construction	Cross-Linked Polyamide
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure Drop	15 PSI Differential
Max Pressure (Psi)	600 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Min Flow Rate	2,150 gpd (8.2m3 /d)
Minimum Salt Rejection Cl- (%)	0.9965
Permeate Flow Rate	2,600 gpd (9.8)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Stabilized Salt Rejection Cl- (%)	0.998
Diameter	4"
Origin	U.S.A.
Shipping Dimensions
Shipping Length	43 in.
Shipping Width	5.5 in.
Shipping Height	5.5 in.
Product Weight & Dimensions
Product Height	5.5 in.
Product Length	43 in.
Product Width	5.5 in.
Product Weight (lbs)	9.3

Toray TM710D 2600 gpd Brackish Water Membrane 4 x 40 Manual
