Home / Parts & Accessories / Flow Controls & Restrictors / Swivel Elbow with 0.5 GPM Flow Restrictor 1/4 x 3/8 MPT

Hydronamic Engineering

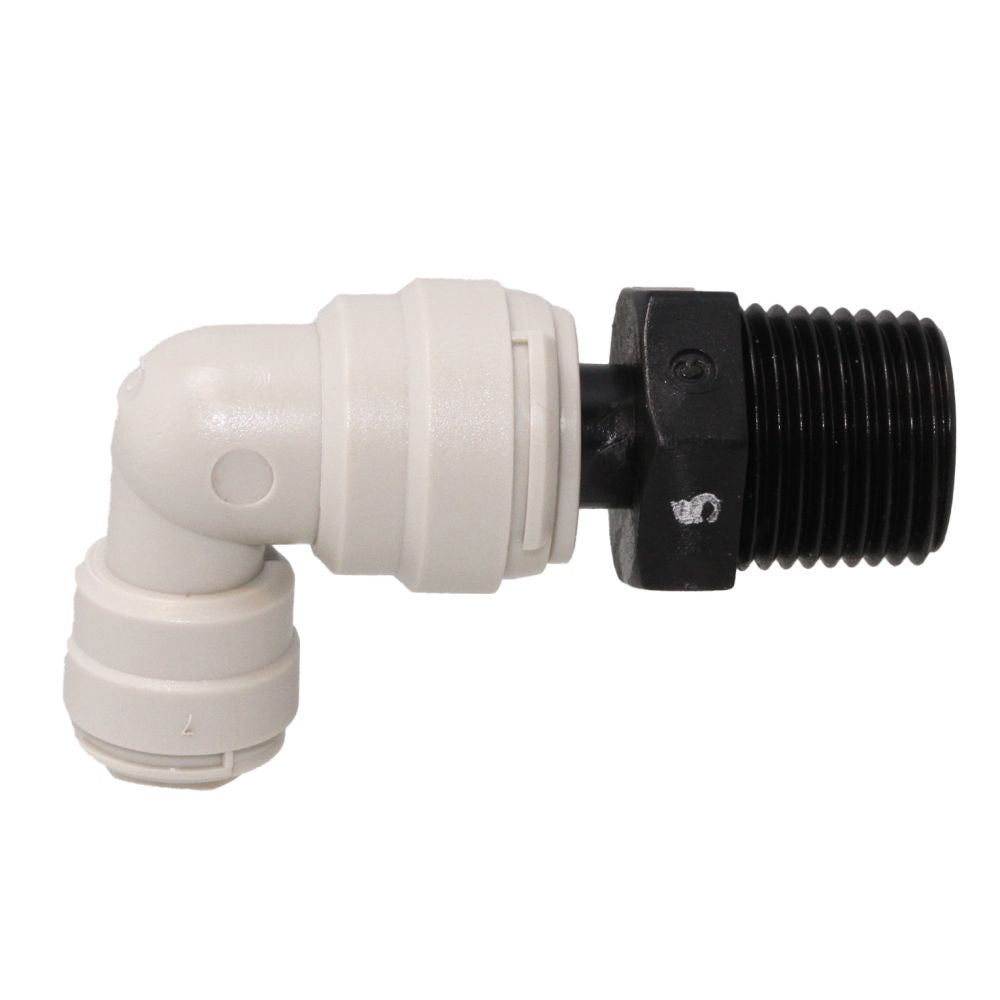

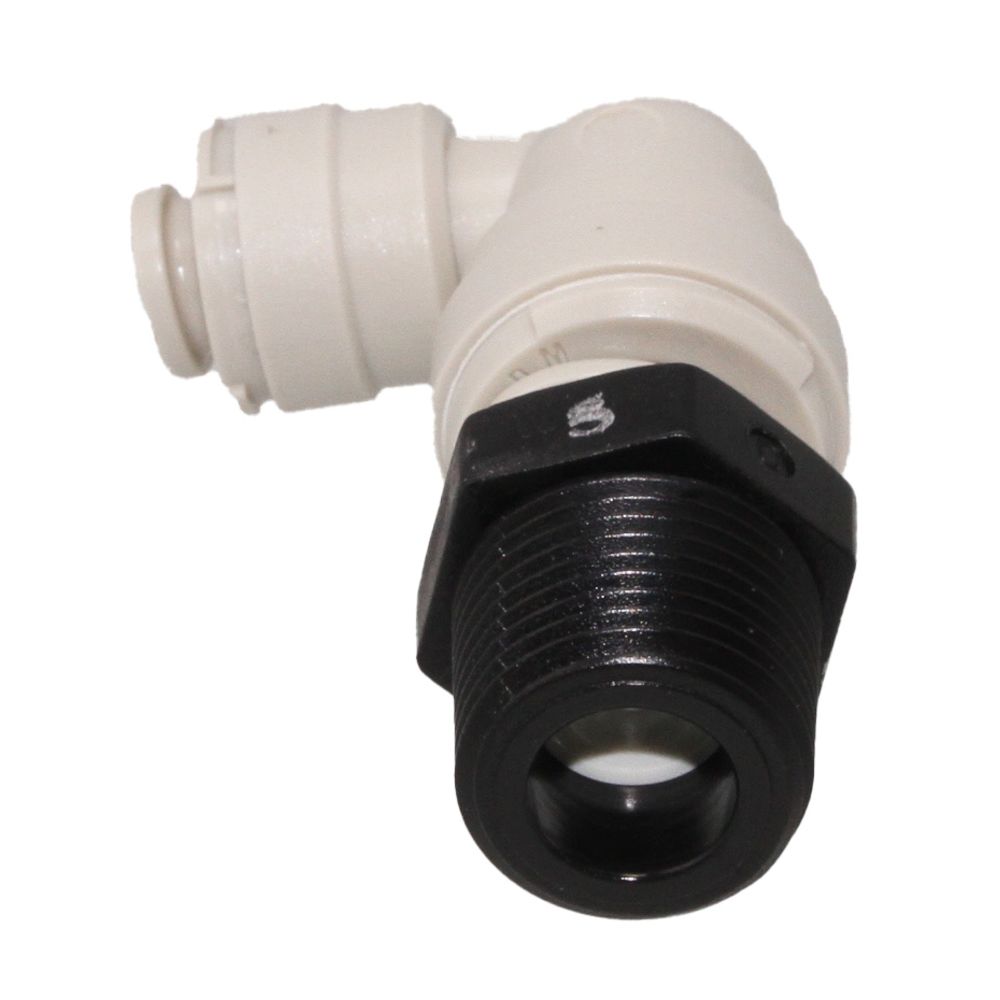

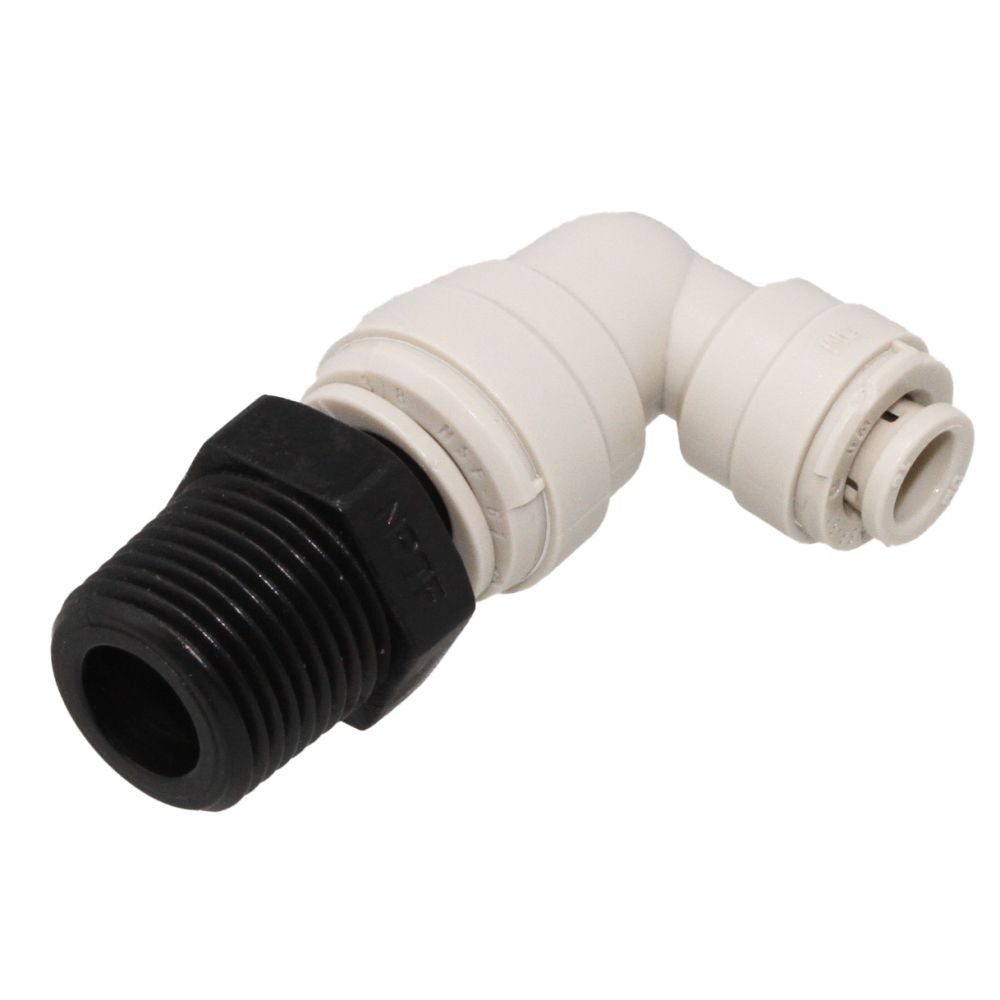

Swivel Elbow with 0.5 GPM Flow Restrictor 1/4 x 3/8 MPT

Part Number: FR-MES46-0.5GPM

Alt. Part Number: FRC-.5GPM, FRA-ME0406-1/2GPM

in stock

Available to ship in 3-5 business days.

Your price:

$7.16

Choose

Single

$7.16 each

10 Pack

$6.95 each

Quantity

similar items

John Guest Fixed Elbow with 0.5 GPM Flow Restrictor 1/4 x 3/8 MPT

$7.16

FR-MES46-0.5GPM is a swivel elbow fitting with a 0.5 GPM flow restrictor. The fitting can be valuable for many water filtration systems. The elbow has a 1/4" OD quick connect and 3/8" quick connect. The straight adapter has a 3/8" stem and 3/8" male pipe thread with a flow restricor insert.

Specifications:

Construction: Acetal Copolymer
Connections: 1/4" quick connect x 3/8" MPT
Push-fit technology
O-rings: Buna-N
Quick disconnect without the need for tools
Max Pressure: 150 PSI
Food & Beverage: NSF-51 certified
Temperature Range: -14° F to 167° F (Air)
Temperature Range: 33° F to 140° F (Water)

Product Details
Body Material	Acetal
Inlet Connection	3/8" MPT
Max Pressure (Psi)	150
Max Temp (°F)	167
Min Temp (°F)	-14
O-Rings	Buna-N
Outlet Connection	3/8" MPT
Push-In Size	1/4" OD
Size	3/8"
Color / Finish	Black/Gray
Connection Type	Male (MPT)
Origin	Korea
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	1 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Height	1 in.
Product Length	1 in.
Product Width	1 in.
Product Weight (lbs)	0.0625

Product Details
Body Material	Acetal
Inlet Connection	3/8" MPT
Max Pressure (Psi)	150
Max Temp (°F)	167
Min Temp (°F)	-14
O-Rings	Buna-N
Outlet Connection	3/8" MPT
Push-In Size	1/4" OD
Size	3/8"
Color / Finish	Black/Gray
Connection Type	Male (MPT)
Origin	Korea
Warranty & Certifications
Product Certification Standard	NSF/ANSI 51
Shipping Dimensions
Shipping Length	5 in.
Shipping Width	7 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Height	1 in.
Product Length	1 in.
Product Width	1 in.
Product Weight (lbs)	0.625

Construction: Acetal Copolymer
Connections: 1/4" quick connect x 3/8" MPT
Push-fit technology
O-rings: Buna-N
Quick disconnect without the need for tools
Max Pressure: 150 PSI
Food & Beverage: NSF-51 certified
Temperature Range: -14° F to 167° F (Air)
Temperature Range: 33° F to 140° F (Water)
