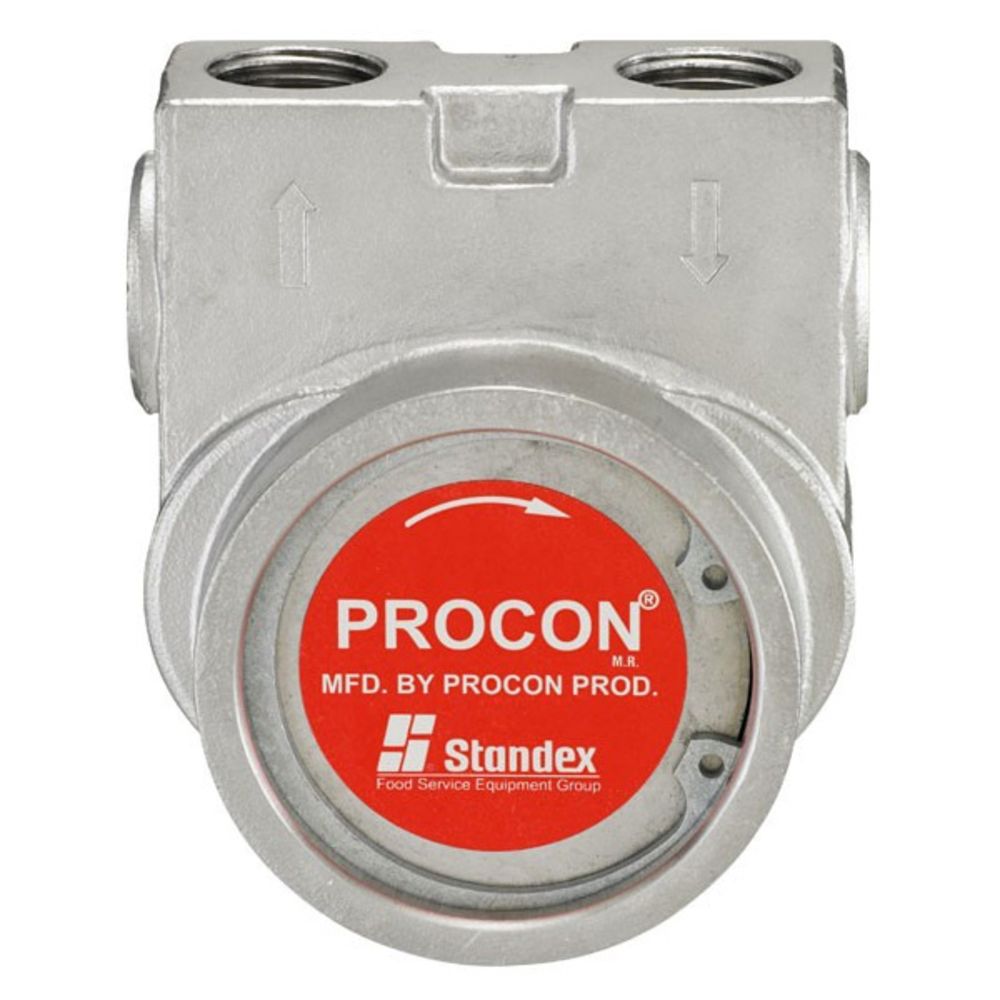

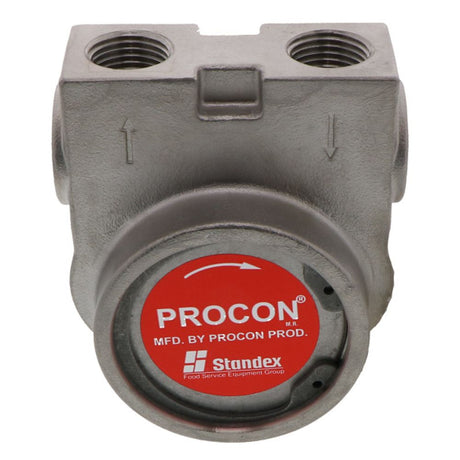

Procon Pump NSF Stainless Steel 190 GPH 1/2" NPT w/ 1143 Bronze Coupling (Clamp-on)

The Procon Pump NSF Stainless Steel 190 GPH 1/2" NPT w/ 1143 Bronze Coupling (Clamp-on) is a positive displacement pump. This Series 5 Procon pump is stainless steel with 1143 Bronze Coupling. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 190 gallons per hour. The seal configuration for the 105B190F31X uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 5 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 105B190F31X pump is designed to be directly connected to the motor with a stainless steel clamp.

Features:

Leak-free. The seal configuration uses Nitrile Type 21, which will prevent leakage.
NSF Certified NSF/Ansi Standard 169 for special purpose food equipment and devices.
Typical Applications. Beverage, espresso/coffee, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.
Low Maintenance. The Series 5 pumps are self-priming, so there is virtually no maintenance.

Product Details
Body Material	Stainless Steel
Direction	Clockwise
Elastomer Type	Buna-N
Inlet Connection	1/2" MPT
Mounting Options	Clamp On
Nominal Speed - Rpm	1725
Outlet Connection	1/2" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	190
Rotation / Slinger / Passivation / Strainer	Clockwise / Slinger
Self-Priming (Water)	6 Feet
Series	5
Size	1/2"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	4.5

Procon Pump NSF Stainless Steel 190 GPH 1/2
