Home / Filter Housings & Components / Filter Housings / Pentek 150568 20" 3G Standard Filter Housing Blue/Clear IB w/ PR - 3/4" FPT

Pentair Water

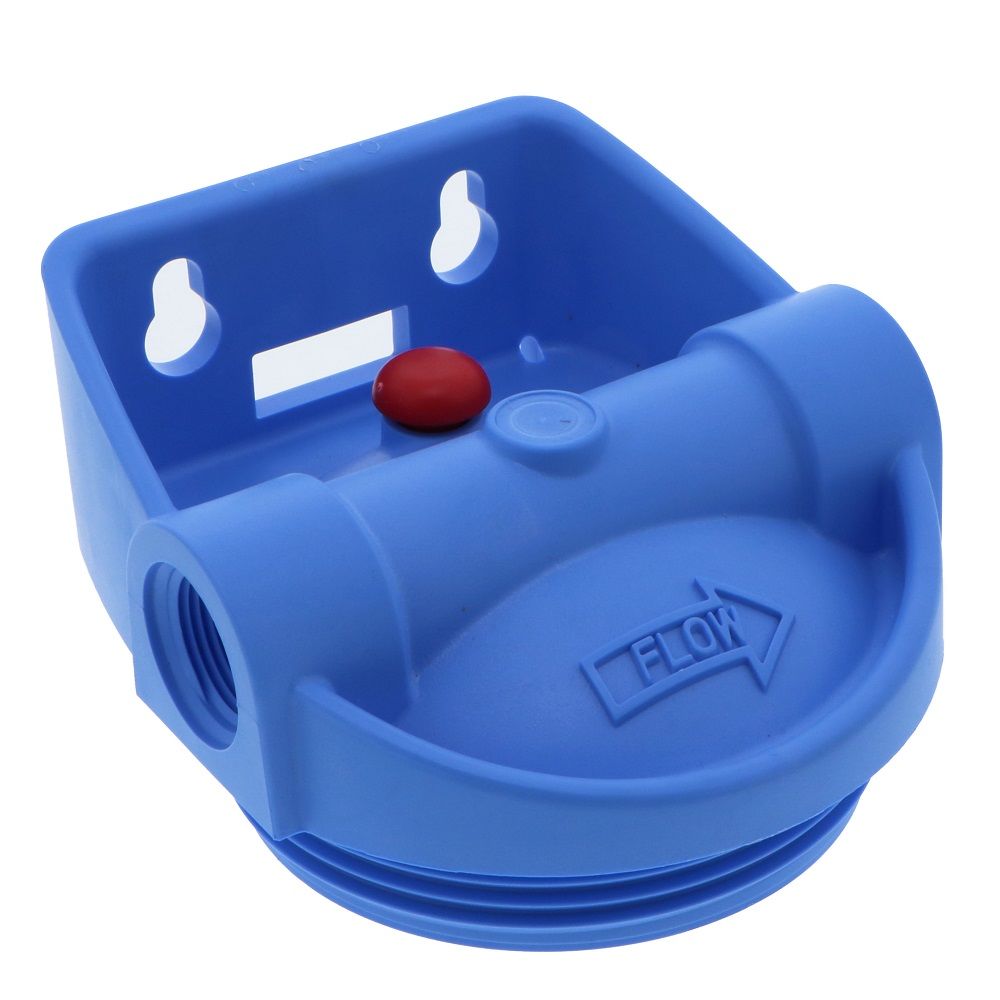

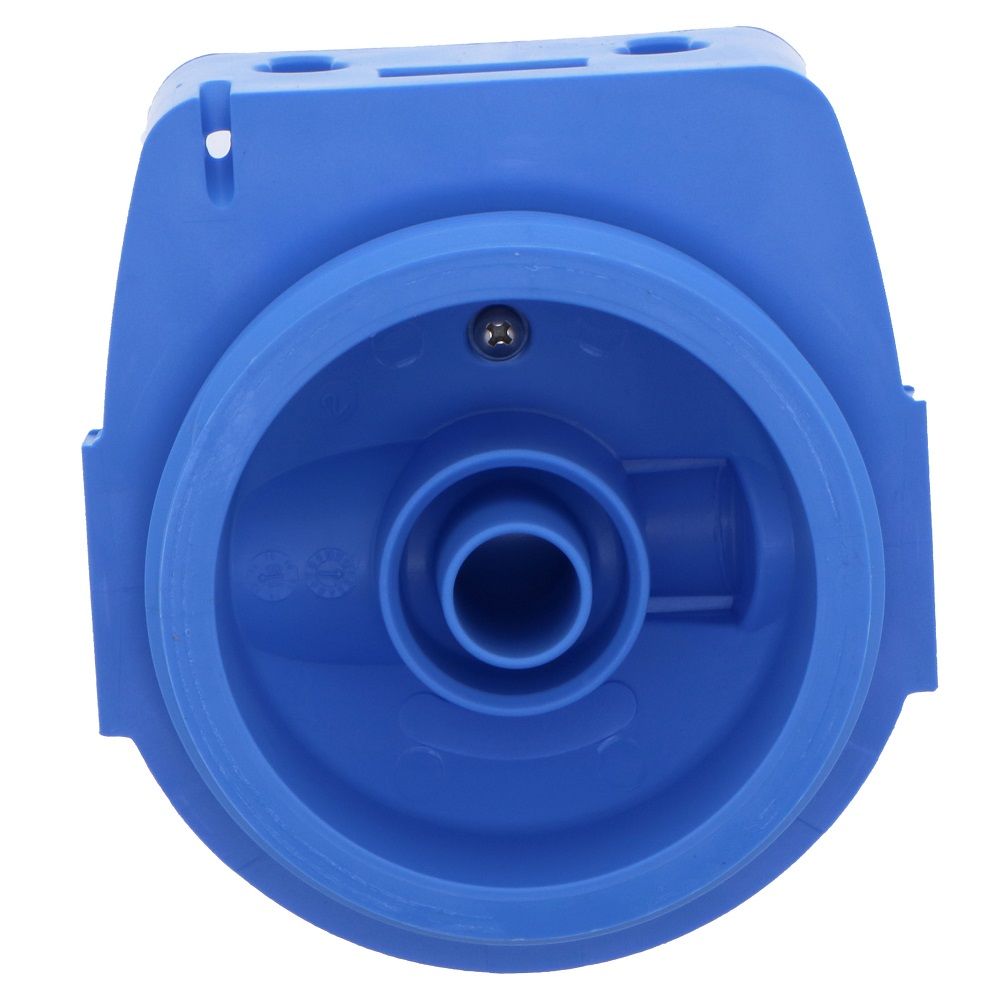

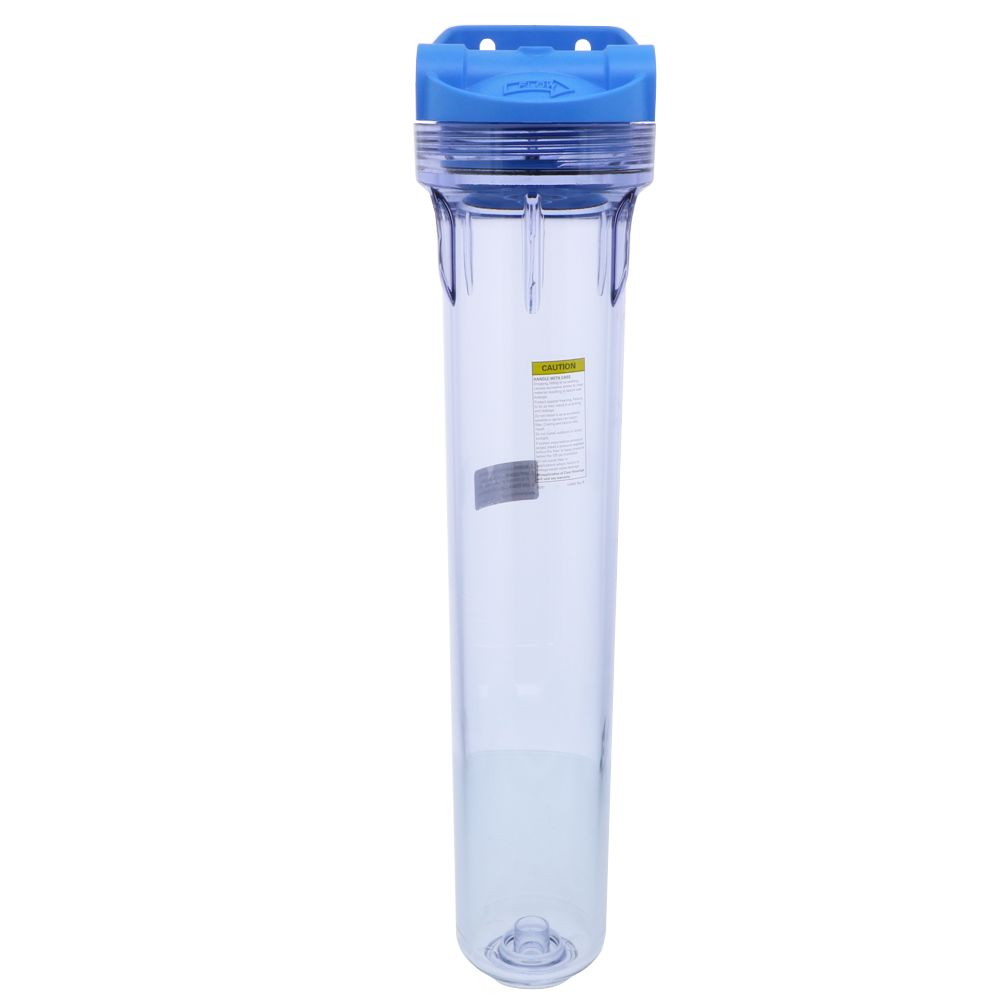

Pentek 150568 20" 3G Standard Filter Housing Blue/Clear IB w/ PR - 3/4" FPT

2 Reviews

Part Number: MT1100DIYW-NL/AB

out of stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

MSRP: $1210.00

Your price:

$895.40

Choose

Single

Box of 8

Quantity

similar items

Mountain Plumbing MT1100-NL Traditional Hot Water Dispenser w/ Hot Water Tank

$895.40

Pentek 3G Standard Filter Housings are made of durable polypropylene cap and styrene-acrylonitrile (SAN) sump and features 3/4" inlet and outlet ports. Clear housings offer on-site examination of the cartridge and accommodate a wide range of 2-1/4" to 3-1/8" diameter cartridges making them ideal for residential, commercial and industrial applications.

Features:

Ideal for a wide range of applications, including residential, commercial and industrial
Buttress threads for additional strength and easier cartridge changes
Thick walls for increased strength
Leak-proof sealing with top-seated 151120 Buna-N O-ring
Excellent chemical resistance
Integrated Mounting Bracket with Pressure Relief Button
Filter cartridge sold separately

Note: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.

Refer to this chart for Filter Cartridge recommendations:

Size	Contaminant	Chlorine Reduction	VOC Reduction	Advanced*	Chloramine Reduction**
20"	Standard	CTO1-2520	CTCV-2520	CTOX-2520	CHLM-2520

*Advanced: CTO/Cyst/Lead/VOC; also available in 10", 30" and 40"
**CHLM: CTO/CHLM; also available in 30" and 40" Compatible with:

Everpure®	EV9795-90, E-20
Nu-Calgon	4621-44

Product Details
Button Assembly	300 Stainless Steel-EPDM-Polypropylene
Cap Color	Blue
Features	Pressure Relief
Housing Material	Styrene Acrylonitrile
Inlet Connection	3/4" FPT
Max Pressure (Psi)	125
Max Temp (°F)	125
Mounting Options	Integral Bracket
O-Rings	Buna-N
Outlet Connection	3/4" FPT
Psid@Flow Rate	1 PSI @ 10 GPM
Size	20"
Cap Material	Polypropylene
Color / Finish	Clear
Connection Type	Female (FPT)
Type	Standard
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	6.25
Product Length	23.25
Product Width	5.25
Product Weight (lbs)	4.75

Product Details
Button Assembly	300 Stainless Steel-EPDM-Polypropylene
Cap Color	Blue
Features	Pressure Relief
Housing Material	Styrene Acrylonitrile
Inlet Connection	3/4" FPT
Max Pressure (Psi)	125
Max Temp (°F)	125
Mounting Options	Integral Bracket
O-Rings	Buna-N
Outlet Connection	3/4" FPT
Psid@Flow Rate	1 PSI @ 10 GPM
Size	20"
Cap Material	Polypropylene
Color / Finish	Clear
Connection Type	Female (FPT)
Type	Standard
Shipping Dimensions
Shipping Length	25 in.
Shipping Width	12.5 in.
Shipping Height	21 in.
Product Weight & Dimensions
Product Height	21
Product Length	25
Product Width	12.5
Product Weight (lbs)	35.664

Ideal for a wide range of applications, including residential, commercial and industrial
Buttress threads for additional strength and easier cartridge changes
Thick walls for increased strength
Leak-proof sealing with top-seated 151120 Buna-N O-ring
Excellent chemical resistance
Integrated Mounting Bracket with Pressure Relief Button
Filter cartridge sold separately

Size	Contaminant	Chlorine Reduction	VOC Reduction	Advanced*	Chloramine Reduction**
20"	Standard	CTO1-2520	CTCV-2520	CTOX-2520	CHLM-2520

*Advanced: CTO/Cyst/Lead/VOC; also available in 10", 30" and 40"
**CHLM: CTO/CHLM; also available in 30" and 40" Compatible with:

Everpure®	EV9795-90, E-20
Nu-Calgon	4621-44
