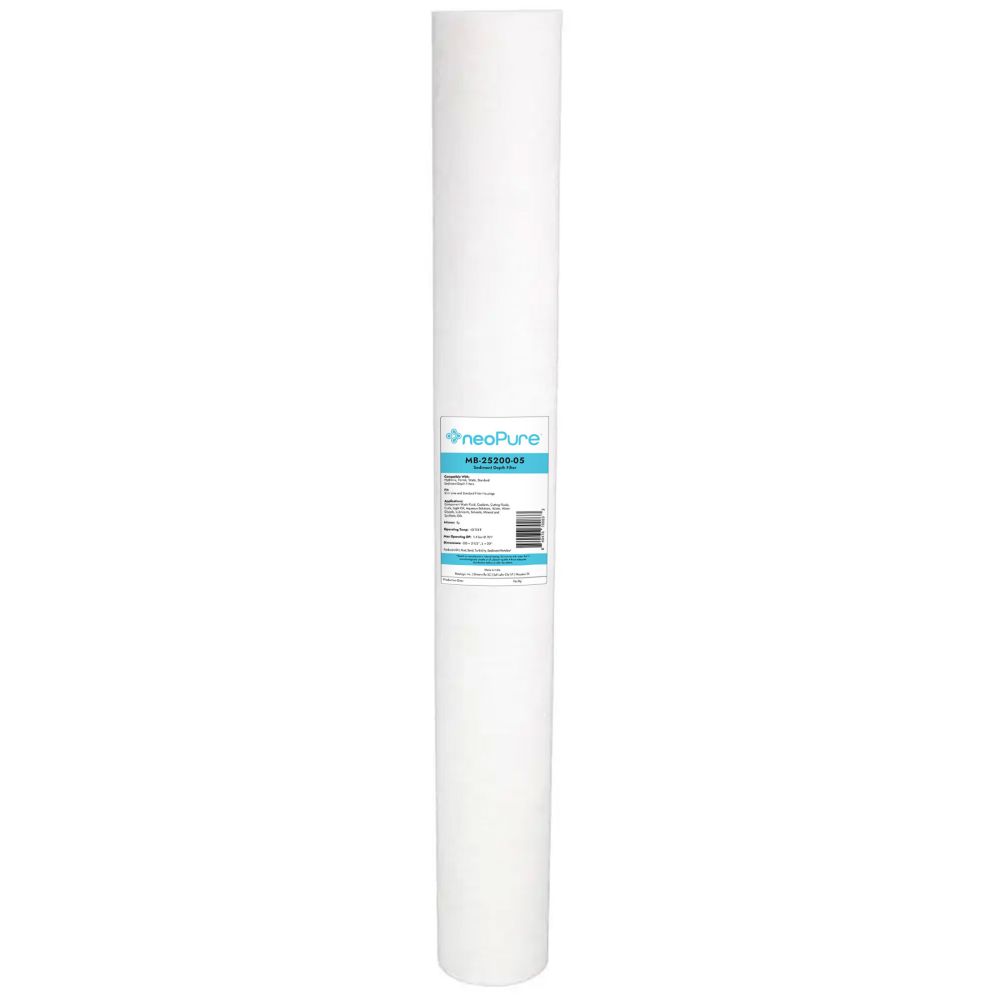

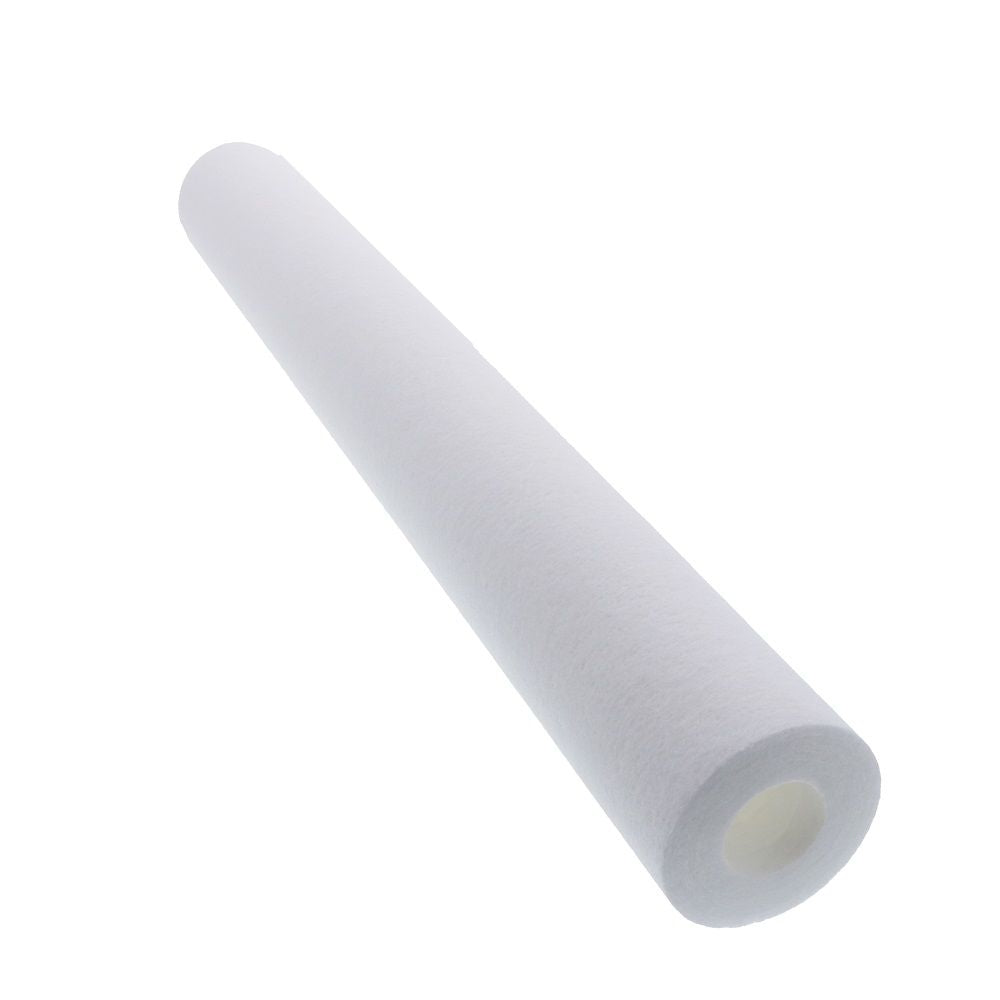

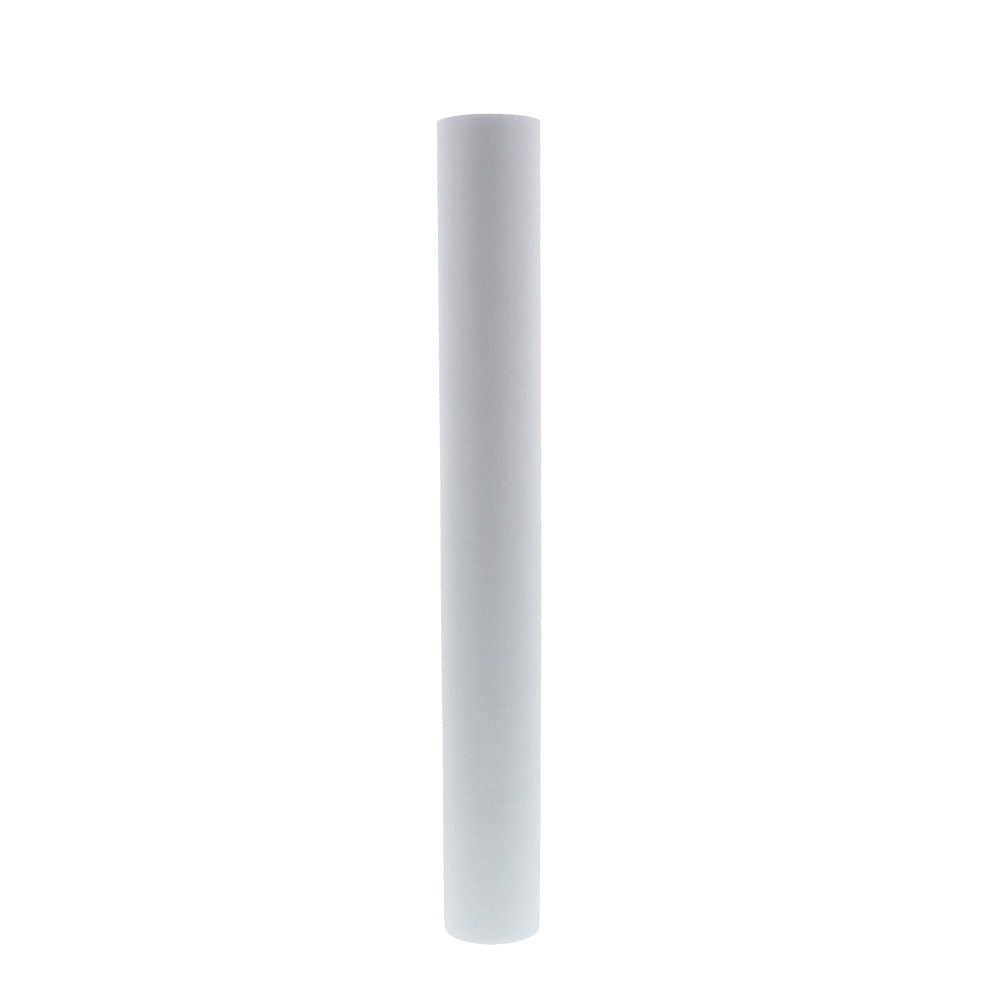

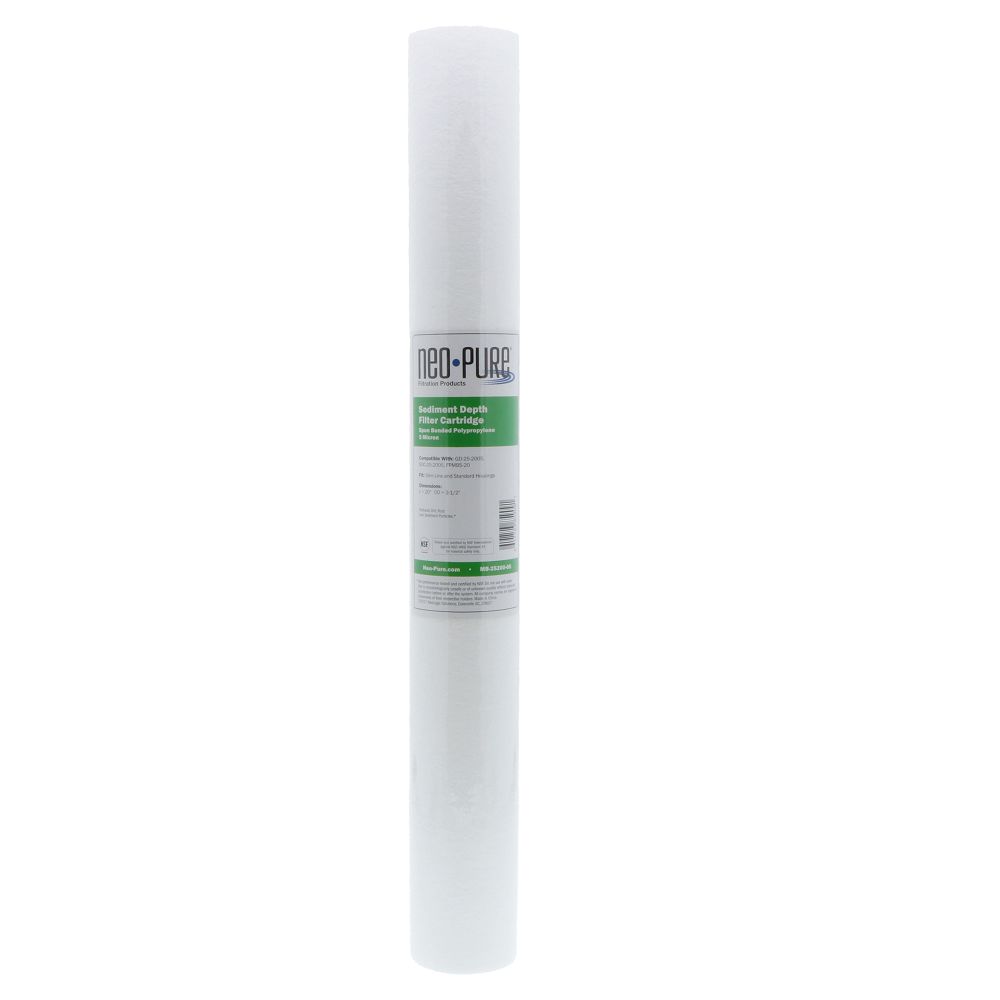

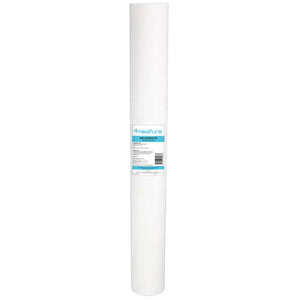

Neo-Pure MB-25200-05 20" Polypropylene Sediment Depth Filter 5 mic

16 Reviews

Part Number: MB-25200-05

Alt. Part Number: GD-25-2005, SD-25-2005, FPMB5-20

in stock

One-time purchase

MSRP: $6.63

Your price:

$5.34

Choose

Single

$5.34 each

Case of 20

$4.08 each

Pallet of 960

$3.18 each

Quantity

similar items

20" Purtrex Sediment Depth Filter - 5 Mic (PX05-20)

$5.37

The Neo-Pure MB-25200-05 is a High Efficiency 20" Polypropylene Sediment Depth Filter, which is a reliable and economical solution for pre-filtration in many applications. The 20" sediment depth filter, like FCRO cartridges, offer greater surface area for longer life and greater dirt holding capacity. Neo-Pure MB-25200-05 filters are listed for food contact applications in Title 21 of the U.S. Code of Federal Regulations.

Features:

Long filter life
100% pure polypropylene
Exceptional dirt-holding capacity
FDA approved materials
Fits most filter housings that use 20" x 2.5" filters
Reduces: Sediment, dirt, rust
NSF/ANSI Certified Standard 42

Compatible with:

Aqua Sun International	SWS-20
Aqua-Pure™/3M Purification	AP110-2C
Bunn	ED-S-2
Cornelius	COR205, COR220
EcoLab®	9320-1143
GE Water	93047, PX05-20, 1193047
Graver Technologies	STC20-20NN
Hague®	200144
Hydronix	SDC-25-2005
Ice House America®	IHA - X00424
Ideal H2O™	738355
Liquatec	SDF-25-2005
Nu-Calgon	4621-43
Pentek	P5-20, 155016-43
PURA	252-050, 33003033
Pura UV Lamps & Filters	252-050, 33003033
PureMark	PFS205
Selecto	101-233
Shurflo	15-052-03
Sterilight	SW5-2
Valuetrex	1227868-V, VX05-20
Watts	FPMB5-20

Product Details
Efficiency	0.8
Initial Pressure Drop	<1 psi typical PSI Differential
Max Temp (°F)	150
Micron Rating (Nominal)	5 µm
Min Temp (°F)	40
Psid@Flow Rate	< 1 psi typical
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Media Type	Polypropylene
Micron Rating	5 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42, FDA CFR-21, NSF/ANSI 372
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Freight_Out_Pallet_Dims	48x40x90
Freight_Out_Pallet_Qty	720
Freight_Out_Pallet_Weight	513
Product Height	2.5
Product Length	20"
Product Width	2.5
Product Weight (lbs)	0.606
