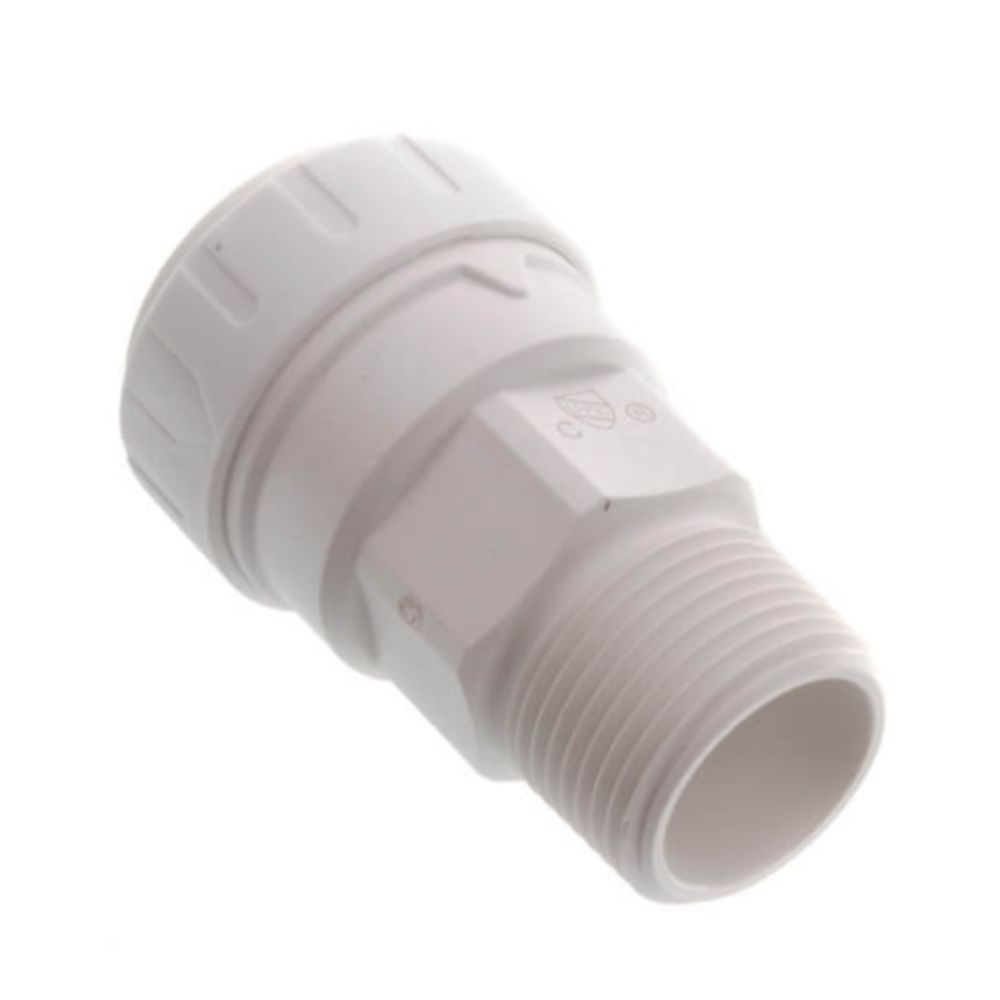

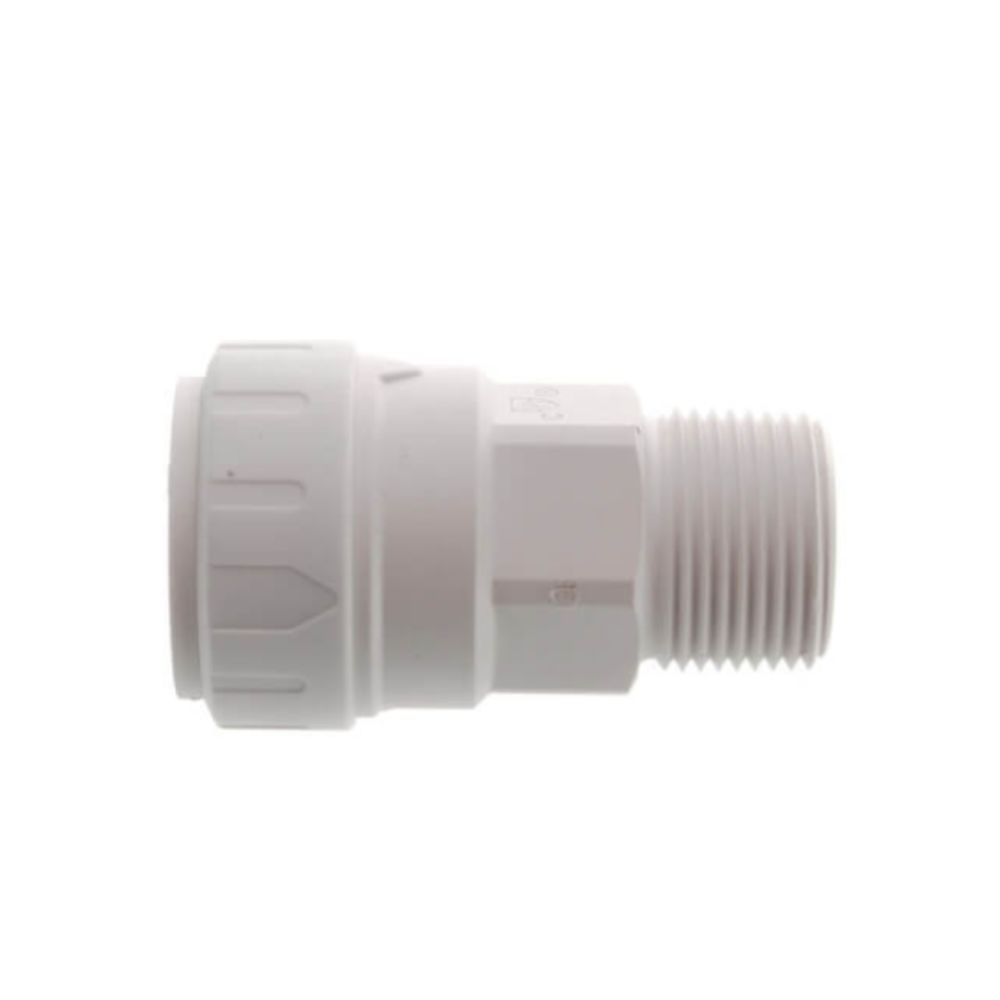

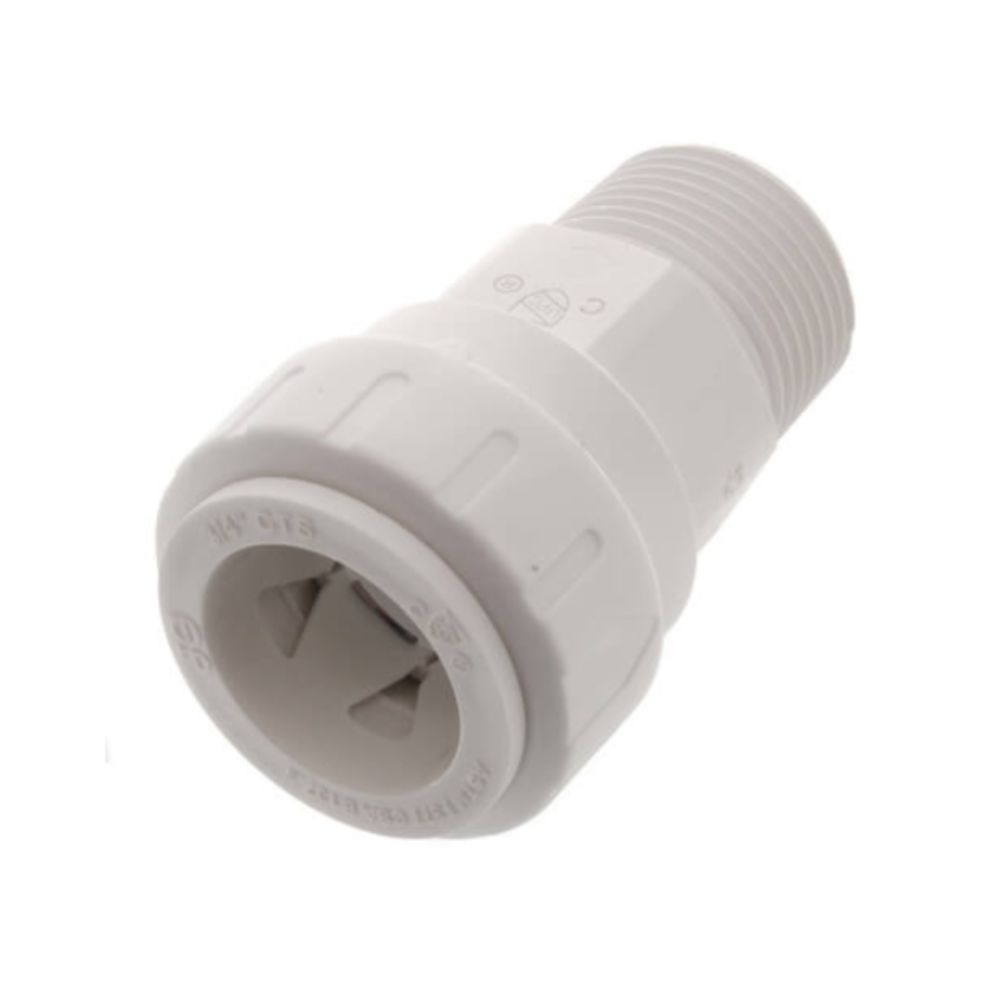

John Guest Male Connector PEX - 3/4 CTS x 3/4 NPT

Intended Use:
John Guest’s push-fit technology to make easy, reliable, leak-free connections. They have been developed to satisfy the compatibility needs for a wide range of applications and can be used on plastic or soft copper tubing.
Specifications:

White polypropylene construction
EPDM o-rings
NSF Certified to Standard 14 & 61
Complies with UPC and CSA
Use with Copper, PEX, CPVC
Twist & lock design
Lead free and non-toxic

Product Details
Application	CPVC Copper Tubing Material PEX
Body Material	Polypropylene
Inlet Connection	3/4" MPT
Max Pressure (Psi)	160
Max Temp (°F)	200
Min Pressure (Psi)	0
Min Temp (°F)	33
Mounting Options	Thread
Outlet Connection	3/4" MPT
Push-In Size	7/8" OD
Seal Material	EPDM
Series	PEI
Shape	Straight
Size	3/4"
Color / Finish	White
Connection Type	Male (MPT)
Origin	United Kingdom
Size Type	Common Tube Size (CTS)
Sub-Type	Male Adapter
Type	Adapter
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
