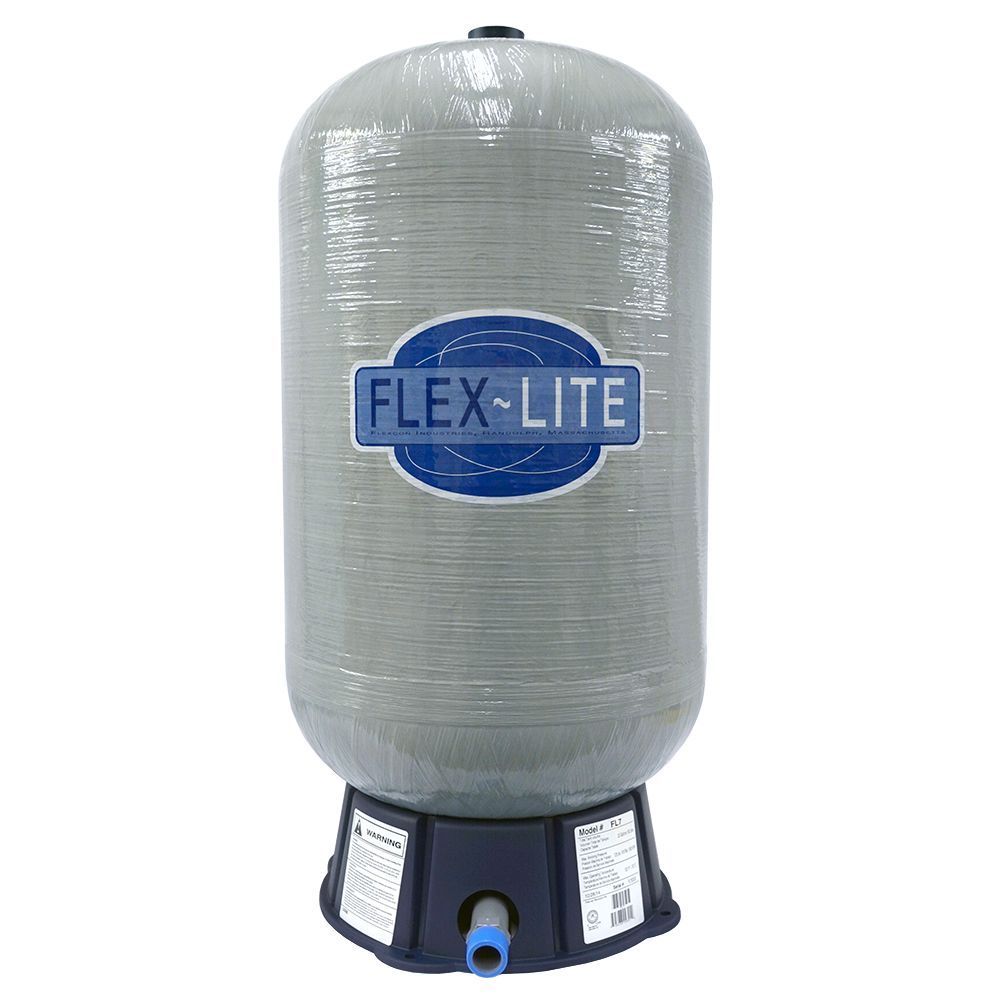

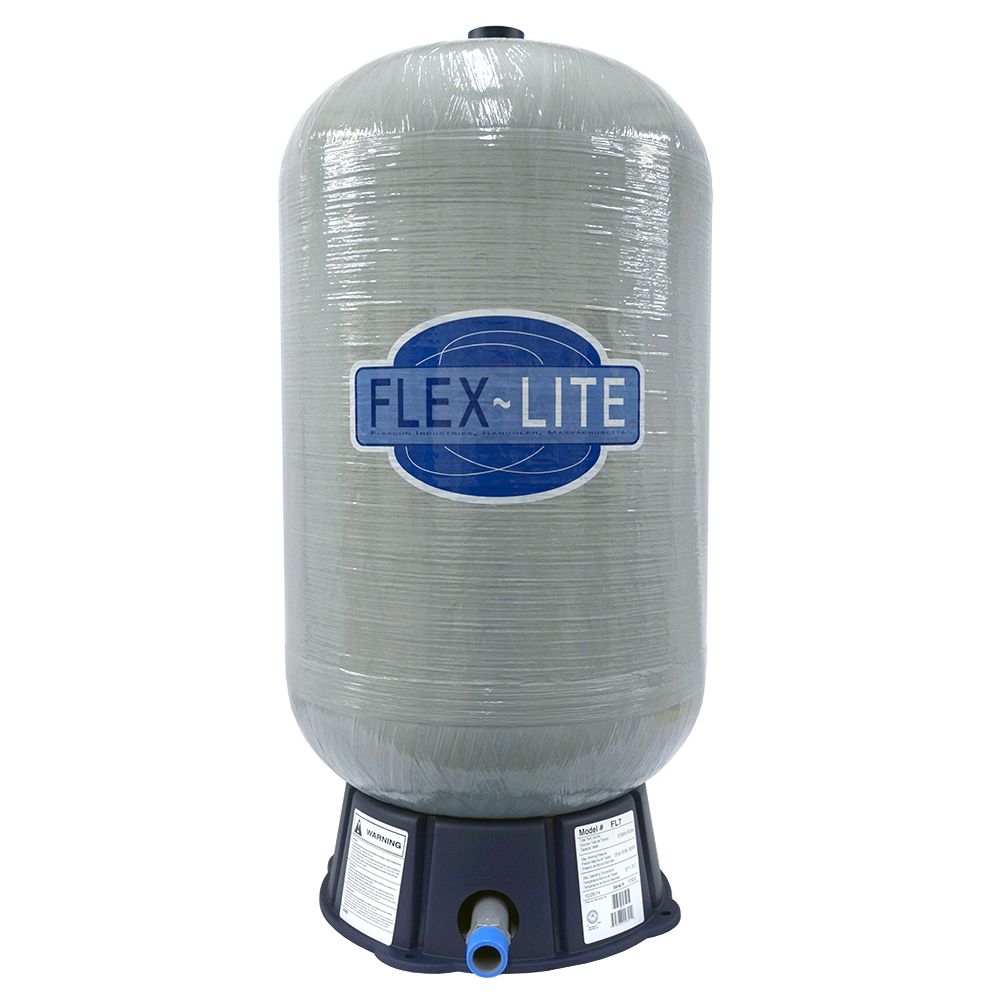

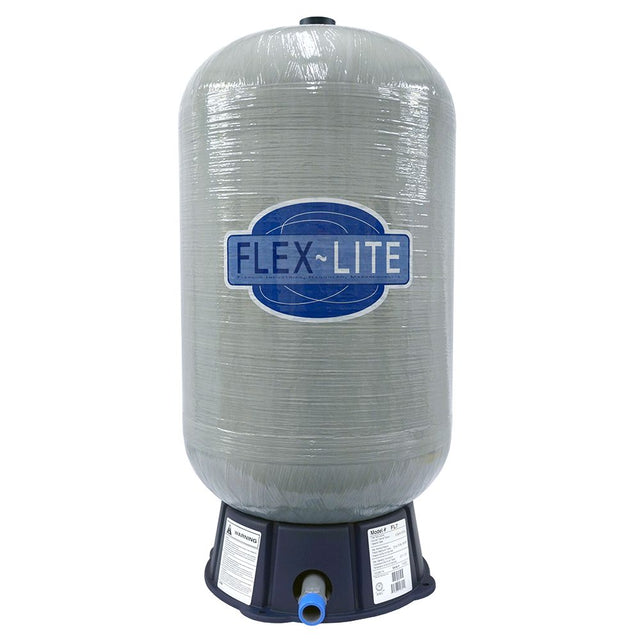

Flex-Lite FL7 Composite Well Pressure Tank 22 gallon

Part Number: FL7

out of stock

This item is discontinued. We recommend the WellMate WM-6 Well Pressure Tank 20 gal as a substitute.

Your price:

$1091.00

Product not eligible for free shipping. Learn more

Quantity

similar items

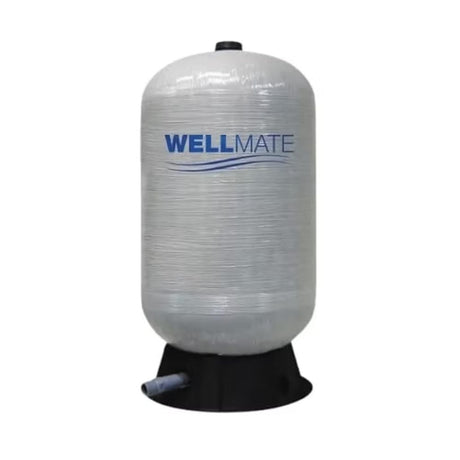

WellMate WM-6 Well Pressure Tank 20 gal

$456.89

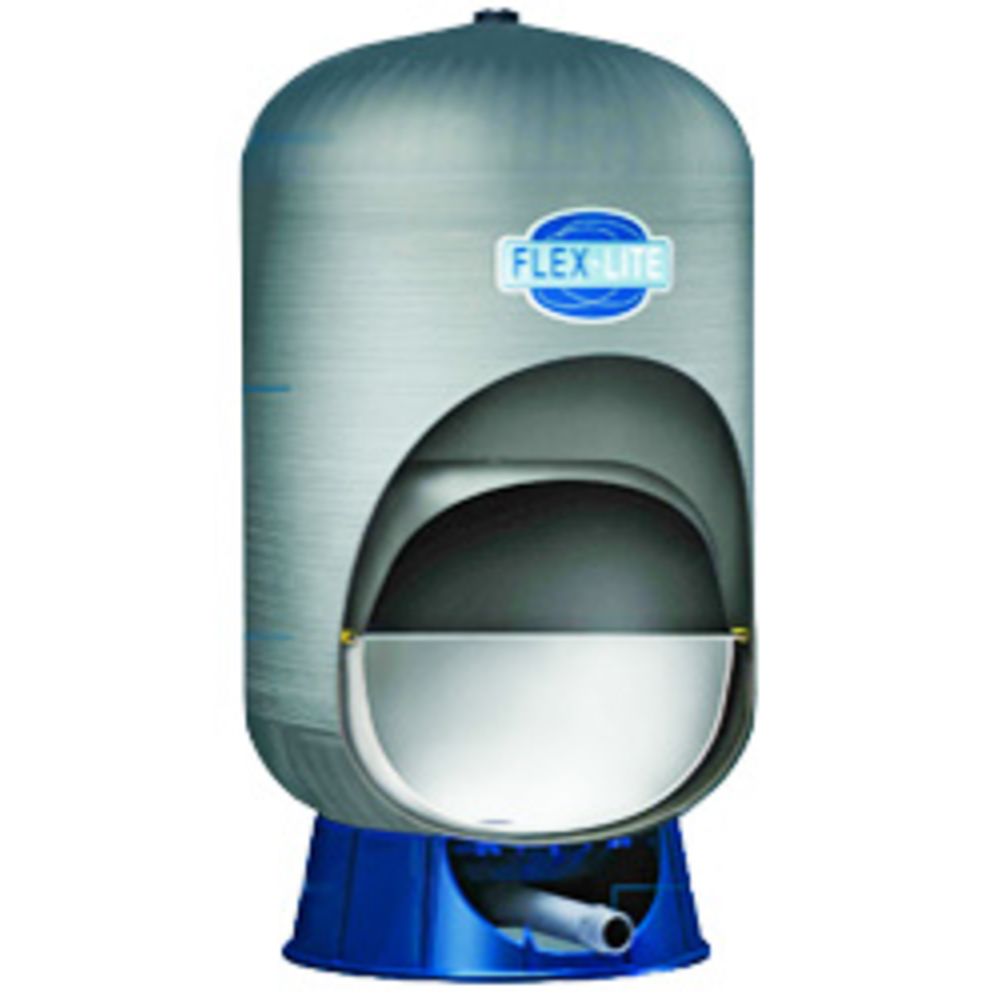

The Flex-Lite FL7 is a corrosion-proof well pressure tank that is made with a composite of continuous strand fiberglass filament that is coated with epoxy. The Flex-Lite FL series features the improved CAD-2 (Controlled Action Diaphragm) design which is stronger and doesn't crease and wear out like older bag designs. The 100% butyl diaphragm is chlorine resistant and combined with the precision molded copolymer polypropylene lower water chamber provides superior air and water separation.
Features:

CAD-2 diaphragm technology allows the water chamber to be sized for optimum drawdown
Corrosion-proof composite construction
Won’t rust in corrosive environments, particularly important in coastal regions
Little or no maintenance
Longer life, greater flexibility
Light weight
Drawdown at 30/50 Setting: 7.5 gallons
5 year warranty
NSF Standard 61 listed
Made in the USA

Applications:

WellMate WM6
Sta-Rite SR20, PSP-FW20-6, PSC-20-6, PS19T-T02, PSP19T-T02
Flex2Pro H2PL22

Product Details
Air Valve Stem Location	Top
Application	Pressure Pump Tank
Connection Location	Bottom
Diaphragm Materials	Butyl Rubber
Drawdown Volume	8.8 Gallons @ 20/40 Setting 7.5 Gallons @ 30/50 Setting 6.5 Gallons @ 40/60 Setting
Inlet Connection	1" MPT
Material Of Construction	Polypropylene tank reinforced with fiberglass, sealed with epoxy resin
Max Pressure (Psi)	125
Max Temp (°F)	140
Outlet Connection	1" MPT
Size	1"
Tank Pre-Charge	38 PSI
Volume	22 Gallons
Connection Type	Male (MPT)
Diameter	16-1/2"
Origin	U.S.A.
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61
Warranty	5 years
Product Weight & Dimensions
Height W/ Stand	34.1"
Product Weight (lbs)	53

CAD-2 diaphragm technology allows the water chamber to be sized for optimum drawdown
Corrosion-proof composite construction
Won’t rust in corrosive environments, particularly important in coastal regions
Little or no maintenance
Longer life, greater flexibility
Light weight
Drawdown at 30/50 Setting: 7.5 gallons
5 year warranty
NSF Standard 61 listed
Made in the USA

Applications:

WellMate WM6
Sta-Rite SR20, PSP-FW20-6, PSC-20-6, PS19T-T02, PSP19T-T02
Flex2Pro H2PL22
