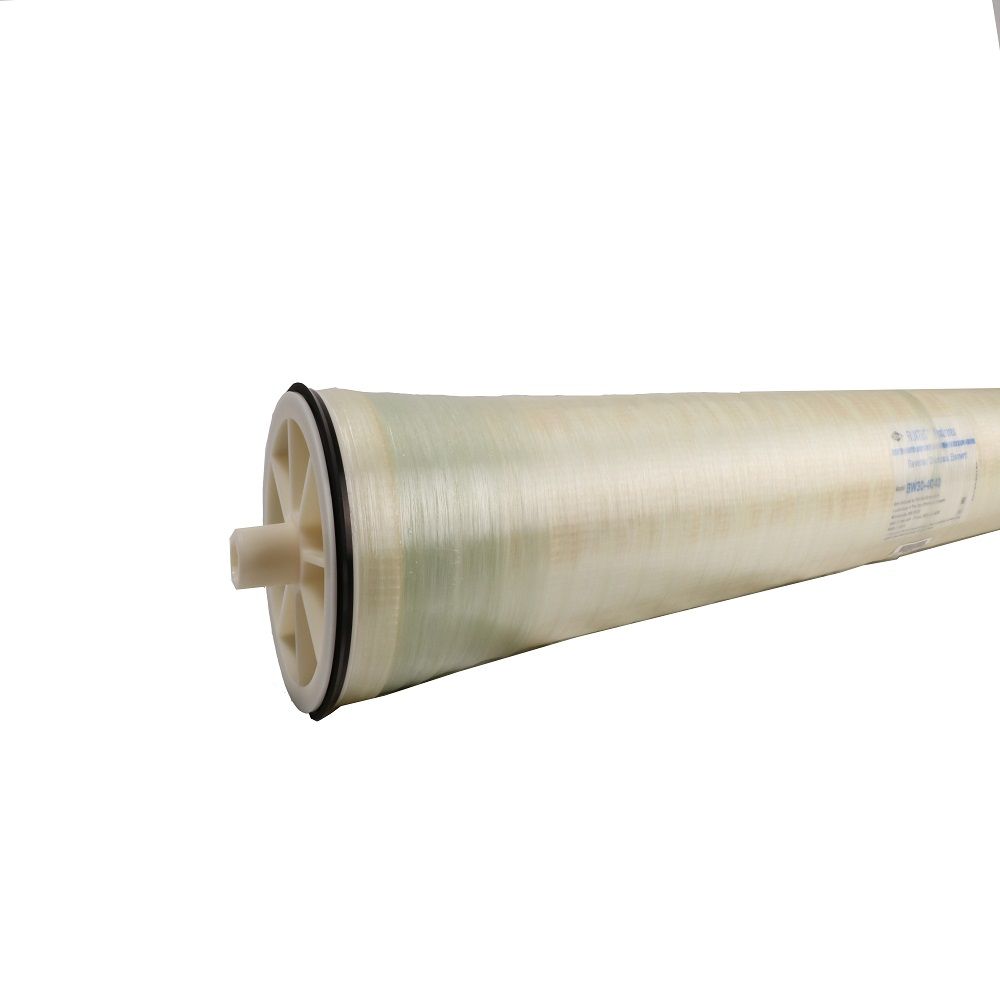

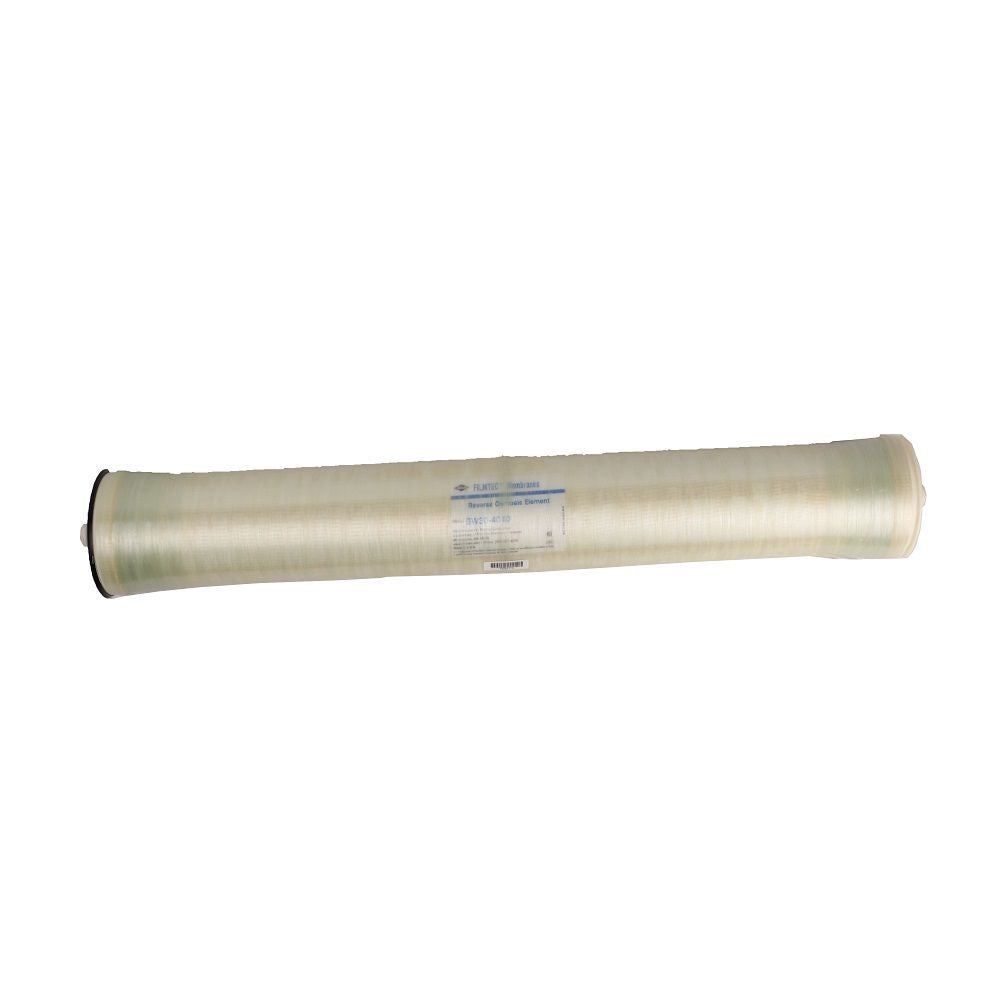

Filmtec BW30-4040 Brackish Water 2400 GPD RO Membrane Element

The Dow FILMTEC BW Brackish Water Membranes are specifically designed for light industrial applications with higher than normal silt density. Due to the fiberglass outer wrap, these brackish water (BW) membranes can consistently sustain the higher pressures required in these applications.

Specifications:

Up to 2400 gallon per day production
Up to 600 SIPG
Fits standard 4" housings or pressure vessels
FILMTEC BW30-4040 is the industry standard for reliable operation and production of the highest quality water

Filmtec RO membranes are wet packed

Compatible with:

Desal AG-Series Tap Water/Brackish RO Elements	1206761
Filmtec Membranes	80783

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	78 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Spacer Thickness	34 mil
Inlet Pressure	225 PSI
Inner/Outer Wraps	Fiberglass
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	16 gpm (3.6 m3/h)
Max Pressure Drop	15 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	2,400 gpd (9.1)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Stabilized Salt Rejection Cl- (%)	0.995
Cartridge Style	Drop-in
Diameter	3.9"
Shipping Dimensions
Shipping Length	41.5 in.
Shipping Width	4.5 in.
Shipping Height	4.5 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	7.3
