Everpure Claris System - Medium w Gen 2/BSP Head

Part Number: IUDCDTCN3803

Alt. Part Number: Claris Medium, EV4339-81, EV433981

out of stock

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

MSRP: $12.15

Your price:

$13.36

Product not eligible for free shipping. Learn more

Quantity

The CLARIS-M-BSP System is designed to meet all your filtration and softening needs. The Claris filter is specially designed to tailor to the hot beverage market, including espresso and coffee filtration, brewed iced tea, steamers, and more.

Features:

DuoBlend Bypass Valve technology, which provides a consistent and precise adjustment of carbonate hardness
Ensures the efficiency and long service life of your machine
Optimized use of ingredients and improved energy costs
Air vent and flush directly at the filter head without any disconnection of tubes
Vertical or horizontal operating configuration
Rated Capacity:
- 660 Gallons (2,498 L) for Espresso
- 790 Gallons (2,990 L) for OCS/Coffee

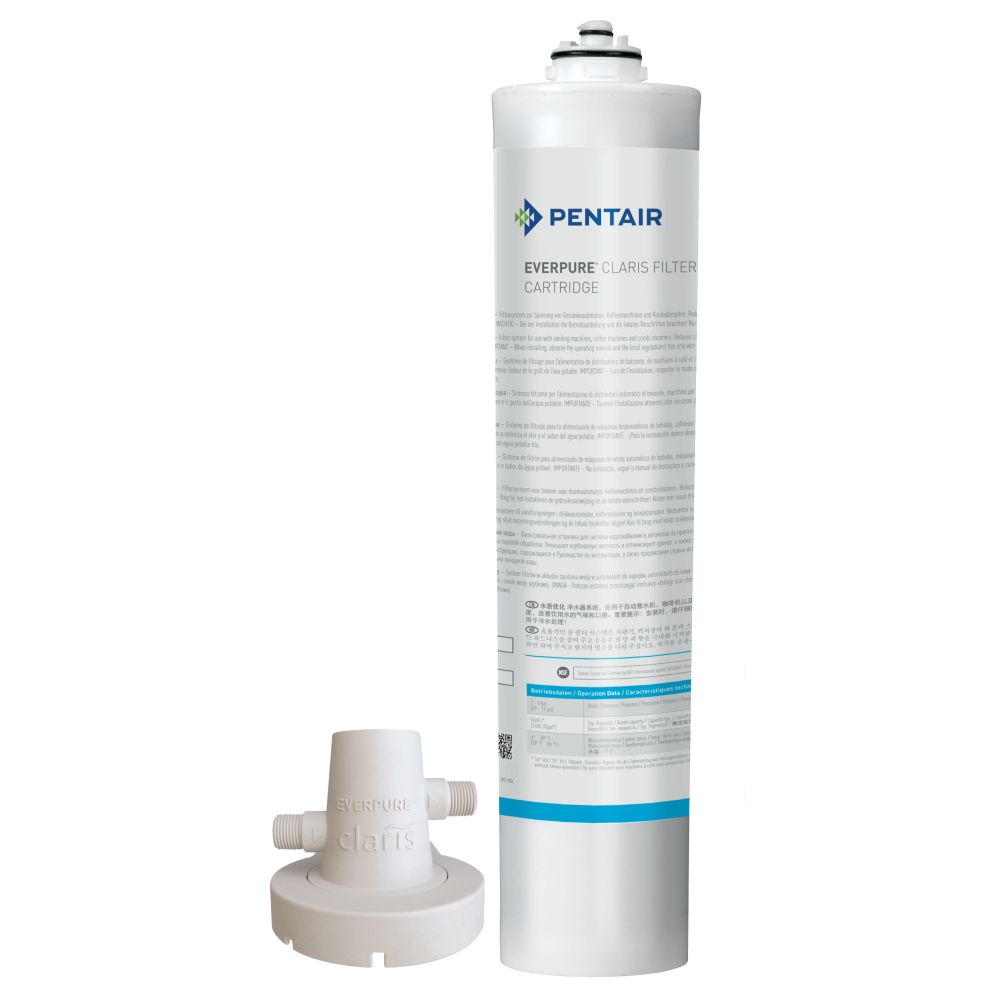

Includes:

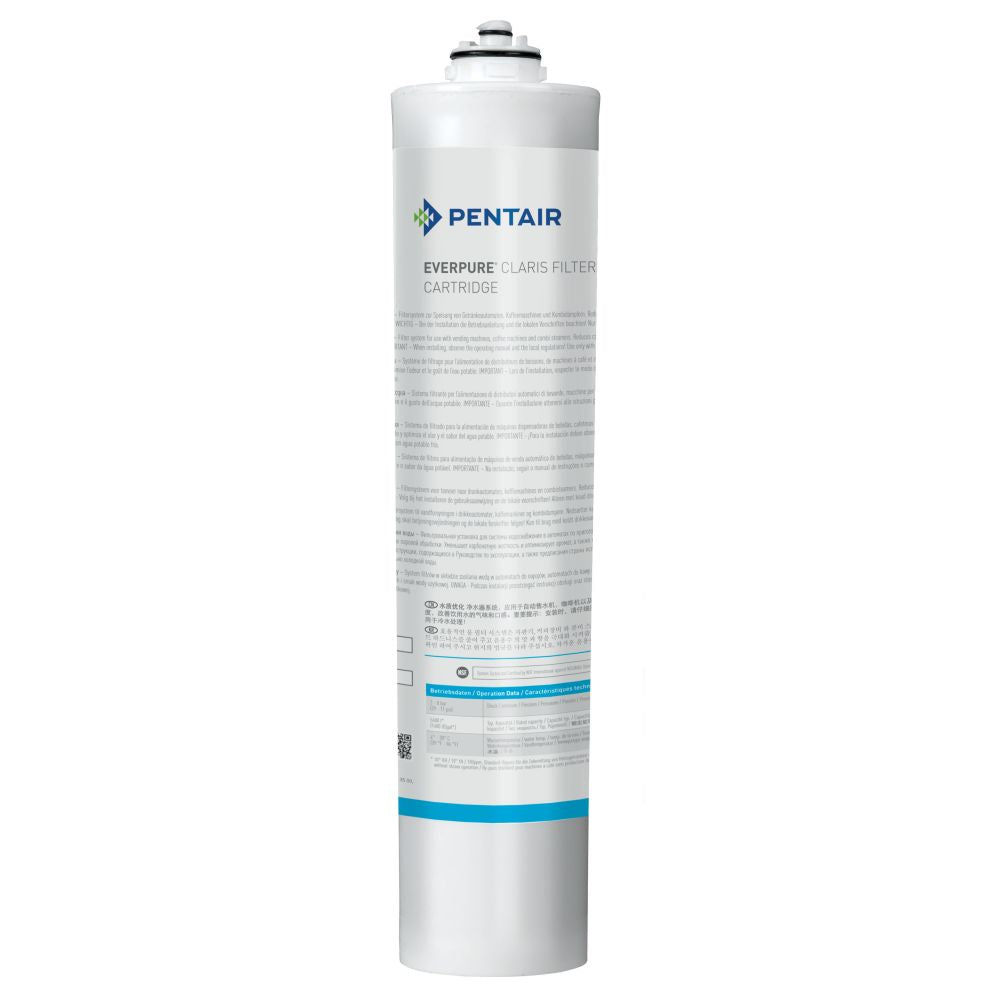

- (1) Claris Medium EV4339-11 filter cartridge

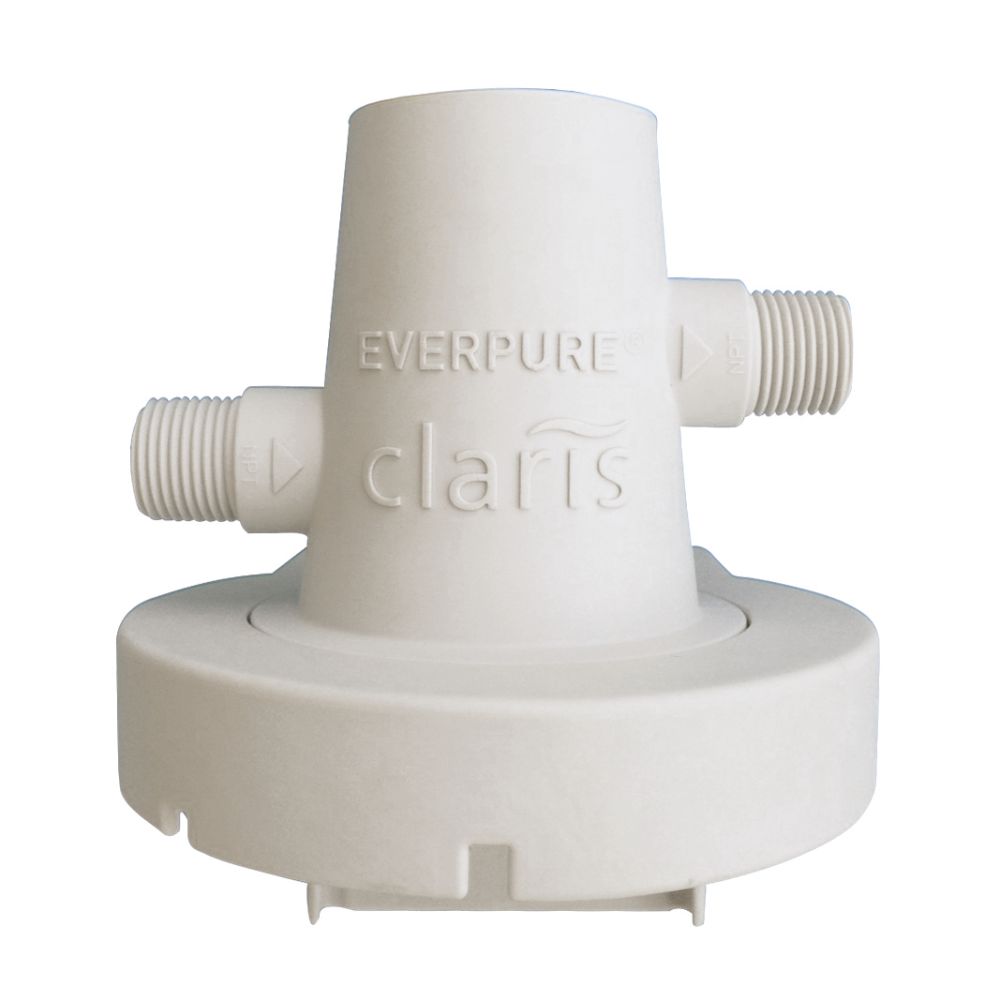

- (1) Claris Gen2 EV433990 Filter Head w/ 3/8" BSP (british standard pipe thread) inlet/outlet connections

Five Stage Filtration Process of Claris Cartridges:

Pre-filtration media at the entrance to the cartridge retains coarse particles, such as sand or grit
The ion-selective CLARIS medium reduces carbonate hardness (alkalinity) while retaining other minerals needed for good drink quality
Fine filtration impacts the filter media and removes fine particles from the water
High efficient carbon block filter removes harmful contaminants, unpleasant odors and tastes
Solid membrane type filter removes particles down to 5 μm for the highest equipment protection

Cartridge replacement is recommended annually, or when its pre-calculated water volume has been reached. Replacement of all gaskets between head to cartridge is also recommended with every new cartridge.

Product Details
Application	Coffee System Espresso Filtration Steam System
Capacity	660 Gallons 790 Gallons
Inlet Connection	3/8" BSP
Max Flow Rate	0.5 GPM
Max Pressure (Psi)	116
Max Temp (°F)	86
Micron Rating (Nominal)	5 µm
Min Pressure (Psi)	29
Min Temp (°F)	39
Outlet Connection	3/8" BSP
Size	3/8"
Change Frequency	Espresso: 660 gal,Coffee: 790 gal
Connection Type	BSP
Contaminants Reduced	Sediment/Dirt/Rust Calcium Carbonate Chlorine/Taste/Odor
Type	Coffee Filtration System
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	28 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	6
