Home / Filter Housings & Components / Membrane Housings / End Cap for 4" Stainless Steel Housing 3/4" Feed & 1/2" Permeate

Neo-Pure

End Cap for 4" Stainless Steel Housing 3/4" Feed & 1/2" Permeate

3 Reviews

Part Number: MH-40-CAP1234

only a few left!

MSRP: $30.00

Your price:

$28.73

Choose

No O-Rings

$28.73 each

With O-Rings

$30.73 each

Quantity

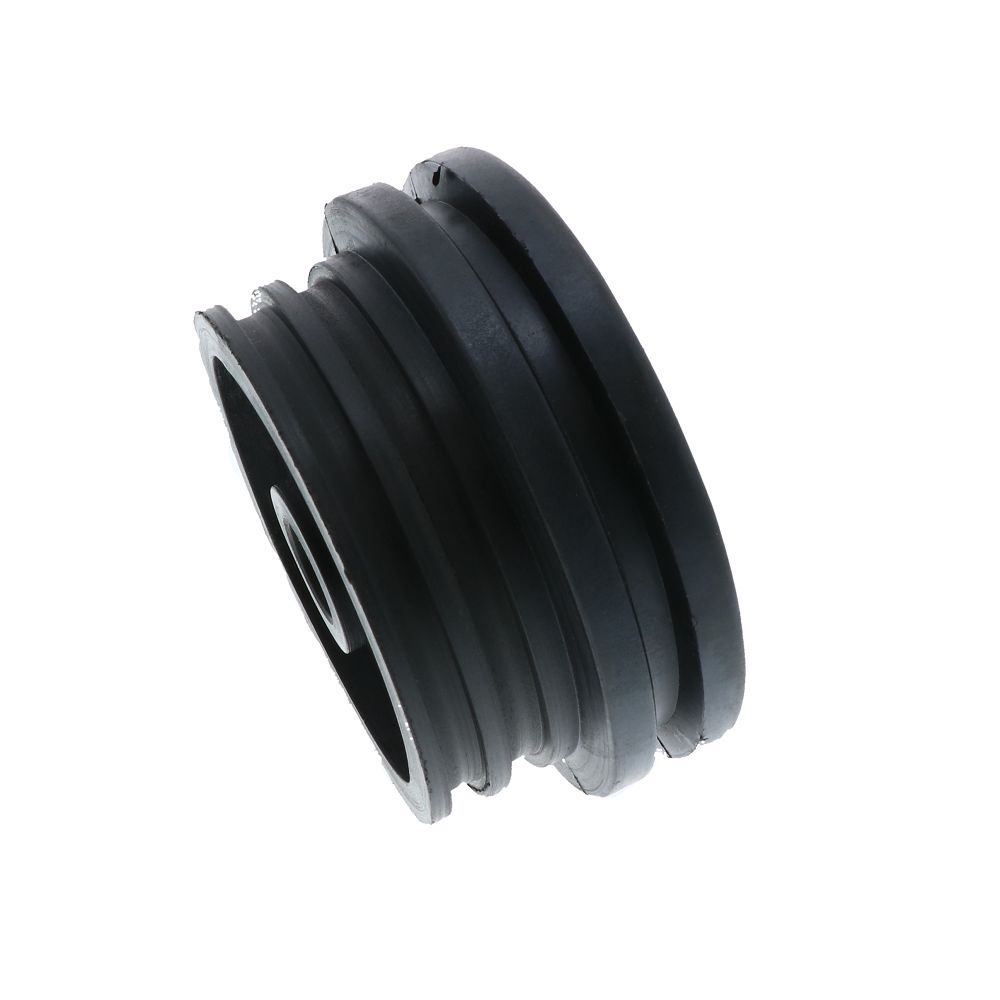

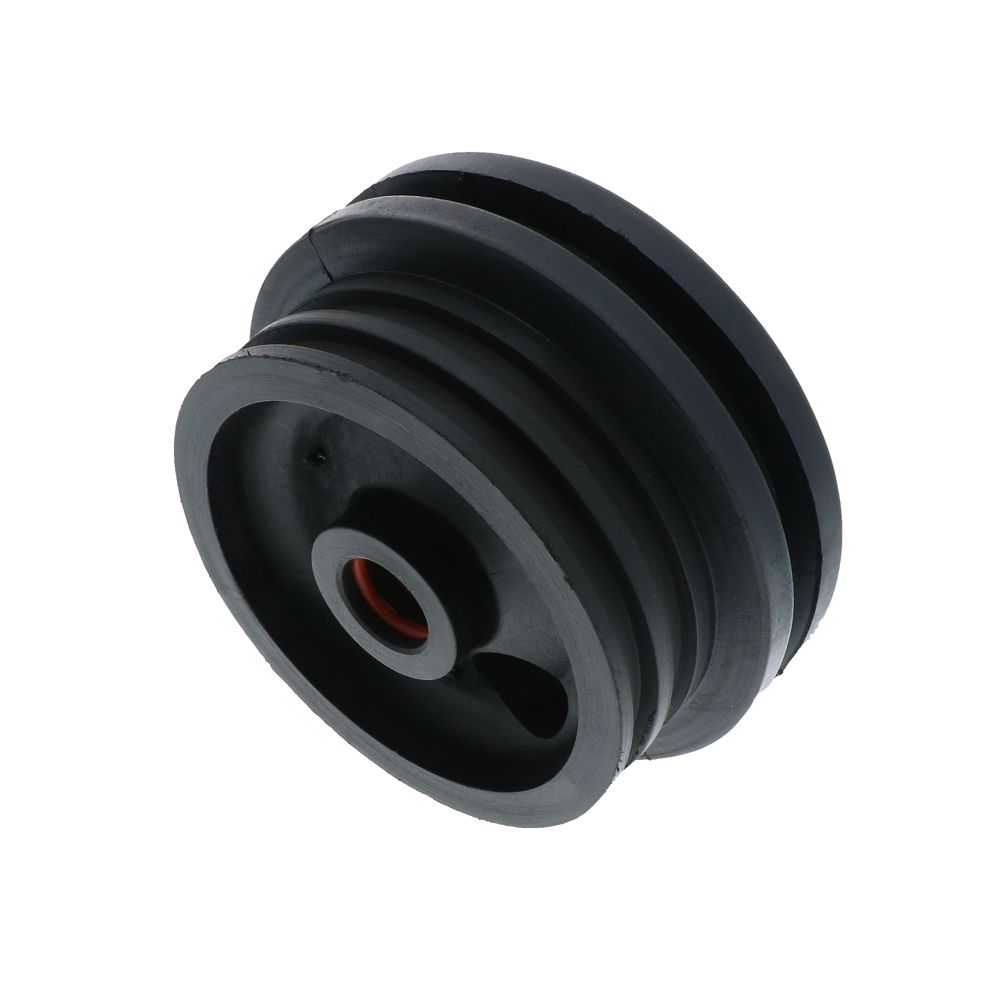

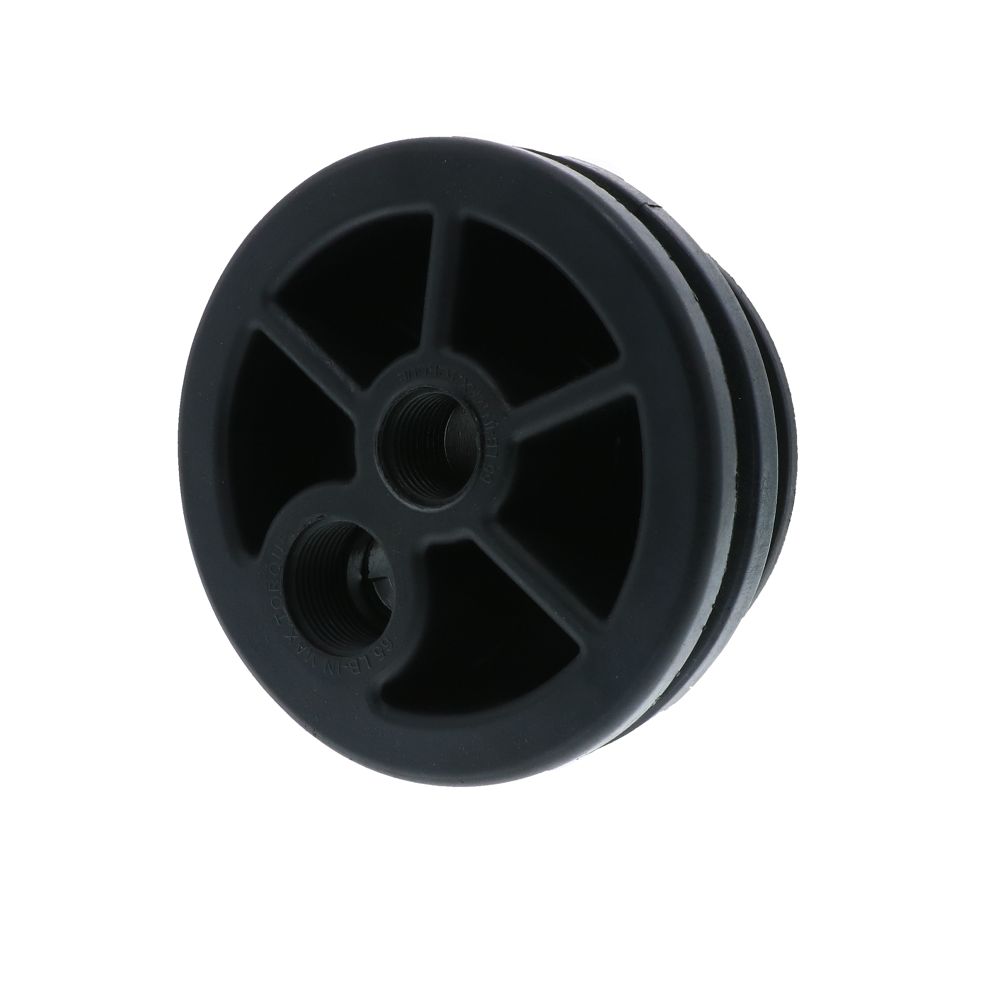

The 4" Nylon End Cap for Stainless Steel Pressure Vessel uses two sets of double O-Rings which allow the housing to withstand pressures up to 250 PSI. An outer set of 4" double O-rings seal the end cap to the pressure vessel, while a second inner set of double O-rings seal the membrane to the end cap.

Features:

3/4" Feed Port
1/2" Permeate Port
Made of durable Nylon material
Secured by "U-type" clamp closures (not included)

Note: This cap does not include the required inner or outer o-rings. Please select the "With O-rings" option above to order the cap with two inner and outer o-rings.

Compatible with:

AXEON Membranes	201536
PureGen - UNPUBLISHED	MH-40-CAP-1234

Product Details
Body Material	Nylon
Max Pressure (Psi)	250
Max Temp (°F)	120
O-Rings	Buna-N
Shipping Dimensions
Shipping Length	4.63 in.
Shipping Width	4.63 in.
Shipping Height	2.5 in.
Product Weight & Dimensions
Product Height	2.5 in.
Product Length	4.63 in.
Product Width	4.63 in.
Product Weight (lbs)	0.053125

Product Details
Body Material	Nylon
Max Pressure (Psi)	250
Max Temp (°F)	120
O-Rings	Buna-N
Shipping Dimensions
Shipping Length	9 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.1

3/4" Feed Port
1/2" Permeate Port
Made of durable Nylon material
Secured by "U-type" clamp closures (not included)

Note: This cap does not include the required inner or outer o-rings. Please select the "With O-rings" option above to order the cap with two inner and outer o-rings.

Compatible with:

AXEON Membranes	201536
PureGen - UNPUBLISHED	MH-40-CAP-1234
