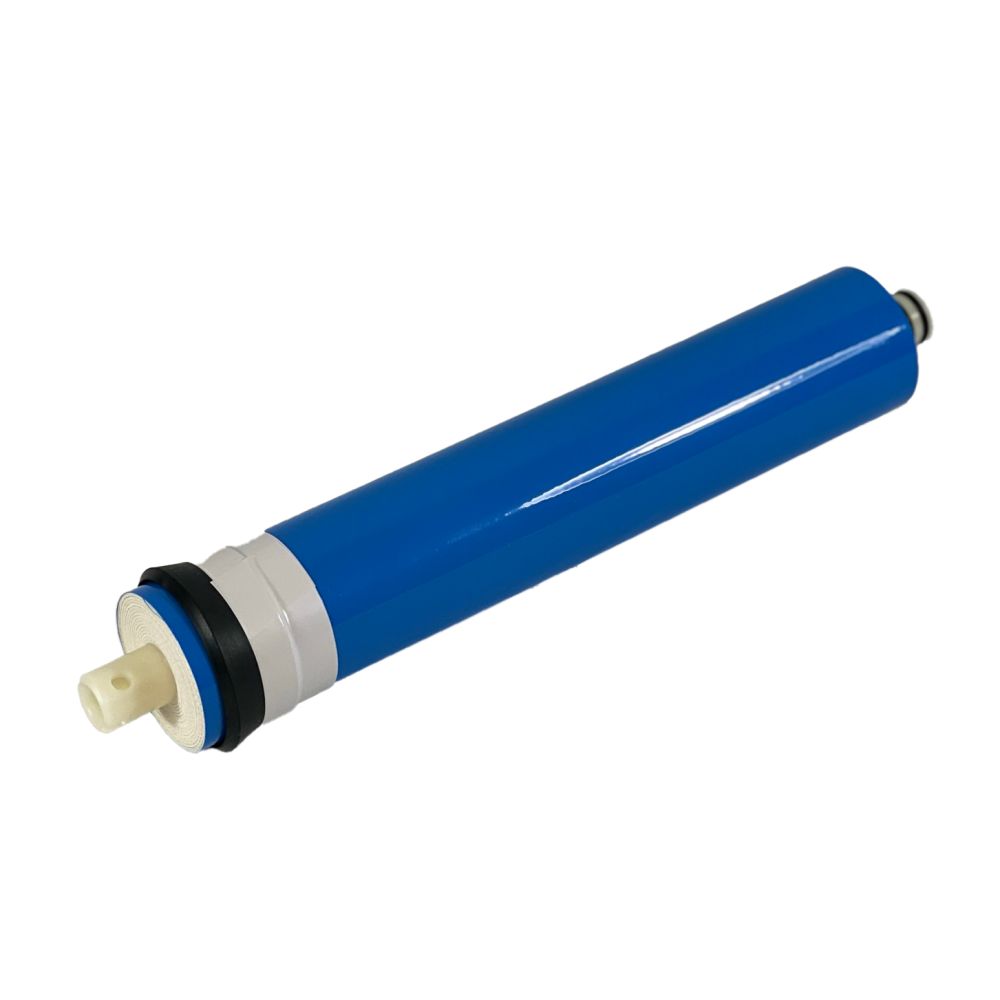

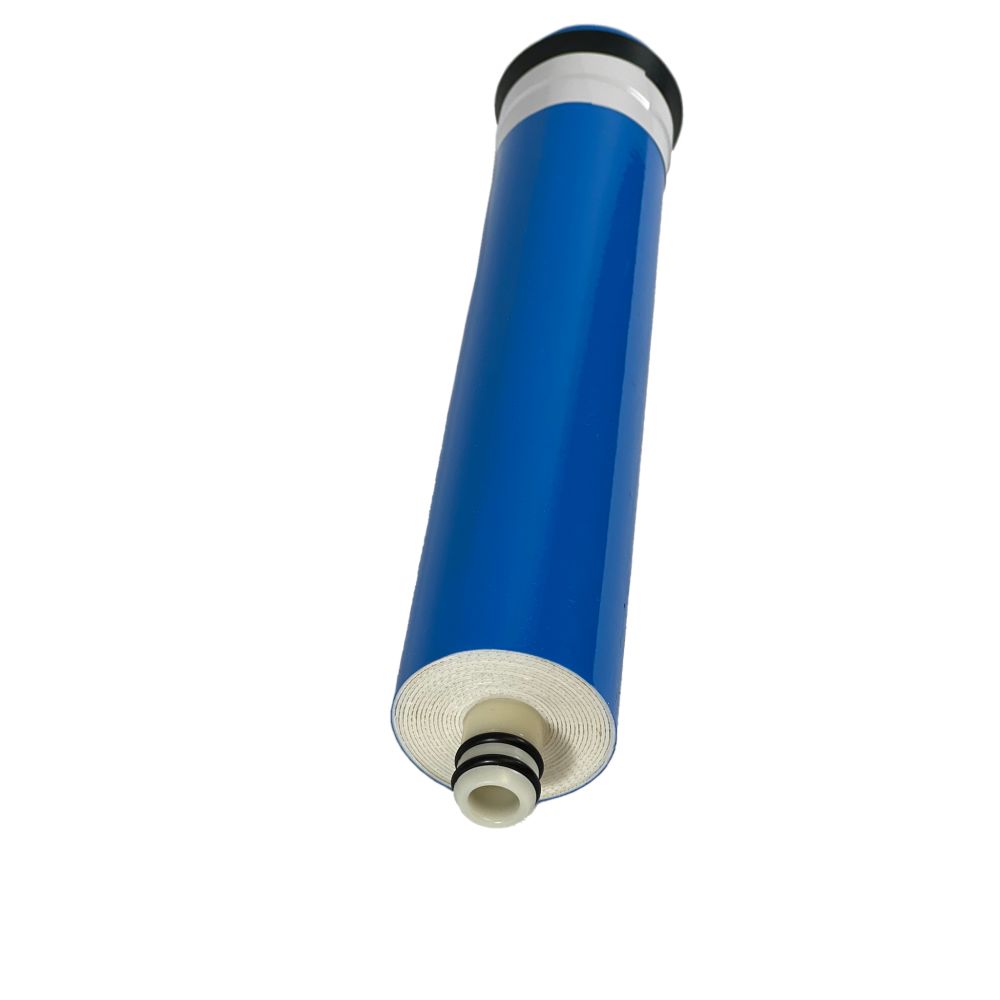

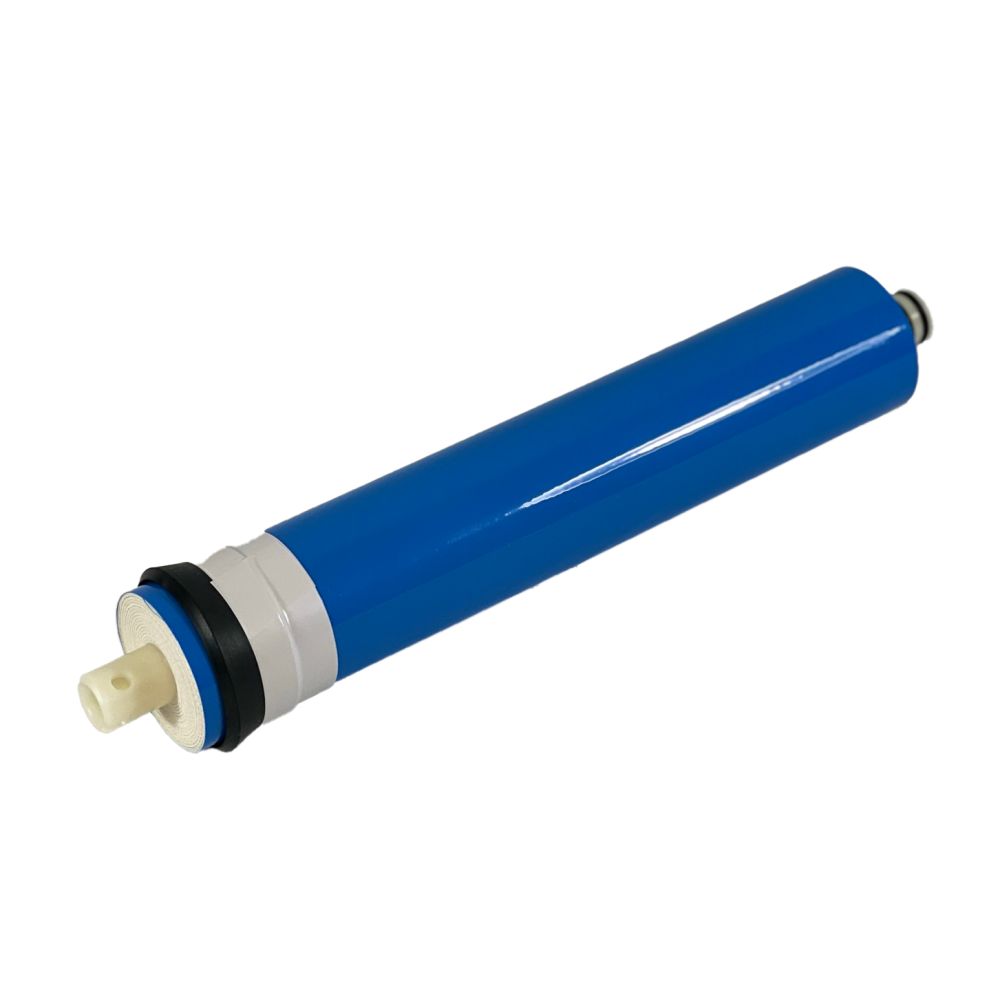

AXEON TE-2012 TFC Residential RO Membrane 150 GPD

The AXEON Residential Polyamide Thin Film Composite Membrane offer high performance and reliability and consistent quality. AXEON residential membranes operate as low as 50 psi and can yield up to 20% more safe, healthy drinking water than other membranes that operate at 65 psi.

Features:

150 Gallons Per Day
Operates as low as 60 psi
TFC (Thin Film Composite) Membrane is for use with non-chlorinated water
Individually tested and sanitized
Certified by NSF International against NSF/ANSI Standard 58 for material requirements

AXEON RO membranes are dry packed

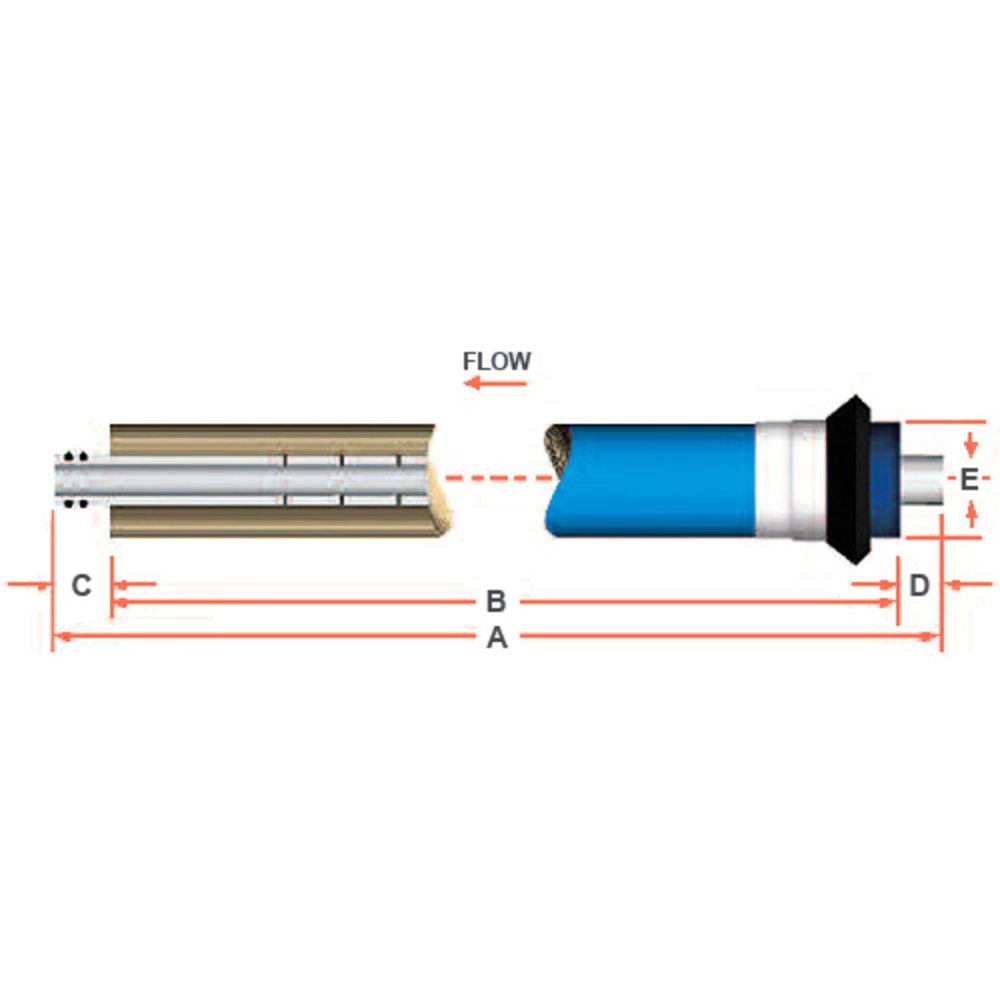

A	B	C	D	E
11.74" (298.2)	10.00" (254)	.86" (21.84)	.93" (23.62)	1.5" (38.1)

Product Details
Chlorine Tolerance	0 ppm
Direction	Outside - In
Inlet Pressure	60 psi
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure (Psi)	300 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Nominal Rejection (%)	98%
Permeate Flow Rate	150 gpd
Ph Range	2 - 11
Cartridge Style	Drop-in
Diameter	1.77"
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Shipping Dimensions
Shipping Length	11.5 in.
Shipping Width	2.25 in.
Shipping Height	2.25 in.
Product Weight & Dimensions
Product Height	2.25 in.
Product Length	11.5 in.
Product Width	2.25 in.
Product Weight (lbs)	0.507
