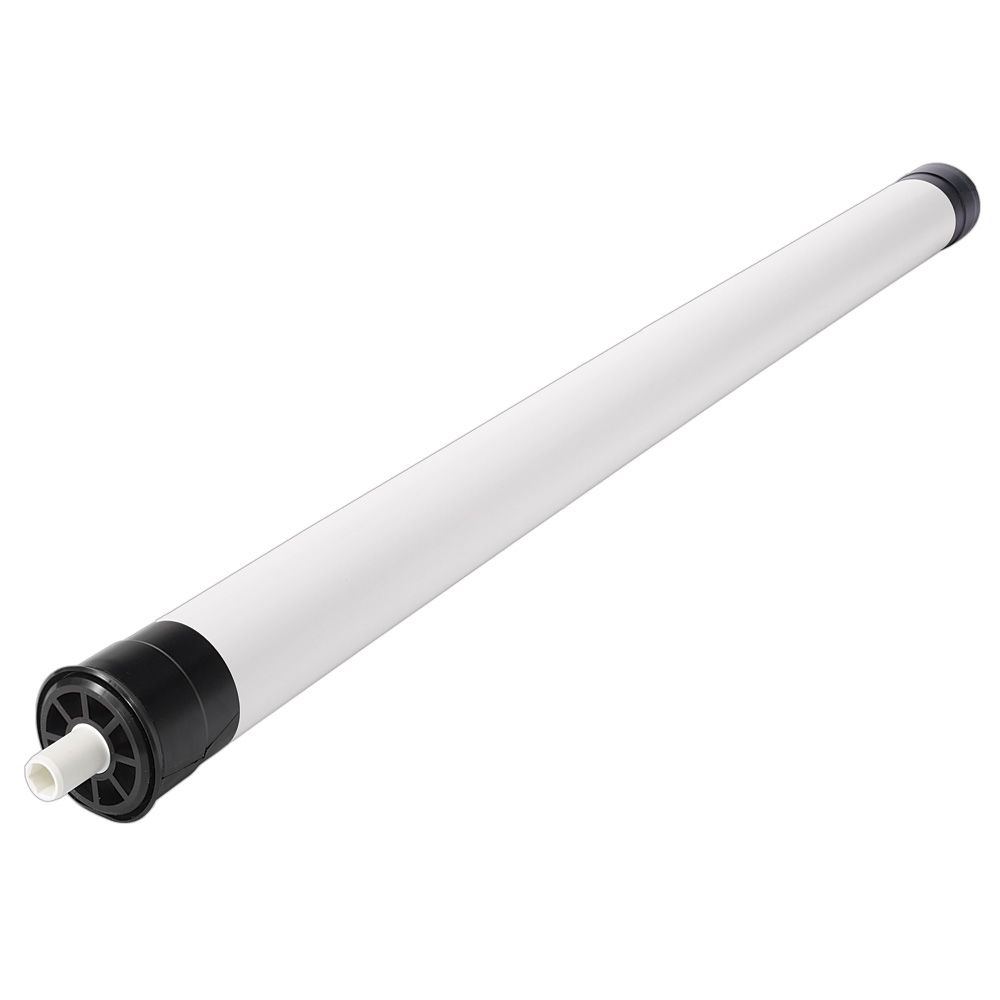

AXEON HF1-2540 1000 GPD RO Membrane Element

The AXEON HF1-2540 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF1-2540 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested. The polyamide thin-film used in the AXEON HF1 Series membranes is manufactured by a major US membrane film manufacturer.

Features:

Permeate Flow Rate: 1000 gallons per day
Membrane Type: Polyamide Thin-Film
Applied Pressure: 150 psi
Dimensions: 2.5" x 40"
Minimum Concentrate Flow Rate: 5:1
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Low Energy, Brackish Water
Formerly known as RO UltraTec HF1-2540

AXEON RO membranes are dry packed

Product Details
Application	Brackish Water
Average Nacl Rejection	0.98
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	150 PSI
Inner/Outer Wraps	ABS
Material Of Construction	Polyamide Thin-Film
Max Concentrate Flow Rate	5:1
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.96
Permeate Flow Rate	1000 gpd / (3.79 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Stabilized Salt Rejection Cl- (%)	0.985
Diameter	2.4"
Shipping Dimensions
Shipping Length	41.5 in.
Shipping Width	3 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Height	3 in.
Product Length	41.5 in.
Product Width	3 in.
Product Weight (lbs)	3.4

AXEON HF1-2540 1000 GPD RO Membrane Element Manual
