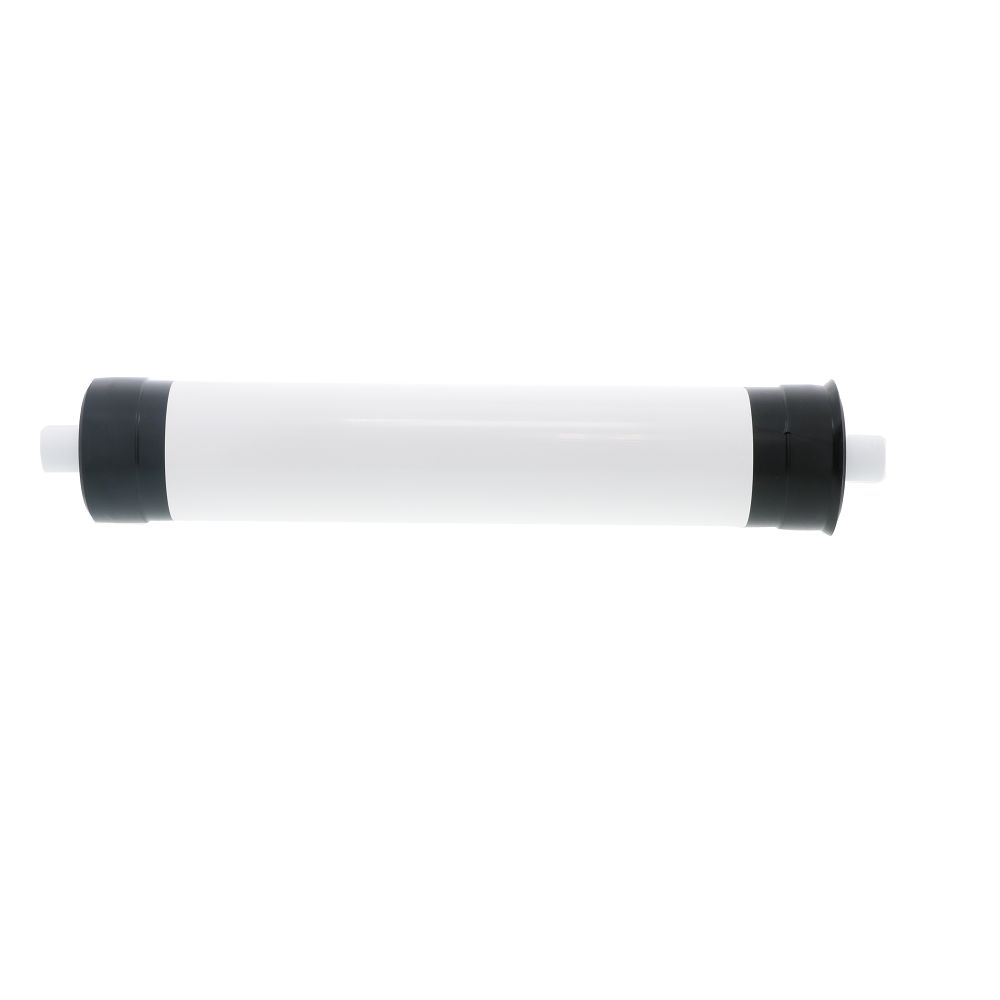

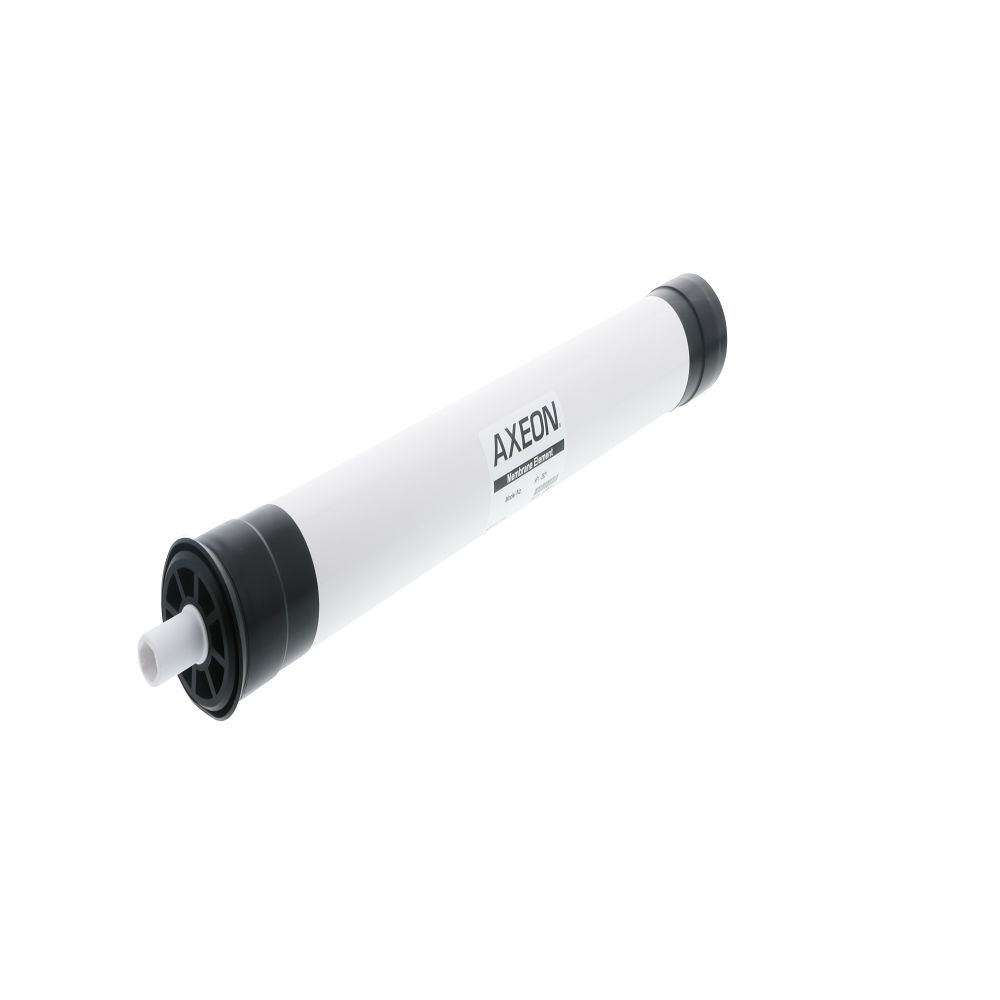

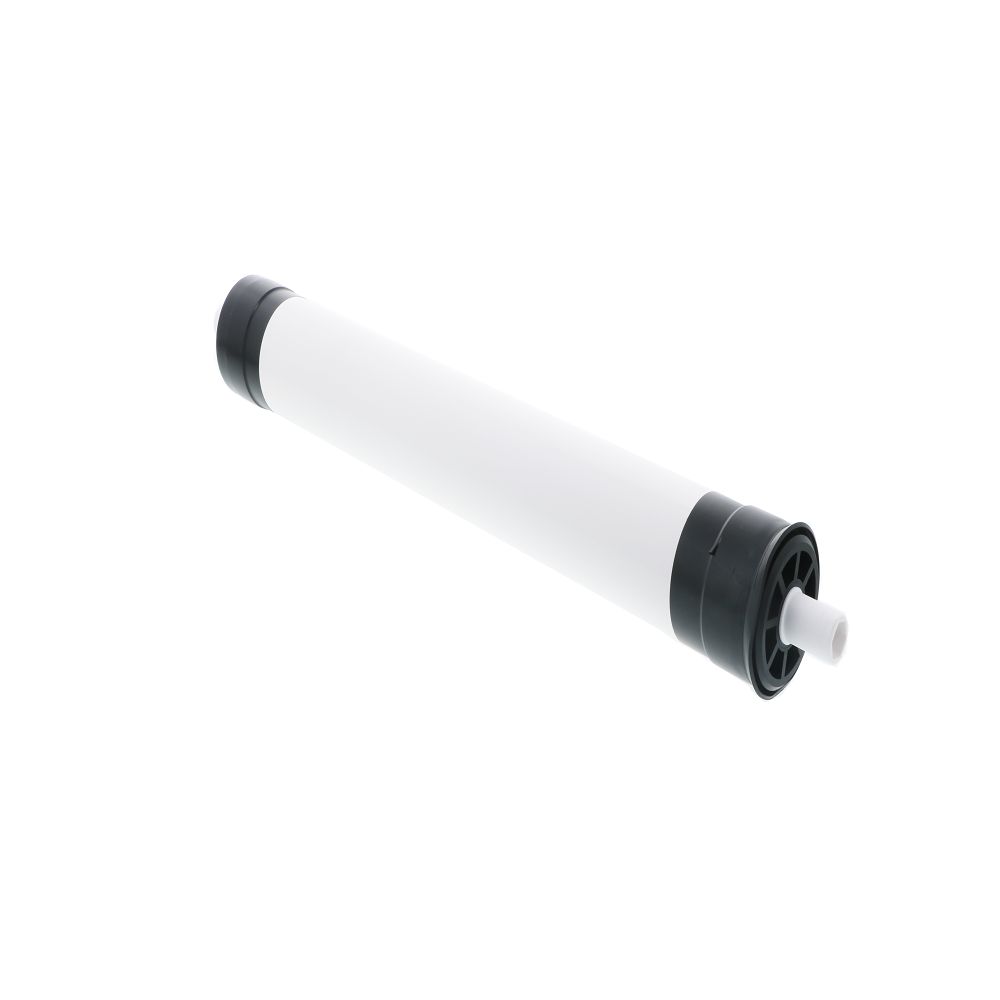

AXEON HF1-2521 400 GPD RO Membrane Element

The AXEON HF1-2521 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF1-2521 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HF1 Series membranes is manufactured by a major US membrane film manufacturer.

Features:

Permeate Flow Rate: 400 gallons per day
Membrane Type: Polyamide Thin-Film
Applied Pressure: 150 psi
Dimensions: 2.5" x 21"
Minimum Concentrate Flow Rate: 5:1
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Low Energy, Brackish Water
Formerly known as RO UltraTec HF1-2521

AXEON RO membranes are dry packed

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water
Average Nacl Rejection	0.98
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	150 PSI
Inner/Outer Wraps	ABS
Material Of Construction	Polyamide Thin-Film
Max Concentrate Flow Rate	5:1
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	400 gpd / (1.51 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Stabilized Salt Rejection Cl- (%)	0.995
Diameter	2.4"
Shipping Dimensions
Shipping Length	22.5 in.
Shipping Width	3 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Height	3 in.
Product Length	22.5 in.
Product Width	3 in.
Product Weight (lbs)	1.809
