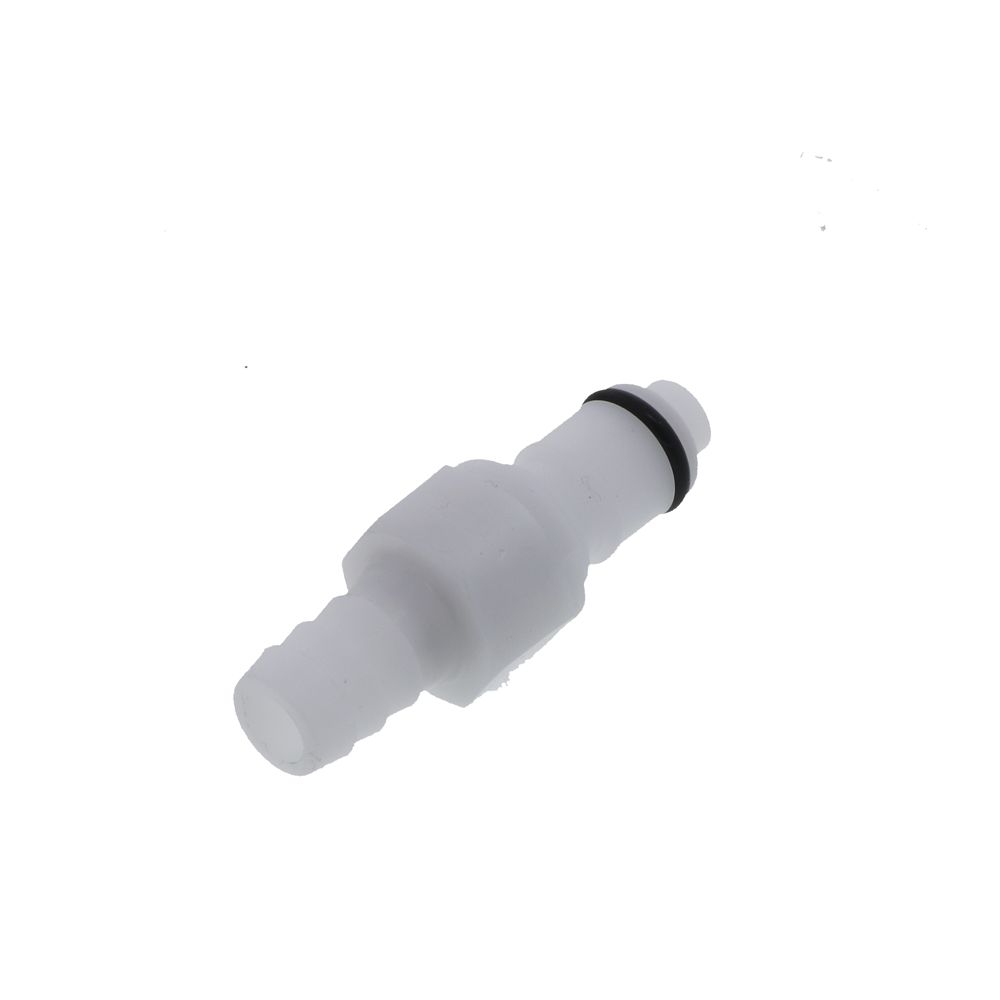

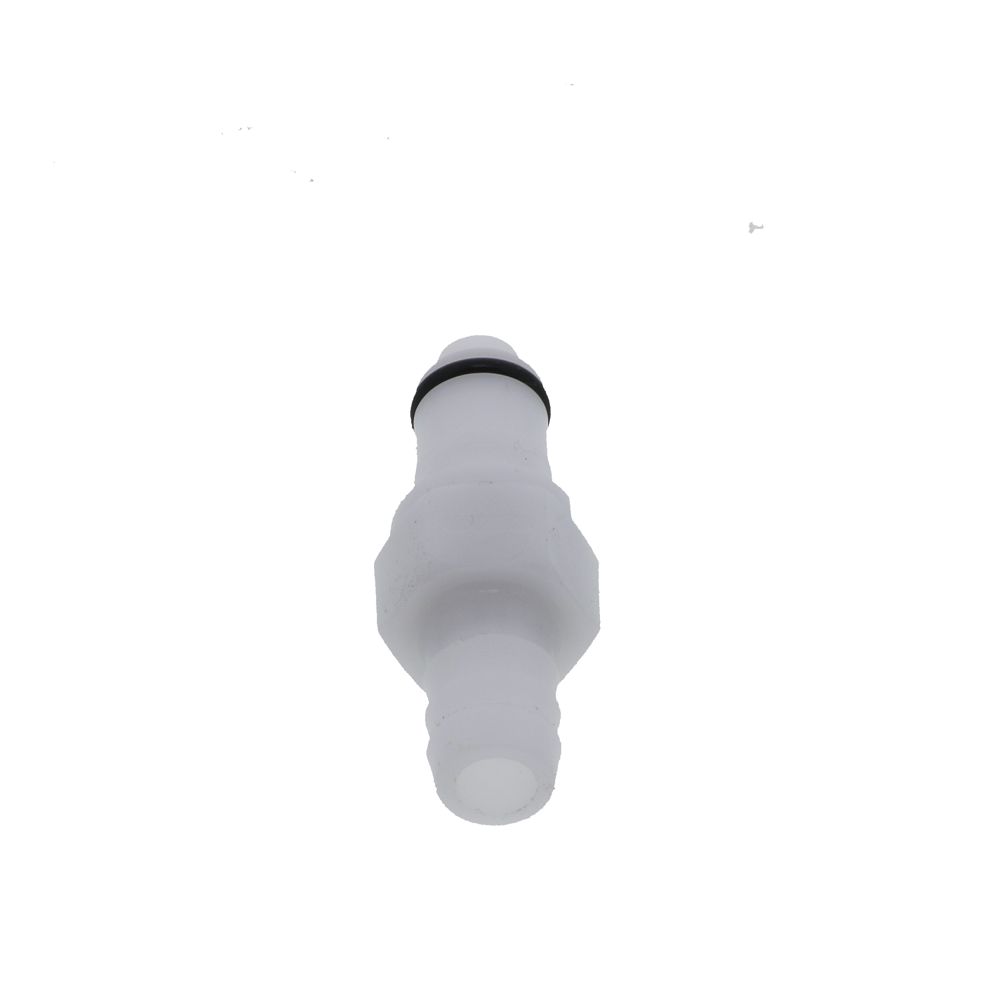

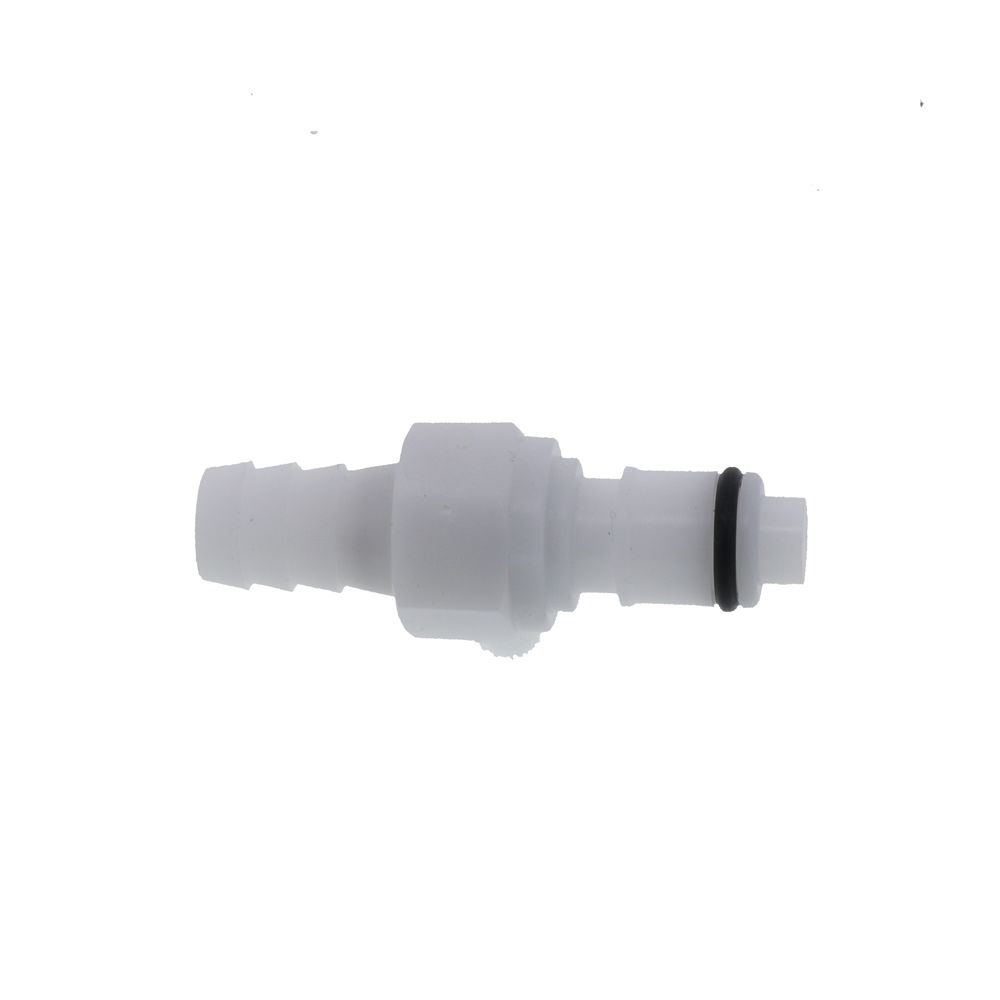

APCD22006 Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb

4.0

(1 reviews)

Part Number: APCD22006 Alt. Part Number: 50ACV-PB2-06

1 3

Colder Products

APCD22006 Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb

4.0

(1 reviews)

Part Number: APCD22006 Alt. Part Number: 50ACV-PB2-06

MSRP: $7.18

$7.18

Quantity

Unit Price

Price

Savings

$7.18

—

$7.00

$175.01

250

$6.82

$1,705.25

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

1/4" flow APC Series couplings feature a plastic thumb latch, fewer moving parts and a smooth contoured design to deliver ease-of-use and excellent flow in a compact size. The patented APC Series has been expanded to include couplings with valves and thumb latch shrouds. A more rugged design on some models adds durability to increase the APC’s application range.

Specifications:

Material: Acetal
Color: White
Mounting Option: Free Floating
Seal Option: Buna-N
Valve Option: Valved
Valve Spring: 316 Stainless Steel
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: -40ºF to 180ºF
NSF Listed Version (part # 42700) Available Upon Request

Specifications

Product Details
Barb Size	3/8"
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Series	APC
Shape	Straight
Valve Type	Valved
Color / Finish	White
Type	Coupling
Shipping Dimensions
Shipping Length	1.75 in.
Shipping Width	0.63 in.
Shipping Height	0.5 in.
Product Weight & Dimensions
Product Height	0.5 in.
Product Length	1.75 in.
Product Width	0.63 in.
Product Weight (lbs)	0.000625

Product Details
Barb Size	3/8"
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Series	APC
Shape	Straight
Valve Type	Valved
Color / Finish	White
Type	Coupling
Shipping Dimensions
Shipping Length	9 in.
Shipping Width	9 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Weight (lbs)	0.35

Product Details
Barb Size	3/8"
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Series	APC
Shape	Straight
Valve Type	Valved
Color / Finish	White
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15

Downloads

APCD22006 Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb Manual

Reviews (1)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

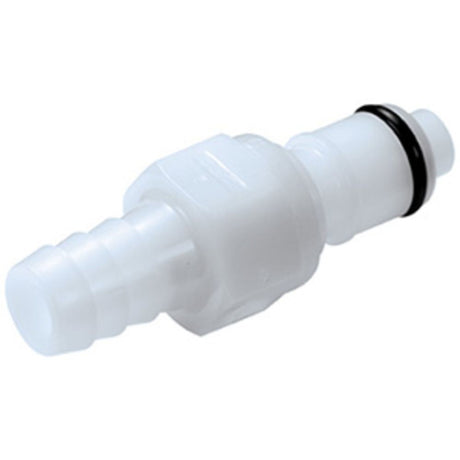

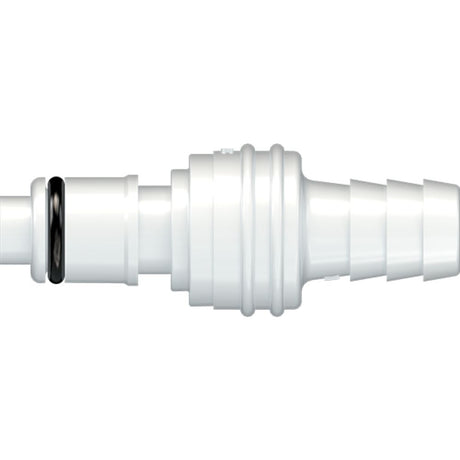

Facet	Colder Products APCD22006 Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb 4.0 Regular price From $7.18 Part #: APCD22006 Save up to 5% with bulk pricing Current Product	Colder Products 42700 NSF Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb Regular price From $7.43 Part #: 42700 Save up to 5% with bulk pricing View details	Linktech LinkTech 50AC Series Straight Male, Valved, 3/8" HB, Natural Acetal, Buna N Regular price From $6.22 Part #: 50ACV-PB2-06 Save up to 15% with bulk pricing View details
