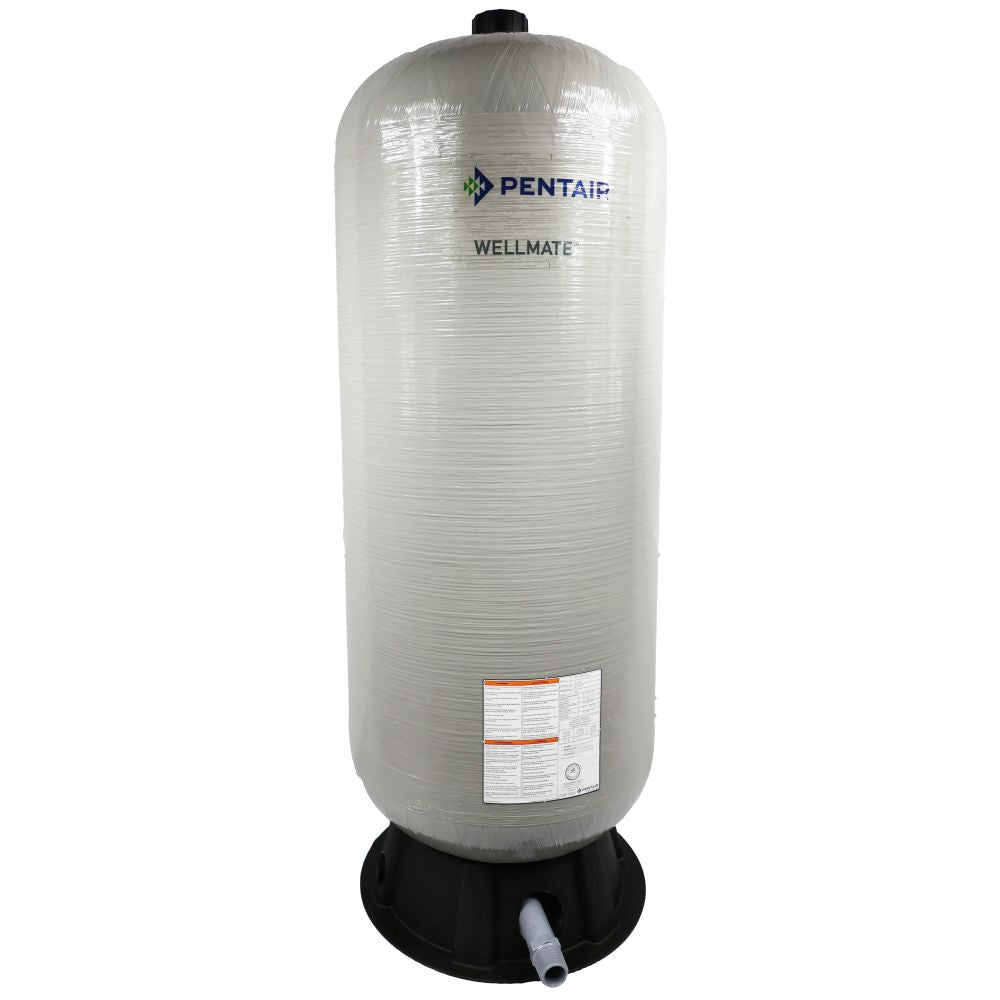

WellMate WM-9 Well Pressure Tank 30 gal

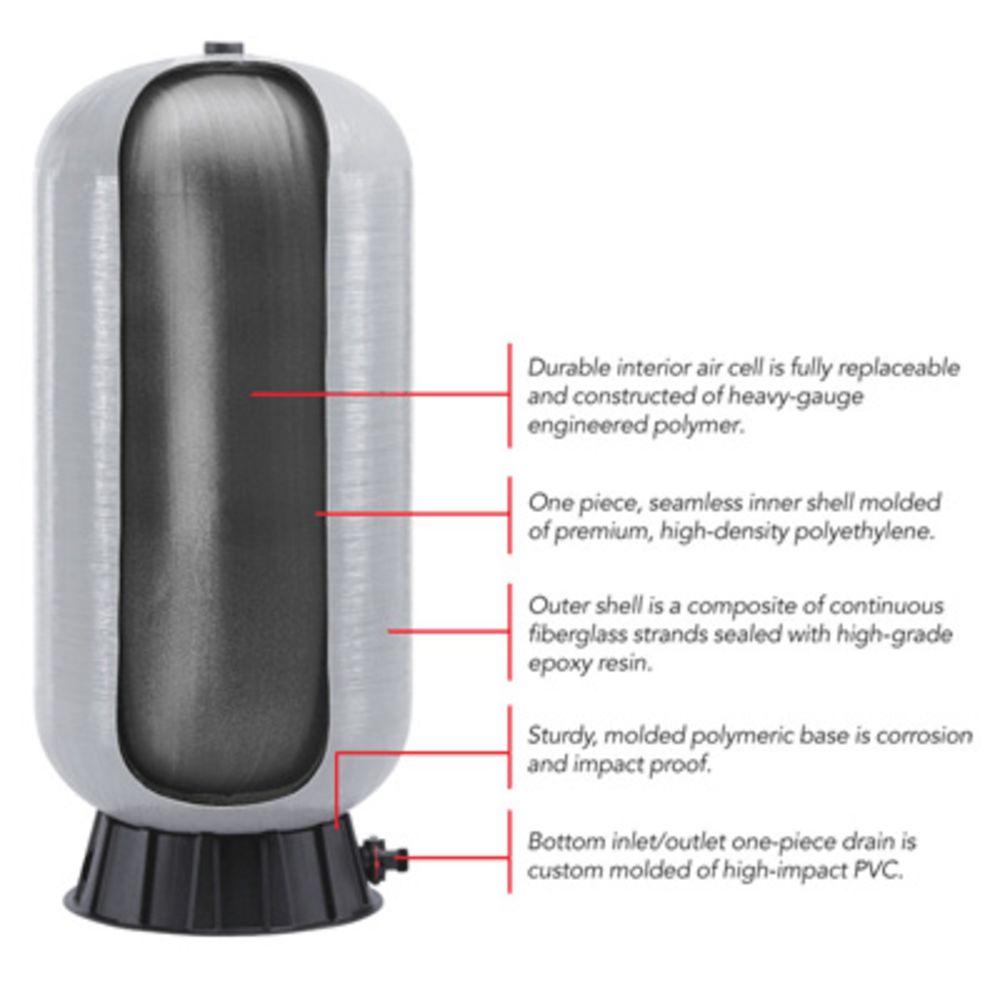

The WellMate WM-9 is a corrosion-proof well pressure tank that is made with a composite of continuous fiberglass strands sealed with high-grade epoxy resin. They won't rust, dent, or come apart at the seams, and a rugged impact proof base is included. The WellMate WM-9 comes with a 5 year warranty with a one year replacement labor allowance.

Features:

Corrosion-proof composite construction
Won’t rust in corrosive environments, particularly important in coastal regions
Little or no maintenance
Longer life, greater flexibility
Light weight
Replaceable air cell

Product Details
Body Material	Composite

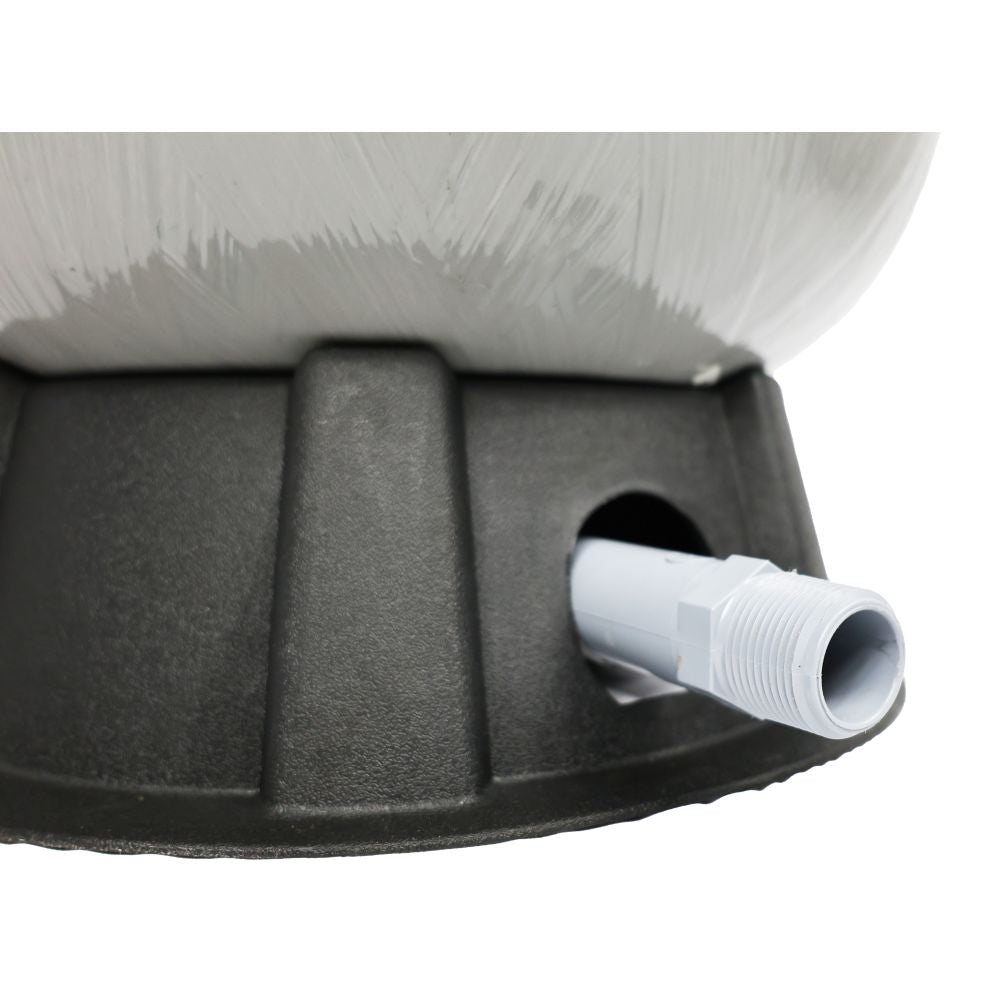

Connection Location	Bottom
Drawdown Volume	8.9 Gallons @ 30/50 Setting
Inlet Connection	1" MPT
Material Of Construction	Fiberglass
Max Pressure (Psi)	100
Max Temp (°F)	100
Outlet Connection	1" MPT
Size	1"
Volume	30
Connection Type	Male (MPT)
Diameter	16"
Origin	Assembled in the USA
Warranty & Certifications
Warranty	5 years
Shipping Dimensions
Shipping Length	16 in.
Shipping Width	16 in.
Shipping Height	46 in.
Product Weight & Dimensions
Height W/ Stand	44"
Product Weight (lbs)	35

WellMate WM-9 Well Pressure Tank 30 gal Manual
