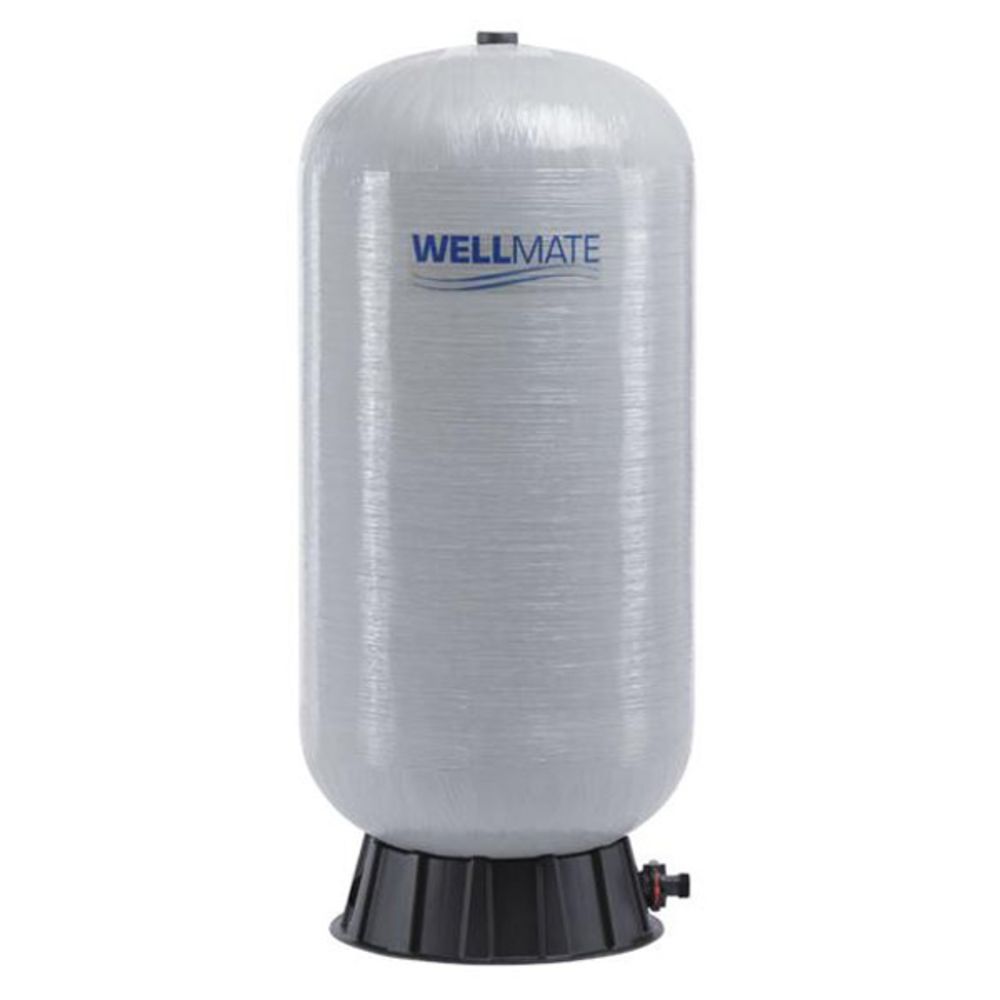

WellMate WM-12 Well Pressure Tank 40 gal

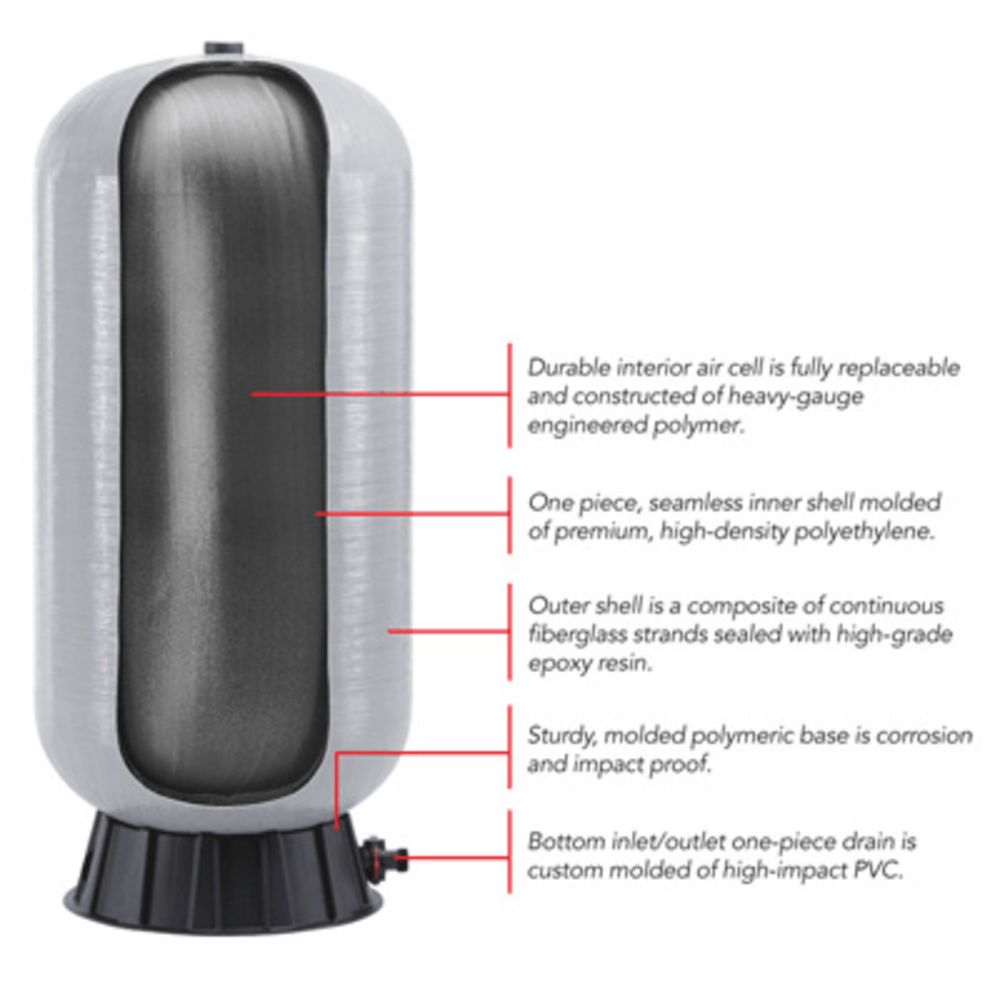

The WellMate WM-12 is a corrosion-proof well pressure tank that is made with a composite of continuous fiberglass strands sealed with high-grade epoxy resin. They won't rust, dent, or come apart at the seams, and a rugged impact proof base is included. The WellMate WM-12 comes with a 5 year warranty with a one year replacement labor allowance.

Features:

Corrosion-proof composite construction
Won’t rust in corrosive environments, particularly important in coastal regions
Little or no maintenance
Longer life, greater flexibility
Light weight
Replaceable air cell

Product Details
Body Material	Composite

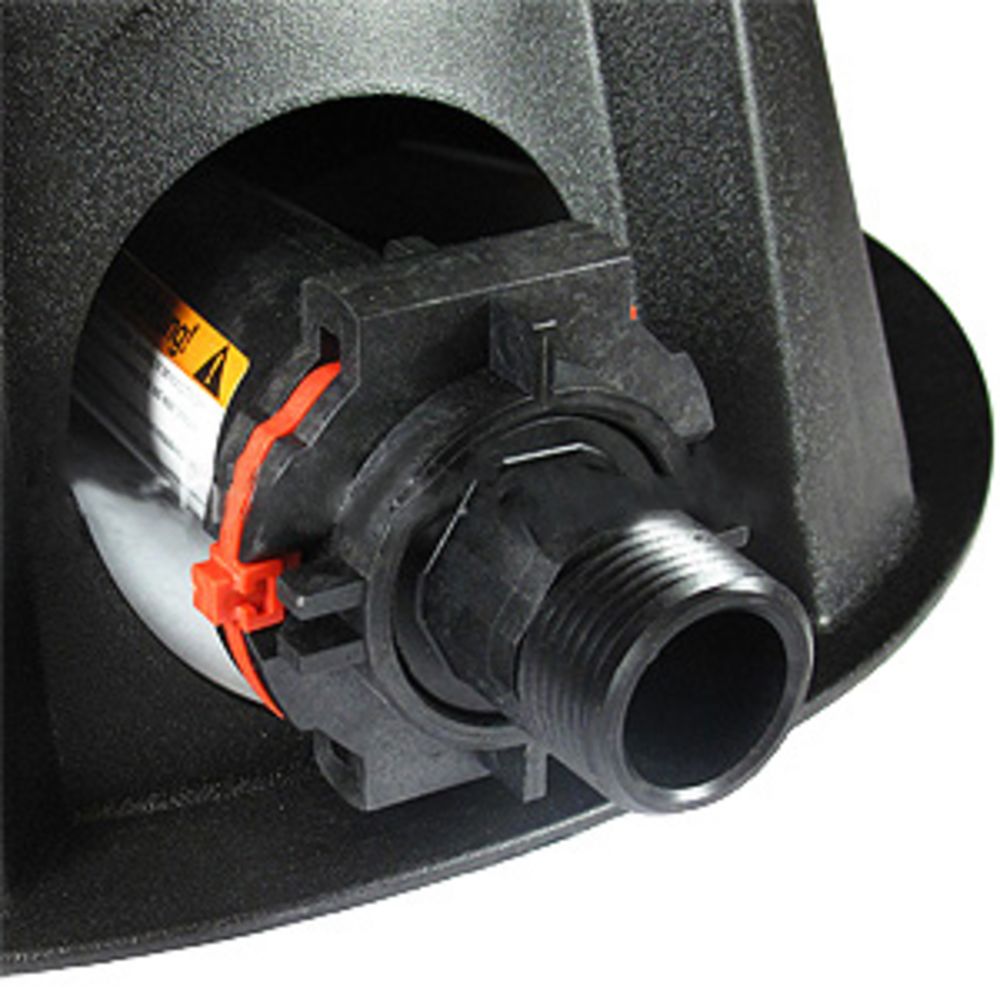

Inlet Connection	1 & 3/4" MPT
Material Of Construction	Fiberglass
Max Pressure (Psi)	100
Max Temp (°F)	100
Outlet Connection	1 & 3/4" MPT
Size	1"
Volume	40
Connection Type	Male (MPT)
Diameter	16"
Origin	Assembled in the USA
Warranty & Certifications
Warranty	5 years
Shipping Dimensions
Shipping Length	59 in.
Shipping Width	16.5 in.
Shipping Height	16.5 in.
Product Weight & Dimensions
Height W/ Stand	57"
Product Height	16.5 in.
Product Length	59 in.
Product Width	16.5 in.
Product Weight (lbs)	46

WellMate WM-12 Well Pressure Tank 40 gal Manual

required parts

WellMate Tank Fittings Package TFP2-RV

$106.64

CH20520 Noryl Q/C Series Replacement Connector Kit for WellMate Pressure Tanks - 1" MNPT

$22.88
