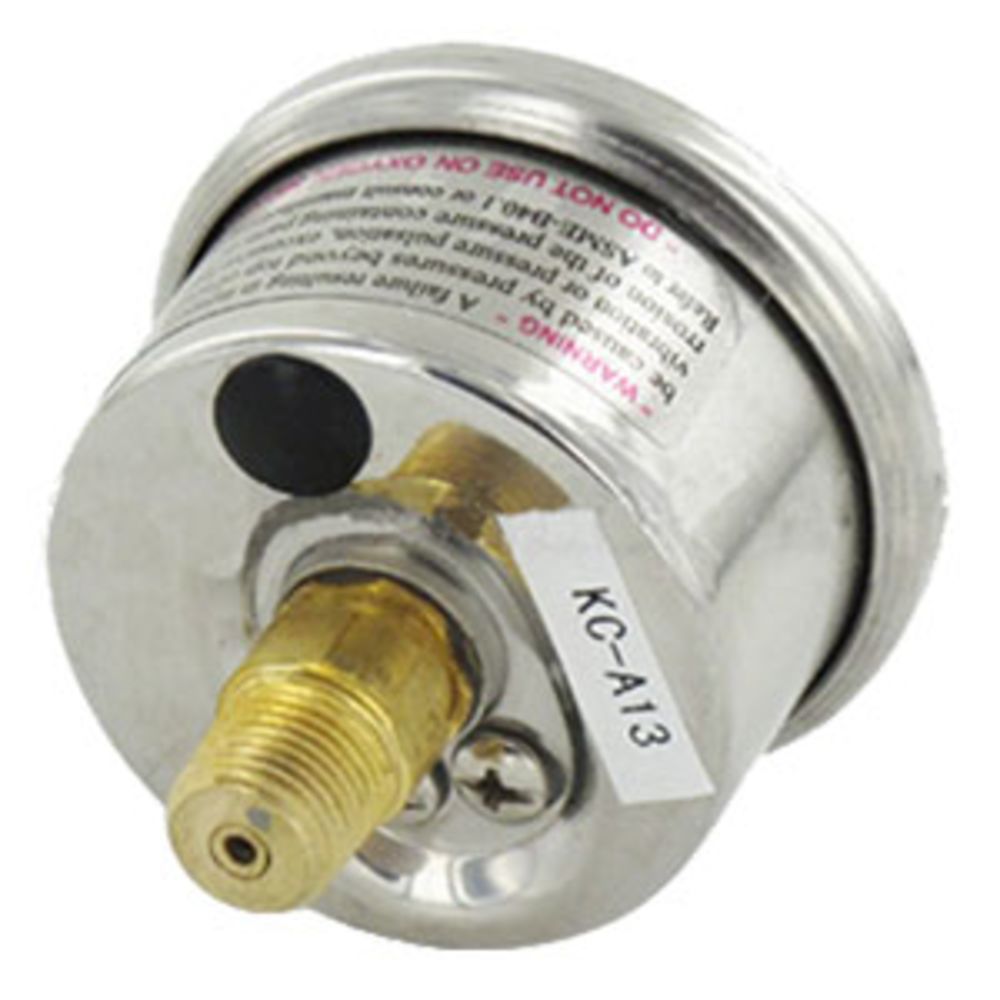

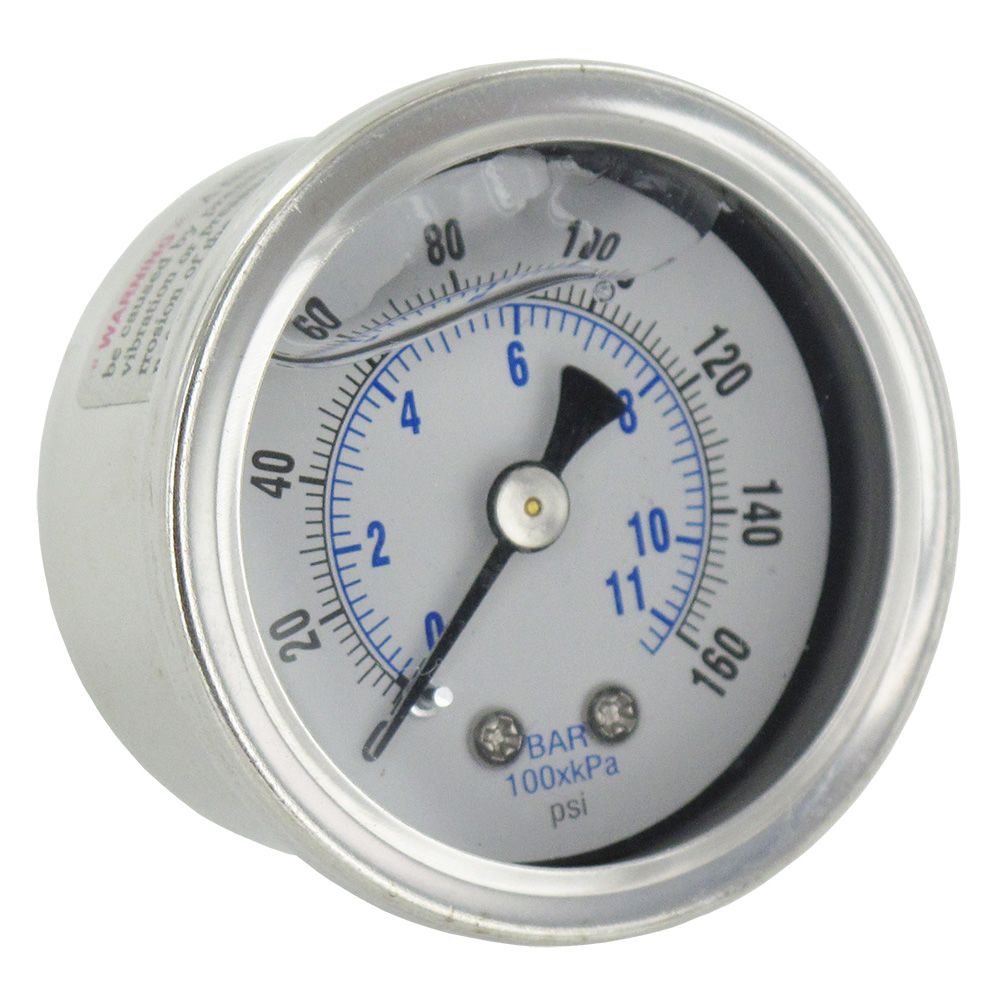

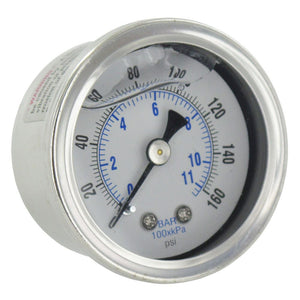

Water Pressure Gauge 160 PSI, 1/8" MPT, 1.5" Plastic Dial, Center Mount, SS Case

This pressure gauge has a stainless steel case and bezel with brass internals and connection. It has easy-to-read two-tone dials printed in bold UV resistant ink for ease of legibility even after extensive exposure to direct sunlight. The gauge is designed for demanding applications internationally such as Reverse Osmosis, Oil Refining, Chemical, Food Processing plants, Water Treatment, just to name a few.

Features:

Lens: Plastic
Internals: Brass
Face Diameter: 1.5"
Connection: 1/8" MPT
Mount Type: Center back
Case: 304 Stainless steel
Stem: 304 Stainless steel
Pressure Rating: 0 - 160 PSI
Temperature Rating: 0 - 140º F
Connection: center back mount

Compatible with:

Flexeon

202436

Product Details
Accuracy	B (3-2-3%)
Dial Size	1/8"
Face	White Aluminum with Black/Blue Print
Fluid	Glycerine and water
Housing Material	304 Stainless Steel
Internal Component Material	Brass
Material Of Construction	Brass
Max Pressure (Psi)	160
Max Temp (°F)	160
Min Pressure (Psi)	0
Min Temp (°F)	30
Pointer	Aluminum - Black
Units Of Measure (Psi, Bars, Hgvac)	PSI/Bars
Accuracy Grade	B Grade: 3-2-3%
Case Filling	Glycerine
Case Type	Stainless Steel
Connection Type	1/8" MPT
Gauge Bezel	Plastic Fixed
Gauge Lens	Plastic
Mounting Style	Center Back Mount
Pressure Rating	160 PSI
Type	Center Mount
Wetted Parts	Copper Alloy (Brass)
Shipping Dimensions
Shipping Length	2 in.
Shipping Width	1.5 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Weight (lbs)	0.26
