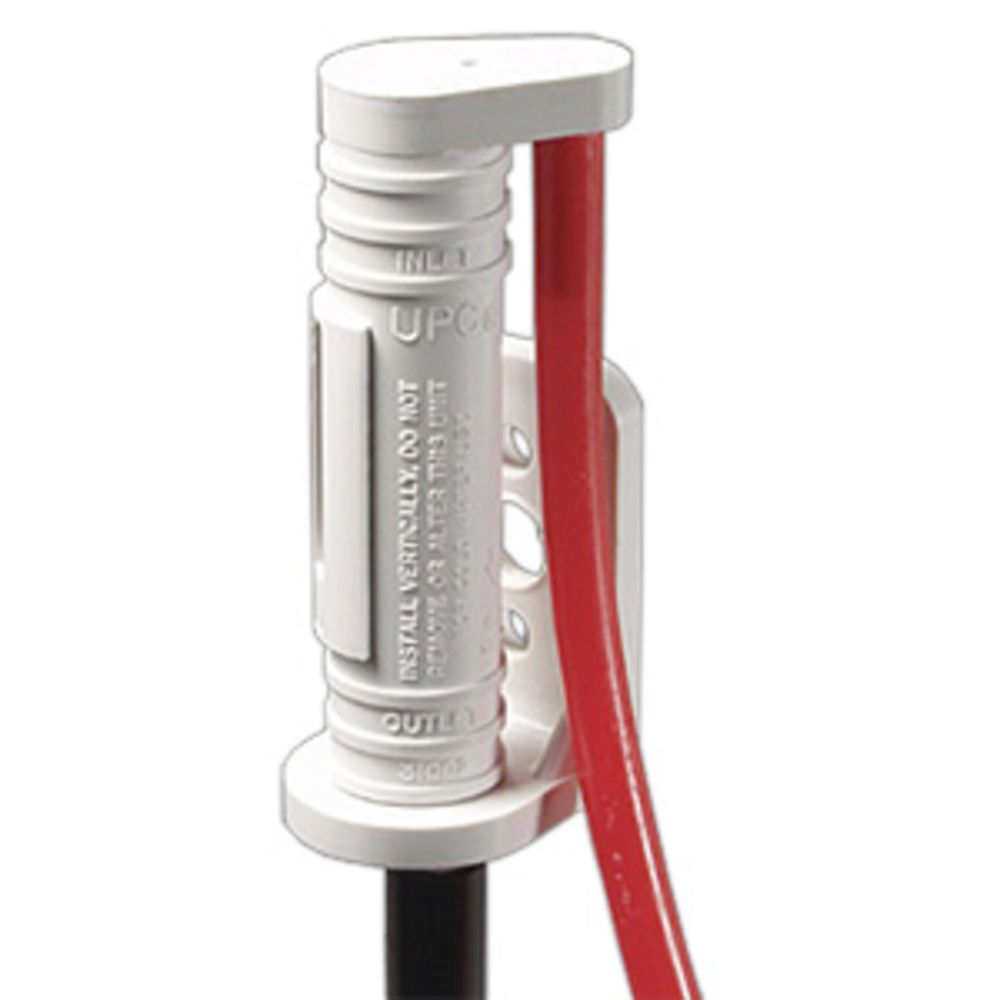

Ideal for POU water cooler installations with reverse osmosis systems where hole in sink is unavailable or space is limited. This air gap can be mounted on any type of surface and is very easy to install. Simply locate the wall mounted air gap device above the RO system module and rinse water drain port.

Specifications:

• Location: Above the RO system module and rinse water drain point
• Water Flow: 0.5 G.P.M max
• Inlet: Barb for 1/4 OD poly tubing
• Outlet: Barb for 3/8 OD poly tubing
• Length: 3" long (approximately)
• Certifications: NSF 58 Listed and UPC Listed

Properly installed, this unit enables full backflow andbacksiphon backflow protection.
