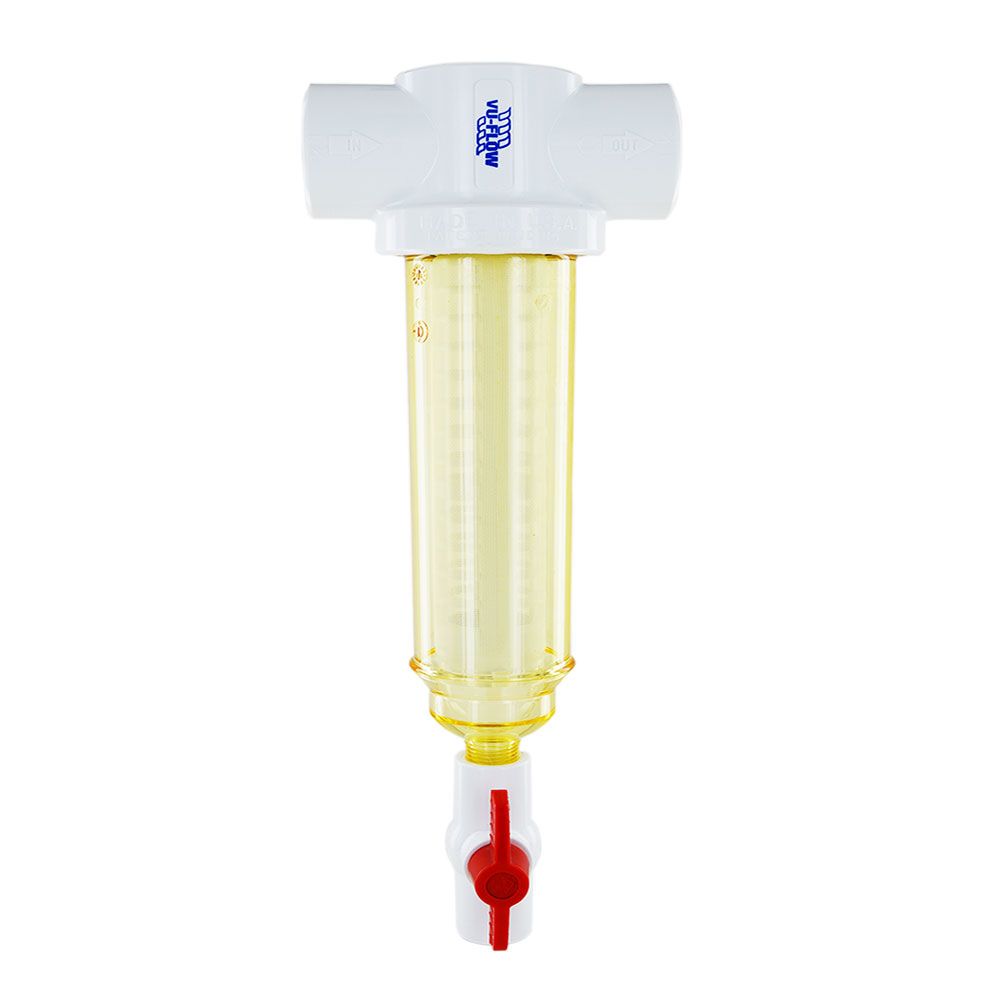

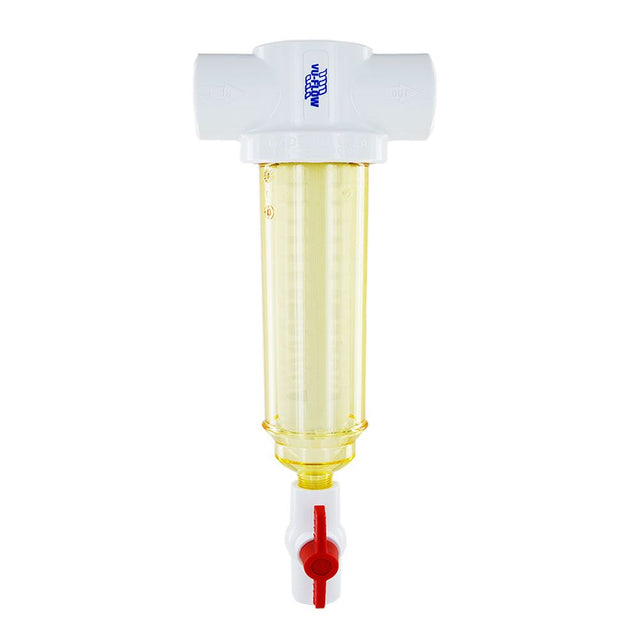

Vu-Flow Chemical Resistant Sediment Screen Filter T Style 1.5"

Part Number: NT-150-24-HPP

VuFlow

Vu-Flow Chemical Resistant Sediment Screen Filter T Style 1.5"

Part Number: NT-150-24-HPP

Your price:

Choose

Polyester 24 Mesh (711 micron)

Polyester 30 Mesh (533 micron)

Polyester 40 Mesh (381 micron)

Polyester 60 Mesh (254 micron)

Polyester 100 Mesh (152 micron)

Polyester 140 Mesh (104 micron)

Polyester 250 Mesh (61 micron)

Polyester 500 Mesh (30 micron)

Polyester 1000 Mesh (15 micron)

Stainless Steel 30 Mesh (533 micron)

Stainless Steel 60 Mesh (254 micron)

Stainless Steel 100 Mesh (152 micron)

Stainless Steel 140 Mesh (104 micron)

Stainless Steel 200 Mesh (74 micron)

Quantity

Vu-Flow 1.5" Chemical Resistant Sediment Screen Filter System makes solid particle removal simple and economical. The benefit of these systems is the ability to be cleaned and reused, as well as the chemical resistant cover designed to be used with corrosive chemicals. The 1.5" Sediment Screen Filter by Vu-Flow has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.

Features:

Unique element design traps sediment in lower reservoir of clear cover.
Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
Sediment is visible through the clear cover indicating when the filter needs cleaning
Ball valve allows for quick sediment removal from bottom of cover
Centrifuge type sediment separation
No filter cartridges to replace
No down time required flushing out sediment
Small size takes little space
Screen mesh sizes can be easily changed if required

Vu-Flow Chemical Resistant Sediment Screen Filter - 1.5" Uses:

Laboratory
Irrigation
Sand Sensitive Valves
Drip Irrigation
Faucet Aerators
Poultry Growers
Fogger nozzles
Pretreatment for RO

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Body Material	PVC
Head Style	T-Style
Inlet Connection	1-1/2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
Mesh Size	30 60 100 140 250 500 1000 200
Micron Rating (Nominal)	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm
Outlet Connection	1-1/2" Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	Rusco Spin-Down & Sediment Traps
Flow Rate	10-50 GPM
Housing Resistance	Chemically Resistant
Media Type	Chemical Resistant
Micron Rating	533 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm 74 µm
Port Size	1-1/2"
Sub-Type	T-Style System
Top Style	T-Style
Type	Standard
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.95
