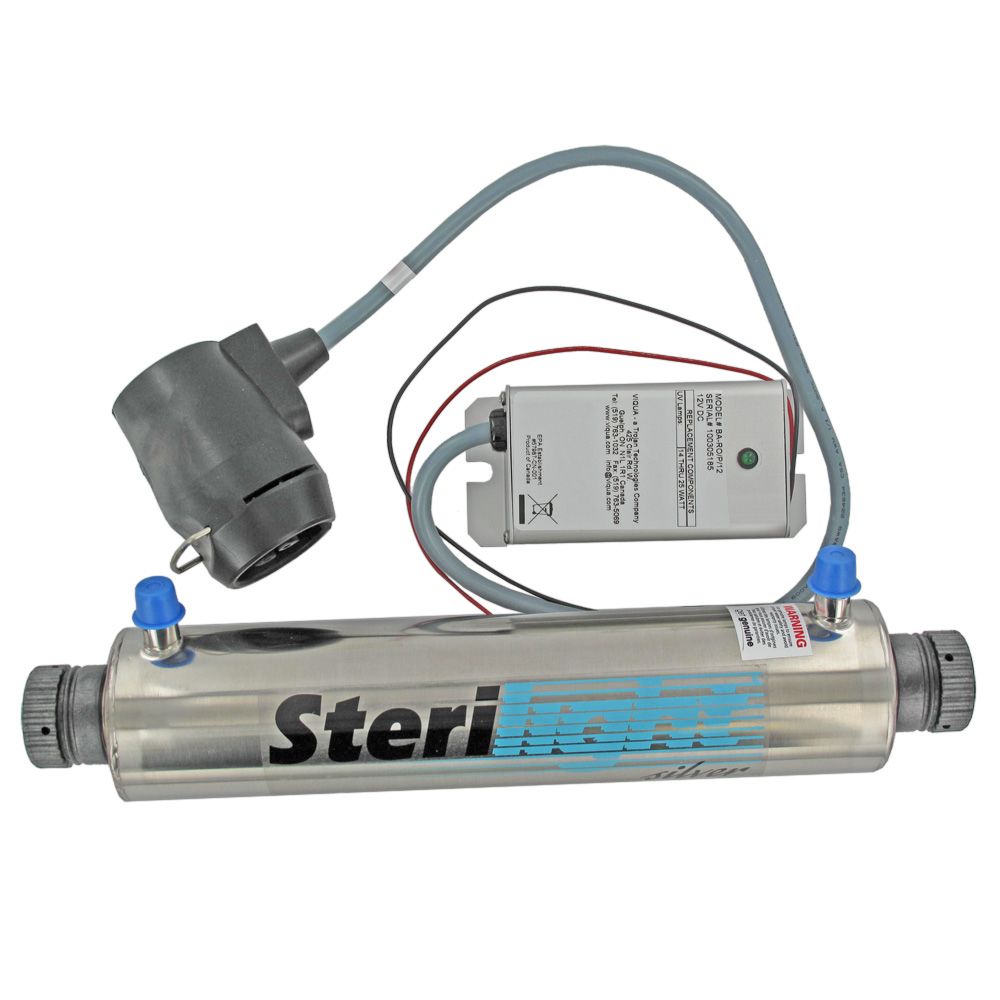

Viqua Sterilight S1Q-P/12VDC UV System 2 gpm

Part Number: PI050822S

Alt. Part Number: S1Q-PA/12VDC

in stock

MSRP: $0.96

Your price:

$0.69

Quantity

similar items

John Guest Stem Adapter NPTF - 1/4 x 1/4 NPTF

$0.69

The Viqua Sterilight S1Q-P/12VDC Silver Series UV System is the long time "workhorse" of the Sterilight product line. It is a low maintenance system, and is easily serviced to ensure safe drinking water.

Features:

Electronic "ICE" ballasts featuring open loop current control (patent pending), ballast features quick-lock moulded lamp connector, audible alarm & power-on indicator.
Compact design incorporating 304 stainless steel reactor chambers, brilliantly polished for laboratory or medical applications.
Open end quartz sleeves and aluminum gland nuts for optimum operating temperature and sealing efficiency.
99.99% destruction of bacteria, virus, and protozoan cysts (Giardia lamblia & cryptosporidium) at rated flow.
Hard glass, low pressure mercury vapour lamps with high isolation pin design.
Natures way to protect your water without the addition of harmful chemicals.
Easy servicing - no need to disconnect water flow to change UV lamp.
Seven year warranty on reactor chamber for unparalleled protection.
Includes mounting clamp.
CSA and CE compliant.

California residents see Prop 65 Warning

Product Details
Ambient Temperature Range	36-104 °F
Features	Visual Power On
Frequency Rate	50/60 Hz
Inlet Connection	1/4" MPT
Max Pressure (Psi)	125
Min Pressure (Psi)	5
Outlet Connection	1/4" MPT
Power	19 Watts
Size	1/4"
Connection Type	Male (MPT)
Diameter	2-1/2"
Flow Rate	1.5 GPM (30mJ/cm2 Dose) 2 Gallons Per Minute (40mJ/cm2 Dose)
Type	Single UV System
Voltage	12 VDC
Warranty & Certifications
Warranty	7 yr for chamber, 1 yr for lamps and probes, 5 yr pro rated on all other components
Product Weight & Dimensions
Power Supply Dimensions	7.3"x3.2"x2-1/2"
Product Length	15"
Product Weight (lbs)	6
