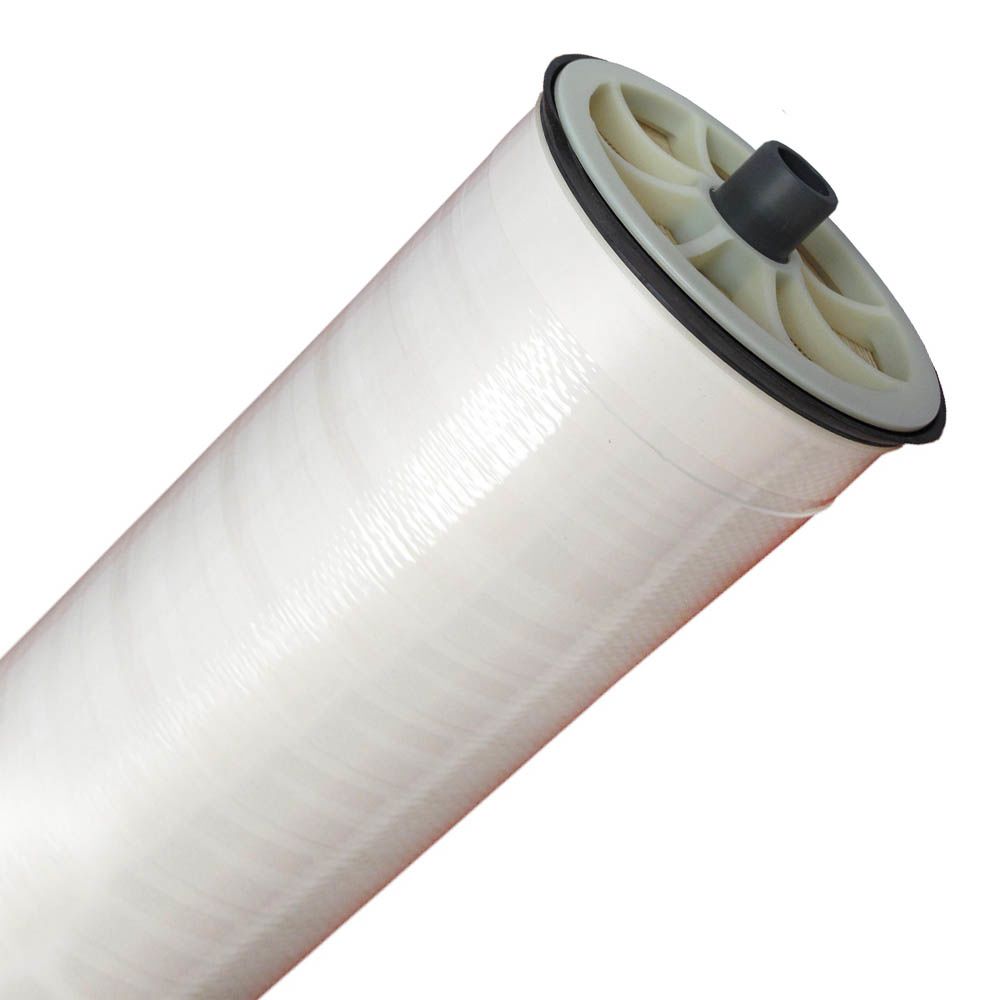

Veolia Osmonics Desal AK4040FM RO Membrane Element 2200 GPD LP-DRY

Home / Filters & Cartridges / RO Membranes / Veolia Osmonics Desal AK4040FM RO Membrane Element 2200 GPD LP-DRY

Veolia

Veolia Osmonics Desal AK4040FM RO Membrane Element 2200 GPD LP-DRY

Part Number: 3039082

Alt. Part Number: AK4040FM, 1206813

Veolia

Veolia Osmonics Desal AK4040FM RO Membrane Element 2200 GPD LP-DRY

Part Number: 3039082

Alt. Part Number: AK4040FM, 1206813

One-time purchase

Subscription

Subscription details

Your price:

Quantity

The Veolia Osmonics Desal A-Series, Thin-Film reverse osmosis membrane elements offer high flux and excellent sodium chloride rejection. AG High Rejection Brackish Water Elements are used when high rejection and low operating pressures are desired.
Specifications:

High Flux and Excellent NaCL Rejection
Thin-Flim Reverse Osmosis Membrane Element
2200 Gallons Per Day
Dimensions: 4" x 40"
Male End Connections
Tape Outer Wrap
28 mil Feed Spacers
Operating Pressures as low as 100 PSIG

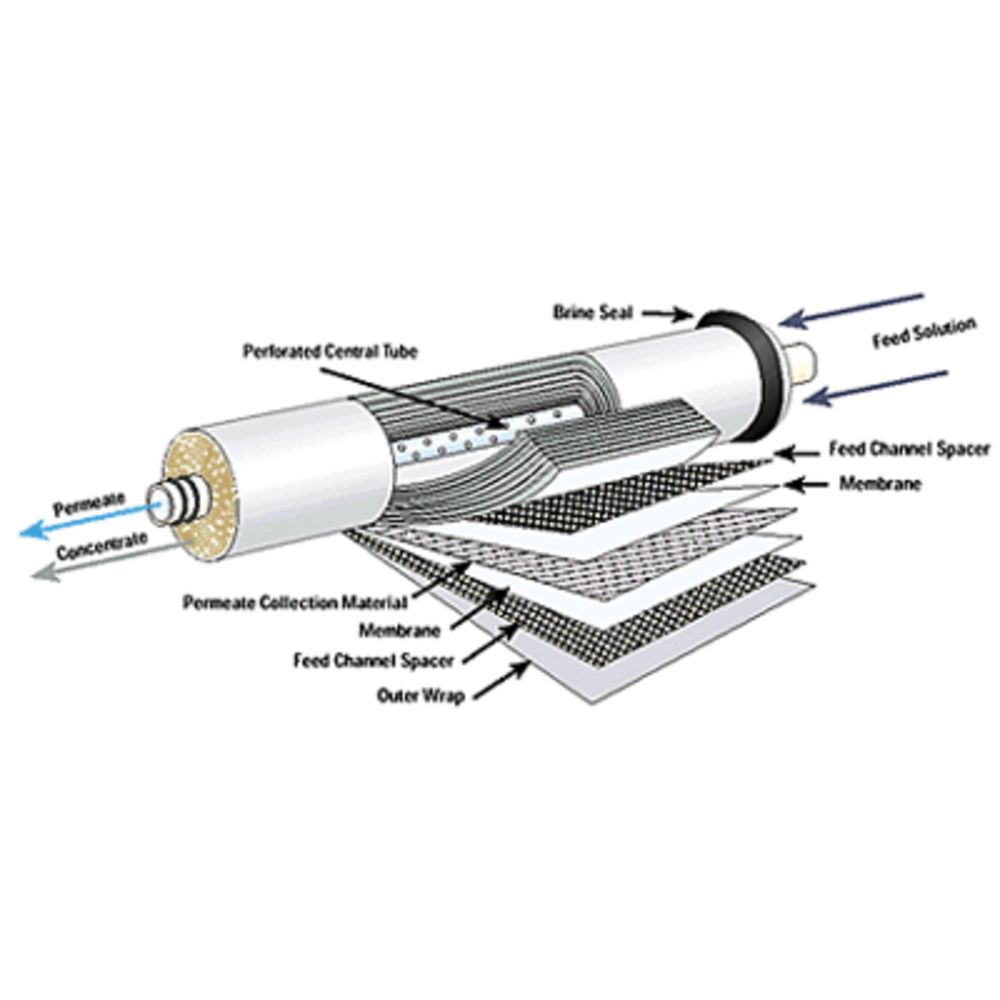

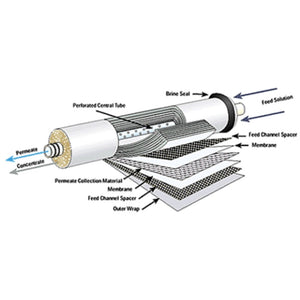

Element Membrane Diagram (not the encapsulated model):

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	85 sq. ft.
Application	Brackish Water
Average Nacl Rejection	0.99
Chlorine Tolerance	1,000 ppm-hrs
Cleaning Ph Range	2-11.5
Direction	Outside - In
Inlet Pressure	115 PSI
Inner/Outer Wraps	Fiberglass
Max Feed Silt Density Index	<5 Silt Density Index
Max Feed Water Turbidity	<1 Nephelometric Turbidity Units
Max Pressure Drop	12 PSI Differential
Max Pressure (Psi)	400psi
Max Temp (°F)	122 °F
Membrane Type	Spiral Wound
Minimum Nacl Rejection	0.98
Permeate Flow Rate	2,200 gdp (8.3)
Permeate Tube Diameter	3/4"
Ph Range	4-11
Cartridge Style	Drop-in
Diameter	3.9"
Shipping Dimensions
Shipping Length	44 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	4.75
Product Length	41.25
Product Width	4.75
Product Weight (lbs)	8.705

High Flux and Excellent NaCL Rejection
Thin-Flim Reverse Osmosis Membrane Element
2200 Gallons Per Day
Dimensions: 4" x 40"
Male End Connections
Tape Outer Wrap
28 mil Feed Spacers
Operating Pressures as low as 100 PSIG

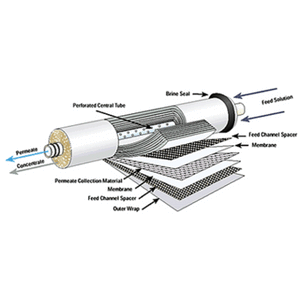

Element Membrane Diagram (not the encapsulated model):
