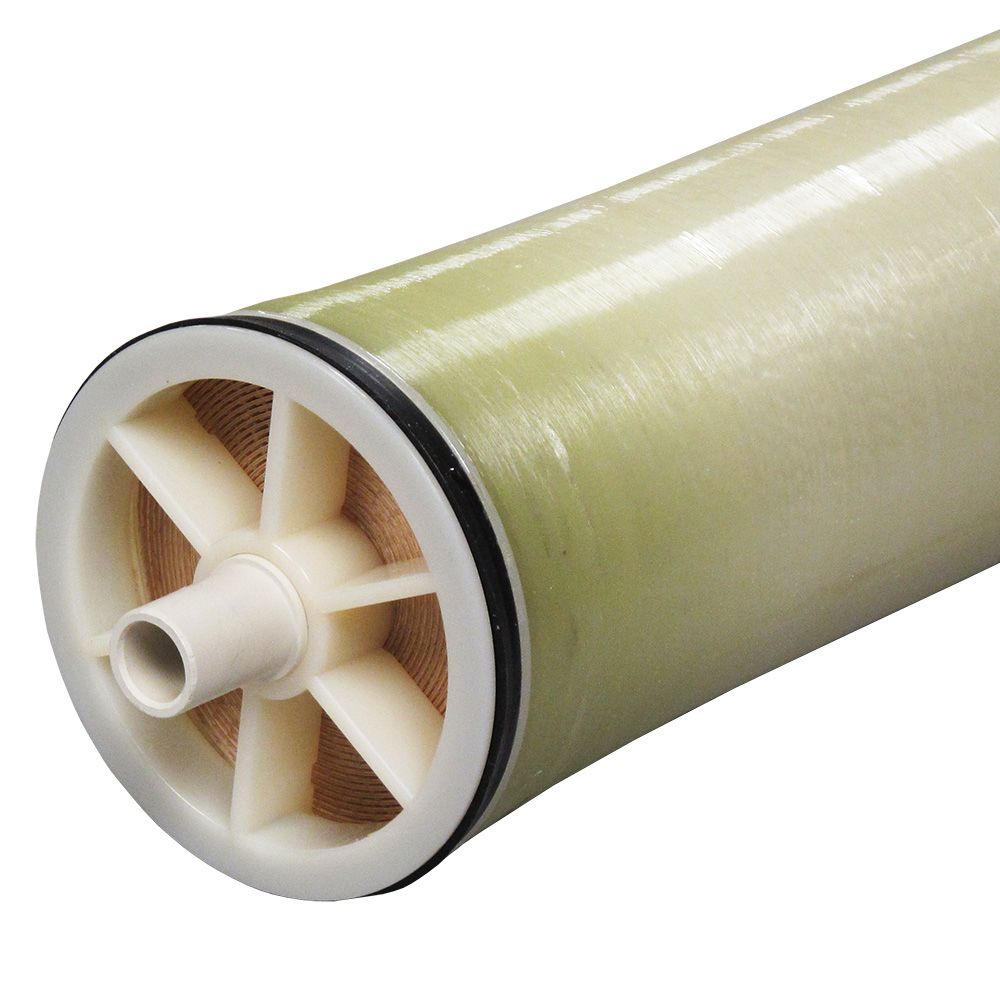

Toray TM810L 1600 gpd Sea Water Membrane 4 x 40

Toray TM810L 1600 gpd Sea Water Membrane is designed to be used on water sources with high salinity (>10,000 ppm). They can be used in multiple membrane systems to treat sea water for small private or shipboard desalination.
Specification:

Permeate Flow Rate: 1600 gallons per day
Membrane Type: Polyamide Composite
Applied Pressure: 800 psi
Dimensions: 4" x 40"
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Sea Water, Industrial and Process Water, Municipal/Potable Water, Shipboard Seawater Desalination, Sea Water Boron Removal

Product Details
Active Area	73 sq. ft.
Average Nacl Rejection	0.99
Cleaning Ph Range	1-12
Feed Spacer Thickness	28 mil
Feed Water Concentration	32,000 mg/l NaCl
Feed Water Temperature	77°F
Inlet Pressure	800 PSI
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure Drop	20 PSI Differential
Max Pressure (Psi)	1000 psi
Max Temp (°F)	113°F
Min Flow Rate	1,300 gpd (4.9 m3/d)
Minimum Salt Rejection Cl- (%)	0.995
Permeate Flow Rate	1,600 gpd (6.1)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.08
Stabilized Salt Rejection Cl- (%)	0.997
Diameter	4"
Origin	U.S.A.
Shipping Dimensions
Shipping Length	40 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	9.7

Toray TM810L 1600 gpd Sea Water Membrane 4 x 40 Manual
