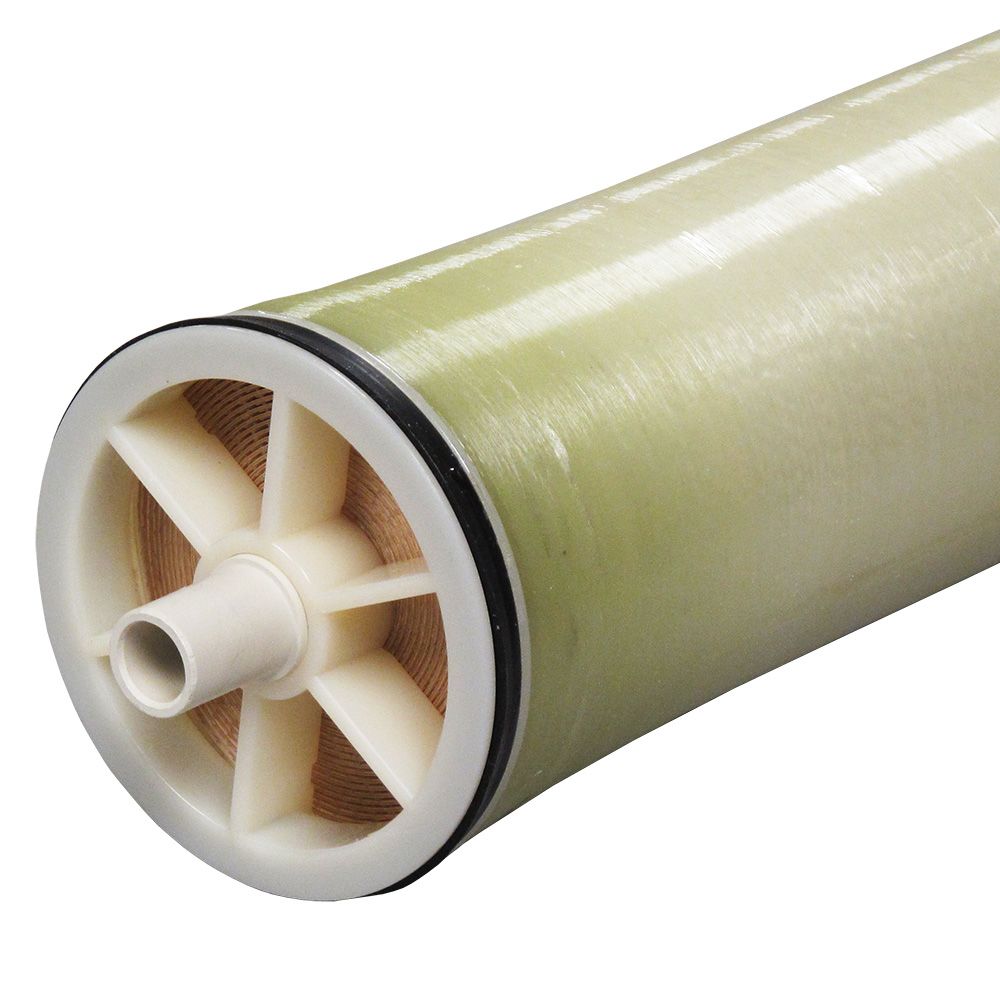

Toray TM810C 1200 gpd Sea Water Membrane 4 x 40

The Toray TM810C 1200 gpd Sea Water Membrane is designed to be used on water sources with high salinity (>10,000 ppm). They can be used in multiple membrane systems to treat sea water for small private or shipboard desalination.

Specifications:

Permeate Flow Rate: 1200 gallons per day
Membrane Type: Polyamide Composite
Applied Pressure: 800 psi
Dimensions: 4" x 40"
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Sea Water, Industrial and Process Water, Municipal/Potable Water, Shipboard Seawater Desalination, Sea Water Boron Removal

Compatible with:

CSM Membranes	RE4040 SHA, RE4040 SHN
Filmtec Membranes	SW30HRLE-4040

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	73 sq. ft.
Average Nacl Rejection	0.99
Cleaning Ph Range	1-12
Direction	Outside - In
Feed Spacer Thickness	31 mil
Feed Water Concentration	32,000 mg/l Nac
Feed Water Temperature	77°F
Inlet Pressure	800 PSI
Material Of Construction	Cross-Linked Polyamide
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure Drop	20 PSI Differential
Max Pressure (Psi)	1200 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Min Flow Rate	1,000 gpd (3.8m3 /d)(TM810C)
Minimum Salt Rejection Cl- (%)	0.995
Permeate Flow Rate	1,200 gpd (4.5)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.08
Stabilized Salt Rejection Cl- (%)	0.9975
Diameter	4"
Origin	U.S.A.
Shipping Dimensions
Shipping Length	40 in.
Shipping Width	5.5 in.
Shipping Height	5.31 in.
Product Weight & Dimensions
Product Height	5.31 in.
Product Length	40 in.
Product Width	5.5 in.
Product Weight (lbs)	9.0375
