Titan Basement Submersible Sump Pump 1/3 HP - Tethered Float

Home / Pumps & Motors / Sump Pumps / Titan Basement Submersible Sump Pump 1/3 HP - Tethered Float

DURO

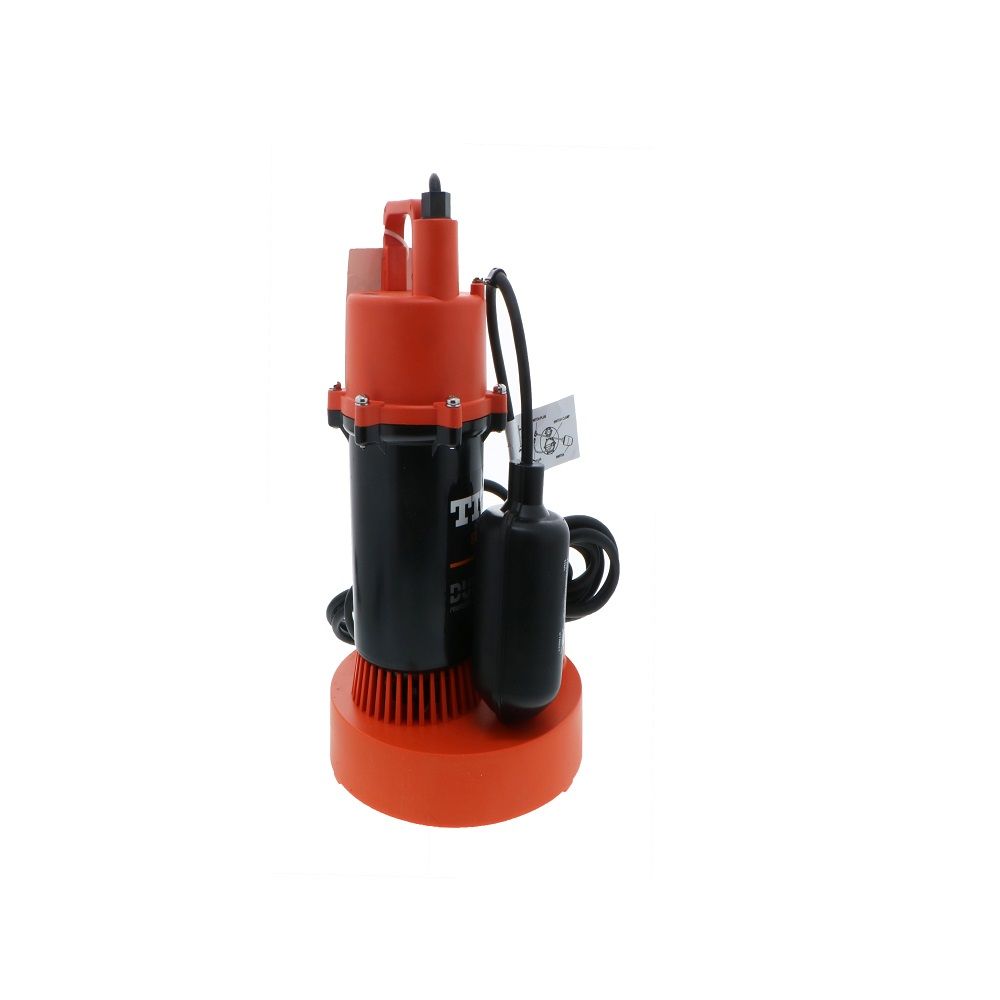

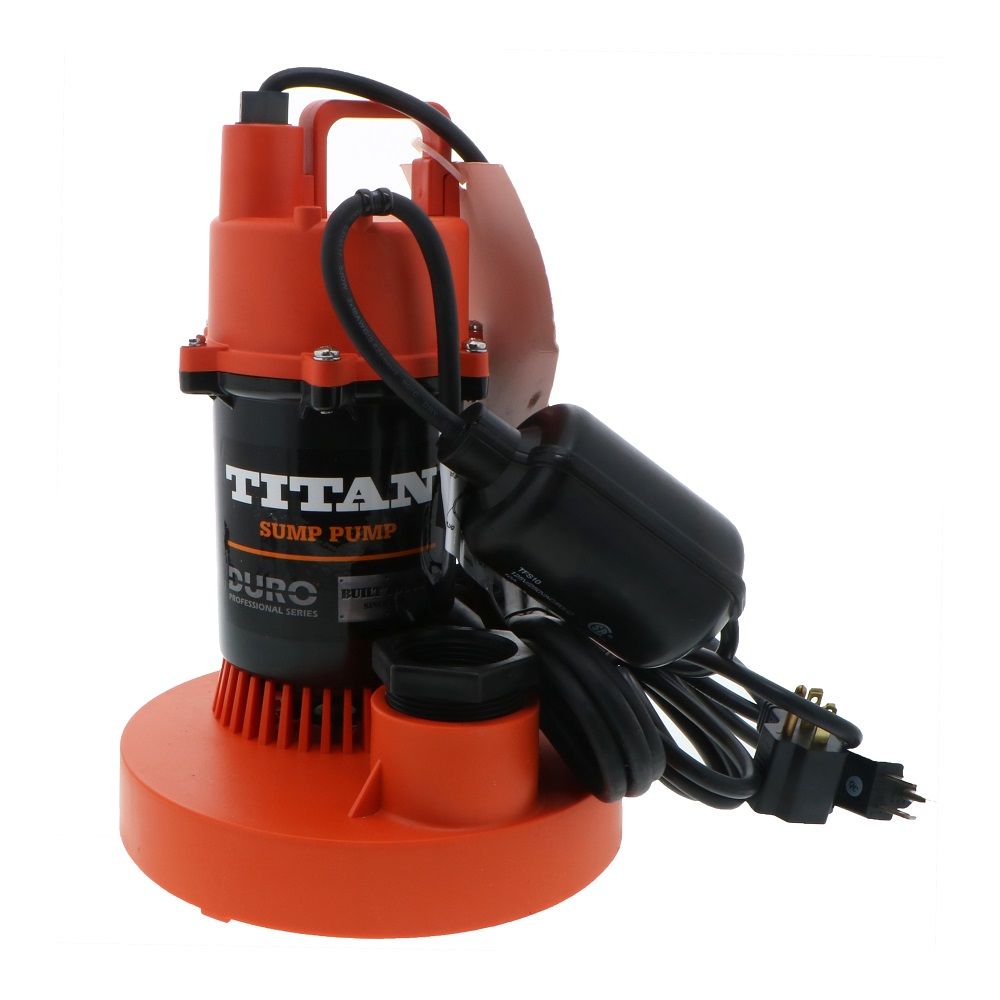

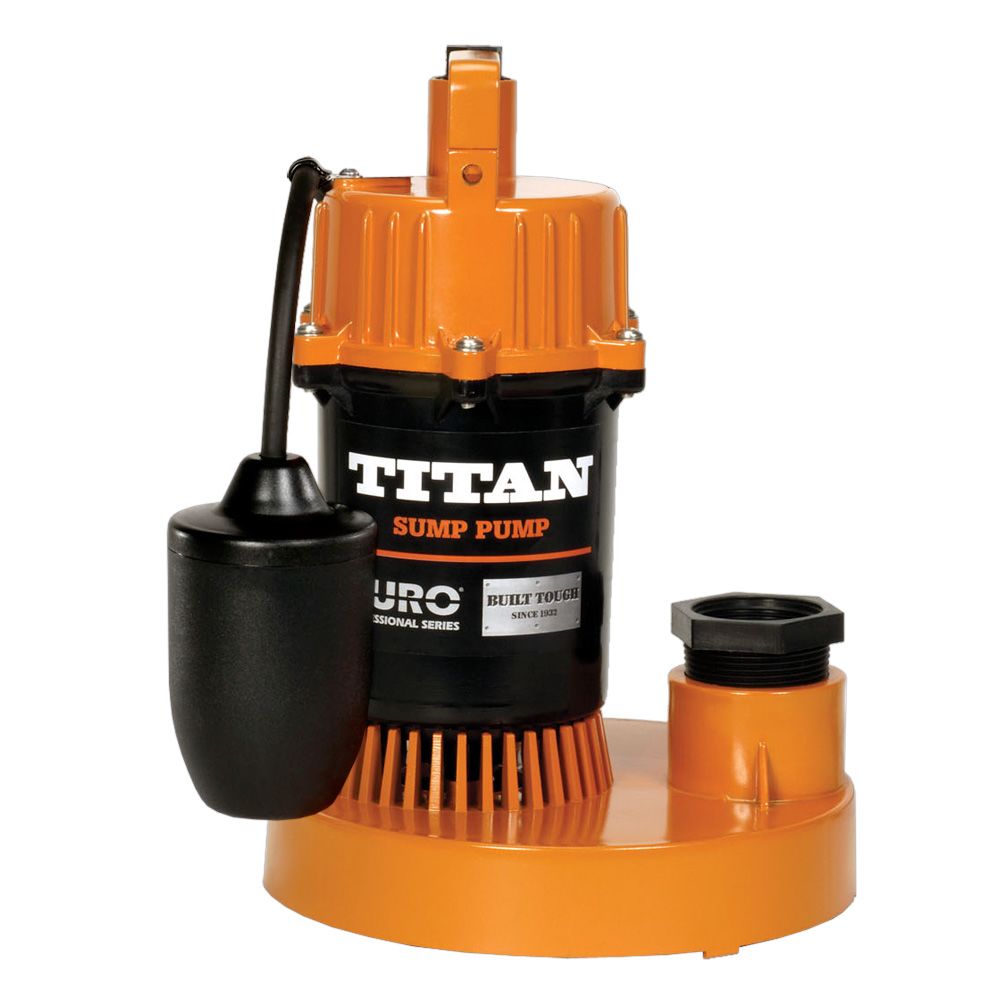

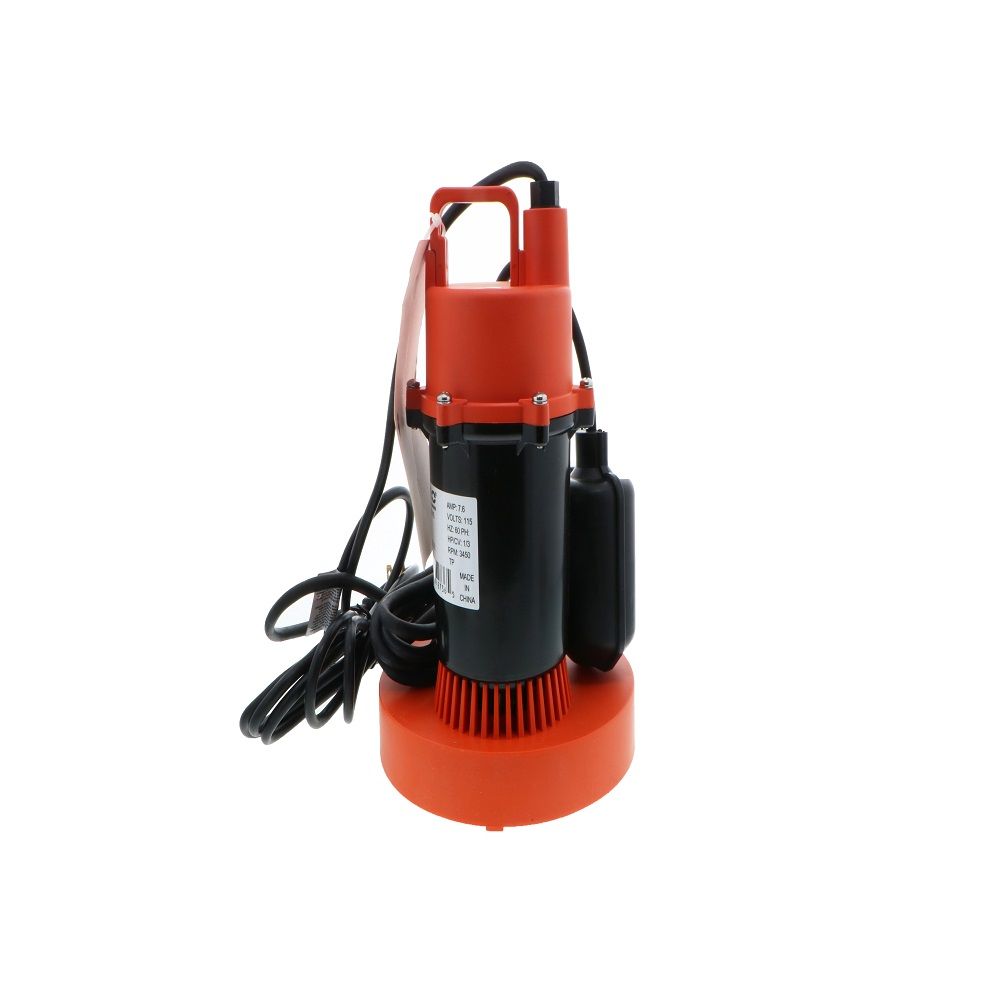

Titan Basement Submersible Sump Pump 1/3 HP - Tethered Float

Part Number: DSB250

Alt. Part Number: DSB250V

The Titan DSB250 Submersible Sump Pump is designed for your home and or basement and offers quick and simple installation, easy maintenance and smooth operation. Since 1932 Titan Sump Pumps has one of the lowest failure rates .The DSB250 has a piggyback tethered float switch that controls the 1/3 HP pump which operates at a flow rate of 53.3GPM.

Specifications:

Aluminum die-casting and engineered thermoplastic for impact and corrosion resistance.
Stainless steel hardware for long lasting durability.
Screened top inlet prevents pieces of debris larger than the pump can handle from entering and damaging the impeller.
Thermoplastic vortex impeller designed for high lift and flow capacity.
Carbon / ceramic mechanical seals and lip seals to ensure positive protection from water and oil leakage.
Upper and lower NSK ball bearings for improved pump performance and extended operating life.
Piggyback tethered float switch
1-1/2" or 1-1/4" NPT discharge.
10 foot power cord with 3-prong adapter, plugs into a wall outlet for simple solder-less wiring connection in your home or basement.
Two Year Warranty
To compare The Titan home and basement sump pump to the Zoeller 49, Little Giant ES33, and other submersible sump pumps see the main Sump Pump category.

NOTE: Comparable to other home and basement sump pumps such as the Myers S33, Wayne RSP130, Simer 12558, Little Giant SC33T, Little Giant SP33T, Simer 3996, Superior Pump 92330

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	4 Amps
Housing Material	Aluminum Die Casting/Thermoplastics
Inlet Connection	1-1/4" FPT 1-1/2" FPT
Internal Component Material	Glass-filled Thermoplastic Impeller
Liquid Temperature	32-140 °F
Max Head Pressure (Ft.)	23
Outlet Connection	1-1/4" FPT,1-1/2" FPT
Power	1/3 hp
Power Source	10', 3-prong
Pump Max Flow Rate (Gpm)	53.3
Size	1-1/4" 1-1/2"
Voltage Type	AC
Connection Type	Female (FPT)
Type	Sump Pump
Voltage	115VAC
Warranty & Certifications
Warranty	2 Years
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Height	11"
Product Width	7-3/4"
Product Weight (lbs)	9.95
