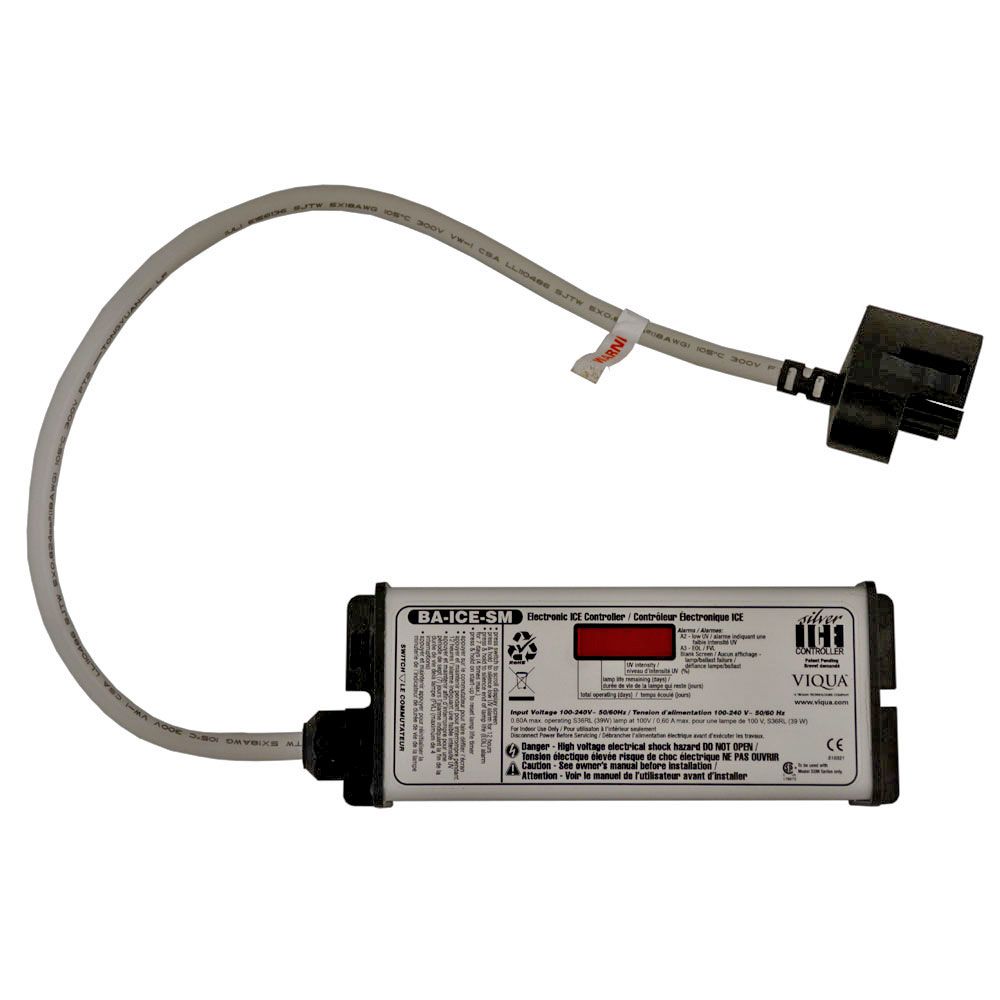

Sterilight BA-ICE-SM Monitored Ballast for "PLUS" models 100-240V

The BA-ICE-SM ballast is used in the Silver "PLUS" monitored systems. This electronic ballast fires low pressure regular intensity lamps only. The ballast was designed to have a water-tight case and allows the operator to monitor the system's condition through it's 4 segment LED display. It has a fused solenoid output and a 4-20 mA output as well.

Specifications:

• Visual "Power-On"
• Audible Lamp Failure Alert
• Lamp Replacement Reminder
• Fires Low Pressure Regular Intensity Lamps Only
• Visual Lamp Life Remaining
• Total Running Time Displayed

BA-ICE-SM controller is compatible with the following systems:

• SSM-14
• SSM-17
• SSM-24
• SSM-39
• SSM-37

NOTE: This controller operates from 100-250V./Hz. with the power cord being sold separately. The BA-ICE-SM is compatible with the following models: SSM-14, SSM-17, SSM-24, SSM-37 and SSM-39.

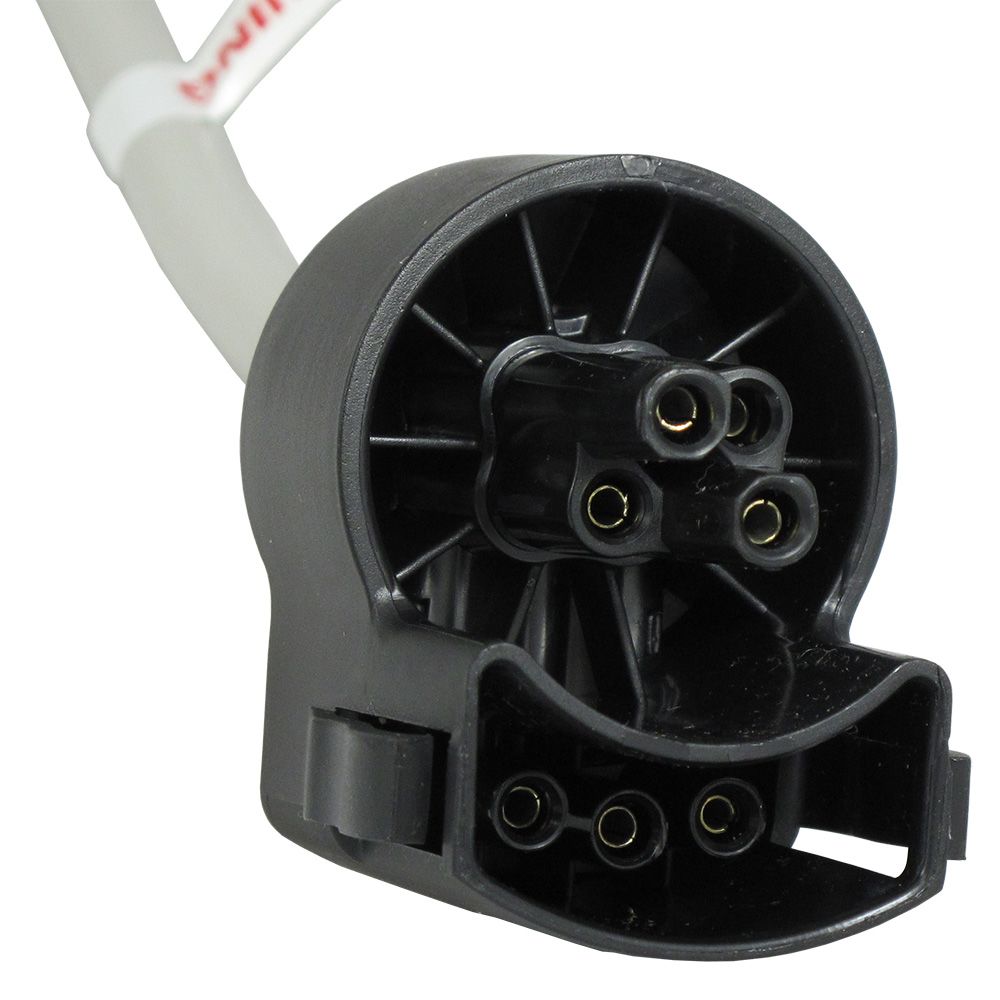

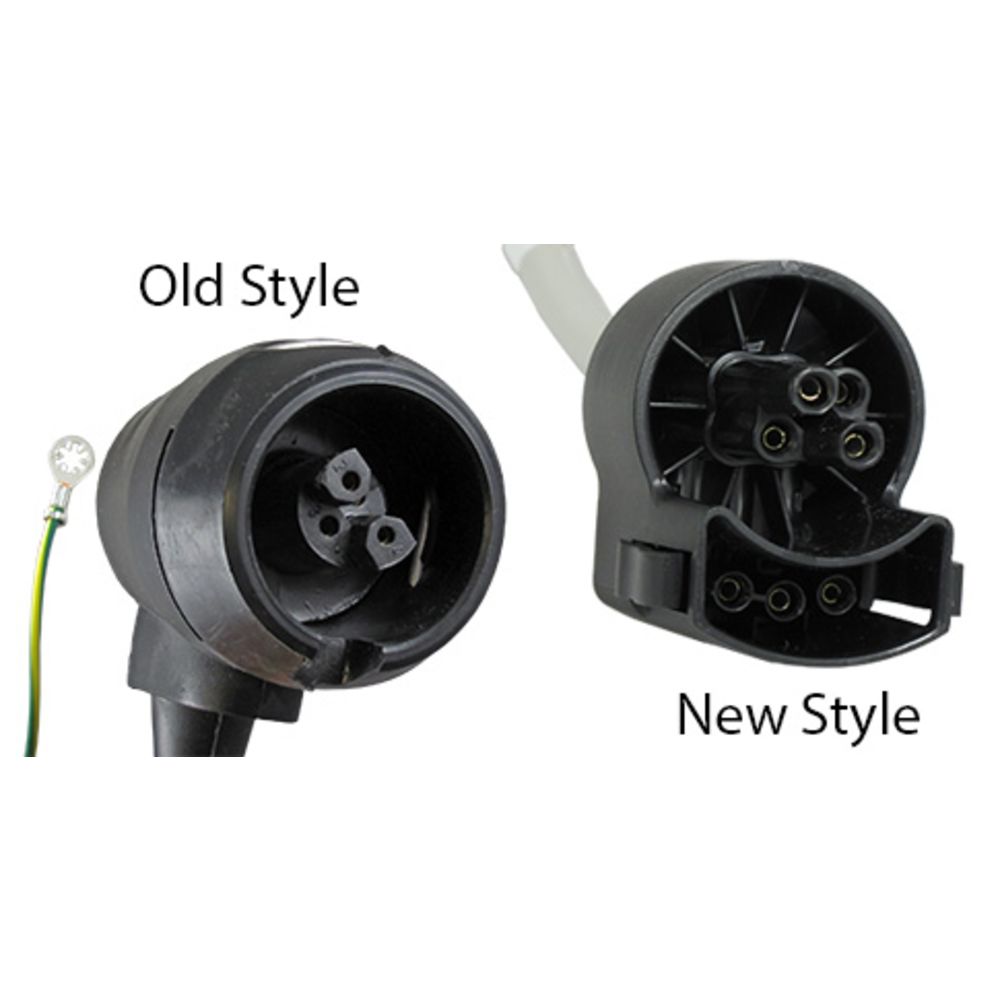

Sterilight BA-ICE-SM Lamp Connector Update:

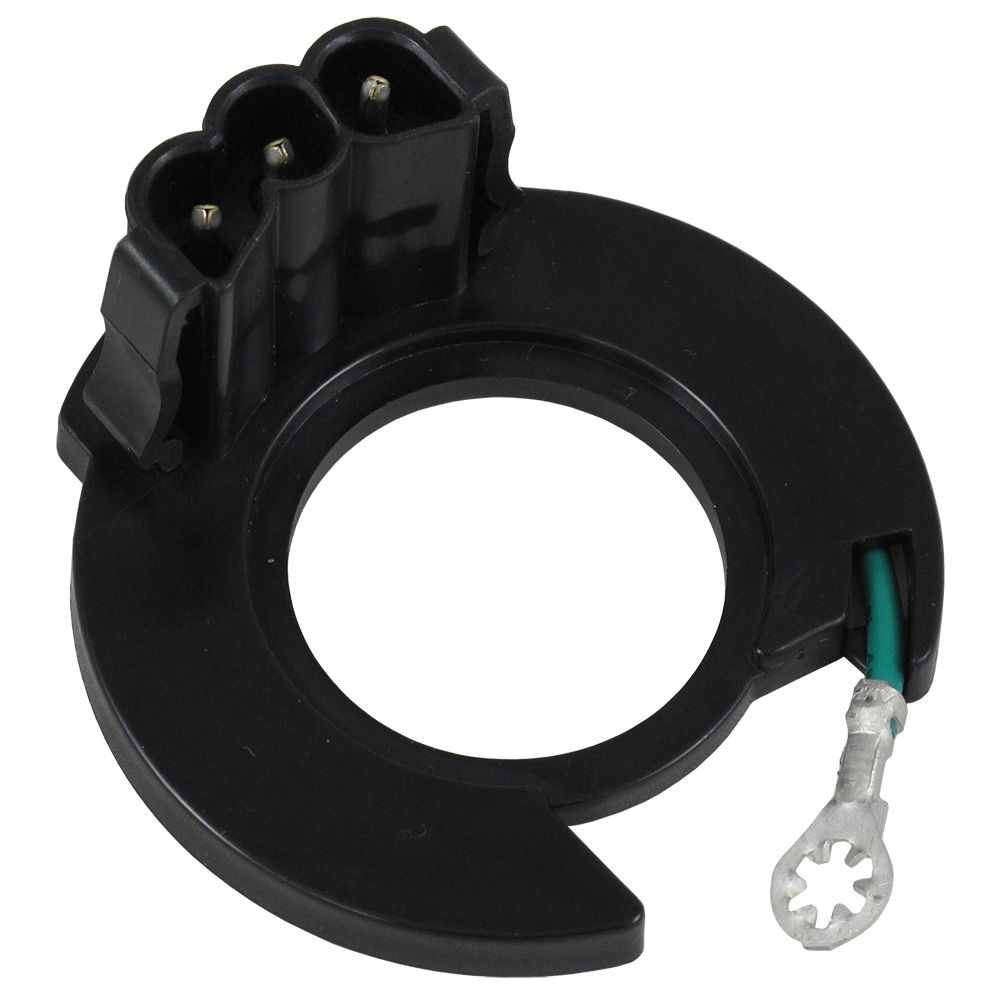

As of 2014, Sterilight has updated the style of the lamp connector on the BA-ICE-SM controller. The new style allows for a quicker and easier lamp change. Controllers will be shipped with a retrofit lamp connector base, allowing the controller to fit existing Sterilight systems.

Compatible with:

Ice House America®

IHA - H05105
