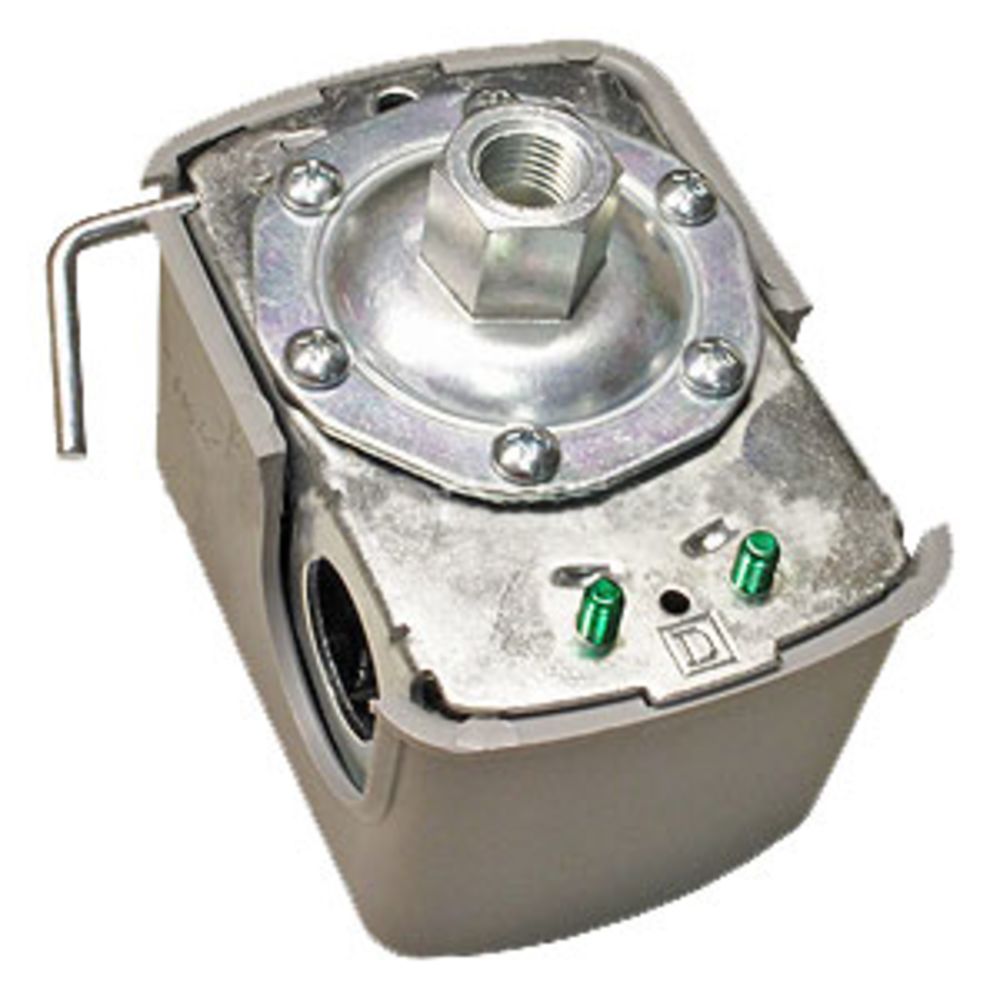

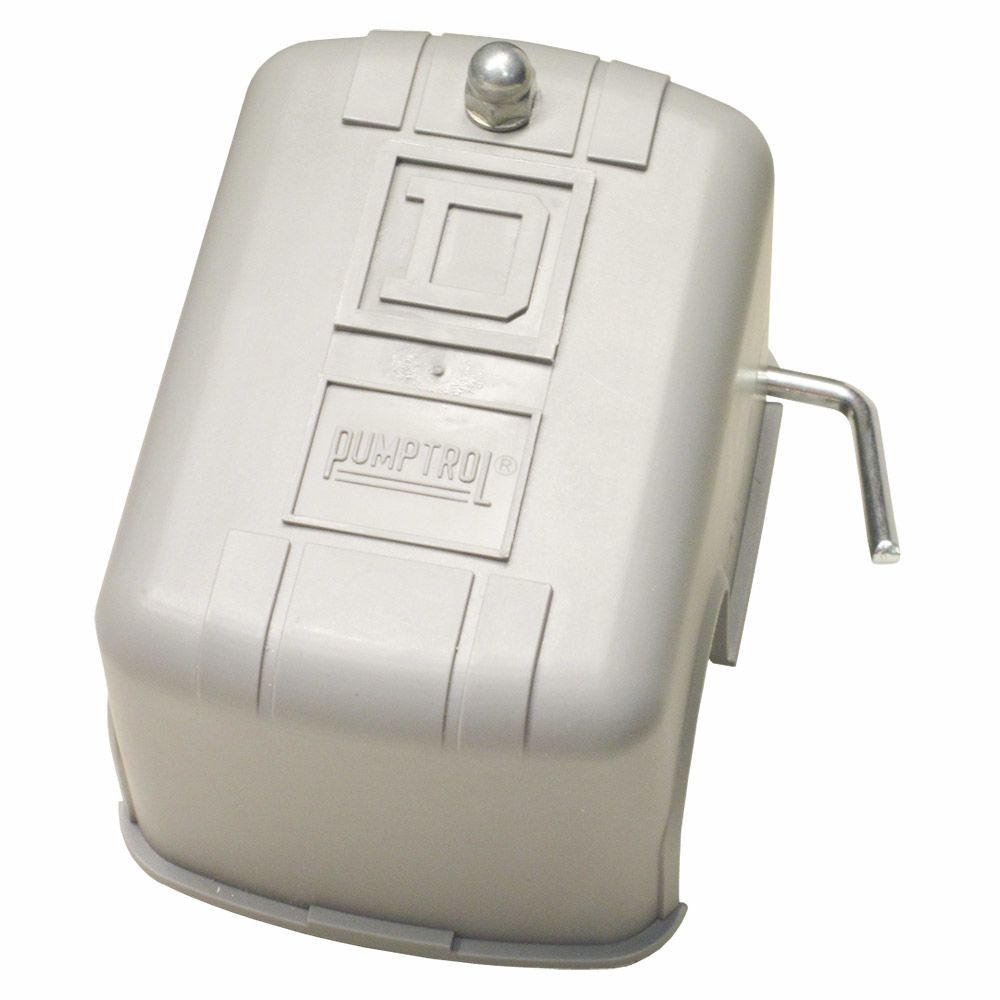

Square D Pressure Switch, Low Pressure 30/50 Adjustable, DPST, Diaphragm 1/4 FPT

Square D Pumptrol 9013FSG2J21M4 well tank pressure switches are the industry standard for household well installations. They are easy to install, have adjustable cut-in and cut-out settings and can control both submersible pumps and jet pumps.

Specifications:

Amps: 10A
Actuator Type: Diaphragm
Diaphragm: Nitrile (Buna N)
UL Listed and CSA Certified
Indoor Use
Pressure Connection: 1/4" FNPT
Maximum Voltage Rating: 575VAC
Factory Set Cut-In Pressure: 30 psi
Factory Set Cut-Out Pressure: 50 psi
Maximum Allowable Pressure: 220 psig
Low Pressure Cut-Off: 10 psi below cut-in

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	10 Amps
Diaphragm Materials	Buna-N
Max Pressure (Psi)	50
Min Pressure (Psi)	30
Power	1.5 HP @ 115 VAC (1-phase) 2 HP @ 230 VAC (1-phase) 3 HP @ 230 VAC (3-phase) 1 HP @ 460/575 VAC (3-phase)
Rating	NEMA 1 575 VAC
Connection Type	Screw Clamp
Origin	Mexico
Voltage	115V 230V
Shipping Dimensions
Shipping Length	3.88 in.
Shipping Width	3.88 in.
Shipping Height	3.88 in.
Product Weight & Dimensions
Approx Depth	2.78"
Product Height	3.88 in.
Product Length	3.88 in.
Product Width	3.88 in.
Product Weight (lbs)	1.75

Product Details
Amps	10 Amps
Diaphragm Materials	Buna-N
Max Pressure (Psi)	50
Min Pressure (Psi)	30
Power	1.5 HP @ 115 VAC (1-phase) 2 HP @ 230 VAC (1-phase) 3 HP @ 230 VAC (3-phase) 1 HP @ 460/575 VAC (3-phase)
Rating	NEMA 1 575 VAC
Connection Type	Screw Clamp
Origin	Mexico
Voltage	115V 230V
Shipping Dimensions
Shipping Length	16 in.
Shipping Width	16 in.
Shipping Height	14 in.
Product Weight & Dimensions
Approx Depth	2.78"
Product Weight (lbs)	35.5

Square D Pressure Switch, Low Pressure 30/50 Adjustable, DPST, Diaphragm 1/4 FPT Manual
