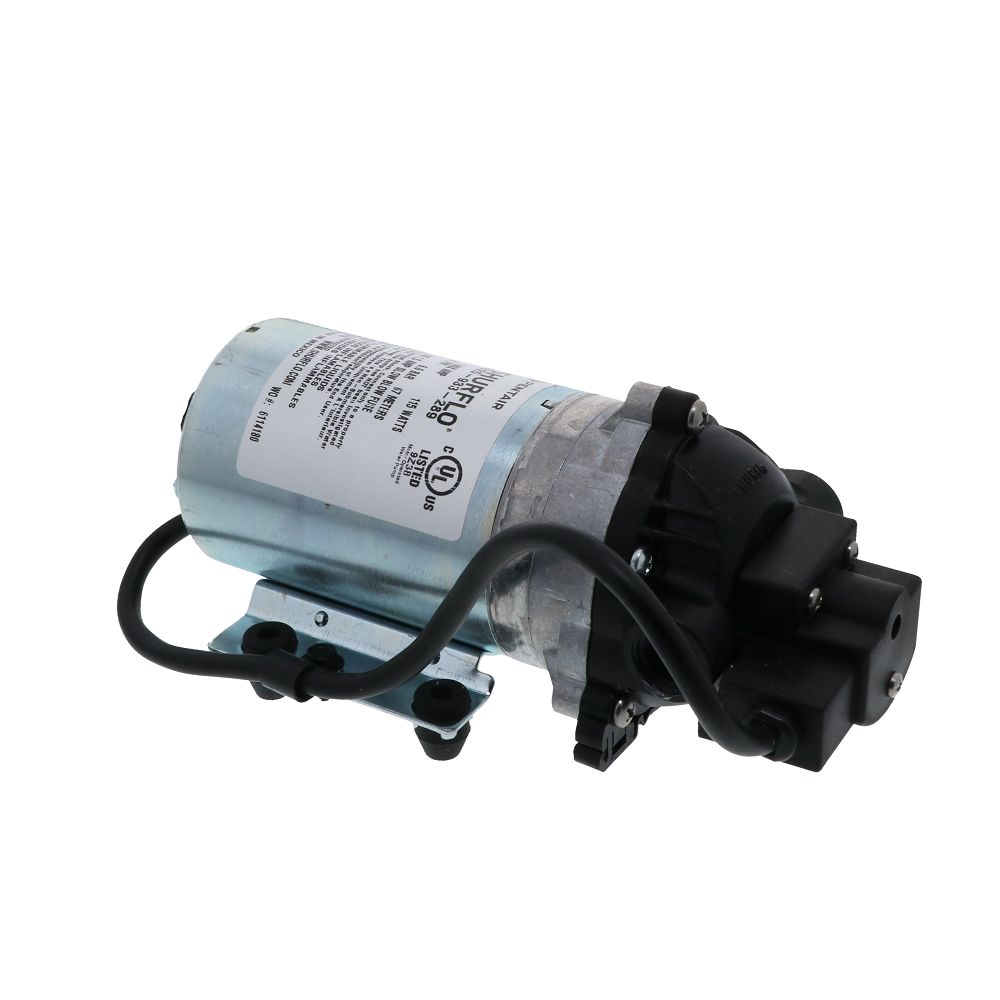

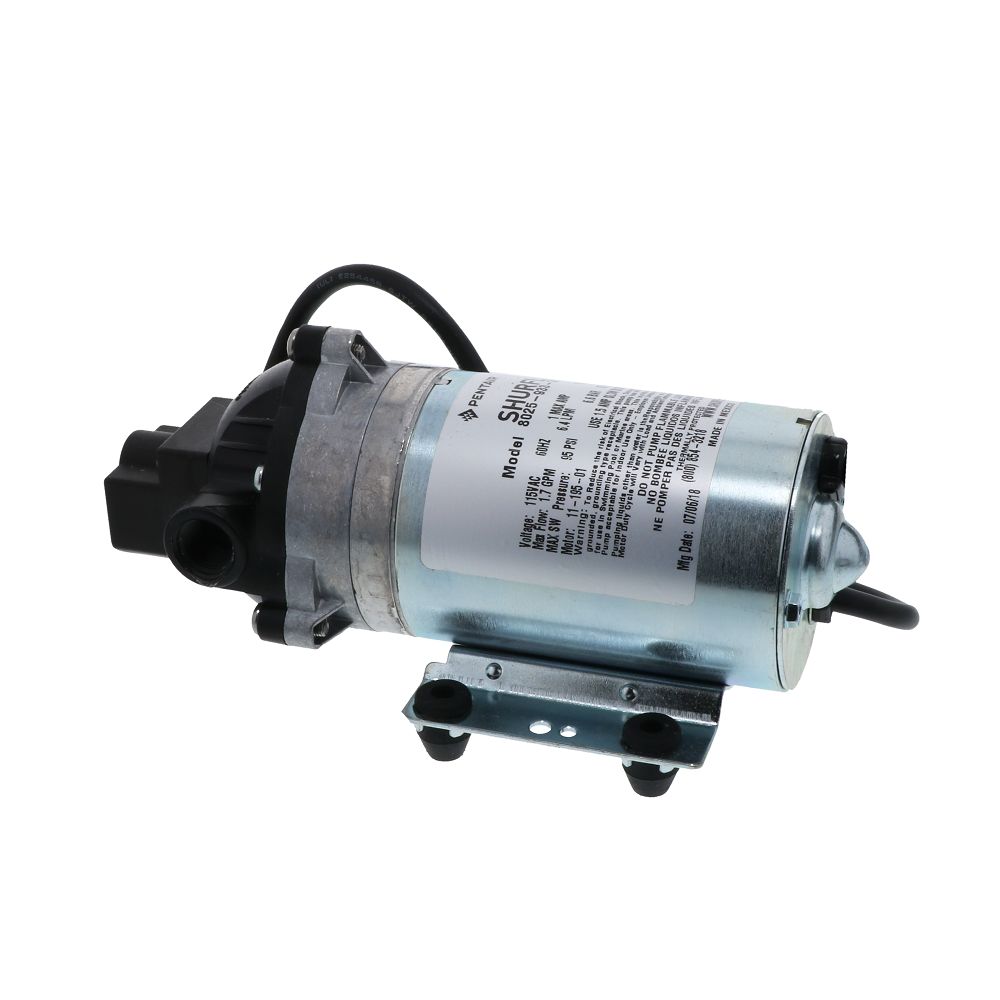

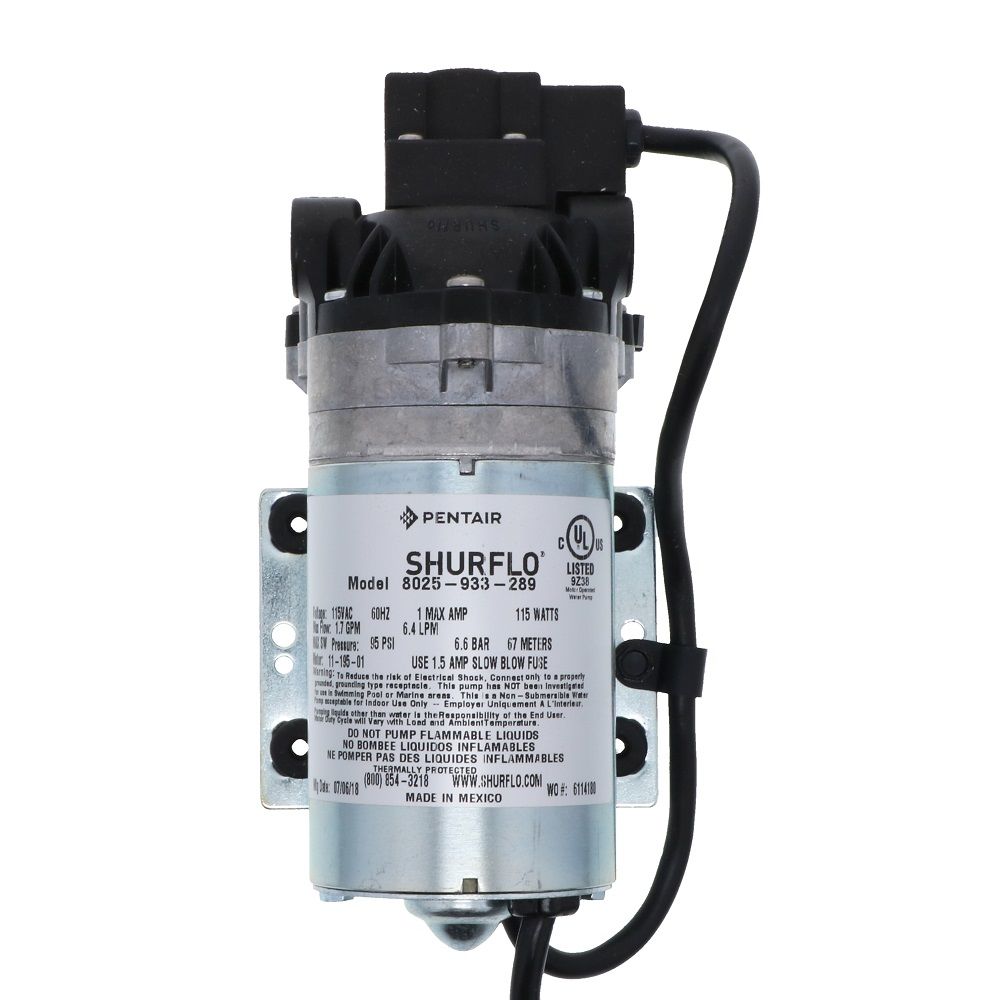

SHURflo 8025-933-289 Delivery Pump 1.4 gpm 95 psi 115V

The SHURflo 8025-933-289 Delivery Pump is ideal in applications that require high pressure and a flow rate of 1.4 GPM and low amp draw. The pump can be mounted in any position, is compact and is designed for long trouble-free life. Spherically shaped valves and diaphragms are available in a variety of materials to meet a wide range of applications.

Specification:

1.4 GPM flow rate
Pressure Switch: Turn on at 75 psi, off at 95 psi
Can run dry without damage
Self priming up to 12 vertical feet
3/8" NPT female ports
Santoprene diaphragm
Built-in check valve
NSF, UL and CSA listed

Applications:

Water delivery

Product Details
Amps	0.36-0.90 Amps @ 0-90 PSI
Diaphragm Materials	Santoprene
Inlet Connection	3/8" FPT
Inlet Pressure	30 PSI
Liquid Temperature	Max 180 °F
Outlet Connection	3/8" FPT
Power Source	Yes
Pump Max Flow Rate (Gpm)	1.4
Series	8000
Size	3/8"
Suction Lift	Self prime up to 12 ft
Voltage Type	AC
Wire Option	Wall Plug
Connection Type	Female (FPT)
Type	Diaphragm Pump
Voltage	115VAC
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	8.5
Product Width	4
Product Weight (lbs)	6

SHURflo 8025-933-289 Delivery Pump 1.4 gpm 95 psi 115V Manual
