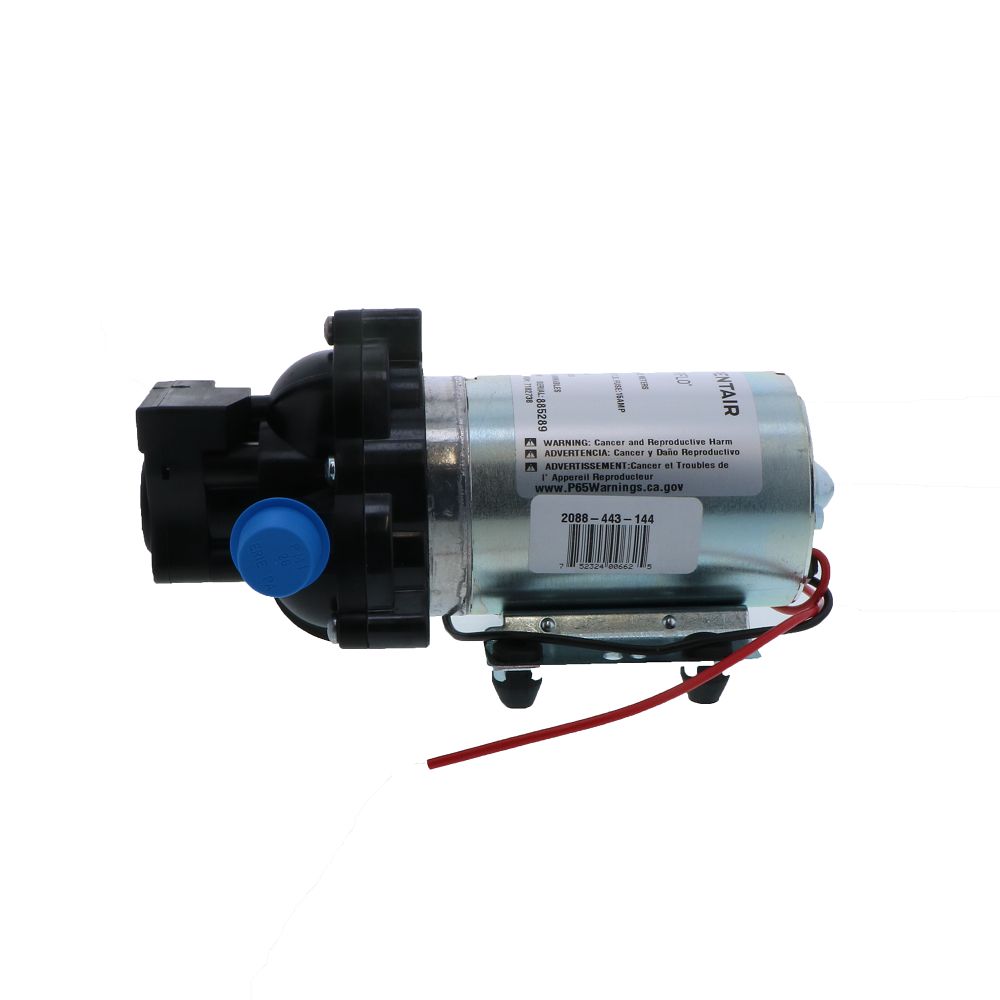

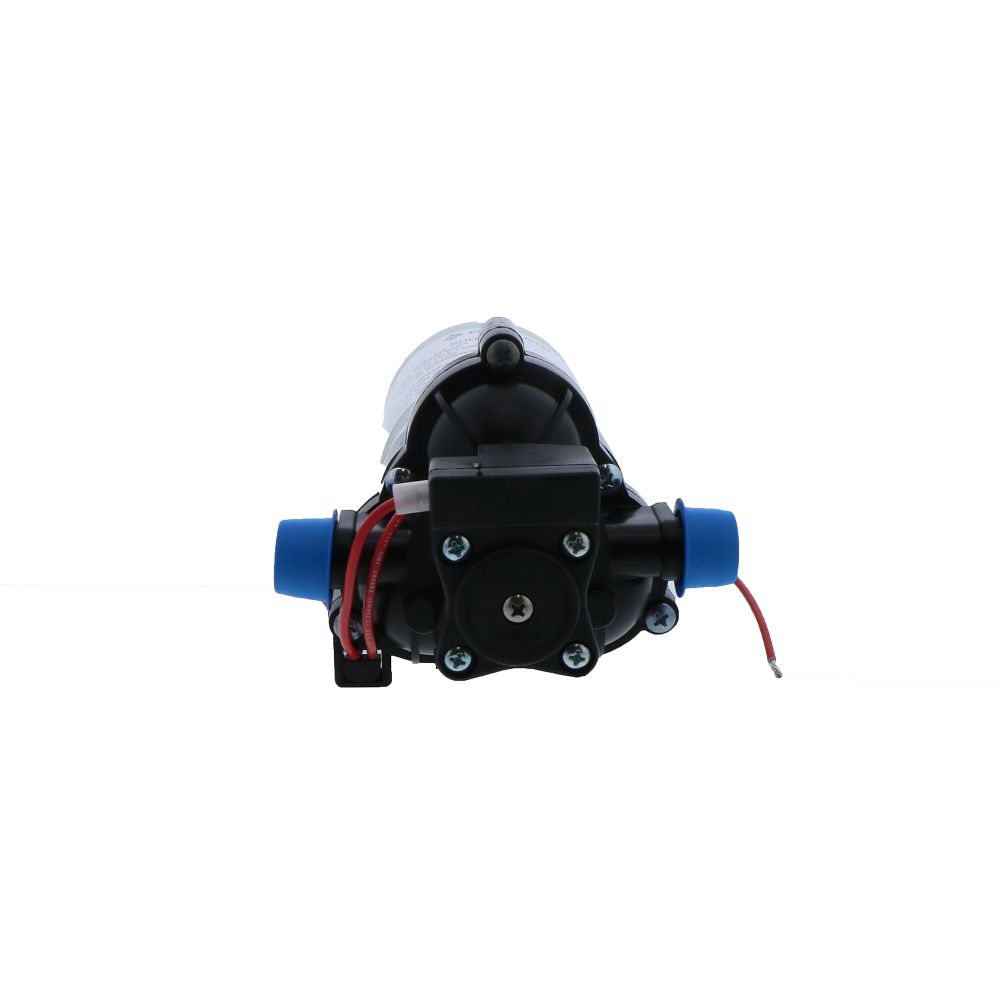

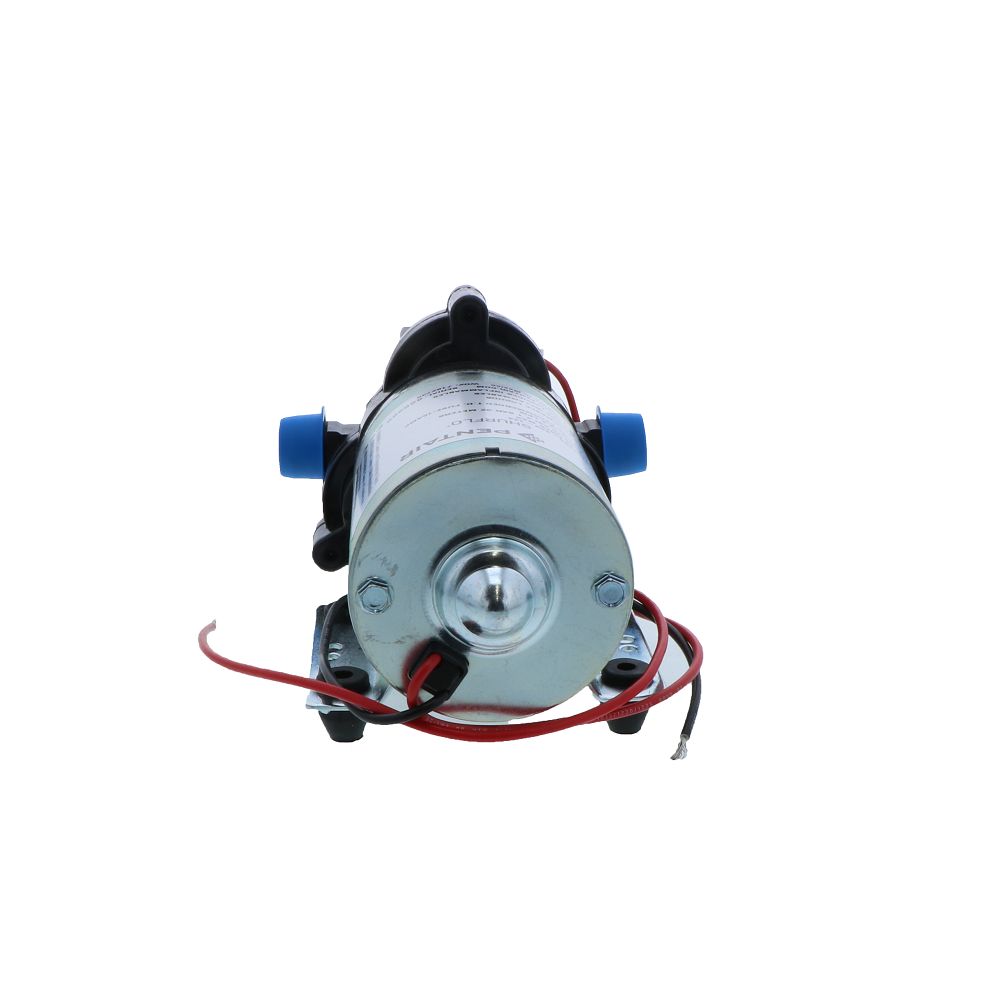

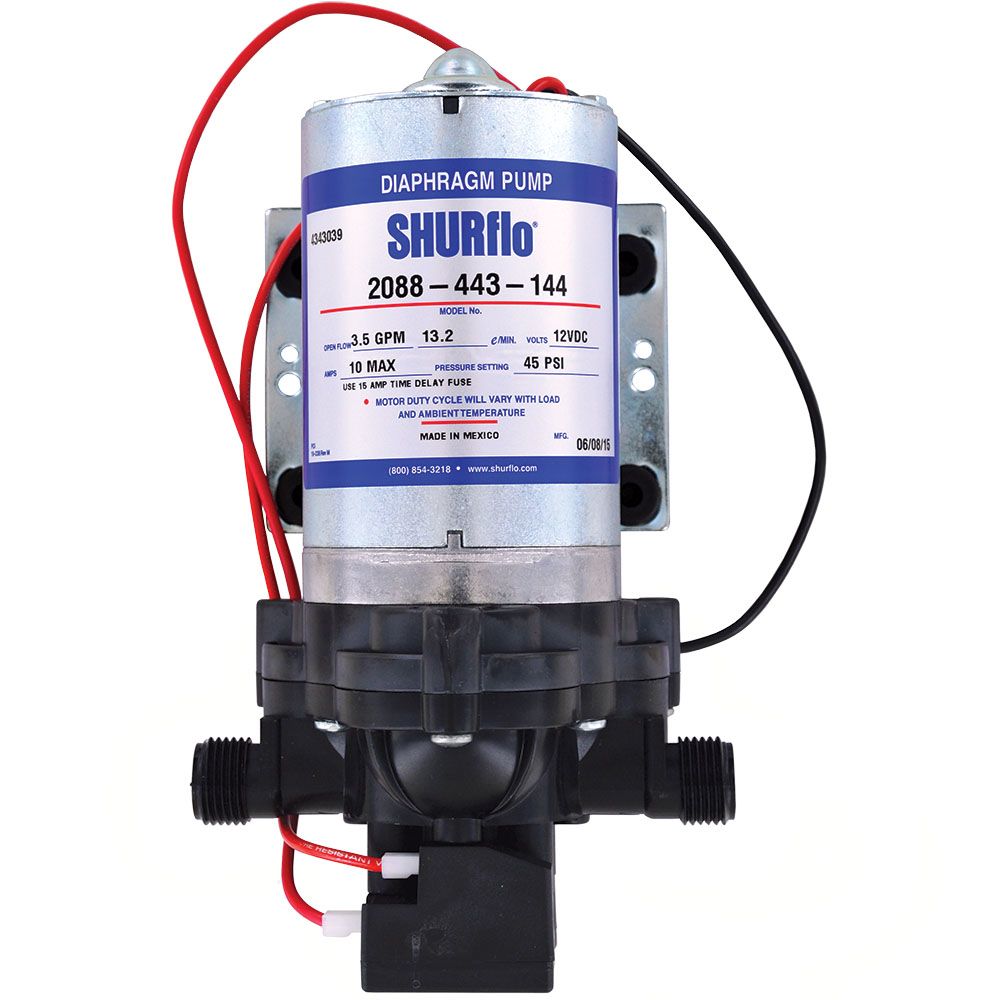

The SHURflo 2088-443-144 Delivery Pump delivers reliable performance in high flow, moderate pressure applications that require flow up to 3.5 gpm. 2088 series pumps are used in a variety of transfer and dispense on-demand applications. They can be mounted in any position and are designed for easy maintenance.

Features:

Light Weight Convenient Design. The Shurflo 2088-443-144 is light weight and can be mounted vertically or horizontally. This self priming pump and can prime up to 9 feet vertically. The pump can handle media temperatures up to 130° F, and the pump itself can heat up to 250° F without damage.
45 PSI Shut-off Switch. The Shurflo 2088-443-144 features a pressure switch that has been factory set for 45 PSI shut-off. The pump will cut on at 25 PSI (±5) and is adjustable from 30 to 50 PSI.
Non-Potable Water for RVs or Campers. The Shurflo 2088-443-144 pump is ideal for RV non-potable water applications like waste disposal or water hosing.

Additional Specifications:

Flow Rate: 3.5 gpm
Net Weight: 4.8 LBS
Voltage: 12VDC nominal
Motor: Thermal protection
Port Connections: 1/2" MPT
Check Valve prevents reverse flow
Pump Design: Positive displacement 3 chamber diaphragm

Product Details
Amps	5.3-9.9 Amps @ 0-50 PSI
Cut In Flow Rate	25 (+/-5) GPM
Diaphragm Materials	Santoprene
Housing Material	Polypropylene
Inlet Connection	1/2" MPT
Liquid Temperature	Max 130 °F
Outlet Connection	1/2" MPT
Power Source	None
Pump Max Flow Rate (Gpm)	3.5
Series	2088
Size	1/2"
Suction Lift	Self prime up to 9 ft
Voltage Type	DC
Wire Option	Bare Wire
Connection Type	Male (MPT)
Type	Diaphragm Pump
Voltage	12VDC
Warranty & Certifications
Warranty	SHURflo warrants Industrial 2088 series pumps to be free from material and workmanship defects (under normal use and service) for a period of one (1) year from the date of manufacture. or (1) one year use with proof of purchase, not to exceed 2 years
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.75
Product Length	8.75
Product Width	5.5
Product Weight (lbs)	4.8

Product Details
Amps	5.3-9.9 Amps @ 0-50 PSI
Cut In Flow Rate	25 (+/-5) GPM
Diaphragm Materials	Santoprene
Housing Material	Polypropylene
Inlet Connection	1/2" MPT
Liquid Temperature	Max 130 °F
Outlet Connection	1/2" MPT
Power Source	None
Pump Max Flow Rate (Gpm)	3.5
Series	2088
Size	1/2"
Suction Lift	Self prime up to 9 ft
Voltage Type	DC
Wire Option	Bare Wire
Connection Type	Male (MPT)
Type	Diaphragm Pump
Voltage	12VDC
Warranty & Certifications
Warranty	SHURflo warrants Industrial 2088 series pumps to be free from material and workmanship defects (under normal use and service) for a period of one (1) year from the date of manufacture. or (1) one year use with proof of purchase, not to exceed 2 years
Shipping Dimensions
Shipping Length	23.5 in.
Shipping Width	18 in.
Shipping Height	6.5 in.
Product Weight & Dimensions
Product Height	6.5
Product Length	23.5
Product Width	18
Product Weight (lbs)	28.8

Light Weight Convenient Design. The Shurflo 2088-443-144 is light weight and can be mounted vertically or horizontally. This self priming pump and can prime up to 9 feet vertically. The pump can handle media temperatures up to 130° F, and the pump itself can heat up to 250° F without damage.
45 PSI Shut-off Switch. The Shurflo 2088-443-144 features a pressure switch that has been factory set for 45 PSI shut-off. The pump will cut on at 25 PSI (±5) and is adjustable from 30 to 50 PSI.
Non-Potable Water for RVs or Campers. The Shurflo 2088-443-144 pump is ideal for RV non-potable water applications like waste disposal or water hosing.

Additional Specifications:

Flow Rate: 3.5 gpm
Net Weight: 4.8 LBS
Voltage: 12VDC nominal
Motor: Thermal protection
Port Connections: 1/2" MPT
Check Valve prevents reverse flow
Pump Design: Positive displacement 3 chamber diaphragm
