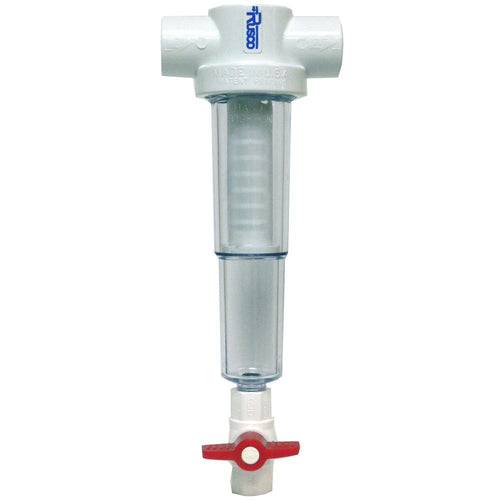

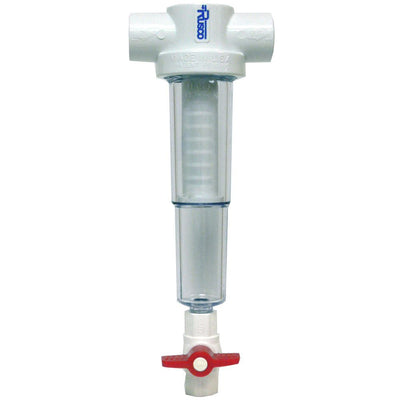

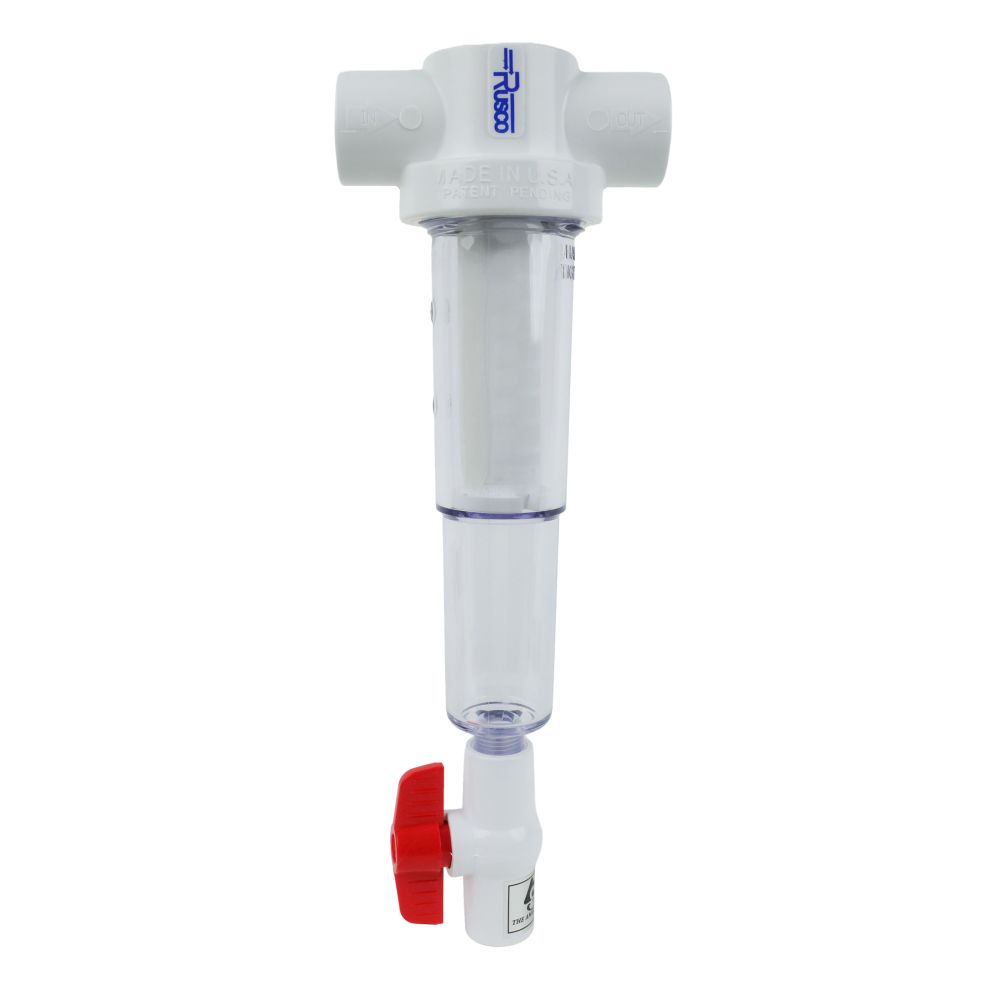

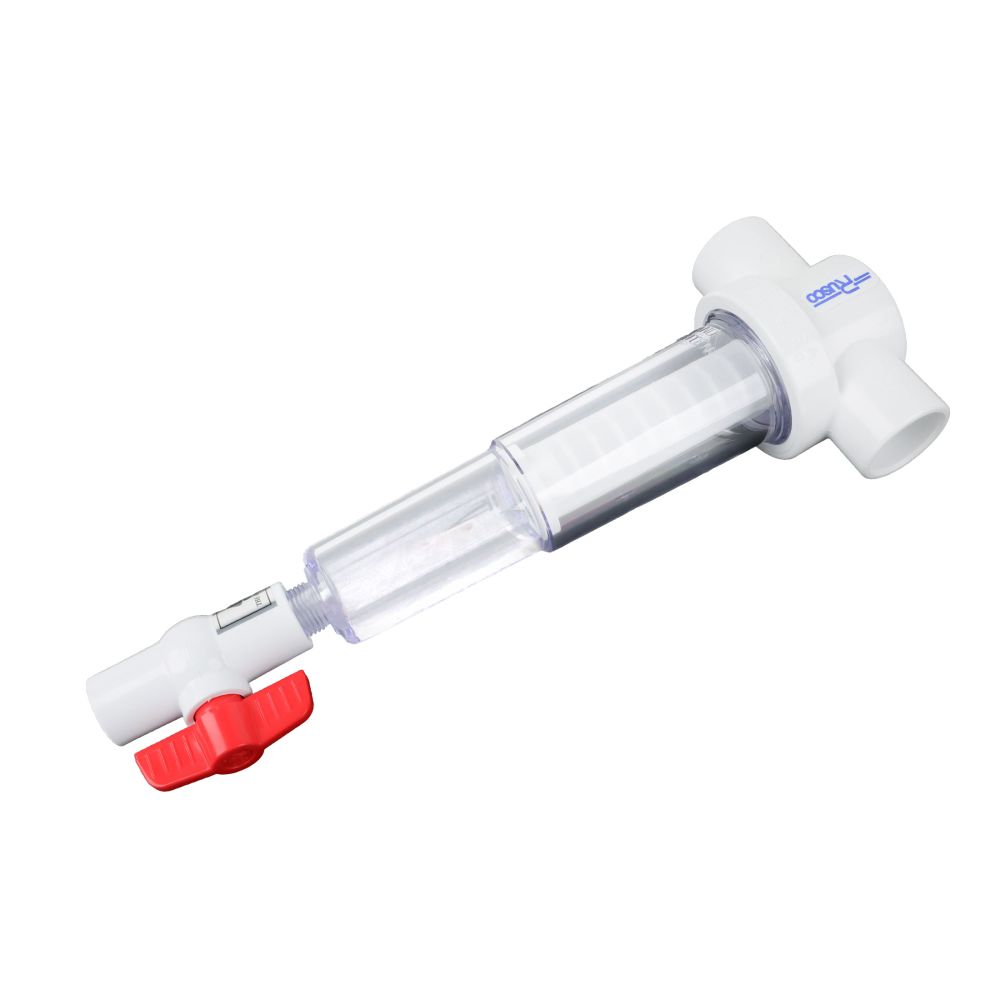

RUSCO’s Spin-Down Sediment Model Filters with Polyester Screens make solid particle removal simple and economical. The benefit of the Spin-Down filter is its ability to be cleaned and reused. The Spin-Down Sediment Filter has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.The unique design of the sediment trapper element allows debris to settle in the bottom of the clear cover, trapping sediment away from the screen.
Features:
- Unique element design traps sediment in lower reservoir of clear cover.

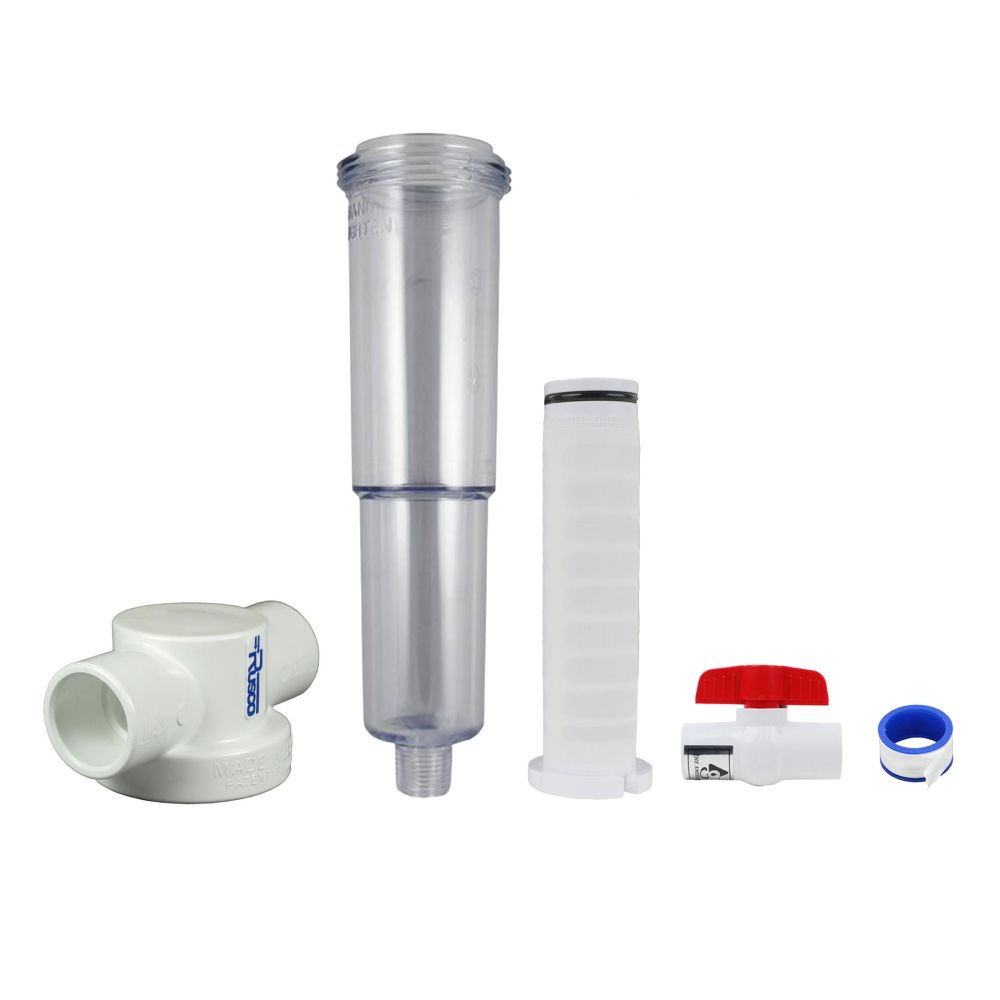

- Clear bowl easily removed for total cleaning (no tools required-using tools voids warranty)
- Sediment is visible through the clear cover indicating when the filter needs cleaning
- Ball valve allows for quick sediment removal from bottom of cover
- Centrifuge Spin-Down type sediment separation
- No down time!!
- No filter cartridges to replace
- No down time required flushing out sediment
- No wasteful backwashing required
- Small size takes little space
- Screen sizes can be easily changed if required
- Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis
Also known as the following models:
Rusco Sediment Trapper: 1-24ST-F, 1-30ST-F, 1-40ST-F, 1-60ST-F, 1-100ST-F, 1-140ST-F, 1-250ST-F, 1-500ST-F, 1-1000ST-F
VuFlow (Vu-Flow) Sand Separator: NT1SO-30P, NT1SO-60P, NT1SO-100P, NT1SO-140P, NT1SO-250P, NT1SO-500P, NT1SO-1000P
Compatible with:| Vu-Flow Sand Separator Filter Replacement Screens | NT1SO-30P, NT1SO-60P, NT1SO-100P, NT1SO-140P, NT1SO-250P, NT1SO-500P, NT1SO-1000P |
California residents
Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause
cancer and birth defects or other reproductive harm.
www.p65warnings.ca.gov
| Product Details |
|---|
Application | Well Water Pumps Water Softeners |
Body Material | PVC |
Body Size | 1" |
Head Style | T-Style |
Housing Material | High Impact Polymer Resin |
Inlet Connection | 1" Slip |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 100 |
Mesh Size | 24 30 40 60 100 140 250 500 1000 |
O-Rings | EPDM |
Outlet Connection | 1" Slip |
Screen Opening | 0.028 0.021 0.015 0.01 0.006 0.004 0.0024 0.0012 0.0006 |
Slip Size | 1" |
Cartridge Style | Sediment Trapper |
Connection Type | Slip |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | SEDIMENT TRAPPER | POLYESTER |
Flow Rate | 1-25 GPM |
Housing Resistance | Fresh Water Only |
Media Type | Polyester |
Micron Rating | 711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm |
Port Size | 1" |
Screen Material | Polyester |
Sub-Type | T-Style System |
Type | Sediment Trapper |
| Shipping Dimensions |
|---|
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
| Product Weight & Dimensions |
|---|
Product Height | 5" |
Product Length | 14-3/8" |
Product Width | 5" |
Product Weight (lbs) | 1.7 |
