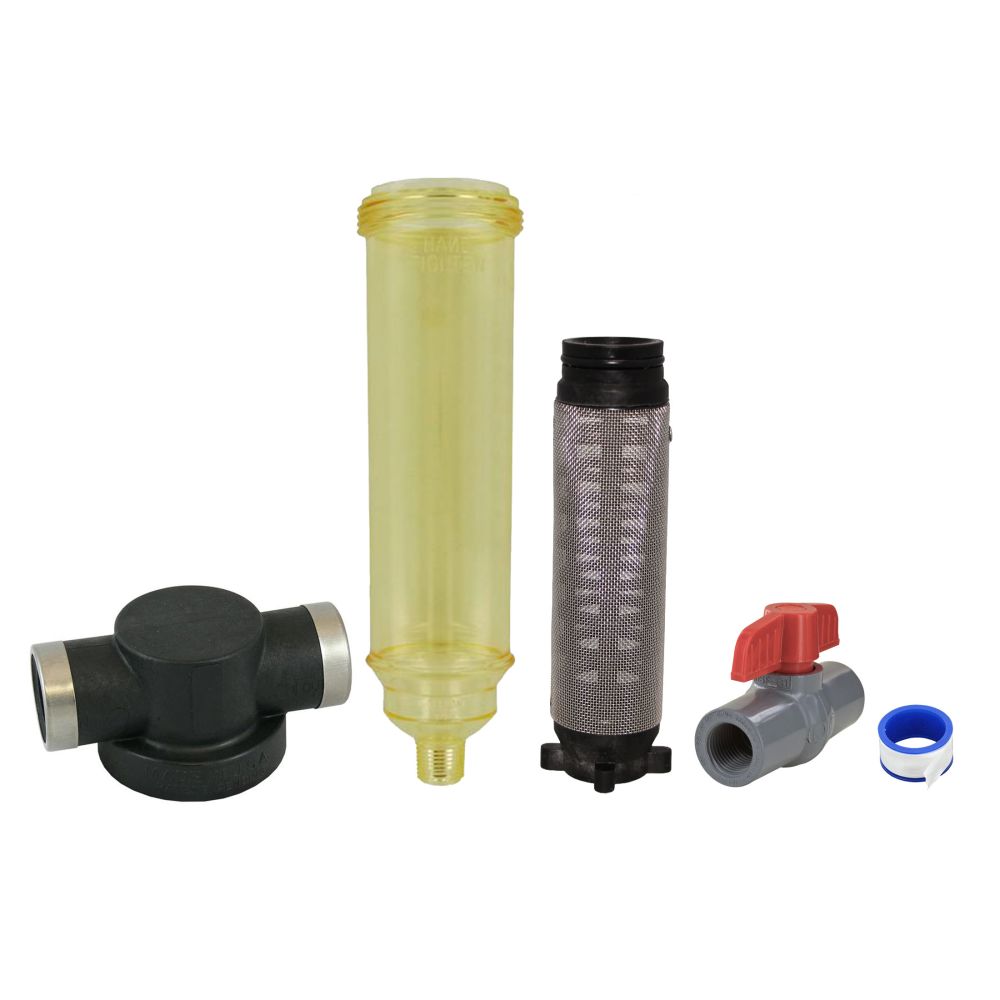

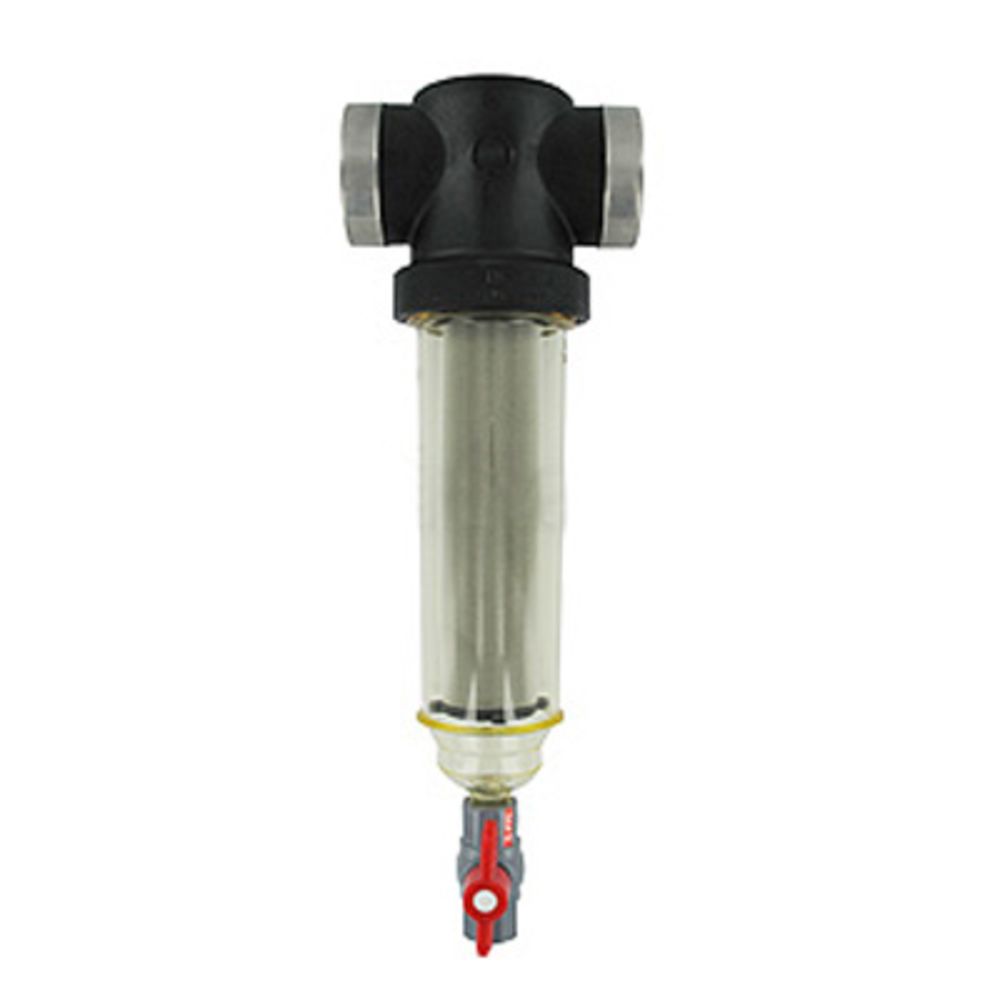

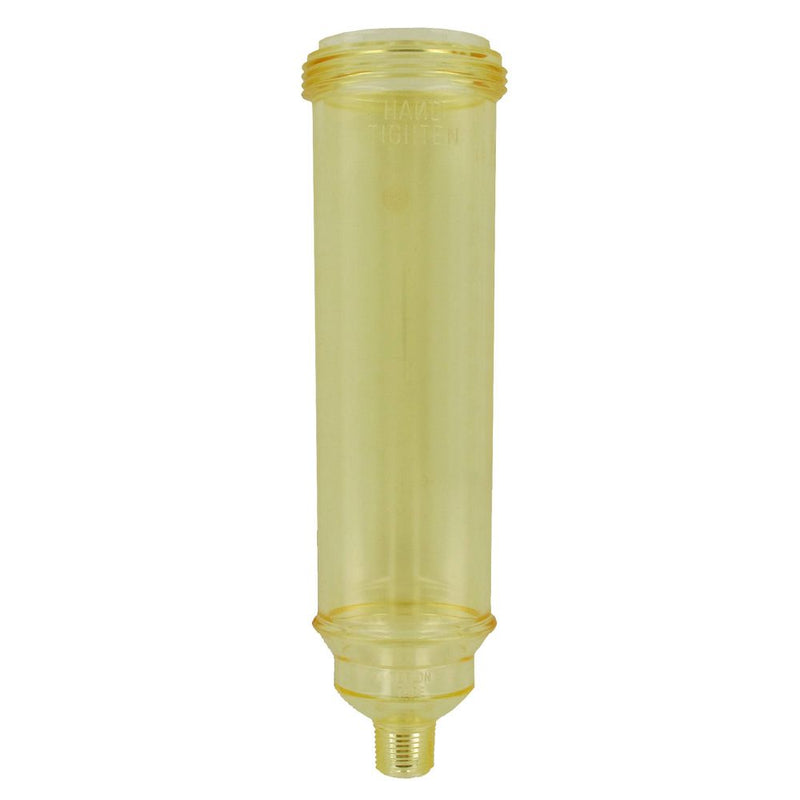

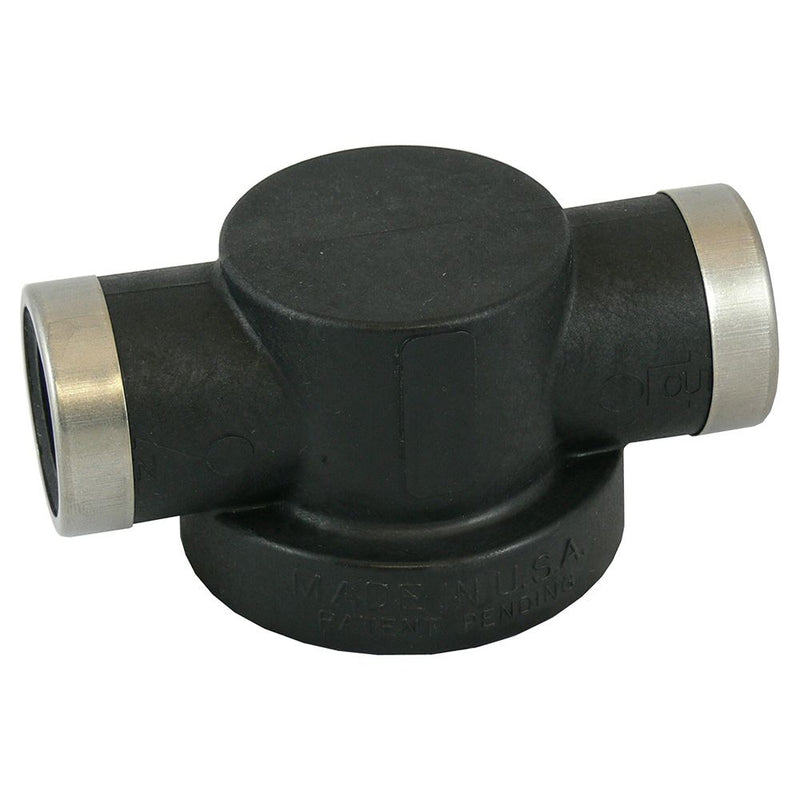

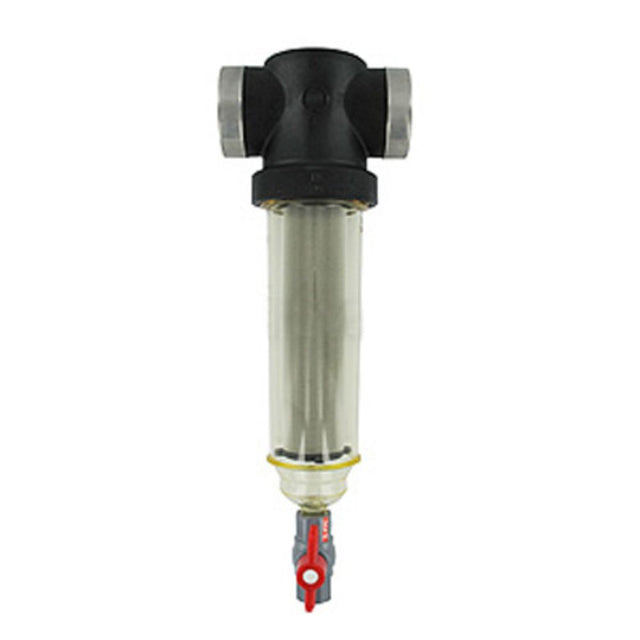

The Rusco Hot Water Spin Down Filter System can operate with water up to 200ºF because of the glass filled polypropylene head that comes with female threads with a stainless steel reinforcing ring over the inlet/outlet. The filter screens are also a durable stainless steel, as well as a chemically resistant and heat resistant filter cover.

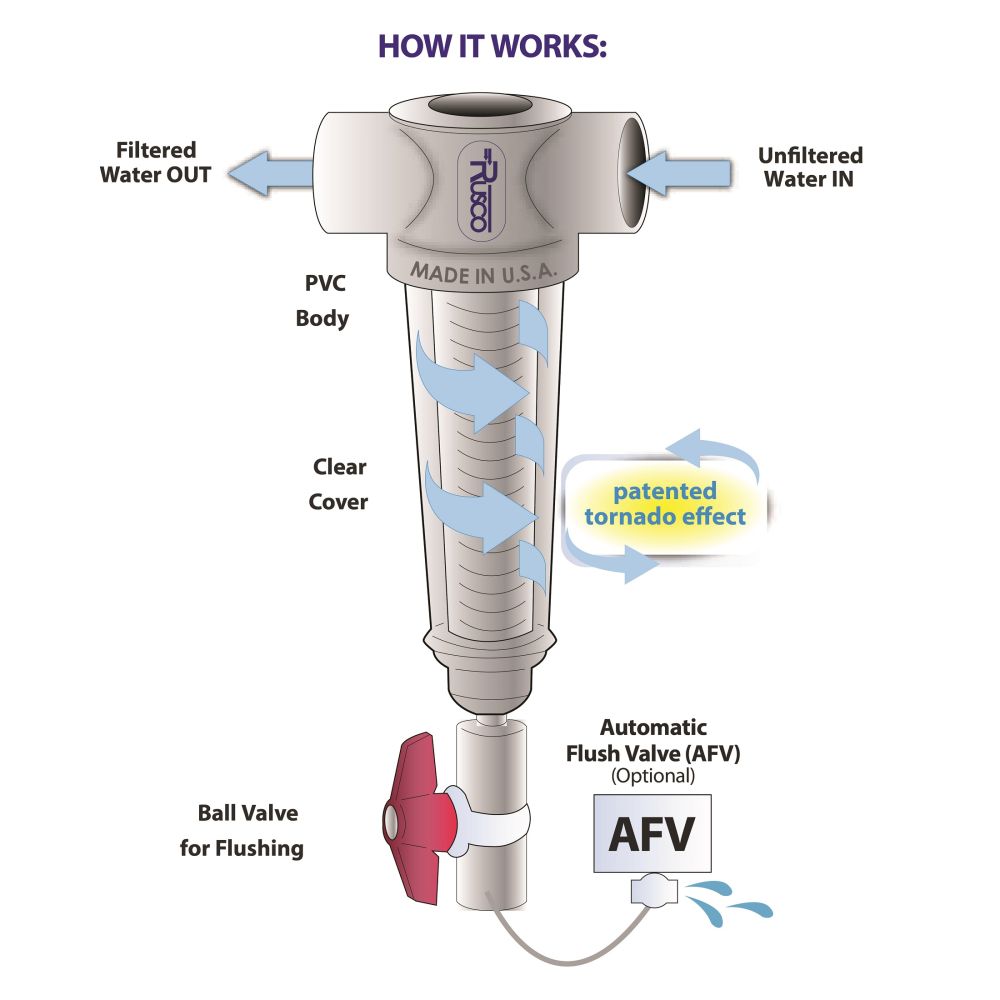

The Rusco Hot Water filter systems utilize centrifugal separation technology to filter particulates from the water, which is clearly visible through the clear filter cover. The stainless steels screens can also be easily cleaned and reused over and over again.
Applications:
- Capturing scale fakes from water heaters
- Hydronic heating systems
- Industrial heat exchangers
- Cooling tower make up and evaporator water
- Domestic or commercial hot water heaters
- Industrial (machine coolant and cutting fluids)
- Spas/jacuzzis
Instead of catching all of the scale and scale flakes from your water heater with a Rusco Hot Water Spin Down filter, consider the HydroBlend SC-605 Scale Control System that prevents scale build up in your pipes and water heaters. Overtime HydroBlend also helps soften and remove existing mineral scale deposits.

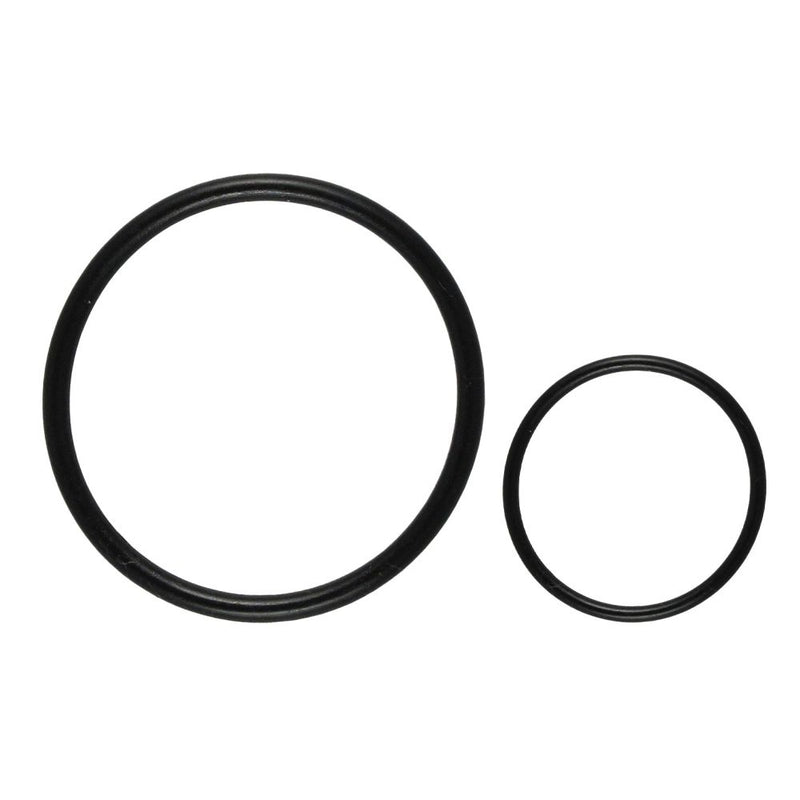

Note: Requires 1.5" O-ring kit (1.5OR)
| Product Details |
|---|
Application | Hydronic Heating |
Body Material | Polypropylene |
Body Size | 1 1/4" |
Housing Material | Chemical/Heat Resistant High Impact Polymer Resin |
Inlet Connection | 1-1/4" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
O-Rings | EPDM |
Outlet Connection | 1-1/4" FPT |
Cartridge Style | Spin-down |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Spin-Down |
Flow Rate | 10-50 GPM |
Media Type | Chemical Resistant |

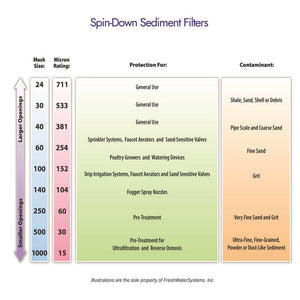

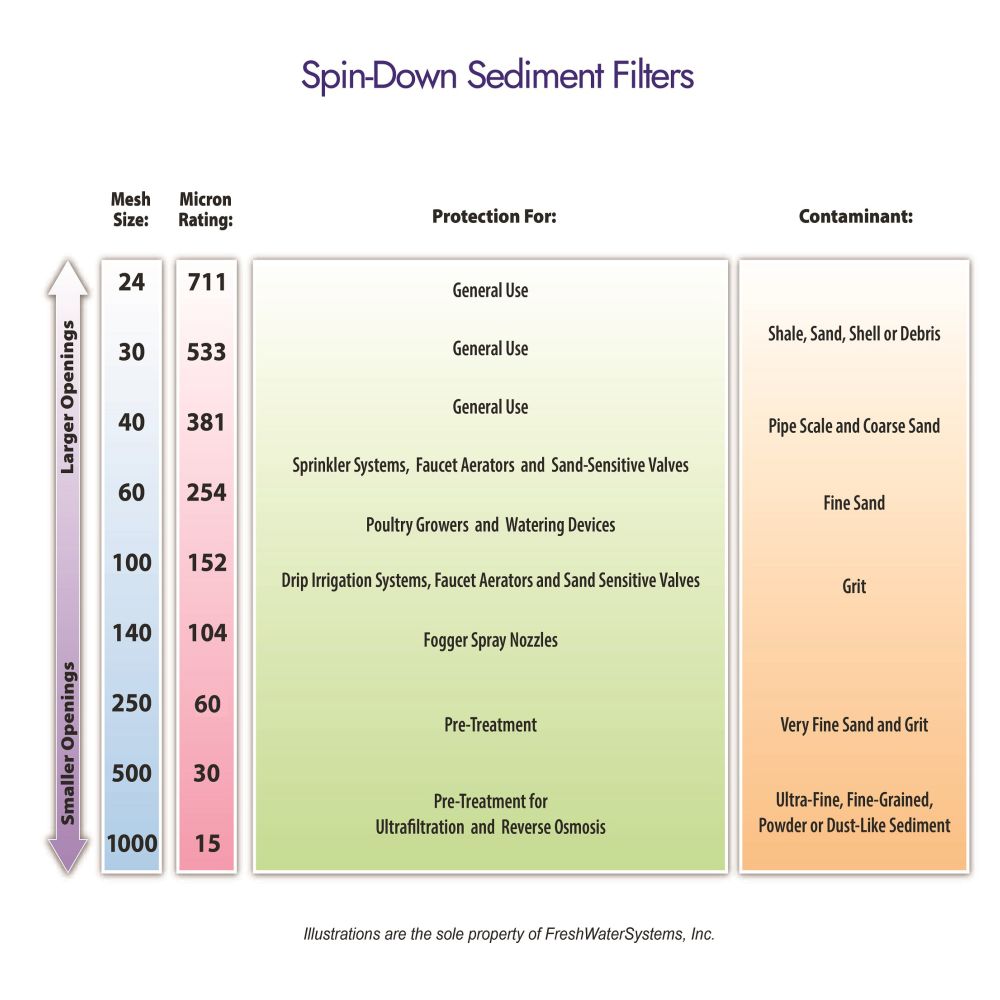

Micron Rating | 254 µm 533 µm 152 µm 104 µm 74 µm |
Port Size | 1-1/4" |

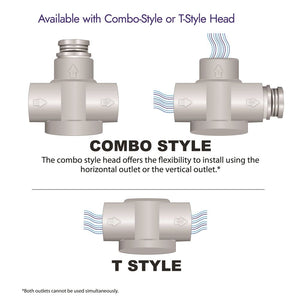

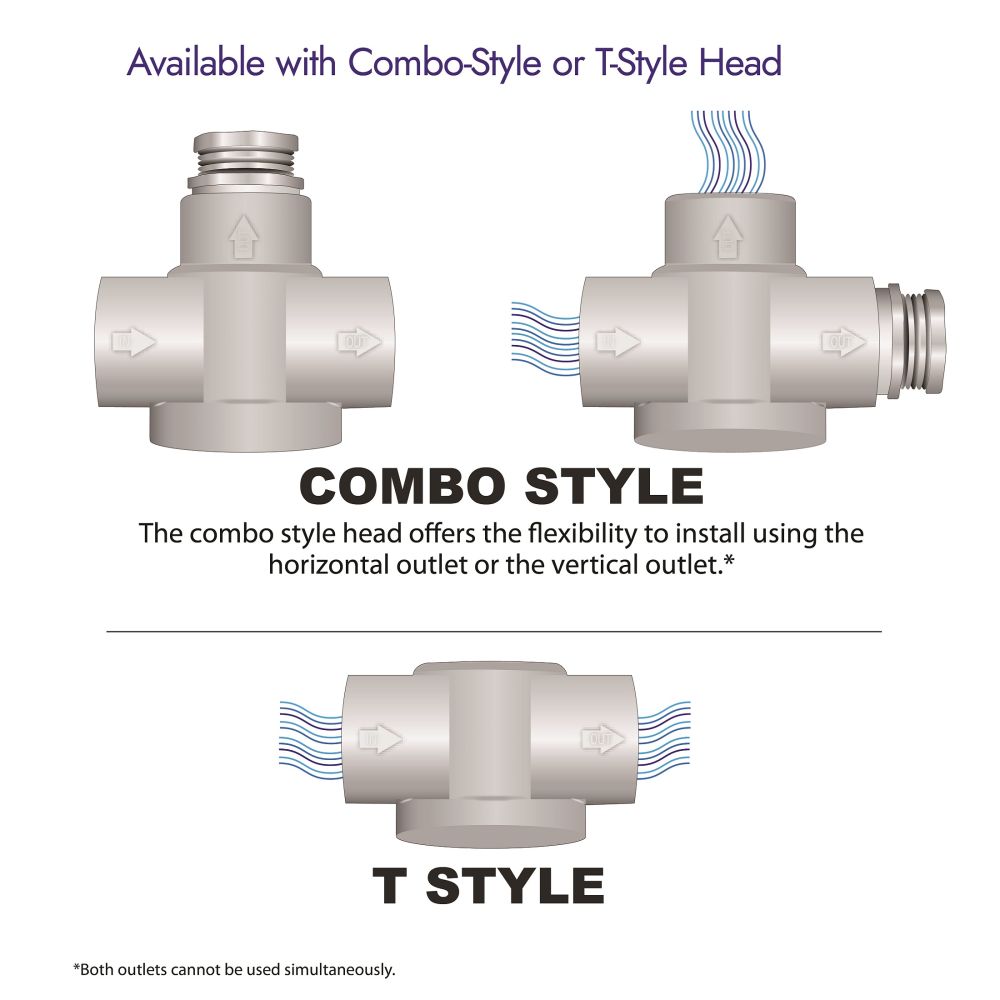

Sub-Type | T-Style System |
Type | Standard |
| Shipping Dimensions |
|---|
Shipping Length | 14 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
| Product Weight & Dimensions |
|---|
Product Height | 5-1/4" |
Product Length | 15-3/8" |
Product Width | 5-1/4" |
Product Weight (lbs) | 2.15 |
