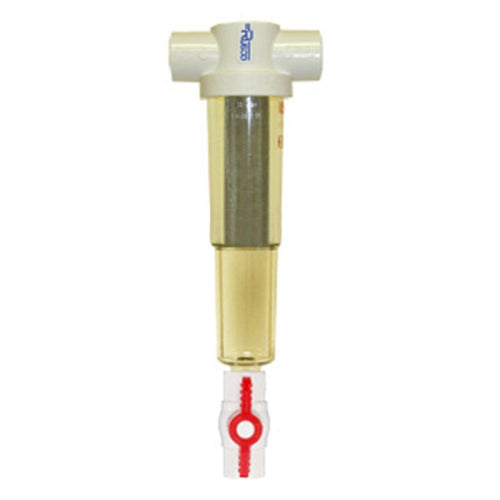

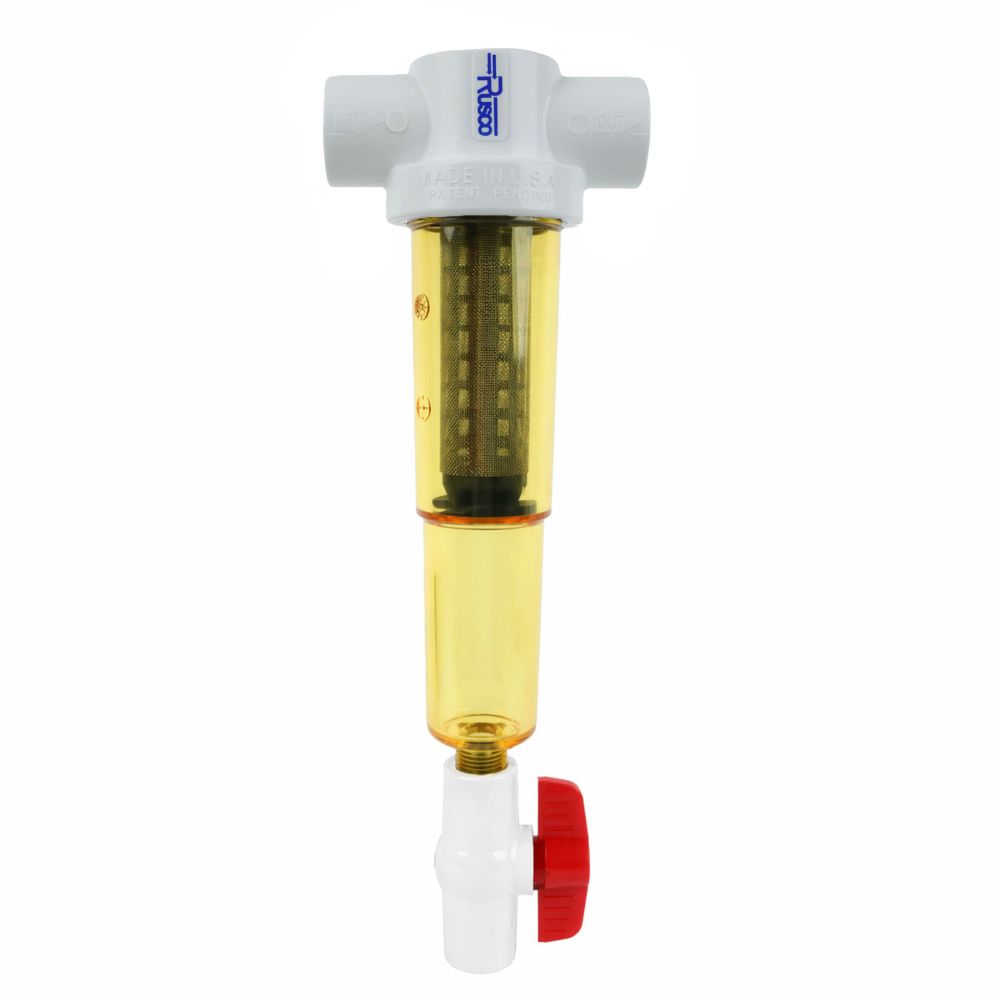

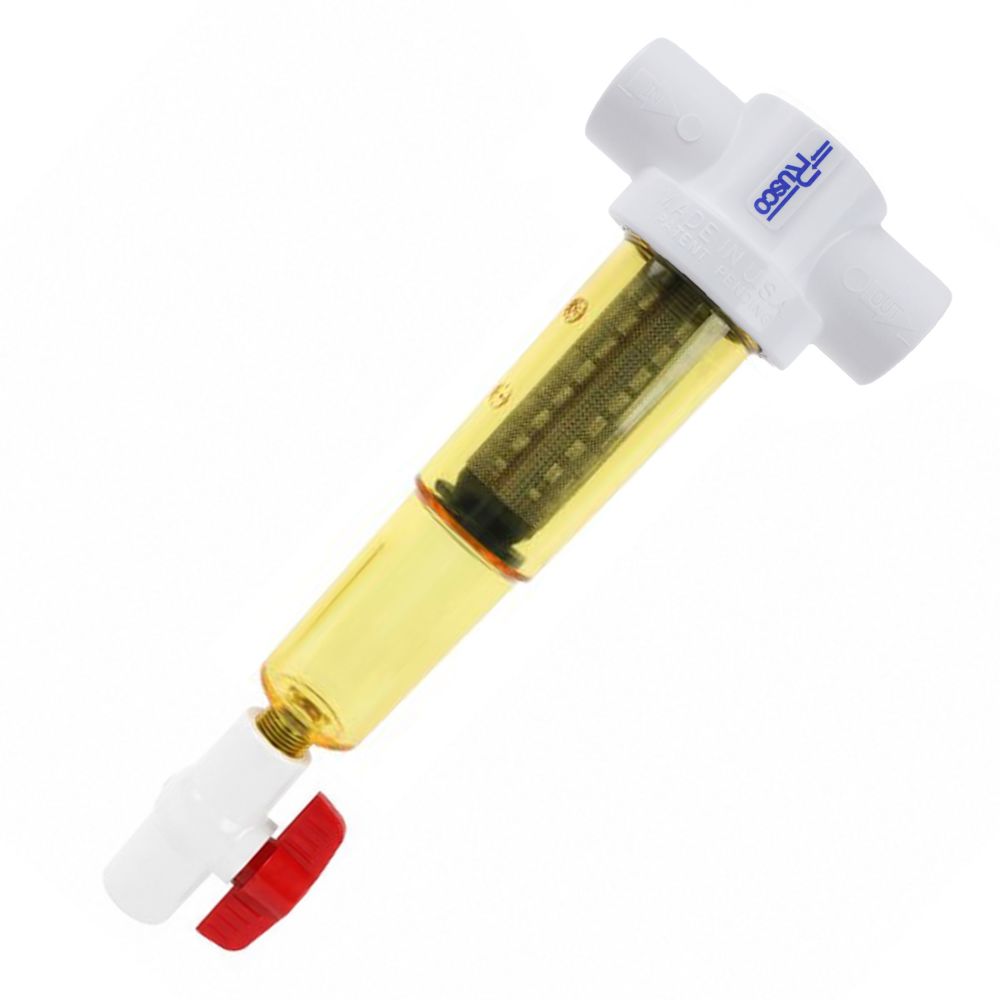

Rusco Chemically Resistant Sediment Trapper Filter T Style 3/4" PE
Part Number: 3/4-24STCR-F
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
- Unique element design traps sediment in lower reservoir of clear cover.

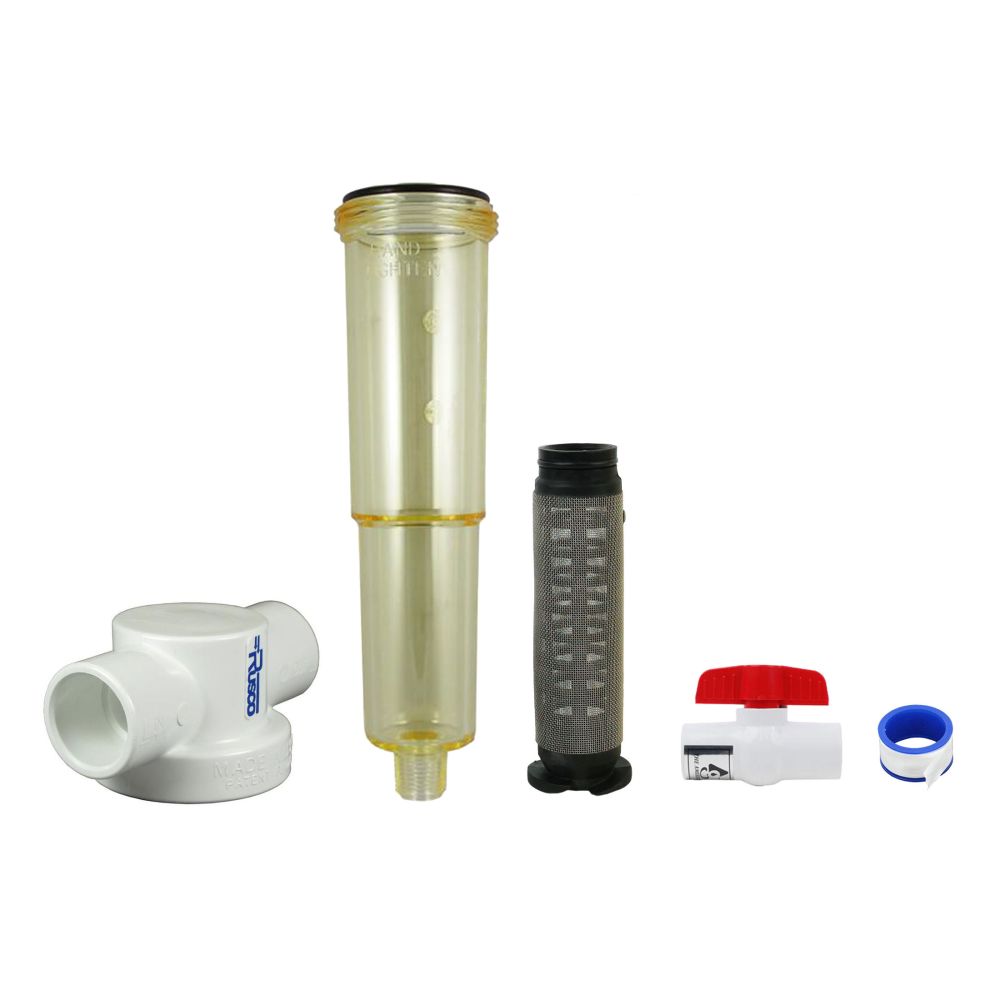

- Clear bowl easily removed for total cleaning (no tools required-using tools voids warranty)
- Sediment is visible through the clear cover indicating when the filter needs cleaning

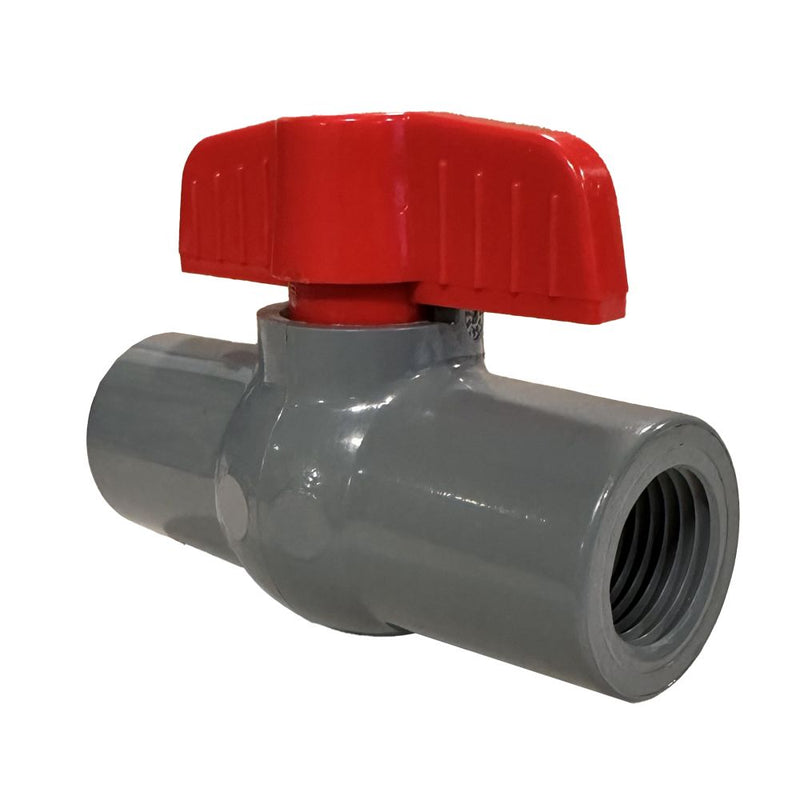

- Ball valve allows for quick sediment removal from bottom of cover
- Centrifuge Spin-Down type sediment separation
- No down time!!
- The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
- No filter cartridges to replace
- No down time required flushing out sediment
- No wasteful backwashing required
- Small size takes little space
- Screen sizes can be easily changed if required
- Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis
Product Details | |
---|---|
Application | Laboratory PRETREATMENT FOR R.O. |
Body Material | PVC |
Body Size | 3/4" |
Head Style | T-Style |
Housing Material | High Impact Polymer Resin |
Inlet Connection | 3/4" FPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 100 |
Mesh Size | 24 30 40 60 100 140 250 500 1000 |
Outlet Connection | 3/4" FPT |
Screen Opening | 0.028 0.021 0.015 0.01 0.006 0.004 0.0024 0.0012 0.0006 |
Slip Size | 3/4” FPT |
Cartridge Style | Sediment Trapper |
Connection Type | Female (FPT) |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | SEDIMENT TRAPPER | POLYESTER |
Flow Rate | 1-25 GPM |
Housing Resistance | Chemically Resistant |
Media Type | Chemical Resistant Polyester |
Micron Rating | 711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm |
Port Size | 3/4" |
Screen Material | Polyester |
Sub-Type | T-Style System |
Type | Sediment Trapper |
Shipping Dimensions | |
Shipping Length | 14.38 in. |
Shipping Width | 5 in. |
Shipping Height | 5 in. |
Product Weight & Dimensions | |
Product Height | 5" |
Product Length | 14-3/8" |
Product Width | 5" |
Product Weight (lbs) | 1.85 |
