Home / Filters & Cartridges / Rusco Spin-Down & Sediment Traps / Rusco Chemically Resistant Sediment Trapper Filter T Style 1" PE

Rusco

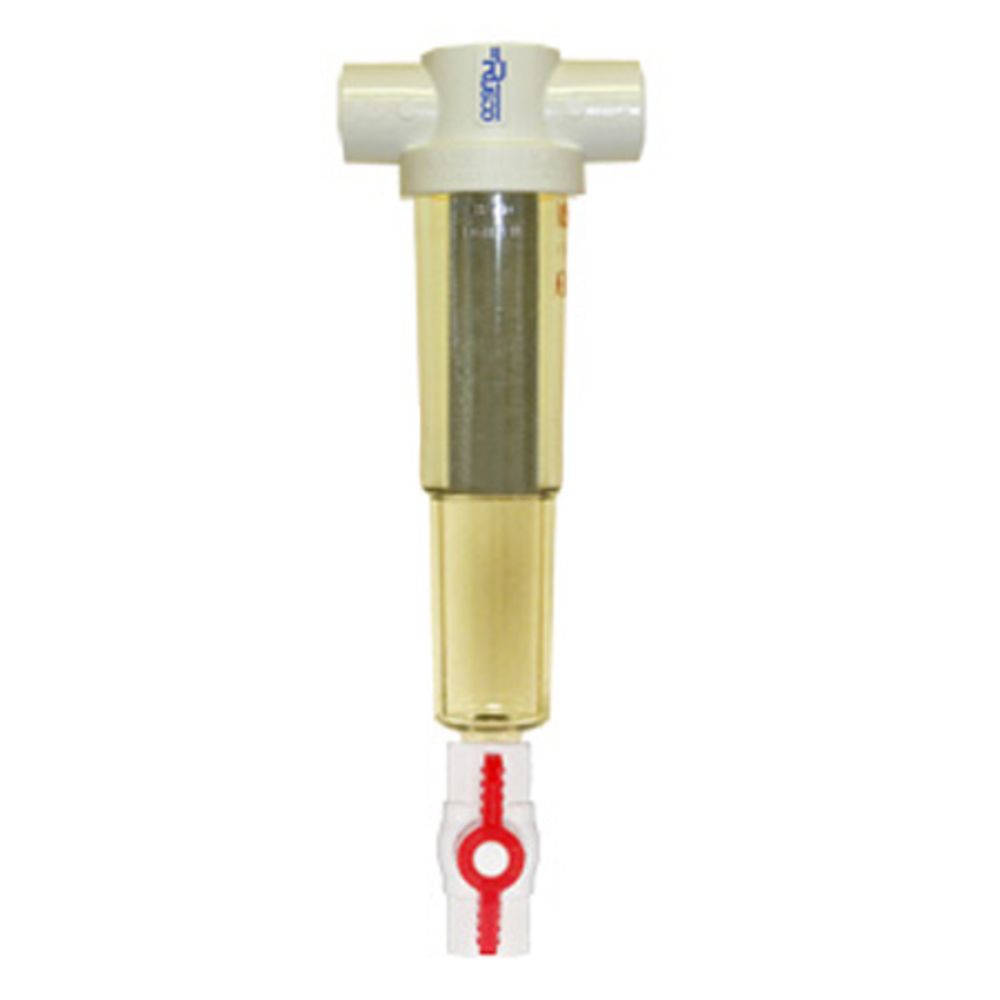

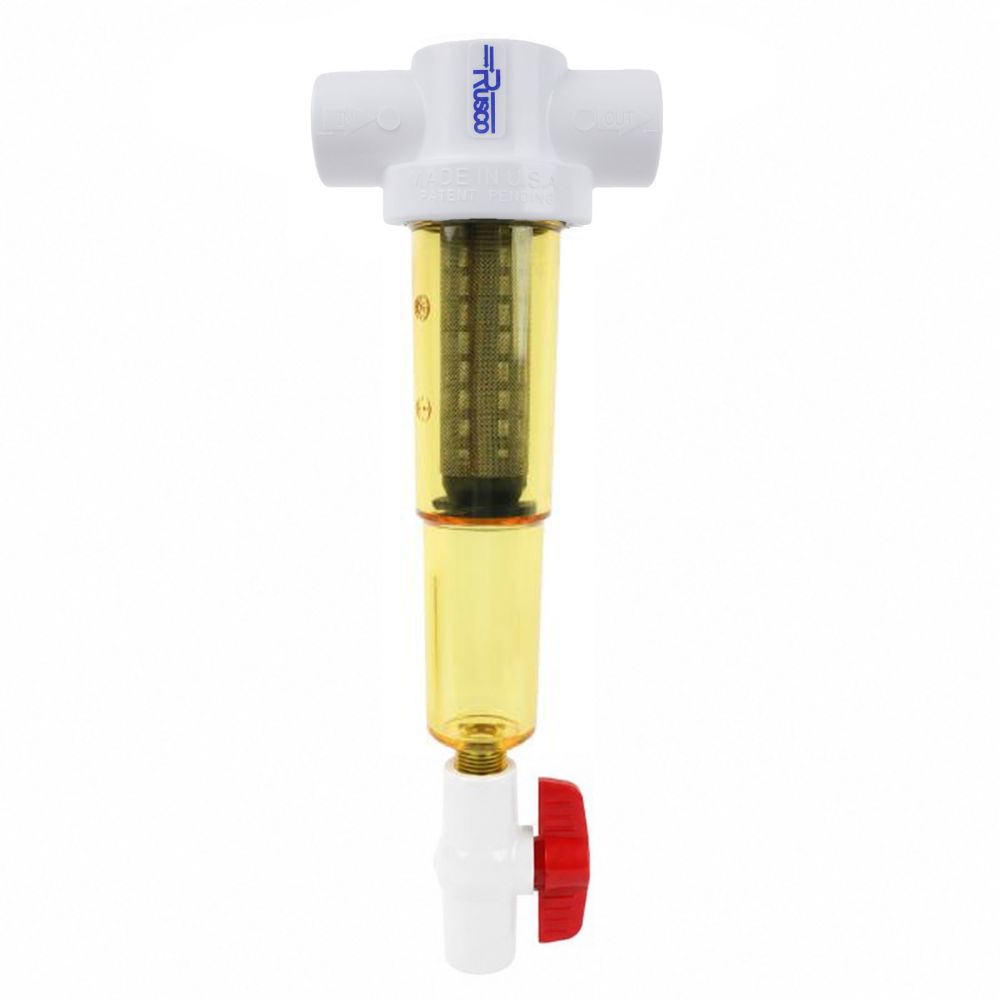

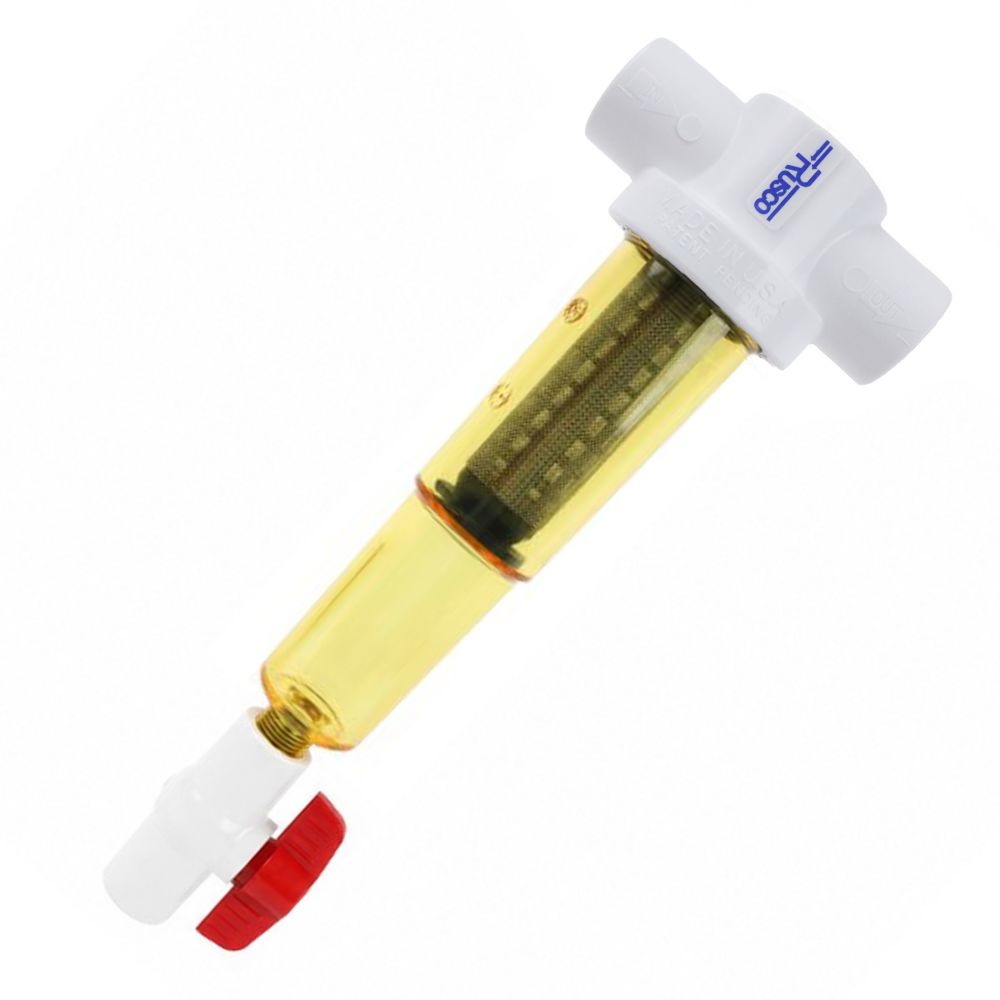

Rusco Chemically Resistant Sediment Trapper Filter T Style 1" PE

Part Number: ALC06-RED

out of stock

This item is discontinued. We recommend the NeoFit - Acetal Locking Clip 3/8" as a substitute.

Your price:

$0.18

Choose

Quantity

Features:

Unique element design traps sediment in lower reservoir of clear cover.
Clear bowl easily removed for total cleaning (no tools required-using tools voids warranty)
Sediment is visible through the clear cover indicating when the filter needs cleaning
Ball valve allows for quick sediment removal from bottom of cover
Centrifuge Spin-Down type sediment separation
No down time!!

Rusco Chemically Resistant Sediment Trapper Filter 1" PE Benefits:

The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
No filter cartridges to replace
No down time required flushing out sediment
No wasteful backwashing required
Small size takes little space
Screen sizes can be easily changed if required
Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis

Product Details
Application	Laboratory PRETREATMENT FOR R.O.
Body Material	PVC
Body Size	1"
Head Style	T-Style
Housing Material	High Impact Polymer Resin
Inlet Connection	1" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
Mesh Size	24 30 40 60 100 140 250 500 1000
Outlet Connection	1" Slip
Screen Opening	0.028 0.021 0.015 0.01 0.006 0.004 0.0024 0.0012 0.0006
Slip Size	1"
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SEDIMENT TRAPPER \| POLYESTER
Flow Rate	1-25 GPM
Housing Resistance	Chemically Resistant
Media Type	Chemical Resistant Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1"
Screen Material	Polyester
Sub-Type	T-Style System
Type	Sediment Trapper
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	5"
Product Length	14-3/8"
Product Width	5"
Product Weight (lbs)	1.85
