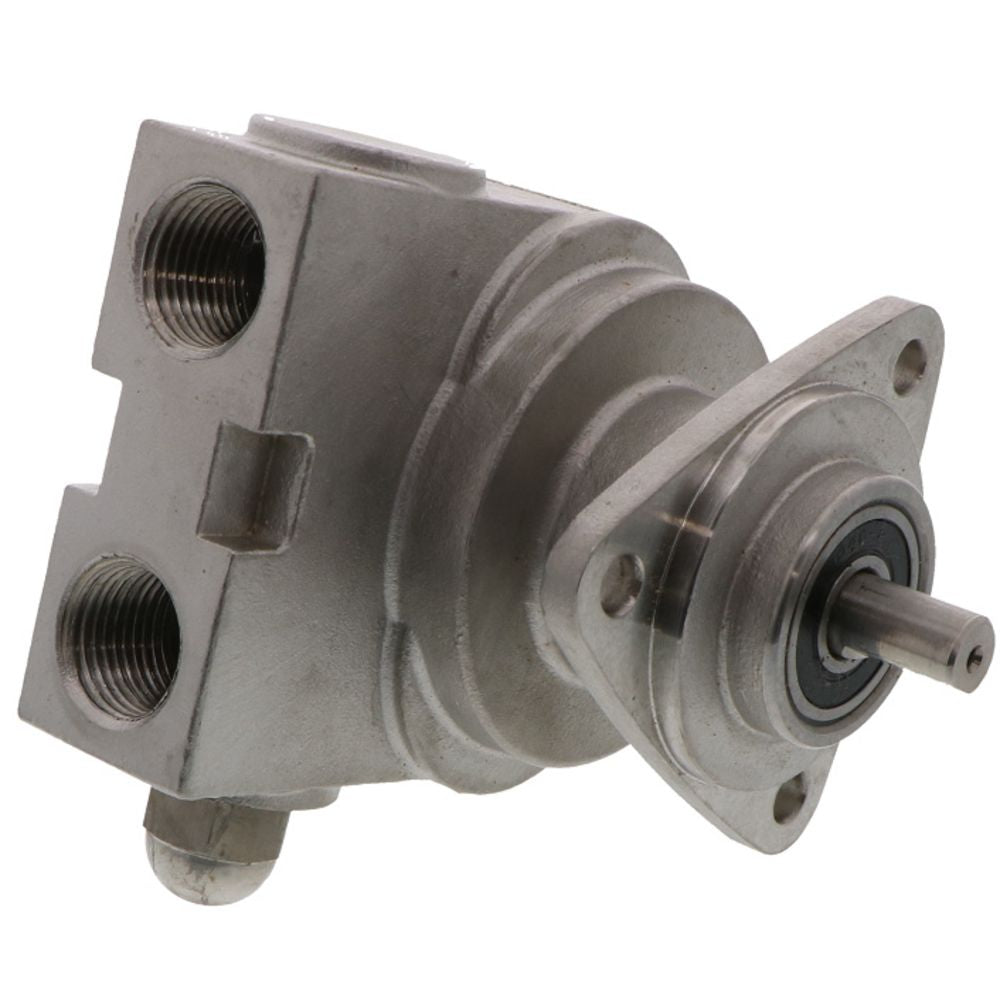

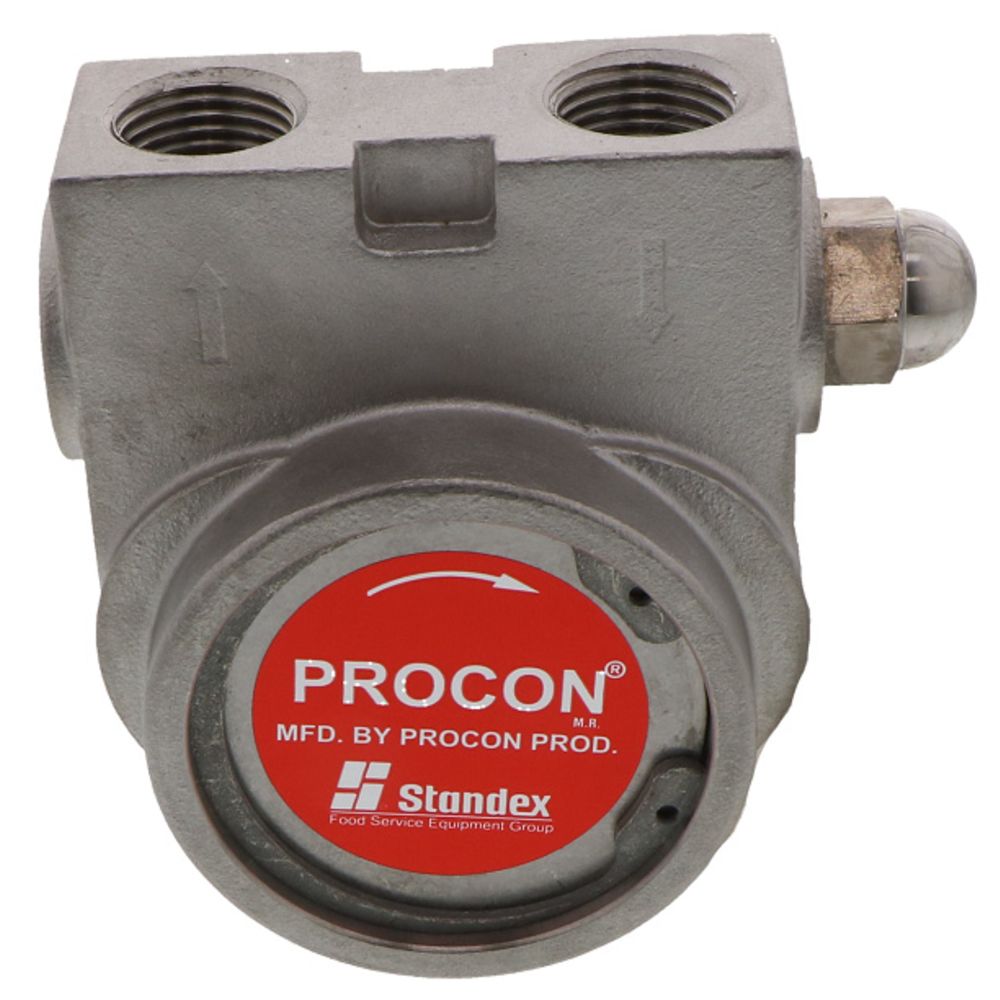

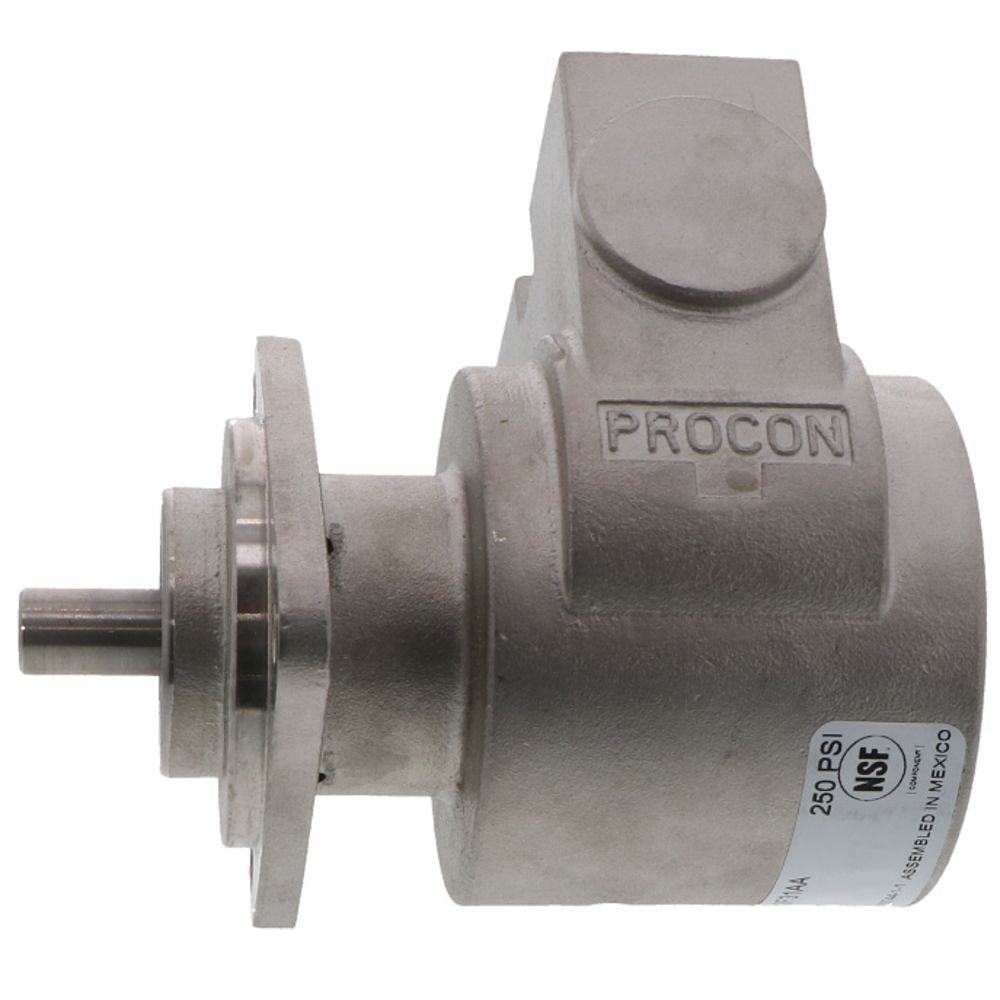

Procon Pump NSF Stainless Steel 240 GPH 1/2" FPT w/ Single Flat Drive (Bolt-on)
new arrival
backorder
arriving soon
call to order
The Procon Pump NSF Stainless Steel 240 GPH 1/2" FPT w/ Single Flat Drive (Bolt-on) rotary vane pump is a positive displacement pump. This Series 5 Procon pump is stainless steel with a single flat drive. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 240 gallons per hour. The seal configuration for the 115E240F31AA uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 5 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 115E240F31AA pump is designed to be bolted directly to the motor.
Additional specification:
Additional specification:
- Capacity: 240 GPH
- Nominal Speed: 1725 RPM
- Typical Horsepower Required: .25 to 1.5 HP
- Maximum Discharge Pressure: 250 PSI
- Rotation: clockwise/slinger
- Weight: 2.5 lbs
- Port Size: 1/2" NPT Inlet and Outlet
- Single Flat Drive
- High Temperature Plastic By-Pass(SS HSG Seat).
