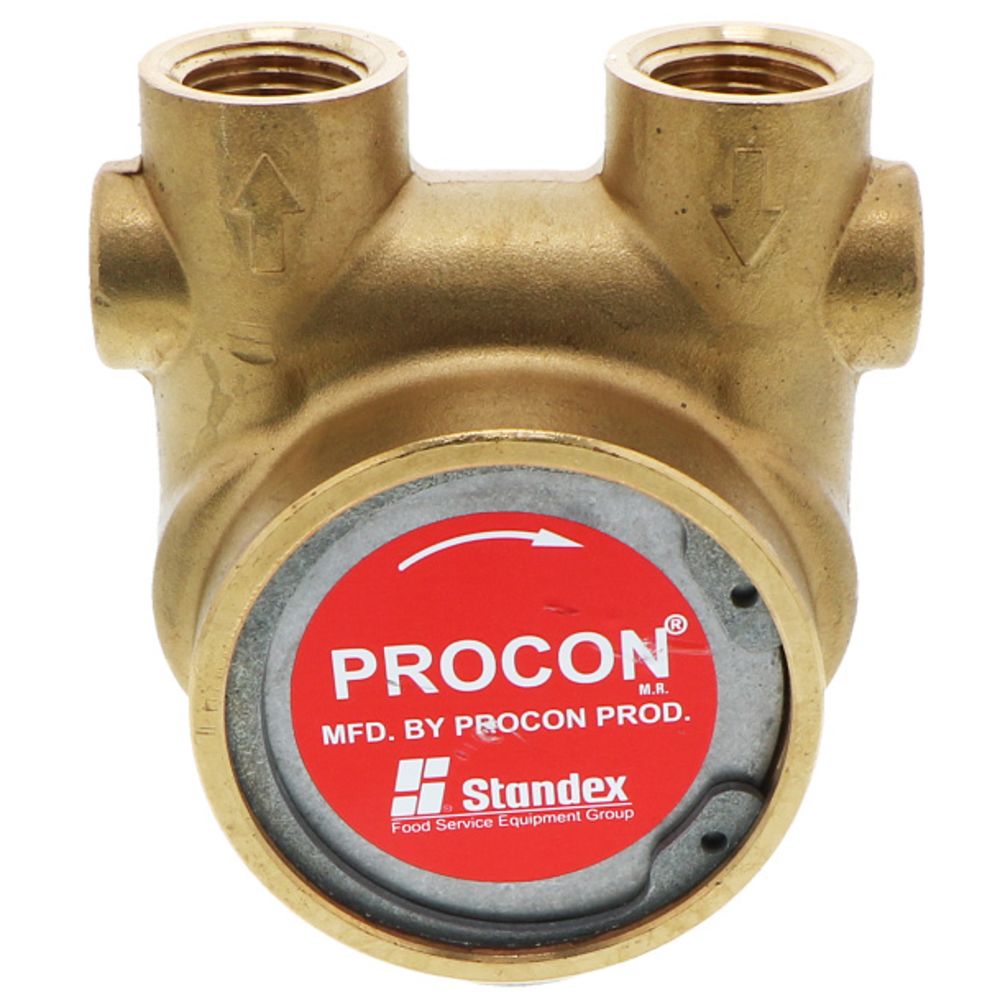

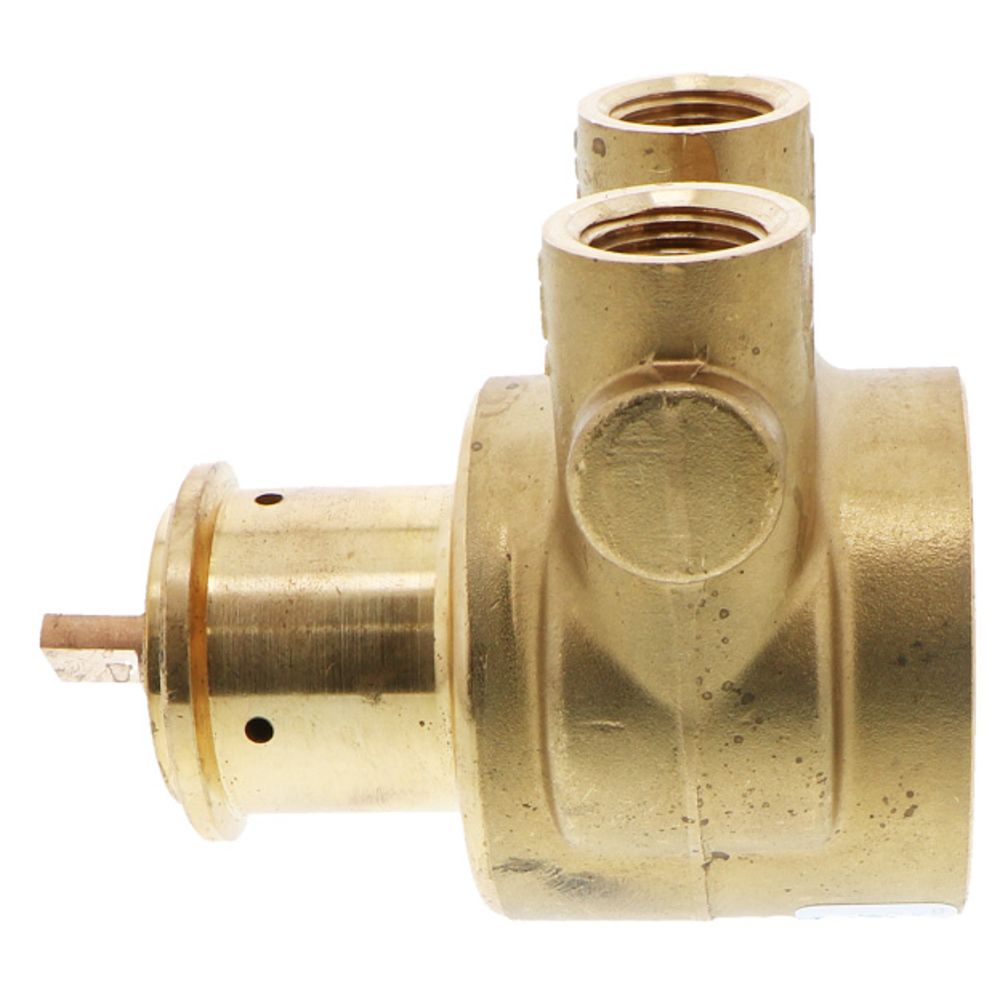

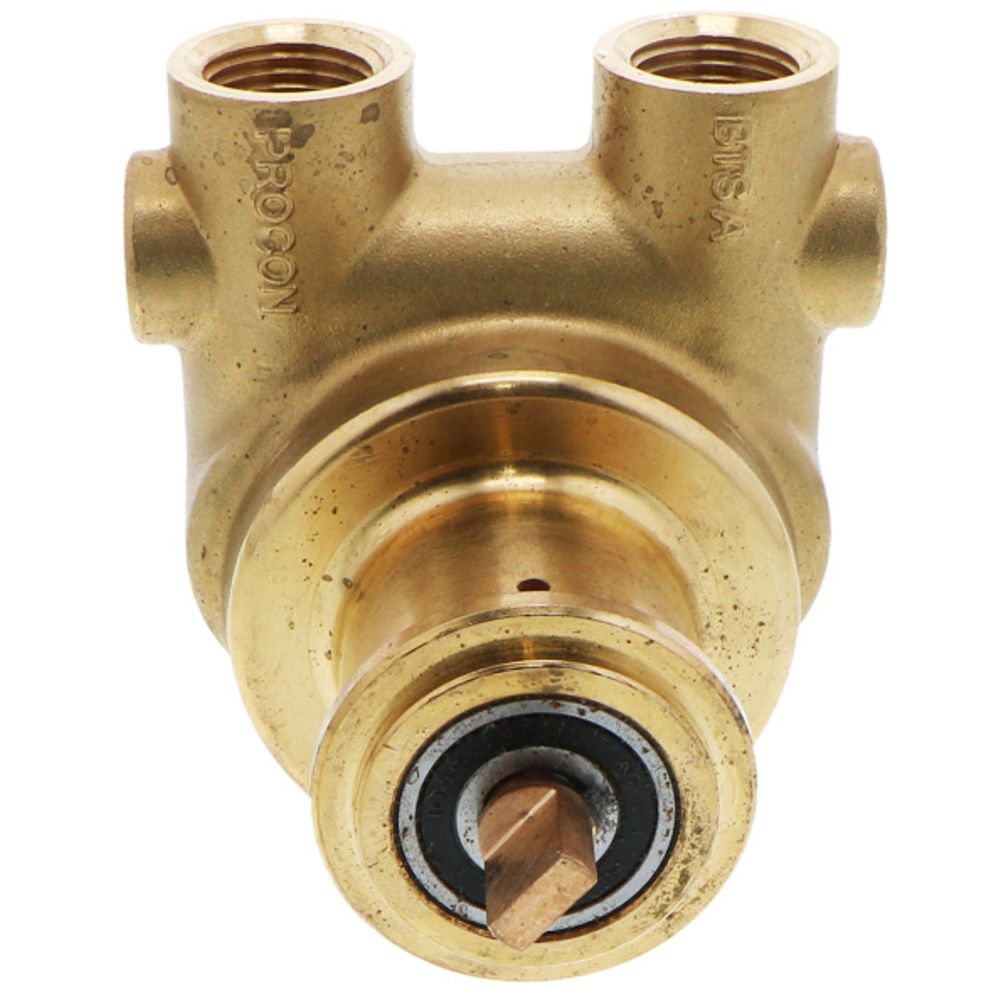

Procon Pump NSF Brass 330 GPH 1/2" NPT w/ 1143 Bronze Coupling w/ Slinger (Clamp-on)
new arrival
backorder
arriving soon
call to order
![Procon Pump NSF Brass 330 GPH 1/2" NPT w/ 1143 Bronze Coupling [Clamp-on]](https://cdn.shopify.com/s/files/1/2723/8896/files/pmmc5i2cqtztwty5uyz3.jpg?v=1743584266)
![Procon Pump NSF Brass 330 GPH 1/2" NPT w/ Single Flat Drive [Bolt-on]](https://cdn.shopify.com/s/files/1/2723/8896/files/d4lsl3j2cs6qhoinee13.jpg?v=1743585525)
The Procon Pump NSF Brass 330 GPH 1/2" NPT w/ 1143 Bronze Coupling w/ Slinger (Clamp-on) rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with 1143 Bronze Coupling. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 330 gallons per hour. The seal configuration for the 114B330F31XX uses Flourocarbon Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 4 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 114B330F11XX pump is designed to be directly connected to the motor with a stainless steel clamp.
Additional Specifications:
Additional Specifications:
- Capacity: 330 GPH
- Nominal Speed: 1725 RPM
- Relief Valve: 250 PSI
- Rotation: Clockwise
- Weight: 2.5 lbs
- Port Size: 1/2" NPT Inlet and Outlet
- Bronze Coupler
