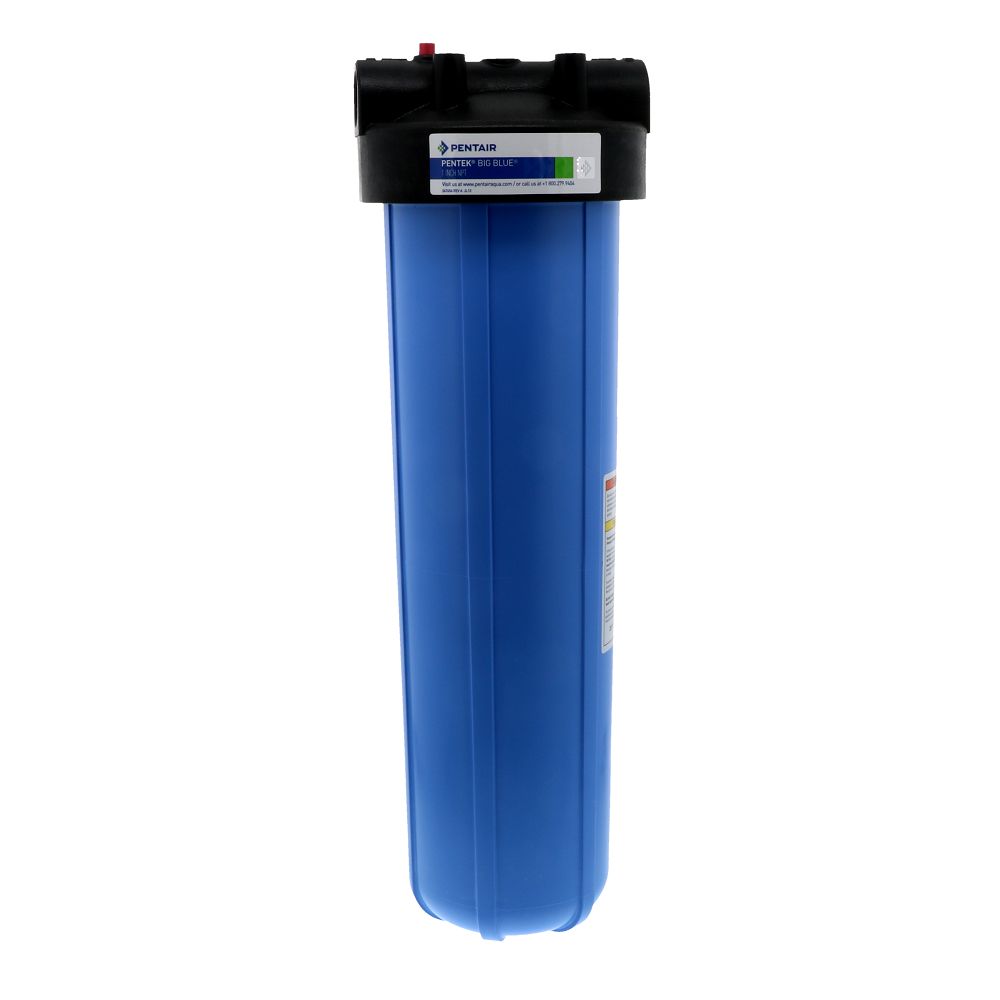

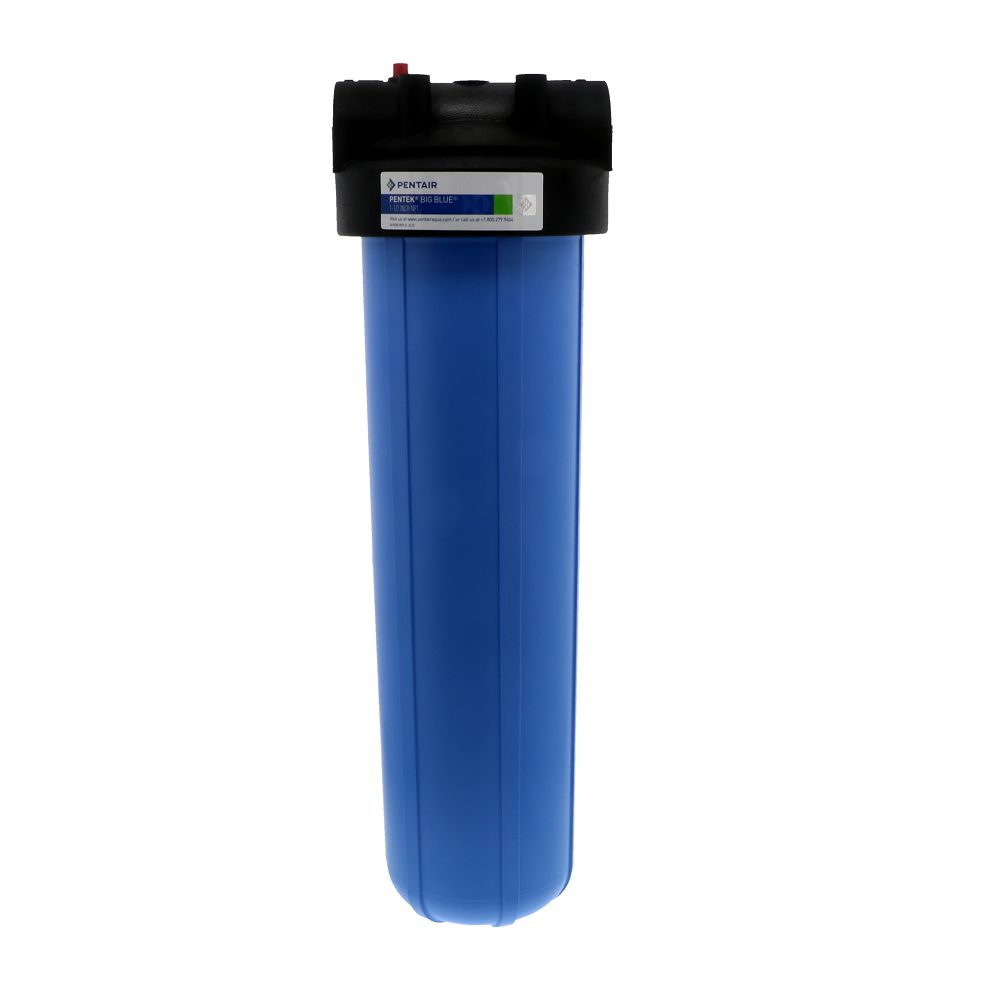

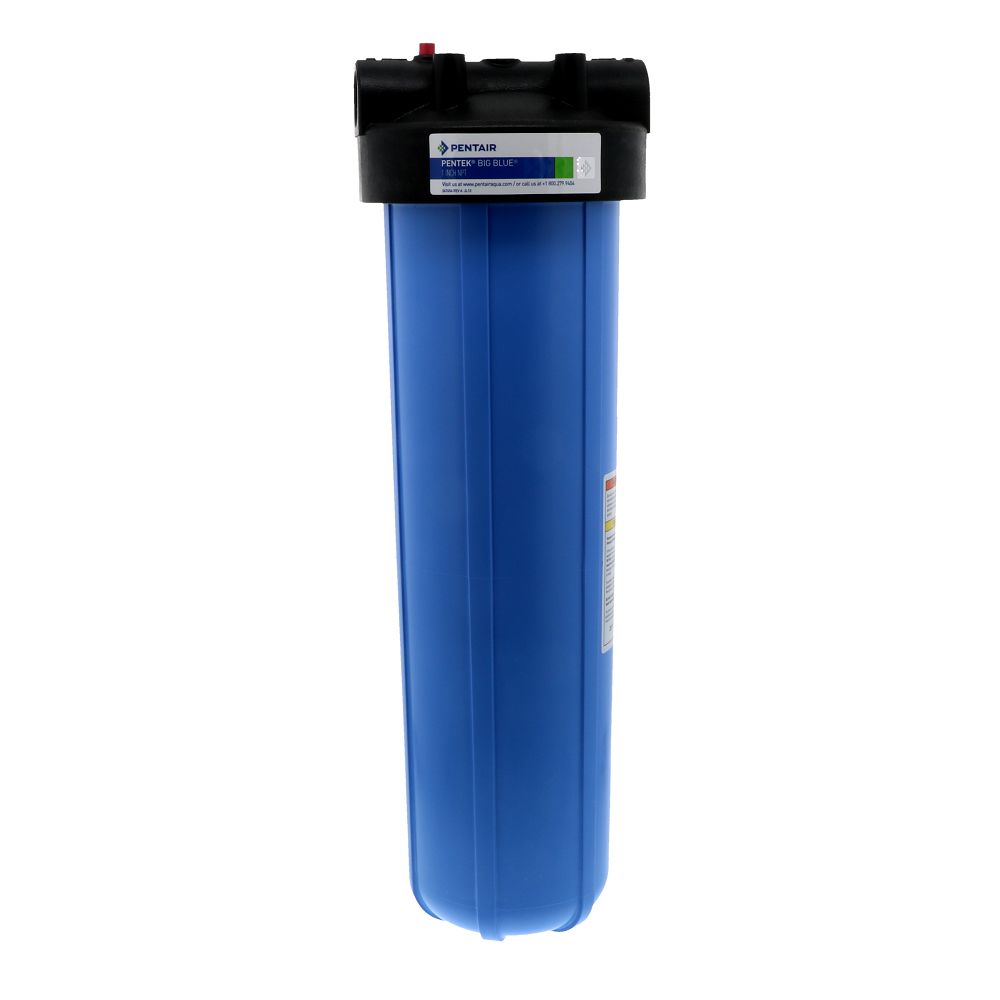

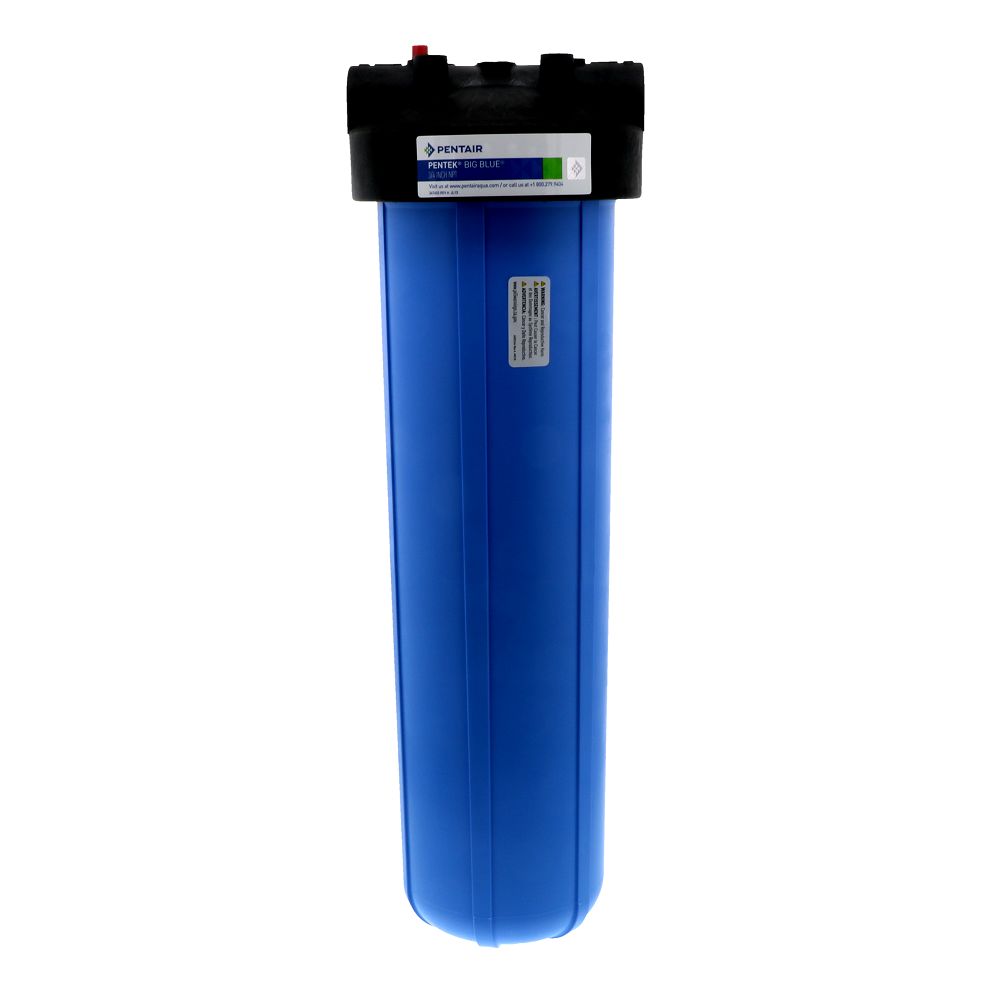

Pentek 20" Big Blue Water Filter Housing With Pressure Relief

5.0

(1 reviews)

Part Number: 150467 Alt. Part Number: FHBB-2010REB1

1 3

Pentair Water

Pentek 20" Big Blue Water Filter Housing With Pressure Relief

5.0

(1 reviews)

Part Number: 150467 Alt. Part Number: FHBB-2010REB1

MSRP: $93.70

$74.96

Choose:

3/4" NPT 1" NPT 1-1/2" NPT

Product variants

You May Also Need

Replacement Part
Pentek 151039 Pressure Relief Button Replacement Kit

Regular price $5.00
Replacement Part

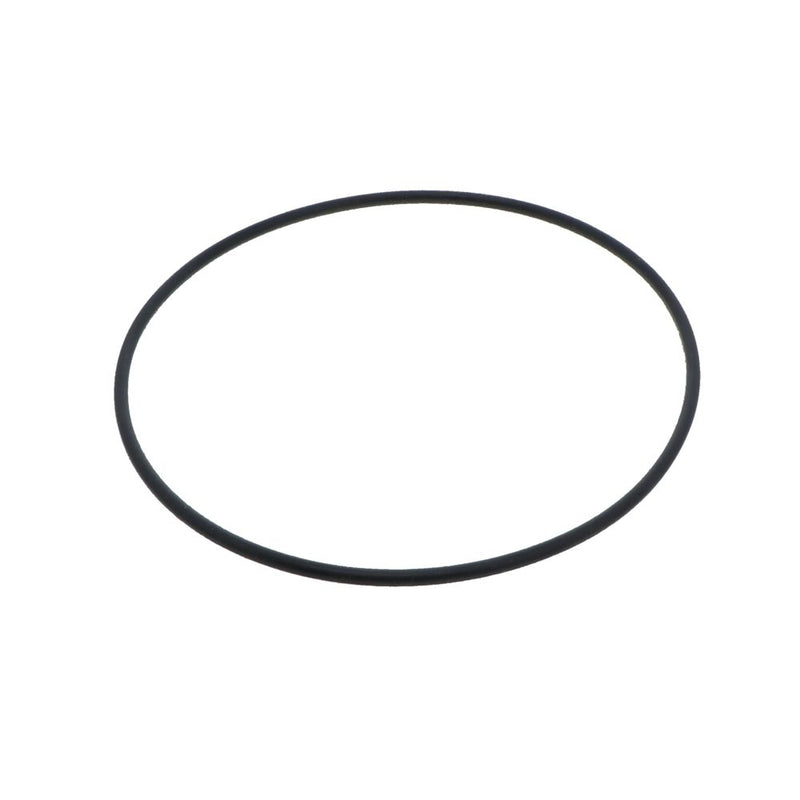

Pentek 151122 O-Ring for 10" & 20" Big Blue

Regular price From $8.00
Optional Accessory
Mounting Bracket with Hardware for 10" & 20" Large Diameter Filter Housing

Regular price From $11.95
Optional Accessory
10" Heavy Duty Sediment Prefilter Kit - 3/4"

Regular price $117.76
Optional Accessory
Neo-Pure SW-3E Filter Wrench for 10” and 20” Big Blue Housings (FHBB-HDX, HF45, WWQ FH5000 and FH10000)

Regular price $3.37

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Pentek 20" Big Blue Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Big Blue filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. Big Blue Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications.

Specifications:

Polypropylene cap and sump
151122 Buna-N O-ring
Max Temperature: 100°F
Max Pressure: 90 psi (6.2 bar)
NSF Certified to Standard 42

Compatible with:

Ice House America®	IHA - H00634
3M Water Filtration	AP802
Fresh Water Systems	FHAP802-1PR, FHAP802-1.5PR

Specifications

Product Details
Cap Color	Black
Features	Pressure Relief
Housing Material	Polypropylene
Inlet Connection	3/4" FPT 1" FPT 1-1/2" FPT
Max Flow Rate	15 GPM
Max Pressure (Psi)	90
Max Temp (°F)	100°F
Outlet Connection	3/4" FPT,1" FPT,1-1/2" FPT
Psid@Flow Rate	2 PSI @ 15 GPM
Seal / O-Ring Material	Buna-N (Nitrile)
Size	20"
Cap Material	Polypropylene
Color / Finish	Blue
Connection Type	Female (FPT)
Origin	China
Type	Heavy Duty Big Blue® - White - Black
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	24.75 in.
Shipping Width	8 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Height	7.25
Product Length	23
Product Width	7.25
Product Weight (lbs)	7.507

Product Details
Cap Color	Black
Features	Pressure Relief
Housing Material	Polypropylene
Inlet Connection	3/4" FPT 1" FPT 1-1/2" FPT
Max Flow Rate	15 GPM
Max Pressure (Psi)	90
Max Temp (°F)	100°F
Outlet Connection	3/4" FPT,1" FPT,1-1/2" FPT
Psid@Flow Rate	2 PSI @ 15 GPM
Seal / O-Ring Material	Buna-N (Nitrile)
Size	20"
Cap Material	Polypropylene
Color / Finish	Blue
Connection Type	Female (FPT)
Origin	China
Type	Heavy Duty Big Blue® - White - Black
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	24.75 in.
Shipping Width	7.75 in.
Shipping Height	7.75 in.
Product Weight & Dimensions
Product Height	7.25
Product Length	23
Product Width	7.25
Product Weight (lbs)	7.719

Product Details
Cap Color	Black
Features	Pressure Relief
Housing Material	Polypropylene
Inlet Connection	3/4" FPT 1" FPT 1-1/2" FPT
Max Flow Rate	15 GPM
Max Pressure (Psi)	90
Max Temp (°F)	100°F
Outlet Connection	3/4" FPT,1" FPT,1-1/2" FPT
Psid@Flow Rate	2 PSI @ 15 GPM
Seal / O-Ring Material	Buna-N (Nitrile)
Size	20"
Cap Material	Polypropylene
Color / Finish	Blue
Connection Type	Female (FPT)
Origin	China
Type	Heavy Duty Big Blue® - White - Black
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	25 in.
Shipping Width	7.75 in.
Shipping Height	7.75 in.
Product Weight & Dimensions
Product Height	7.25
Product Length	23.5
Product Width	7.25
Product Weight (lbs)	7.842

Downloads

Reviews (1)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

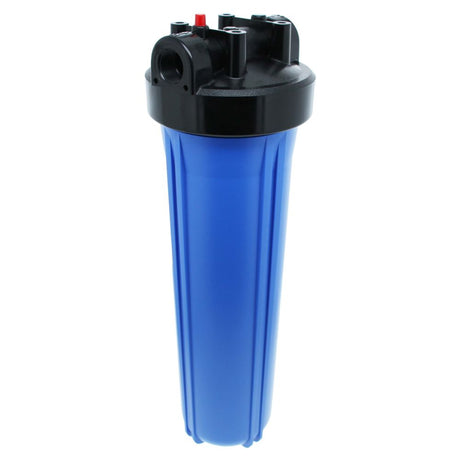

Facet	Pentair Water Pentek 20" Big Blue Water Filter Housing With Pressure Relief 5.0 Regular price From $74.96 Part #: 150467 Current Product	neoPure 20" Neo-Pure Big Flow Filter Housing Blue Sump/Black Cap 3/4" with Pressure Relief Regular price From $44.42 Part #: FHBB-2034REB1 Save up to 29% with bulk pricing View details	neoPure 20" Neo-Pure Big Flow Filter Housing Blue Sump/Black Cap 1" with Pressure Relief 1.0 Regular price From $55.42 Backordered Part #: FHBB-2010REB1 Save up to 29% with bulk pricing View details	neoPure 20" Neo-Pure Big Flow Filter Housing Black Cap/Black Sump with Pressure Relief 3/4" Regular price From $44.42 Part #: FHBB-2034REE1 Save up to 29% with bulk pricing View details
