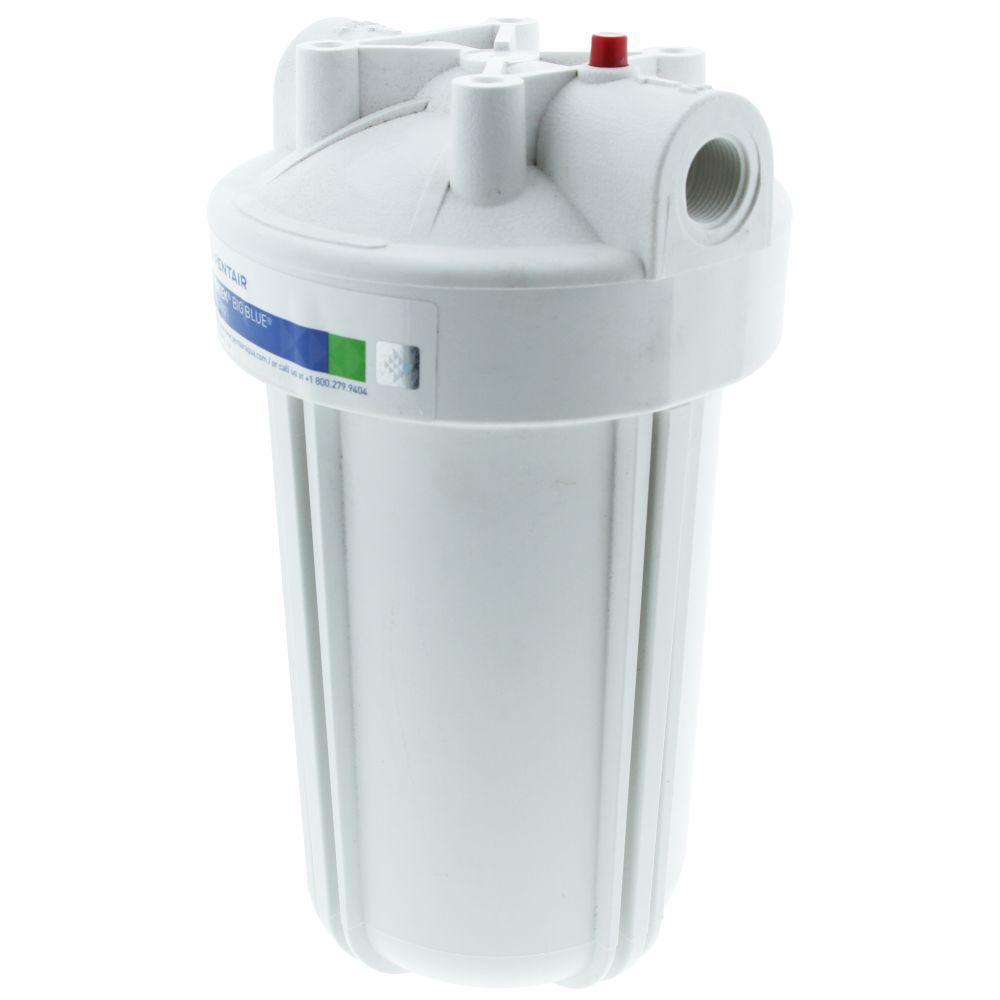

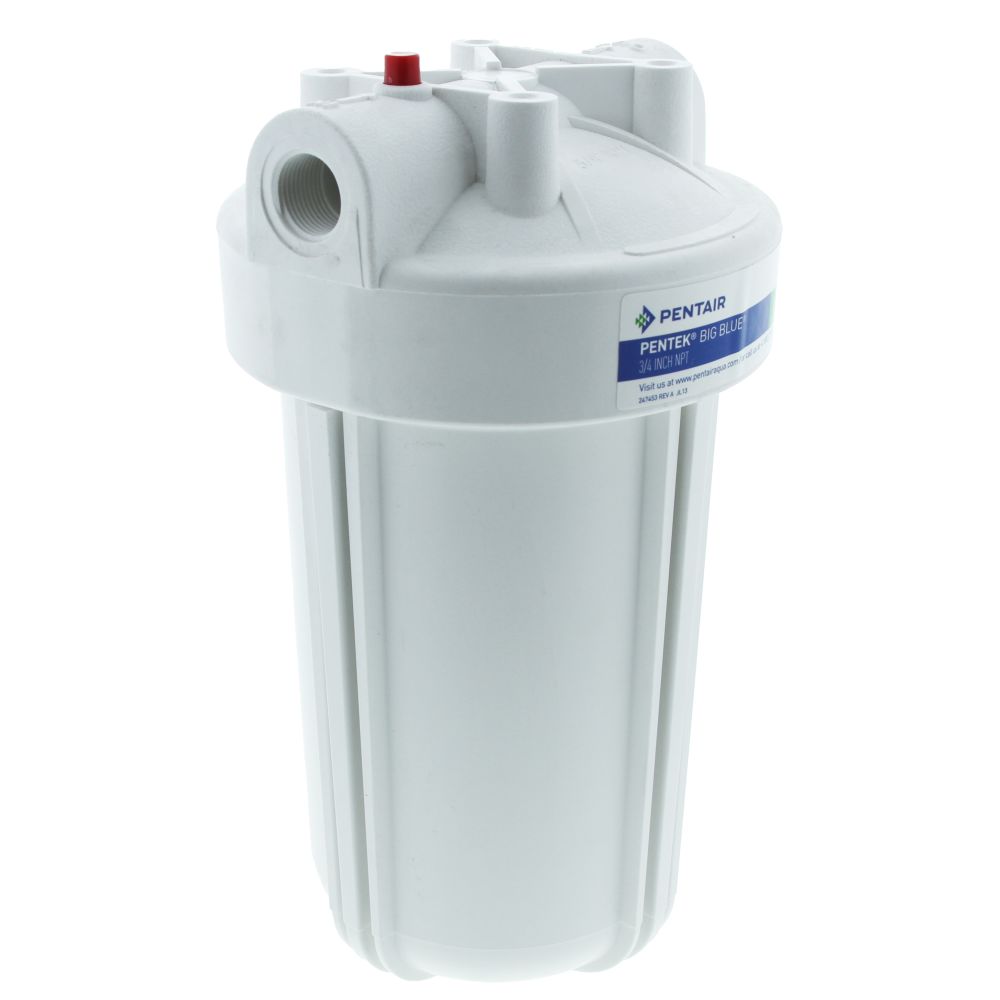

Pentek (166083) (166081) 10" Big White Water Filter Housing With Pressure Relief

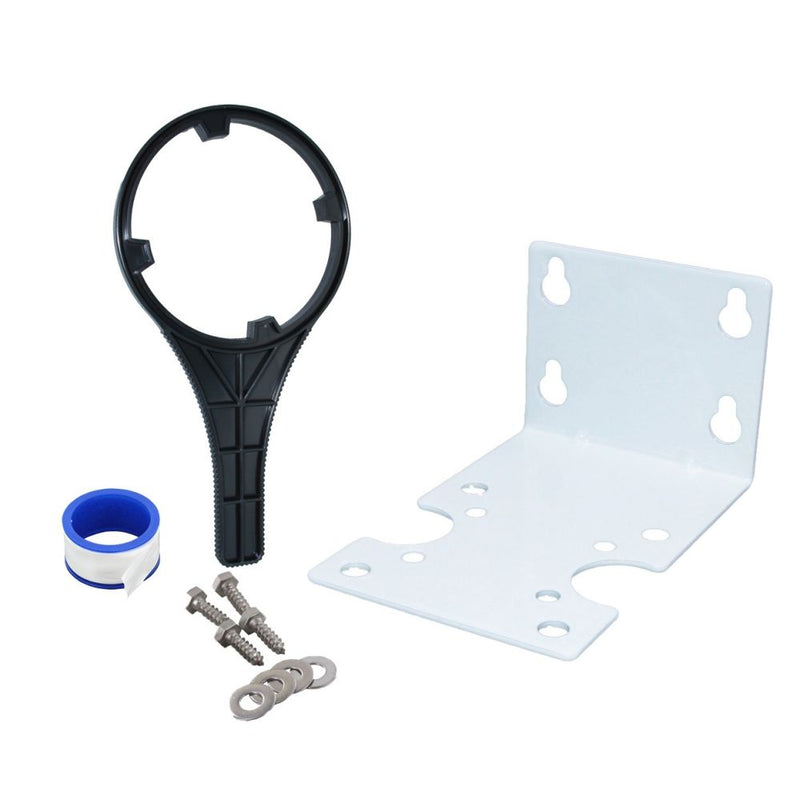

Pentek 10" Big White Water Filter Housings are ideal substitutes for costly low pressure stainless steel vessels. Big Blue filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high-flow rate applications. The Pentek Big White Housings are compatible with a broad range of chemicals. Reinforced polypropylene housings have excellent chemical resistance and are ideal for many residential, commercial and industrial applications. Housing requires wrench 144880.

Specifications:

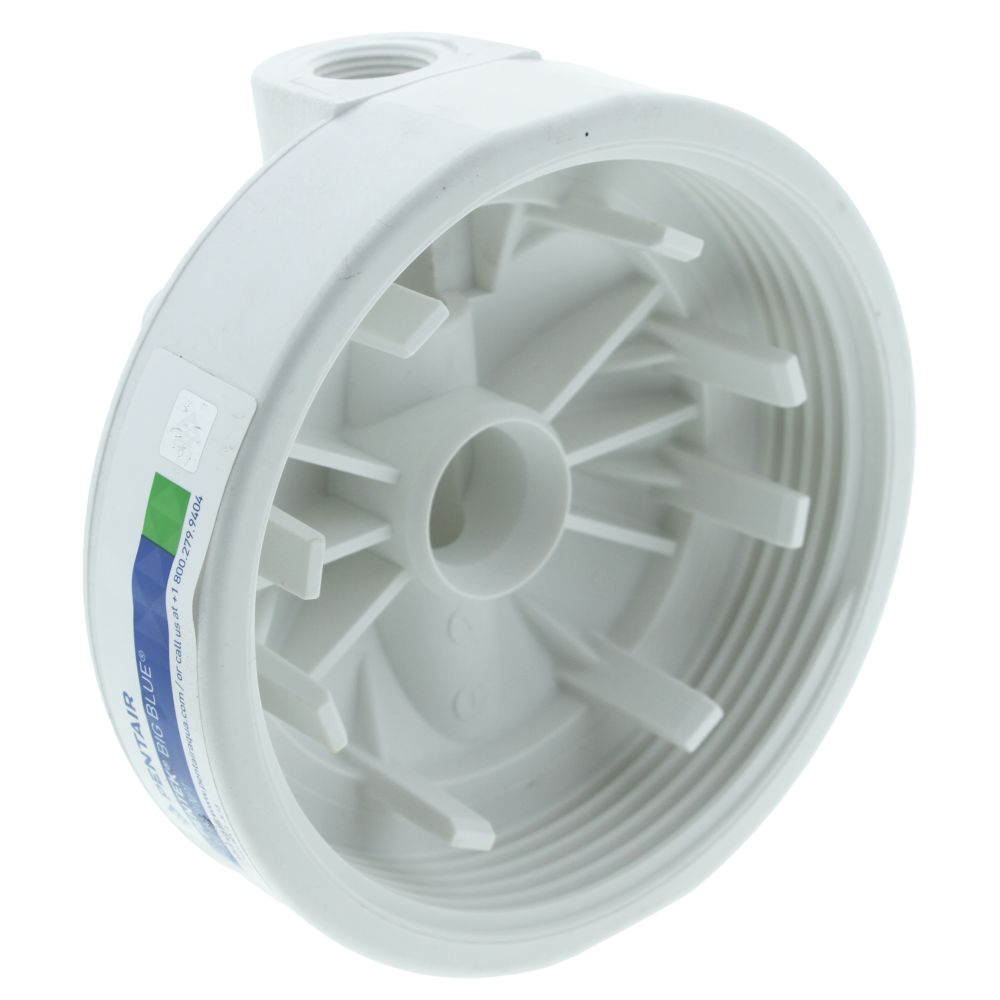

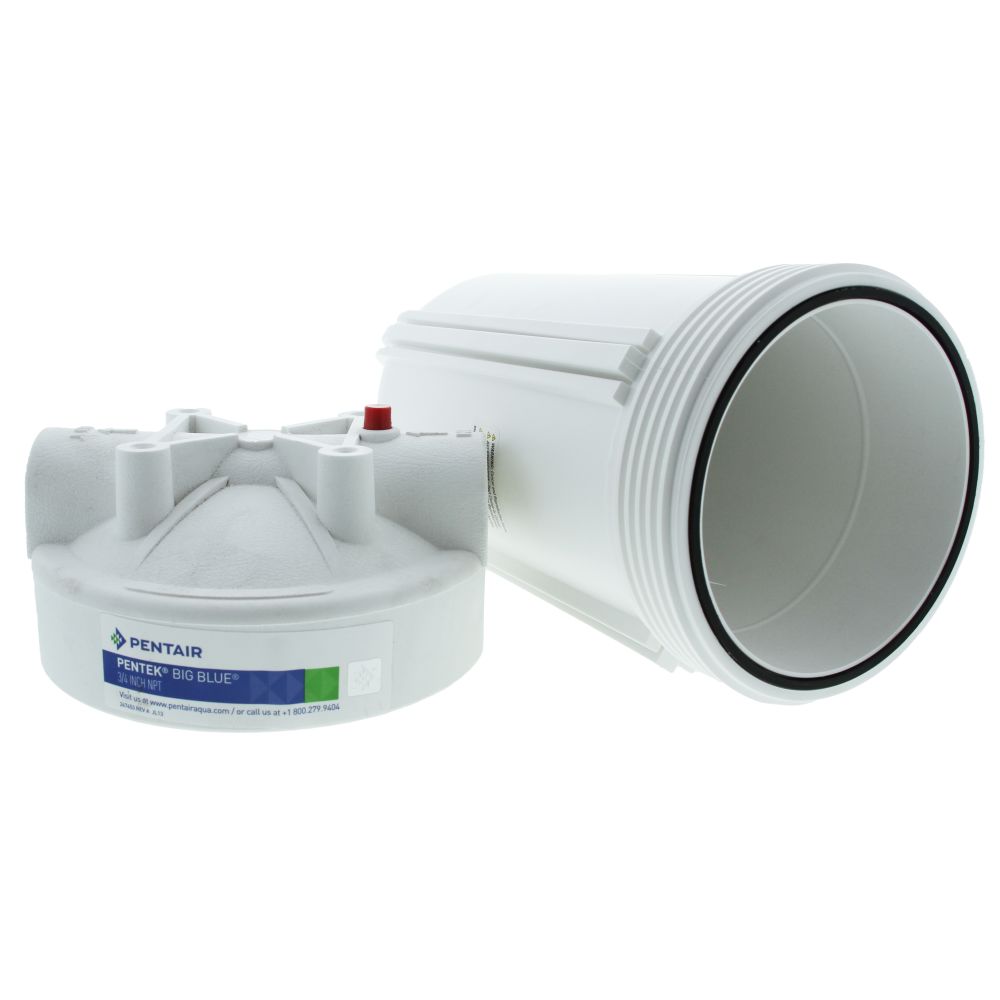

Polypropylene cap and sump
151254 Buna-N Square Cut O-ring
Max Temperature: 100°F
Max Pressure: 100 psi (6.9 bar)

Product Details
Cap Color	White
Features	Pressure Relief
Housing Material	Polypropylene
Inlet Connection	3/4" FPT 1" FPT
Material Of Construction	Polypropylene
Max Pressure (Psi)	100
Max Temp (°F)	100
Mounting Options	Mounting Bosses
O-Rings	Buna-N
Outlet Connection	3/4" FPT,1" FPT
Psid@Flow Rate	2 PSI @ 15 GPM
Size	10"
Cap Material	Polypropylene
Color / Finish	White
Connection Type	Female (FPT)
Type	Heavy Duty Big Blue® - White - Black
Shipping Dimensions
Shipping Length	14.75 in.
Shipping Width	7.75 in.
Shipping Height	7.75 in.
Product Weight & Dimensions
Product Height	7.125
Product Length	13.625
Product Width	7.125
Product Weight (lbs)	5.754
