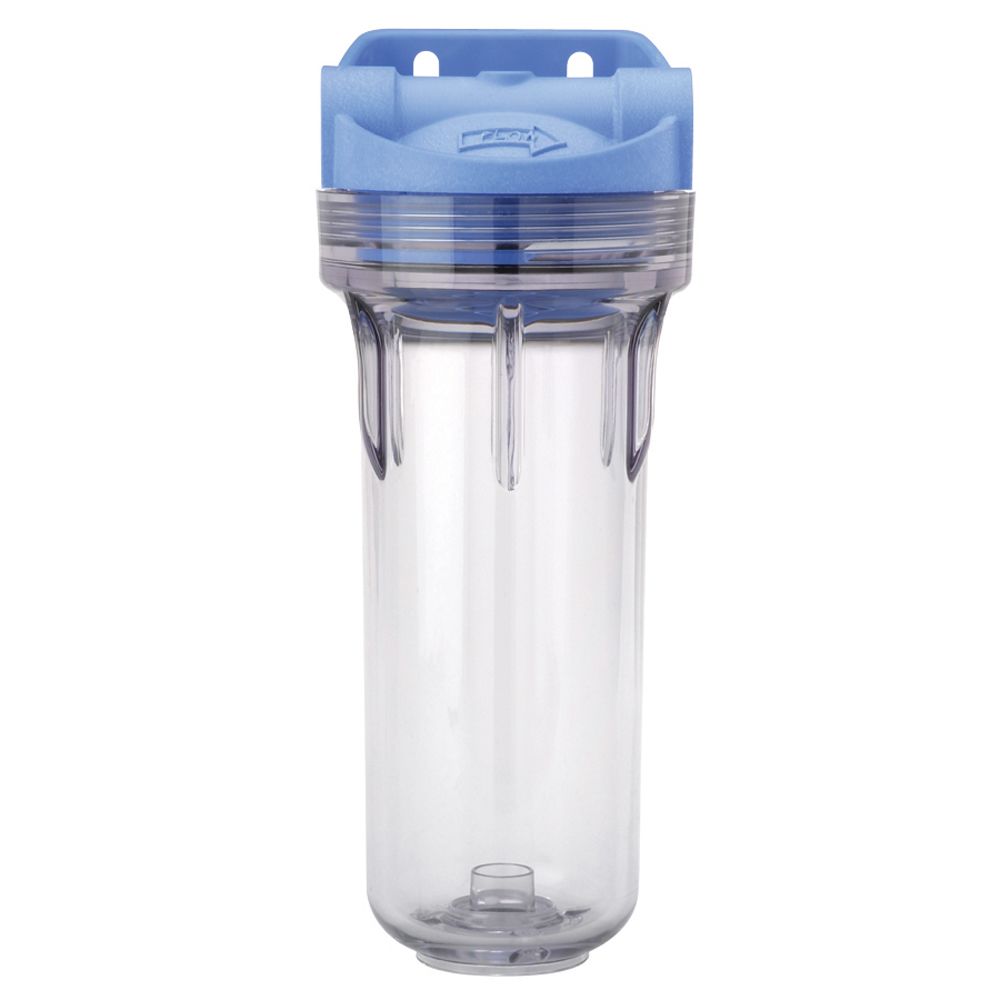

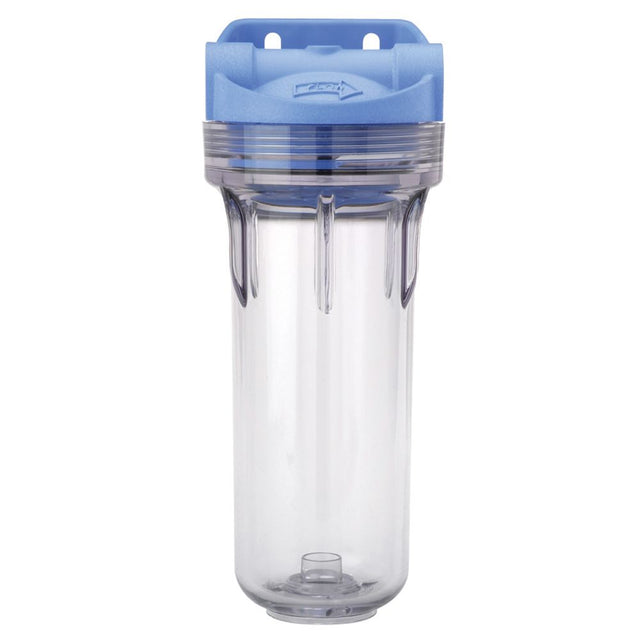

Pentek 150566 10

Pentek 3G Standard Filter Housings are made of durable polypropylene cap and styrene-acrylonitrile (SAN) sump and features 3/4" inlet and outlet ports. Clear housings offer on-site examination of the cartridge and accommodate a wide range of 2-1/4" to 3-1/8" diameter cartridges making them ideal for residential, commercial and industrial applications.

Features:

Ideal for a wide range of applications, including residential, commercial and industrial
Buttress threads for additional strength and easier cartridge changes
Thick walls for increased strength
Leak-proof sealing with top-seated 151120 Buna-N O-ring
Excellent chemical resistance
Integrated Mounting Bracket with Pressure Relief Button
Filter cartridge sold separately

Note: Clear Housing Sumps are more prone to leaking and cracking, and are not as resilient as their opaque counterparts. They may be significantly less able to handle high pressure, temperature, exposure to sunlight, and other stress. We highly recommend considering a black, blue, white, or grey opaque housing sump, especially if your system is operating under high pressure or temperature conditions. Fresh Water Systems offers heavy duty polypropylene filter housings in a variety of sizes and colors.

Compatible with:

American Plumber	WC34-PRB
Everpure	EV9795-80, E-10, EV3070-19
Nu-Calgon	4621-42

Product Details
Cap Color	Blue
Features	Pressure Relief
Housing Material	Styrene Acrylonitrile
Inlet Connection	3/4" FPT
Max Pressure (Psi)	125
Max Temp (°F)	125
Mounting Options	Integral Bracket
O-Rings	Buna-N
Outlet Connection	3/4" FPT
Psid@Flow Rate	1 PSI @ 10 GPM
Size	10"
Cap Material	Polypropylene
Color / Finish	Clear
Connection Type	Female (FPT)
Type	Standard
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	23.2 in.
Shipping Width	16.8 in.
Shipping Height	14.4 in.
Product Weight & Dimensions
Product Height	14.4 in.
Product Length	23.2 in.
Product Width	16.8 in.
Product Weight (lbs)	36.9

optional parts

Housing Install Kit for Slimline Housings

$15.49

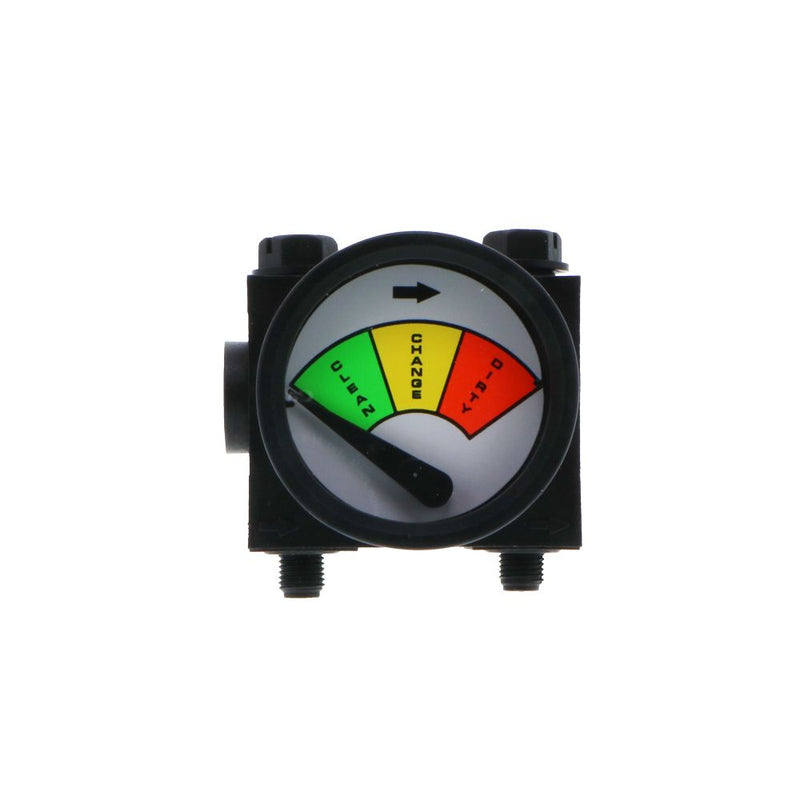

Pentek 143549 Differential Pressure Gauge With 3 Color Needle
