Home / Filters & Cartridges / Sediment Filters / Pentair 10" BB Graded Density Polypropylene Sediment Filter 25/1 mic

Pentair Water

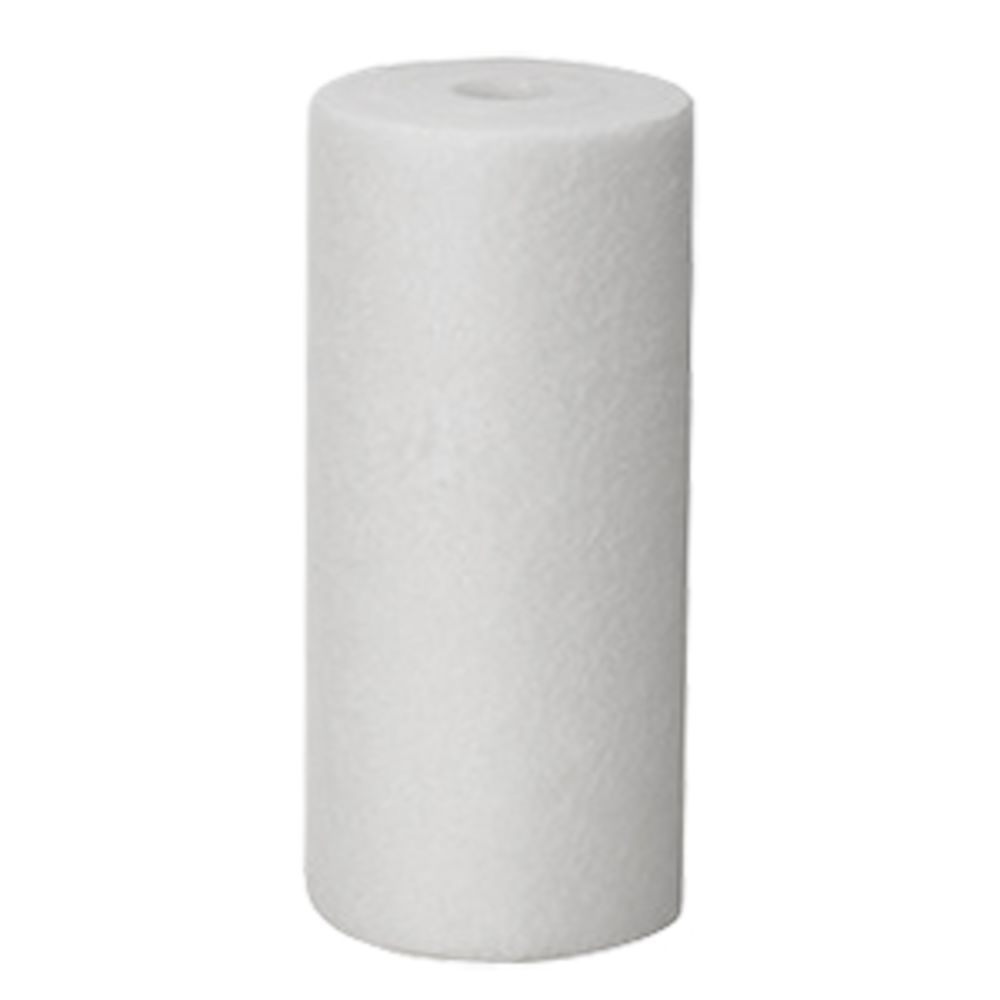

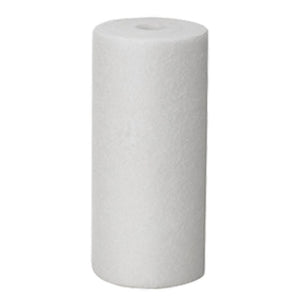

Pentair 10" BB Graded Density Polypropylene Sediment Filter 25/1 mic

4 Reviews

Part Number: 155359-43

Alt. Part Number: DGD-2501, SGD-45-1001, MB-45098-01

in stock

MSRP: $24.14

Your price:

$21.73

Choose

Single

$21.73 each

Box of 8

$21.73 each

Quantity

similar items

Neo-Pure 10" BB Graded Density Polypropylene Sediment Filter 25/1 mic

$12.03

The Pentair DGD Series Cartridges are designed for use in the Pentair/Pentek Big Blue Filter Housings. These 100% pure polypropylene filters provide superior chemical resistance and stop bacterial attacks. Pentair Dual Gradient Density (DGD) filters will not add taste, odor, or color to the liquid being filtered. These filters can be used in either a pre or post filtration application since they achieve up to 3 times the dirt holding capacity of similar sediment filters. The 155359-43 features a larger diameter, which reduces the particle load allowing it to operate at higher velocities. The increased depth of the DGD Series provides very high particulate reduction efficiencies and added loading capacity.

Features:

Ideal For a Variety of Applications. The design and performance characteristics of the DGD Series Cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.
All in One Design. The Pentair DGD Series Cartridges are a Dual Gradient Density Filter work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home.

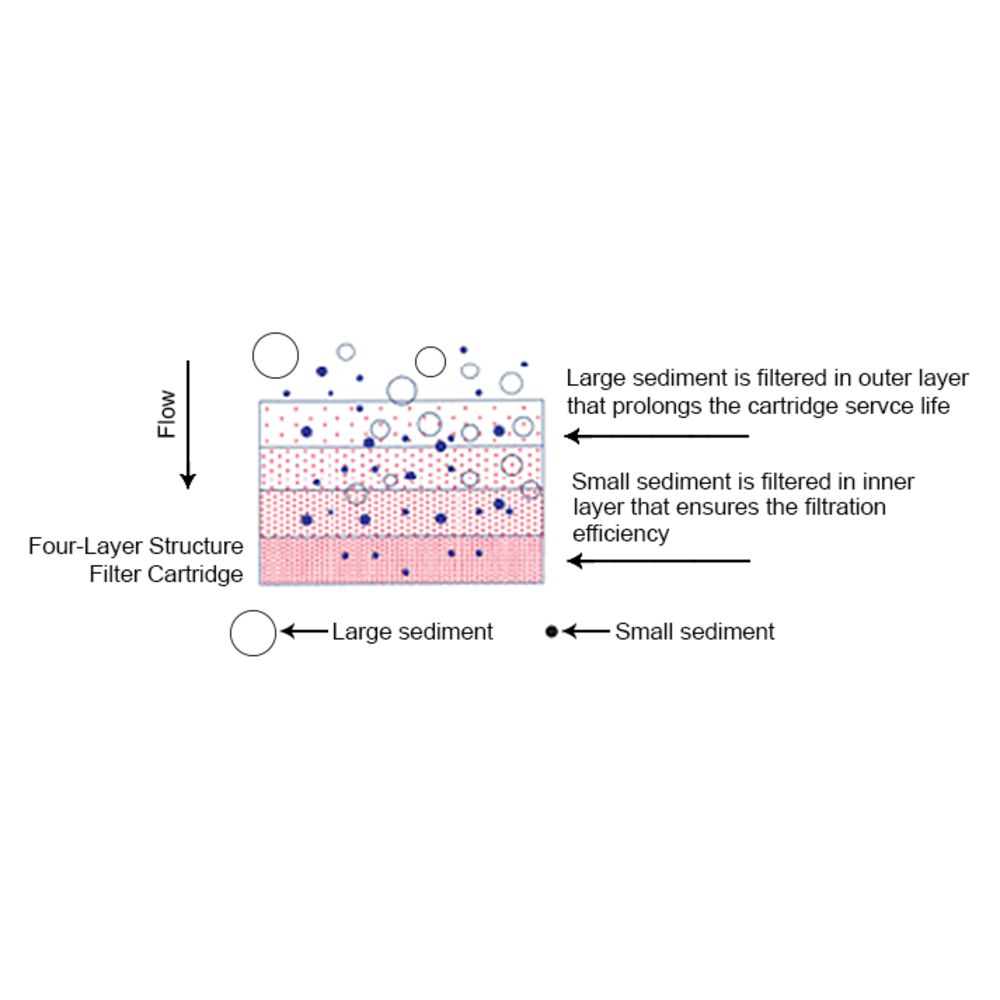

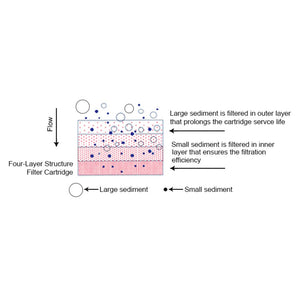

Ensures Your Water is Pure and Clean. The outer layer is a 25 micron pre-filter that takes out larger sediment, thus reducing the load on the 1 micron inner-layer post filter allowing it to operate more efficiently and consistently.

Specifications:

Length: 10"
Diameter: 4-1/2"
Micron Rating: Pre 25 μm / Post 1.0 μm
NSF 42 Certified
FDA CFR-21 Approved

NOTE: Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 10" Big Blue Housings.

Compatible with:

Bunn	S5-30
Everpure	EV9108-40, DEV9108-40
Filter Specialist	CMMF01975-45W1
Hydronix	SDC-45-1001
Liquatec	SDF-45-1001
OmniFilter, Flotec	RS16
Shurflo	15-052-02
Valuetrex	1227865-V-BB, VX01-10BB

Product Details
Body Material	Polypropylene
Efficiency	0.8
Initial Pressure Drop	<1 psi typical psid PSI Differential
Max Temp (°F)	175
Micron Rating (Nominal)	Post 1 µm
Min Temp (°F)	40
Psid@Flow Rate	< 1 psid @ 10 GPM
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Flow Rate	10 GPM
Media Type	Polypropylene
Micron Rating	1 µm 25 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.5
Product Length	10
Product Width	4.5
Product Weight (lbs)	1.25

Product Details
Body Material	Polypropylene
Efficiency	0.8
Initial Pressure Drop	<1 psi typical psid PSI Differential
Max Temp (°F)	175
Micron Rating (Nominal)	Post 1 µm
Min Temp (°F)	40
Psid@Flow Rate	< 1 psid @ 10 GPM
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	4-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Flow Rate	10 GPM
Media Type	Polypropylene
Micron Rating	1 µm 25 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10.75 in.
Shipping Height	9.204 in.
Product Weight & Dimensions
Product Height	10.75
Product Length	19.5
Product Width	10
Product Weight (lbs)	9.204

Ideal For a Variety of Applications. The design and performance characteristics of the DGD Series Cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.
All in One Design. The Pentair DGD Series Cartridges are a Dual Gradient Density Filter work as a pre and post filter all in one, eliminating the need for step-down filtration systems in your home.
Ensures Your Water is Pure and Clean. The outer layer is a 25 micron pre-filter that takes out larger sediment, thus reducing the load on the 1 micron inner-layer post filter allowing it to operate more efficiently and consistently.

Specifications:

Length: 10"
Diameter: 4-1/2"
Micron Rating: Pre 25 μm / Post 1.0 μm
NSF 42 Certified
FDA CFR-21 Approved

NOTE: Fits American Plumber, Aqua-Pure, Culligan, Pentek, Ametek and other 10" Big Blue Housings.

Compatible with:

Bunn	S5-30
Everpure	EV9108-40, DEV9108-40
Filter Specialist	CMMF01975-45W1
Hydronix	SDC-45-1001
Liquatec	SDF-45-1001
OmniFilter, Flotec	RS16
Shurflo	15-052-02
Valuetrex	1227865-V-BB, VX01-10BB
