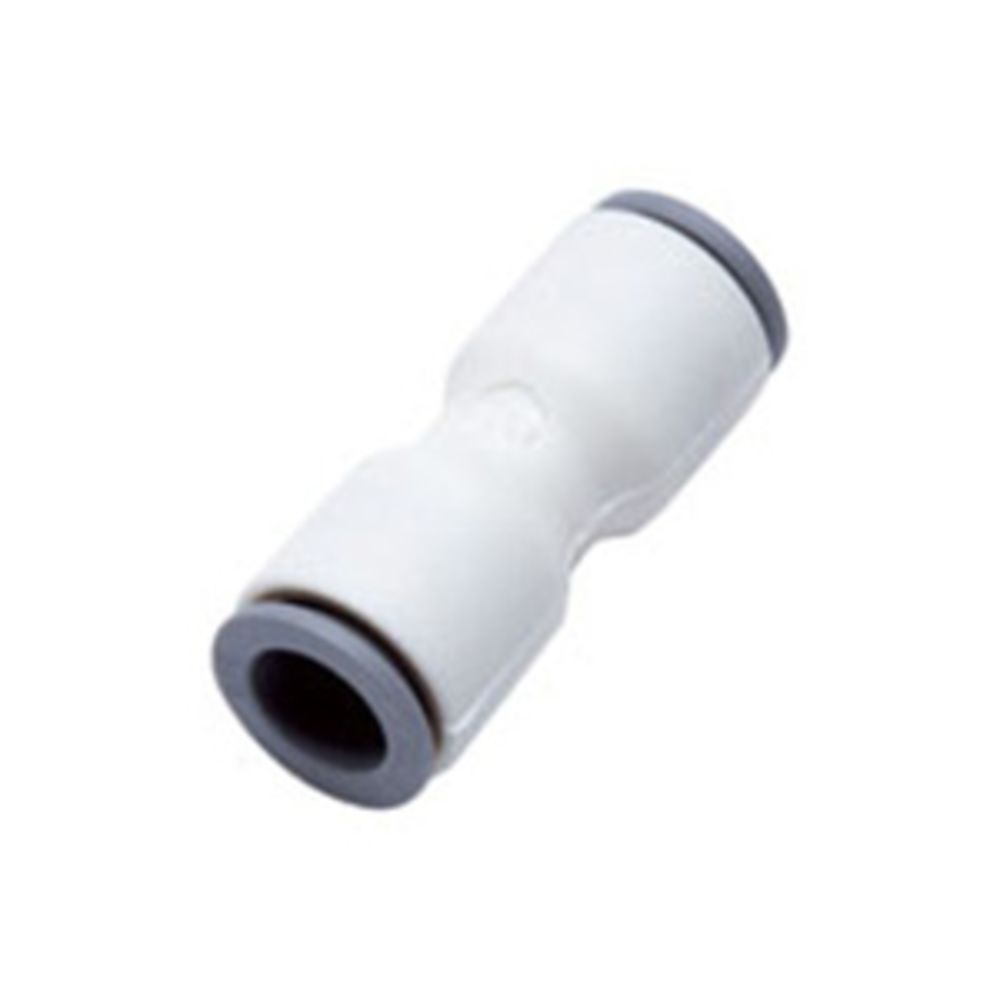

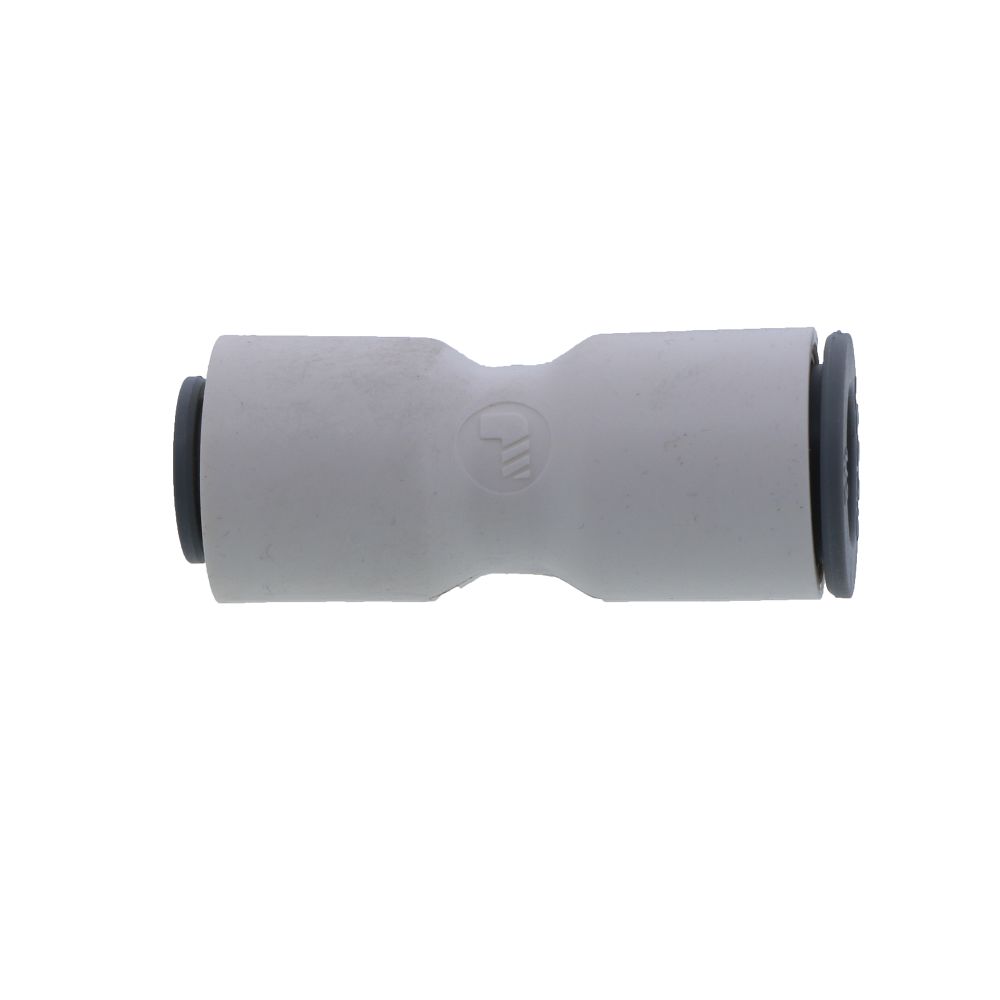

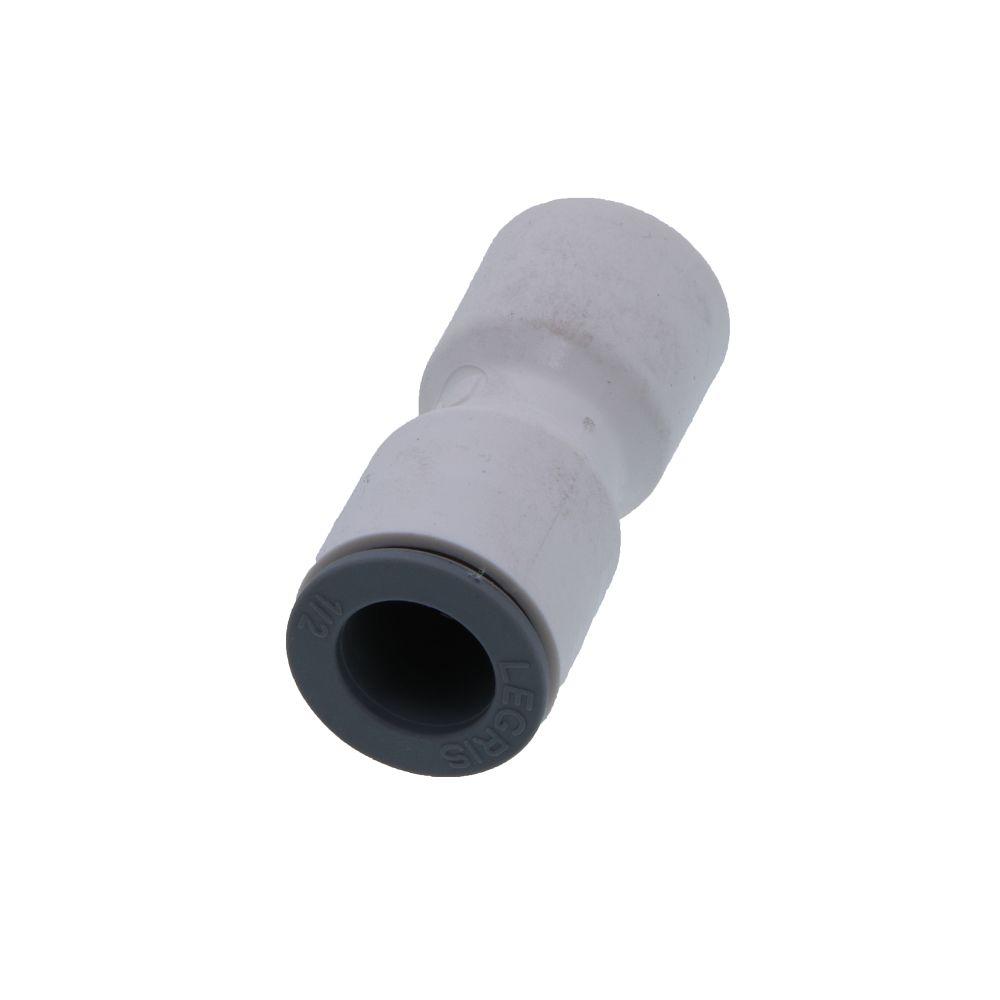

Parker LIQUIfit Union Connector - 3/8 x 1/2

Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed

Specifications:

Engineered Hi-Performance Nylon
High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F
Suitable for potable liquids and food applications

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water Food Beverage Air Carbonation
Body Material	Nylon
Max Pressure (Psi)	230
Max Temp (°F)	200
Min Pressure (Psi)	Vacuum
Min Temp (°F)	35
Mounting Options	Free Floating
Push-In Size	3/8" OD 1/2" OD
Seal Material	EPDM
Series	LIQUIFit
Shape	Straight
Color / Finish	White
Origin	Mexico
Sub-Type	Union Coupling
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51

Product Details
Application	Water Food Beverage Air Carbonation
Body Material	Nylon
Max Pressure (Psi)	230
Max Temp (°F)	200
Min Pressure (Psi)	Vacuum
Min Temp (°F)	35
Mounting Options	Free Floating
Push-In Size	3/8" OD 1/2" OD
Seal Material	EPDM
Series	LIQUIFit
Shape	Straight
Color / Finish	White
Origin	Mexico
Sub-Type	Union Coupling
Type	Coupling
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
