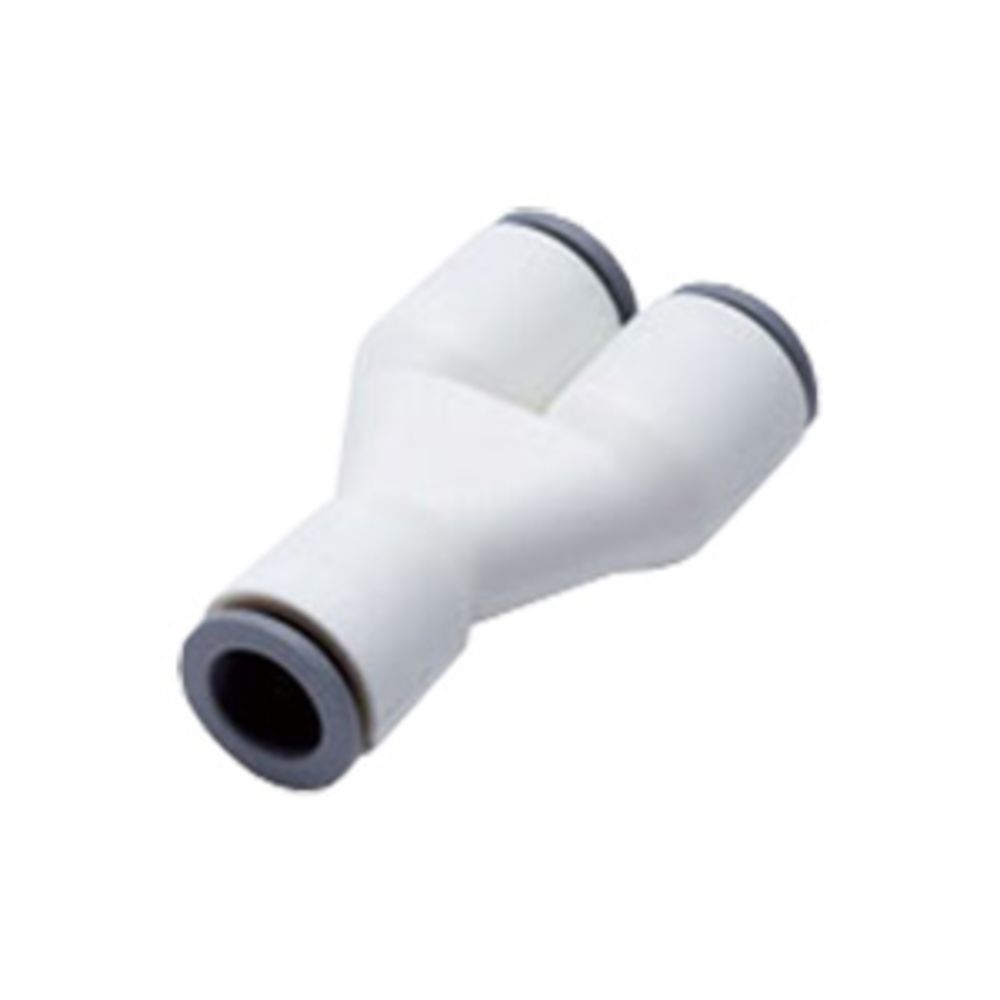

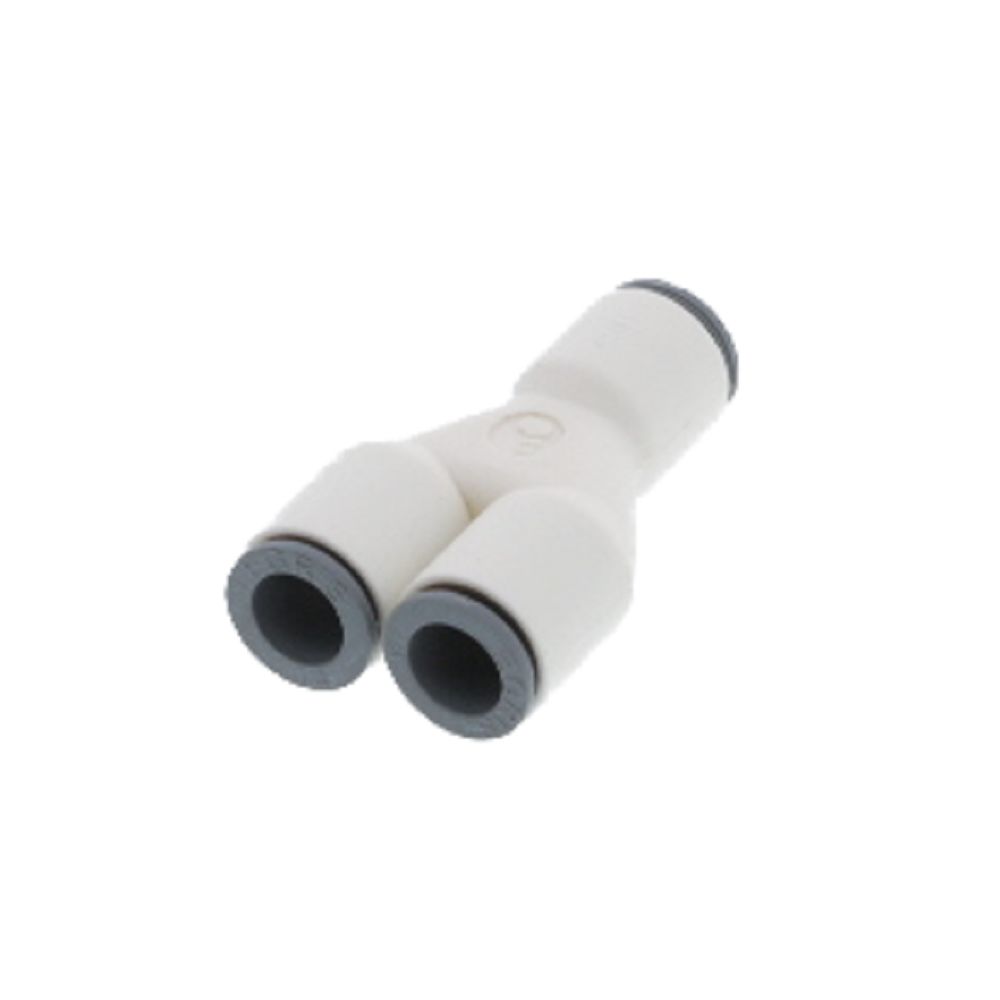

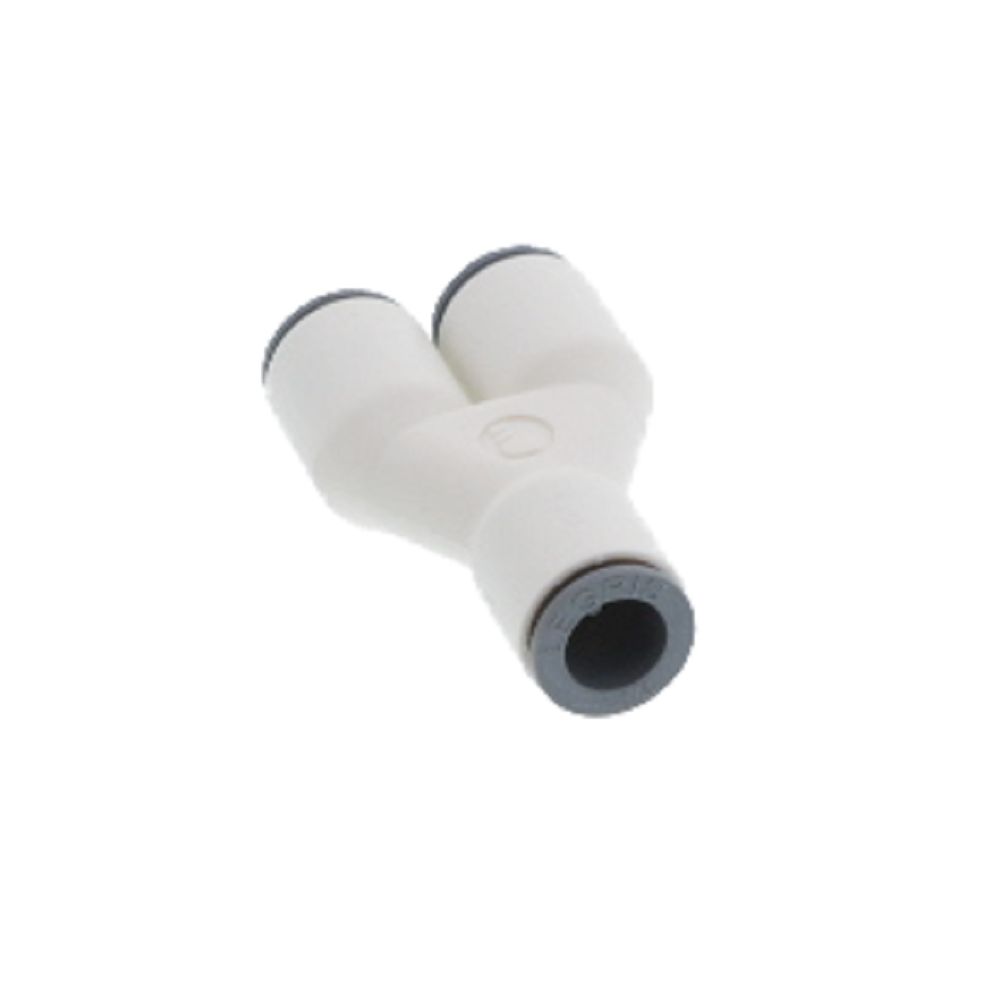

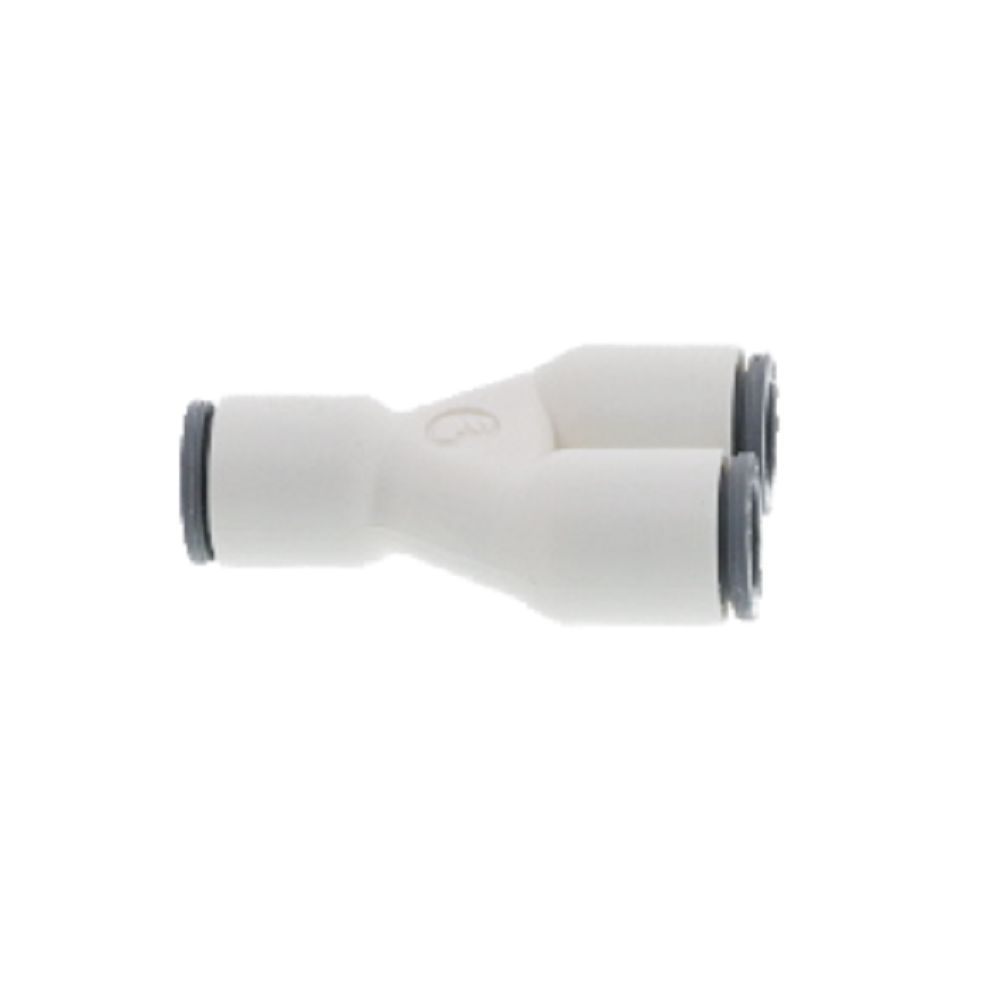

Parker LIQUIfit Two-Way Divider - 1/4

Parker's liquifit fittings ensure reliable and compact connections for liquid transfer applications. Liquifit offers an "eco-designed" innovative alternative for water applications; no fluid contamination occurs and environmental protection is guaranteed.

Specifications:

Engineered Hi-Performance Nylon
High chemical resistance
EPDM O-ring
FDA Approved material
NSF Standard 51 & 61 Certified
Temperature rated up to 200º F
Suitable for potable liquids and food applications

Product Details
Application	Water Food Beverage Air Carbonation
Body Material	Nylon
Max Pressure (Psi)	230
Max Temp (°F)	200
Min Pressure (Psi)	Vacuum
Min Temp (°F)	35
Mounting Options	Free Floating
Push-In Size	1/4" OD
Seal Material	EPDM
Series	LIQUIFit
Shape	Wye
Color / Finish	White
Sub-Type	Two-Way
Type	Divider
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51

Parker LIQUIfit Two-Way Divider - 1/4 Manual
