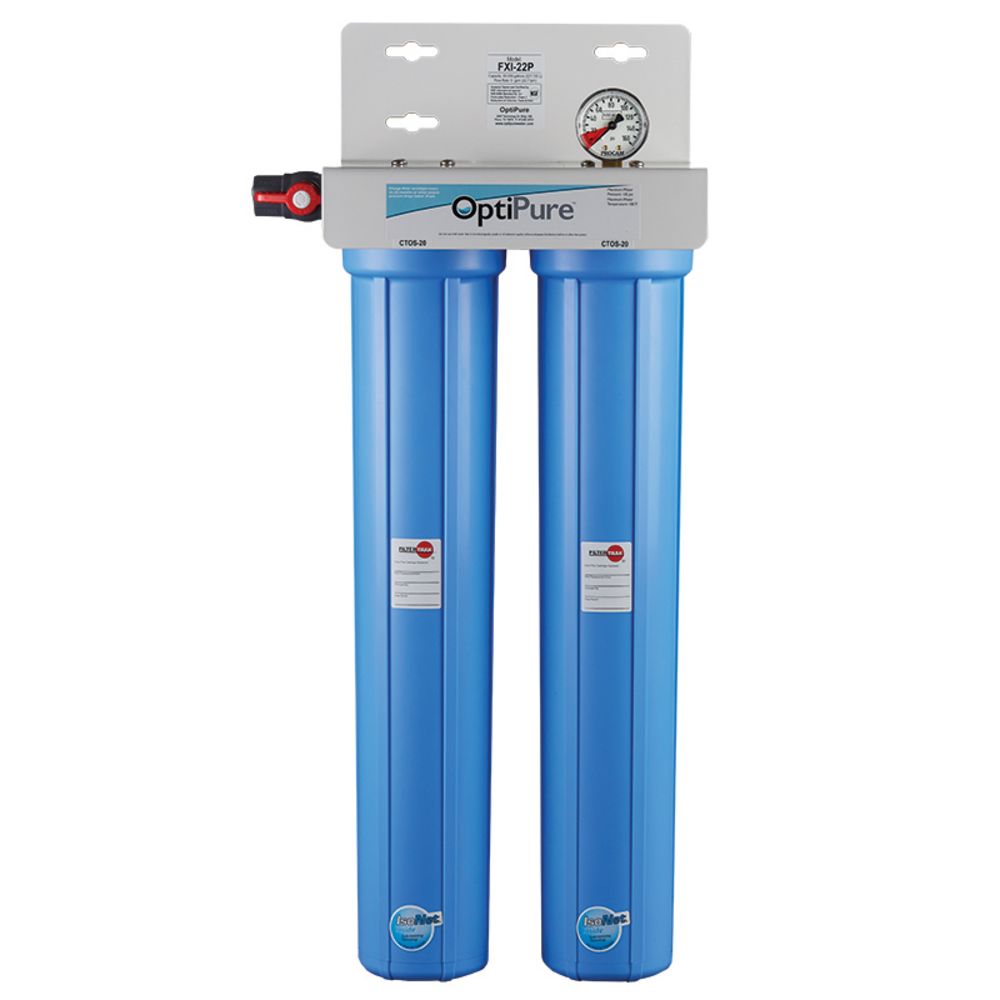

This Optipure 160-50120 FXI-22P Dual 20" System is a dual-housing water treatment system with drop-in 20” cartridges that reduces sediment down to 0.5-microns and reduces chlorine, taste & odor at a flow rate of 6.0 gpm for 60,000-gallons. The system includes IsoNet®, OptiPure’s patented scale inhibiting technology, which delivers consistent protection against the precipitation and accumulation of scale and provides a protective barrier to help guard against corrosion.

Features:

• IsoNet®, OptiPure’s patented scale-inhibiting technology, helps protect equipment against scale and corrosion for the rated capacity of the system.
• Reduces maintenance frequency and cost, and extends equipment life.
• Gradient-density sediment filtration protects against dirt, rust and other debris down to 0.5-microns.
• High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine.
• Sturdy, powder-coated mounting bracket and full-flow inlet shut-off valve simplify installation.
• Built-in pressure gauge allows visual monitoring of when filters need to be changed.
• Inlet shut-off and depressurization valves make filter replacement quick and simple.
• Minimizes waste by only replacing drop-in cartridges and reusing filter sumps.
• NSF Certified under Standard 42


Specifications:

• Connection: Inlet & Outlet 1/2” FNPT
• Operating Pressure Range: 10 - 125 psi (0.7 - 8.6 bar)
• Inlet Water Temperature Range: 35˚ - 100˚F (2˚ - 38˚C)
• Service Flow Rate: 6.0 gpm (22.7 lpm)
• Sediment Reduction: 0.5 microns (nominal)

Installation Tips:

• Feed-water connection to system should be COLD only.
• Do not exceed system specifications for temperature and pressure.
• Allow 3” clearance below system for filter housing removal and cartridge replacement.
• Detailed installation, operation and maintenance manual included with each system.
• No activation procedure or flushing required for system to perform as specified.
